Power Distribution Switches, Load Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Switch Type | Number of Outputs | Ratio - Input:Output | Output Configuration | Output Type | Interface | Voltage - Load | Voltage - Supply (Vcc/Vdd) | Current - Output (Max) | Rds On (Typ) | Input Type | Features | Fault Protection | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DRV103U/2K5IC PWR DRIVER N-CHAN 1:1 8SOIC |
1,581 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Relay, Solenoid Driver | 1 | 1:1 | Low Side | N-Channel | On/Off | 8V ~ 32V | Not Required | 1.5A | - | Non-Inverting | Internal PWM, Status Flag | Current Limiting (Fixed), Over Temperature | -55°C ~ 125°C (TA) | - | - | Surface Mount | 8-SOIC |
|
BTT62004ESAXUMA1IC PWR SWTCH N-CHAN 1:1 TSDSO-24 |
17,926 |
|
Datasheet |
24-TSSOP (0.154", 3.90mm Width) Exposed Pad | PROFET® | Tape & Reel (TR) | Active | General Purpose | 4 | 1:1 | High Side | N-Channel | On/Off | 5V ~ 36V | Not Required | 1A | 200mOhm | Non-Inverting | - | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-TSDSO-24-21 |
|
VNB20N07TR-EIC PWR DRIVER N-CHAN 1:1 D2PAK |
2,378 |
|
Datasheet |
TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | OMNIFET™, VIPower™ | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 55V (Max) | Not Required | 14A | 50mOhm (Max) | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, Over Voltage | - | - | - | Surface Mount | D2PAK |
|
BTF60702ERVXUMA1IC SWTCH HISIDE SMRT |
9,169 |
|
Datasheet |
14-SOIC (0.154", 3.90mm Width) Exposed Pad | PROFET® | Tape & Reel (TR) | Active | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 5 ~ 36V | Not Required | 2.3A | 120mOhm | Non-Inverting | - | Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-TDSO-14-21 |
|
BTT60101ERBXUMA1IC PWR SWITCH N-CHAN 1:1 TDSO-14 |
5,094 |
|
Datasheet |
14-SOIC (0.154", 3.90mm Width) Exposed Pad | PROFET® | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5V ~ 36V | Not Required | 9A | 10mOhm | Non-Inverting | - | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-TDSO-14-11 |
|
TDE1707BFPTIC PWR SWITCH BIPOLAR 1:2 8SO |
8,461 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | General Purpose | 2 | 1:2 | High Side or Low Side | Bipolar | On/Off | 6V ~ 48V | Not Required | 500mA | - | Non-Inverting | 5V Regulated Output | Current Limiting (Fixed), Over Temperature | -25°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
TPS1HTC30AQPWPRQ1AUTOMOTIVE, 60-V, 6-A, 30-M, ONE |
131 |
|
Datasheet |
14-TSSOP (0.173", 4.40mm Width) Exposed Pad | - | Tape & Reel (TR) | Active | Latched Driver | 1 | - | High Side | N-Channel | Logic, PWM | 6V ~ 60V | 6V ~ 60V | 6A | - | - | Shutdown | Reverse Current, UVLO | -40°C ~ 125°C (TA) | - | - | Surface Mount | 14-HTSSOP |
|
|
BV2HD070EFU-CE2AUTOMOTIVE 2CH 70 M HIGH-SIDE SW |
2,490 |
|
Datasheet |
16-LFSOP (0.154", 3.90mm Width) Exposed Pad | - | Tape & Reel (TR) | Active | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 6V ~ 28V | Not Required | 10A | 70mOhm | Non-Inverting | Slew Rate Controlled | Current Limiting (Fixed), Over Temperature, Reverse Current, Short Circuit, UVLO | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | 16-HSSOP-C |
|
MIC5801YWM-TRIC PWR DRIVER BIPOLAR 1:1 24SOIC |
5,745 |
|
Datasheet |
24-SOIC (0.295", 7.50mm Width) | - | Tape & Reel (TR) | Active | Latched Driver | 8 | 1:1 | Low Side | Bipolar | Strobe, Parallel | 50V (Max) | - | 500mA | - | - | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 24-SOIC |
|
|
MIC5801YWMIC PWR DRIVER BIPOLAR 1:1 24SOIC |
4,220 |
|
Datasheet |
24-SOIC (0.295", 7.50mm Width) | - | Tube | Active | Latched Driver | 8 | 1:1 | Low Side | Bipolar | Strobe, Parallel | 50V (Max) | - | 500mA | - | - | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 24-SOIC |
|
BTS6163DAUMA1IC PWR SWITCH N-CHAN 1:1 TO252-5 |
16,638 |
|
Datasheet |
TO-252-5, DPAK (4 Leads + Tab), TO-252AD | PROFET® | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 62V | Not Required | 21.5A | 16mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TO252-5-11 |
|
|
L6375STRIC PWR DRIVER N-CHAN 1:1 8SOIC |
5,508 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 8V ~ 35V | Not Required | 500mA | - | Non-Inverting | Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, UVLO | -25°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
TPS281C30BRGWR60-V TOLERANT, 30-M, 6-A, SINGLE |
866 |
|
Datasheet |
20-VQFN Exposed Pad | TPS281C30x | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 6V ~ 48V | Not Required | 6A | 29mOhm | Non-Inverting | Auto Restart, Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, Over Voltage, Short Circuit, UVLO | -40°C ~ 125°C (TA) | - | - | Surface Mount | 20-VQFN (5x5) |
|
BTS426L1E3062AAUMA1IC PWR SWITCH |
4,904 |
|
Datasheet |
TO-263-5, D2PAK (4 Leads + Tab), TO-263BB | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5V ~ 34V | Not Required | 7A | 50mOhm | Non-Inverting | Auto Restart, Slew Rate Controlled | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, Reverse Current, Short Circuit | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TO263-5-2 |
.jpg)
|
BTS436L2GATMA1IC PWR SWITCH N-CHAN 1:1 TO263-5 |
2,588 |
|
Datasheet |
TO-263-5, D2PAK (4 Leads + Tab), TO-263BB | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 4.75V ~ 41V | Not Required | 8.8A | 35mOhm | - | - | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TO263-5-2 |
|
BV2HD045EFU-CE2AUTOMOTIVE 2CH 45 M HIGH-SIDE SW |
3,582 |
|
Datasheet |
16-LFSOP (0.154", 3.90mm Width) Exposed Pad | - | Tape & Reel (TR) | Active | General Purpose | 2 | 1:1 | High Side | N-Channel | - | - | 6V ~ 28V | 21A | 45mOhm | CMOS | - | Current Limiting (Fixed), Open Load Detect, Over Temperature, UVLO | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | 16-HSSOP-C |
|
MAX893LESA+TIC PWR SWITCH P-CHAN 1:1 8SOIC |
7,534 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1.2A | 70mOhm | Non-Inverting | - | Current Limiting (Adjustable), Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
UDN2987LWTR-6-TIC PWR DRIVER BIPOLAR 1:1 20SOIC |
5,596 |
|
Datasheet |
20-SOIC (0.295", 7.50mm Width) | - | Tape & Reel (TR) | Not For New Designs | General Purpose | 8 | 1:1 | High Side | Bipolar | On/Off | 4.75V ~ 35V | Not Required | 350mA | - | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature | -20°C ~ 85°C (TA) | - | - | Surface Mount | 20-SOIC |
|

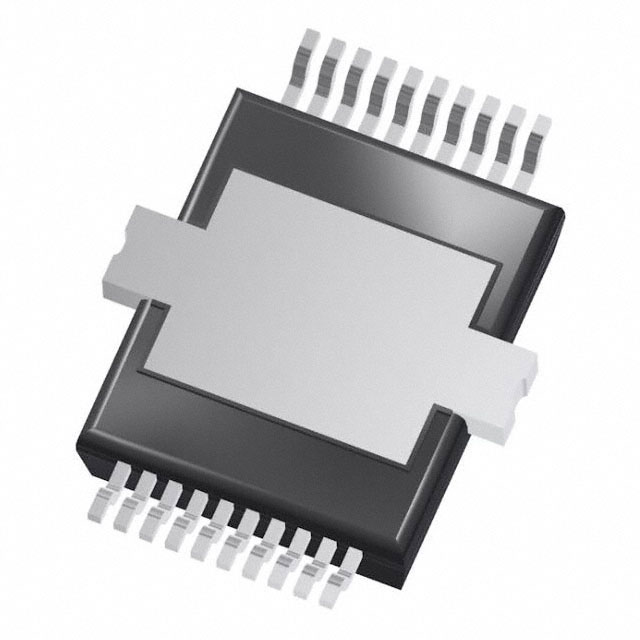

TLE9104SHXUMA1IC POWERTRAIN SWITCH DSO20-88 |
1,766 |
|
Datasheet |
20-BFSOP (0.295", 7.50mm Width) Exposed Pad | - | Tape & Reel (TR) | Active | General Purpose | 4 | 1:1 | Low Side | N-Channel | SPI | 50V ~ 60V | 3V ~ 5.5V | 3A | 150mOhm | Non-Inverting | Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Reverse Battery, Short Circuit | -40°C ~ 150°C | - | - | Surface Mount | PG-DSO-20-88 |
|
VN7003ALHTRIC PWR SWITCH N-CHAN 1:1 OCTAPAK |
1,191 |
|
Datasheet |
OctaPAK (7 leads + Tab) | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 4V ~ 28V | Not Required | 80A | 3.5mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | OctaPAK 7+1 |
