Power Distribution Switches, Load Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Switch Type | Number of Outputs | Ratio - Input:Output | Output Configuration | Output Type | Interface | Voltage - Load | Voltage - Supply (Vcc/Vdd) | Current - Output (Max) | Rds On (Typ) | Input Type | Features | Fault Protection | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BTS740S2XUMA1IC PWR SWITCH N-CHAN 1:1 DSO-20 |
7,726 |
|
Datasheet |
20-SOIC (0.295", 7.50mm Width) | PROFET® | Tape & Reel (TR) | Active | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 5V ~ 34V | Not Required | 4.9A | 27mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-DSO-20 |
.jpg)
|

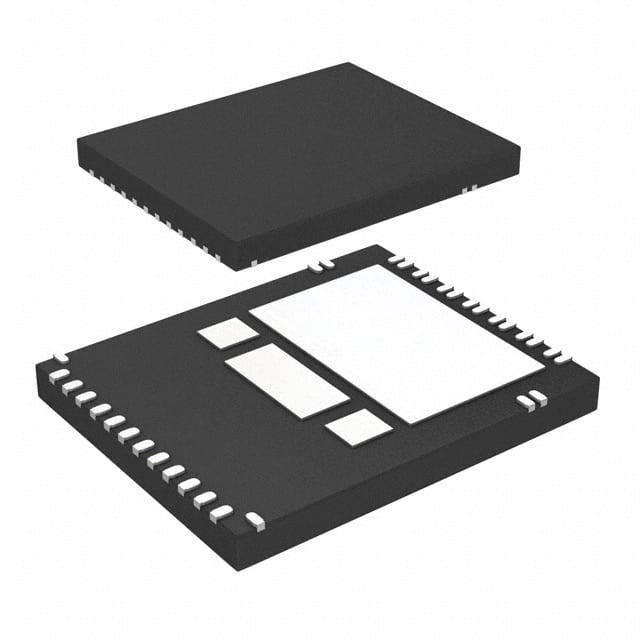

ISO8200AQTRIC PWR DRIVER 1:1 32TFQFPN |
2,751 |
|
Datasheet |
32-TQFN Exposed Pad | - | Tape & Reel (TR) | Active | Relay, Solenoid Driver | 8 | 1:1 | High Side | - | SPI | 10.5V ~ 36V | 2.75V ~ 5.5V | 700mA | 120mOhm | - | Auto Restart, Galvanic Isolation, Status Flag | Current Limiting (Fixed), Over Temperature, Over Voltage, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 32-TFQFPN (11x9) |
|
BTS500101TAEATMA1IC PWR HIC-PROFET N-CH 1:1 TO263 |
3,677 |
|
Datasheet |
TO-263-7, D2PAK (6 Leads + Tab), TO-263CB | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 8V ~ 18V | Not Required | 48A | 1.6mOhm | Non-Inverting | - | Over Temperature, Over Voltage, Short Circuit | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | P/PG-TO-263-7-10 |
|
L9822EPD013TRIC PWR DRIVER 1:8 PWRSO20 |
1,408 |
|
Datasheet |
20-SOIC (0.433", 11.00mm Width) Exposed Pad | - | Tape & Reel (TR) | Active | Relay, Solenoid Driver | 8 | 1:8 | Low Side | - | SPI | 4.5V ~ 5.5V | - | - | 550mOhm | - | Status Flag | Current Limiting (Fixed) | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PowerSO-20 |
|
TLE7230RAUMA1IC PWR SWITCH N-CHAN 1:8 DSO-36 |
870 |
|
Datasheet |
36-BSSOP (0.433", 11.00mm Width) Exposed Pad | - | Tape & Reel (TR) | Active | General Purpose | 8 | 1:8 | Low Side | N-Channel | SPI | 4.5V ~ 5.5V | - | - | 800mOhm | - | Status Flag | Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-DSO-36 |
|
VN808CM-32-EIC PWR DRIVER N-CHAN 1:1 PWRSO36 |
582 |
|
Datasheet |
36-PowerBSSOP (0.433", 11.00mm Width) | VIPower™ | Tube | Active | General Purpose | 8 | 1:1 | High Side | N-Channel | On/Off | 10.5V ~ 45V | Not Required | 1A | 160mOhm (Max) | Non-Inverting | Auto Restart, Status Flag | Current Limiting (Fixed), Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | PowerSO-36, Bottom Pad |
|
|
VN808CM-EIC PWR DRIVER N-CHAN 1:1 PWRSO36 |
176 |
|
Datasheet |
36-PowerBSSOP (0.433", 11.00mm Width) | VIPower™ | Tube | Active | General Purpose | 8 | 1:1 | High Side | N-Channel | On/Off | 10.5V ~ 45V | Not Required | 700mA | 160mOhm (Max) | Non-Inverting | Auto Restart, Status Flag | Current Limiting (Fixed), Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | PowerSO-36, Bottom Pad |
|
|
BTS721L1XUMA1IC PWR SWITCH N-CHAN 1:1 DSO-20 |
1,583 |
|
Datasheet |
20-SOIC (0.295", 7.50mm Width) | PROFET® | Tape & Reel (TR) | Active | General Purpose | 4 | 1:1 | High Side | N-Channel | On/Off | 5V ~ 34V | Not Required | 2.5A | 85mOhm | Non-Inverting | Auto Restart, Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-DSO-20 |
|
MAX4821EUP+TIC PWR DRIVER N-CHAN 1:8 20TSSOP |
9,447 |
|
Datasheet |
20-TSSOP (0.173", 4.40mm Width) Exposed Pad | - | Tape & Reel (TR) | Active | Relay, Solenoid Driver | 8 | 1:8 | Low Side | N-Channel | Parallel, Serial | 2.3V ~ 5.5V | - | 70mA | 2Ohm | - | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-TSSOP-EP |
|
MAX4820ETP+TIC PWR DRIVER N-CHAN 1:8 20TQFN |
2,000 |
|
Datasheet |
20-WFQFN Exposed Pad | - | Tape & Reel (TR) | Active | Relay, Solenoid Driver | 8 | 1:8 | Low Side | N-Channel | SPI | 2.3V ~ 5.5V | - | 70mA | 2Ohm | - | - | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 20-TQFN (4x4) |
|
MPQ5069GQV-AEC1-Z7M PROTECTION SWITCH WITH CURREN |
1,722 |
|
Datasheet |
22-PowerVFQFN | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | - | On/Off | 6V ~ 28V | Not Required | 15A | 7mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled | Current Limiting (Adjustable), Over Temperature, UVLO | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 22-QFN (3x5) |
|
MAX14914ATE+TIC PWR SWITCH 1:1 16TQFN |
2,845 |
|
Datasheet |
16-WQFN Exposed Pad | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | - | Logic | 10V ~ 40V | 2.5V ~ 5.5V | 1.3A | 120mOhm | - | Status Flag | Current Limiting (Adjustable), Over Temperature | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TQFN (4x4) |
|
|
MAX4820EUP+TIC PWR DRIVER N-CHAN 1:8 20TSSOP |
3,563 |
|
Datasheet |
20-TSSOP (0.173", 4.40mm Width) Exposed Pad | - | Tape & Reel (TR) | Active | Relay, Solenoid Driver | 8 | 1:8 | Low Side | N-Channel | SPI | 2.3V ~ 5.5V | - | 70mA | 2Ohm | - | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-TSSOP-EP |
|
BTS3018TCATMA1IC PWR SWITCH N-CHAN 1:1 TO263-3 |
683 |
|
Datasheet |
TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | HITFET® | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 60V (Max) | Not Required | 6A | 18mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TO263-3-2 |
|
|
ITS42008SBDAUMA1IC PWR SWITCH N-CHAN 1:1 DSO-36 |
1,301 |
|
Datasheet |
36-BSSOP (0.433", 11.00mm Width) Exposed Pad | - | Tape & Reel (TR) | Active | General Purpose | 8 | 1:1 | High Side | N-Channel | Parallel | 11V ~ 45V | Not Required | - | 150mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | -25°C ~ 125°C (TJ) | - | - | Surface Mount | PG-DSO-36-26 |
|
TDE1798DPIC PWR SWITCH BIPLR 1:1 8MINIDIP |
2,706 |
|
Datasheet |
8-DIP (0.300", 7.62mm) | - | Tube | Active | General Purpose | 1 | 1:1 | High Side | Bipolar | On/Off | 6V ~ 35V | Not Required | 500mA | - | Inverting, Non-Inverting | - | Over Temperature | -25°C ~ 85°C (TA) | - | - | Through Hole | 8-Mini DIP |
|
|
MAX4821EUP+IC PWR DRIVER N-CHAN 1:8 20TSSOP |
573 |
|
Datasheet |
20-TSSOP (0.173", 4.40mm Width) Exposed Pad | - | Tube | Active | Relay, Solenoid Driver | 8 | 1:8 | Low Side | N-Channel | Parallel, Serial | 2.3V ~ 5.5V | - | 70mA | 2Ohm | - | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-TSSOP-EP |
|
|
MAX4820ETP+IC PWR DRIVER N-CHAN 1:8 20TQFN |
0 |
|
Datasheet |
20-WFQFN Exposed Pad | - | Tube | Active | Relay, Solenoid Driver | 8 | 1:8 | Low Side | N-Channel | SPI | 2.3V ~ 5.5V | - | 70mA | 2Ohm | - | - | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 20-TQFN (4x4) |
|
|
ITS4880RCUMA1IC PWR SWITCH N-CHAN 1:1 DSO-36 |
1,192 |
|
Datasheet |
36-BSSOP (0.433", 11.00mm Width) Exposed Pad | miniPROFET® | Tape & Reel (TR) | Active | General Purpose | 8 | 1:1 | High Side | N-Channel | On/Off | 11V ~ 45V | Not Required | 625mA | 150mOhm | Non-Inverting | Auto Restart, Status Flag | Current Limiting (Fixed), Over Temperature, Over Voltage | -30°C ~ 85°C (TA) | - | - | Surface Mount | PG-DSO-36-26 |
|
|
ISO1H811GAUMA1IC PWR DRIVER N-CHAN 1:1 DSO-36 |
1,965 |
|
Datasheet |
36-BSSOP (0.433", 11.00mm Width) Exposed Pad | ISOFACE™ | Tape & Reel (TR) | Active | Relay, Solenoid Driver | 8 | 1:1 | High Side | N-Channel | Parallel | 11V ~ 35V | 3V ~ 5.5V | 625mA | 150mOhm | - | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage | -25°C ~ 125°C (TJ) | - | - | Surface Mount | PG-DSO-36 |
