Gate Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) | Input Type | High Side Voltage - Max (Bootstrap) | Rise / Fall Time (Typ) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MP18024HN-LFIC GATE DRVR HALF-BRIDGE 8SOIC |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tube | Active | Not Verified | Half-Bridge | Independent | 2 | N-Channel MOSFET | 9V ~ 16V | 1V, 2.4V | - | Non-Inverting | 100 V | 15ns, 9ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOICE |
|
MPQ18021HS-A-LFIC GATE DRVR HALF-BRIDGE 8SOIC |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Not Verified | Half-Bridge | Independent | 2 | N-Channel MOSFET | 9V ~ 18V | 1V, 2.4V | 2.5A, 2.5A | Non-Inverting | 115 V | 12ns, 9ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
MPQ18021HS-A-LF-ZIC GATE DRVR HALF-BRIDGE 8SOIC |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | Independent | 2 | N-Channel MOSFET | 9V ~ 18V | 1V, 2.4V | 2.5A, 2.5A | Non-Inverting | 115 V | 12ns, 9ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
IR7184SPBFIC GATE DRVR HALF-BRIDGE 8SO |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Not Verified | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.7V | 1.9A, 2.3A | Non-Inverting | 700 V | 40ns, 20ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
IR7184STRPBFIC GATE DRVR HALF-BRIDGE 8SOIC |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.7V | 1.9A, 2.3A | Non-Inverting | 700 V | 40ns, 20ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
MIC4608YMIC GATE DRVR HALF-BRIDGE 14SOIC |
0 |
|
- |
- | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 1A, 1A | Non-Inverting | 600 V | 31ns, 31ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 14-SOIC |
|
|
MIC4608YM-TRIC GATE DRVR HALF-BRIDGE 14SOIC |
0 |
|
- |
- | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 1A, 1A | Non-Inverting | 600 V | 31ns, 31ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 14-SOIC |
|
|
MIC4608YM-T5IC GATE DRVR HALF-BRIDGE 14SOIC |
0 |
|
- |
- | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 1A, 1A | Non-Inverting | 600 V | 31ns, 31ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 14-SOIC |
|
NCP81382MNTXGIC GATE DRVR HI/LOW SIDE 36QFN |
0 |
|
Datasheet |
- | 36-TFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Not Verified | High-Side or Low-Side | Synchronous | 1 | N-Channel MOSFET | 4.5V ~ 5.5V | - | - | Non-Inverting | 35 V | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 36-QFN (6x4) |
|

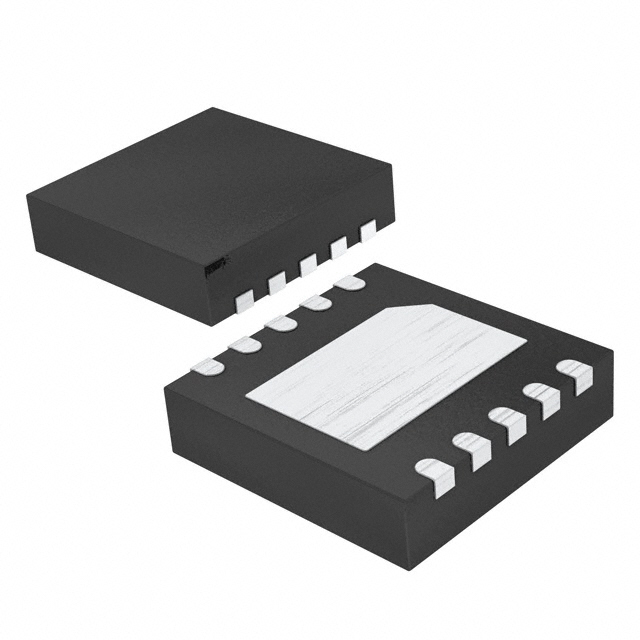

PX3517FTMA1IC GATE DRVR HALF-BRIDGE 10TDSON |
0 |
|
Datasheet |
- | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Not Verified | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 4.5V ~ 8V | 0.8V, 2.5V | 2A, 2A | Non-Inverting | 30 V | 10ns, 10ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 10-TDSON (3x3) |
 Exposed Pad.jpg)
|
2EDN7524RXUMA1IC GATE DRVR LOW-SIDE 8TSSOP |
0 |
|
Datasheet |
EiceDRIVER™ | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Discontinued at Digi-Key | Not Verified | Low-Side | Independent | 2 | N-Channel MOSFET | 4.5V ~ 20V | - | 5A, 5A | Non-Inverting | - | 5.3ns, 4.5ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TSSOP-8 |
|
IX2120BIC GATE DRVR HALF-BRIDGE 28SOIC |
0 |
|
- |
- | 28-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 15V ~ 20V | 6V, 9.5V | 2A, 2A | Non-Inverting | 1200 V | 9.4ns, 9.7ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 28-SOIC |
|
IPN10ELSXUMA1IC GATE DRVR HALF-BRIDGE SSOP-14 |
0 |
|
Datasheet |
- | 14-LSSOP (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | Not Verified | Half-Bridge | Independent | 2 | N-Channel, P-Channel MOSFET | 4V ~ 40V | 0.8V, 3.5V | 400mA, 400mA | Non-Inverting | - | 380ns, 380ns | -40°C ~ 150°C (TJ) | Automotive | - | Surface Mount | PG-SSOP-14 |
|
|
IX4423MTRIC GATE DRVR LOW-SIDE |
0 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | Not Verified | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 4.5V ~ 30V | 0.8V, 3V | 3A, 3A | Inverting | - | 18ns, 18ns | -55°C ~ 150°C (TJ) | - | - | - | - |
|
|
IX4424MTRIC GATE DRVR LOW-SIDE |
0 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | Not Verified | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 4.5V ~ 30V | 0.8V, 3V | 3A, 3A | Non-Inverting | - | 18ns, 18ns | -55°C ~ 150°C (TJ) | - | - | - | - |
|
|
IX4425MTRIC GATE DRVR LOW-SIDE |
0 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | Not Verified | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 4.5V ~ 30V | 0.8V, 3V | 3A, 3A | Non-Inverting | - | 18ns, 18ns | -55°C ~ 150°C (TJ) | - | - | - | - |
|
|
AUIRS20162STRIC GATE DRVR HIGH-SIDE 8SOIC |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | High-Side | Single | 1 | N-Channel MOSFET | 4.4V ~ 20V | - | 250mA, 250mA | Non-Inverting | 150 V | 200ns, 200ns | -55°C ~ 155°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 8-SOIC |
|
|
IRS2005SPBFIC GATE DRVR HALF-BRIDGE 8SOIC |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 290mA, 600mA | Non-Inverting | 200 V | 70ns, 30ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
IRS2807DSPBFIC GATE DRVR HI/LOW SIDE 8SOIC |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Not Verified | High-Side or Low-Side | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 200mA, 350mA | Non-Inverting | 600 V | 150ns, 50ns | -40°C ~ 125°C (TA) | - | - | Surface Mount | PG-DSO-8-903 |
|
|
IRS21851CIC GATE DRVR HIGH-SIDE 8SOIC |
0 |
|
Datasheet |
- | - | Bulk | Obsolete | Not Verified | High-Side | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 8-SOIC |
Gate Drivers Electronic Components
Explore Gate Drivers electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
