Gate Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) | Input Type | High Side Voltage - Max (Bootstrap) | Rise / Fall Time (Typ) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VLA567-21RIC GATE DRVR HALF-BRIDGE MODULE |
0 |
|
- |
- | 44-DIP Module, 28 Leads | Bulk | Active | - | Low-Side | Single | 1 | IGBT | 14.2V ~ 15.8V | - | 8A, 8A | Inverting, Non-Inverting | - | 400ns, 300ns | -20°C ~ 70°C | - | - | Through Hole | 44-DIP |
|
NCV81071AZR2GLOW SIDE MOSFET DRIVER, DUAL 5A |
0 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Bulk | Discontinued at Digi-Key | - | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 4.5V ~ 20V | 1.2V, 1.8V | 5A, 5A | CMOS, TTL | - | 8ns, 8ns | -40°C ~ 140°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 8-MSOP-EP |
|
NCP3418PDR2DUAL BOOTSTRAPPED 12 V MOSFET DR |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Bulk | Discontinued at Digi-Key | - | High-Side and Low-Side | Synchronous | 2 | N-Channel MOSFET | 4.6V ~ 13.2V | 0.8V, 2V | - | Non-Inverting | 30 V | 18ns, 10ns | 0°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC-EP |
|
NCP3418DDUAL BOOTSTRAPPED 12 V MOSFET DR |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Bulk | Discontinued at Digi-Key | - | High-Side and Low-Side | Synchronous | 2 | N-Channel MOSFET | 4.6V ~ 13.2V | 0.8V, 2V | - | Inverting, Non-Inverting | 30 V | 18ns, 10ns | 0°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
NCP81258HMNTBGMOSFET DRIVER, VR12 COMPATIBLE, |
0 |
|
Datasheet |
- | 8-VFDFN Exposed Pad | Bulk | Discontinued at Digi-Key | - | High-Side and Low-Side | Synchronous | 2 | N-Channel MOSFET | 4.5V ~ 13.2V | 0.7V, 3.4 V | - | Non-Inverting | - | 16ns, 11ns | -10°C ~ 125°C (TA) | - | - | Surface Mount | 8-DFN (2x2) |
|
|
FAN1110B-F085IGNITION GATE DRIVER IC IGNITION |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Bulk | Discontinued at Digi-Key | - | High-Side | Single | 1 | IGBT | 4V ~ 28V | 2.1V, 1.7V | 12A, 12A | Inverting, Non-Inverting | - | - | -40°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-SOIC |
|
|
NCD5707BDR2GIGBT GATE DRIVERS, HIGH-CURRENT, |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Bulk | Discontinued at Digi-Key | - | Half-Bridge | Single | 1 | IGBT, N-Channel MOSFET | 7V ~ 20V | 0.75V, 4.3V | 7.8A, 6.8A | Inverting | - | 9.2ns, 7.9ns | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-SOIC |
|

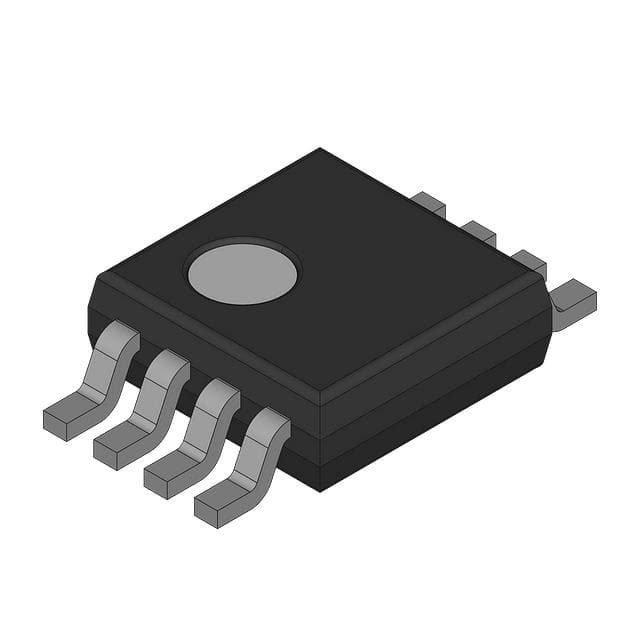

NCV81071CZR2GLOW SIDE MOSFET DRIVER, DUAL 5A |
0 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Bulk | Discontinued at Digi-Key | - | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 4.5V ~ 20V | 1.2V, 1.8V | 5A, 5A | CMOS, TTL | - | 8ns, 8ns | -40°C ~ 140°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 8-MSOP-EP |
|
|
CS8312YD8IGBT IGNITION PREDRIVER WITH DYN |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Bulk | Discontinued at Digi-Key | - | Low-Side | Single | 1 | IGBT, N-Channel, P-Channel MOSFET | 7V ~ 10V | - | - | Non-Inverting | - | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
NCV81071BZR2GLOW SIDE MOSFET DRIVER, DUAL 5A |
0 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Bulk | Discontinued at Digi-Key | - | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 4.5V ~ 20V | 1.2V, 1.8V | 5A, 5A | CMOS, TTL | - | 8ns, 8ns | -40°C ~ 140°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 8-MSOP-EP |
|
|
ADP3418KRZ-REELDUAL BOOTSTRAPPED, 12 V MOSFET D |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Bulk | Discontinued at Digi-Key | - | High-Side | Synchronous | 2 | N-Channel, P-Channel MOSFET | 4.15V ~ 13.2V | 0.8V, 2.8V | - | Inverting, Non-Inverting | - | 35ns, 20ns | 0°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
NCV7518MWTXGFLEXMOS HEX LOW-SIDE MOSFET PRE- |
0 |
|
Datasheet |
FLEXMOS™ | 32-VFQFN Exposed Pad | Bulk | Discontinued at Digi-Key | - | Low-Side | Independent | 6 | N-Channel MOSFET | 4.75V ~ 5.25V | 2V, 0.8V | 2mA, 2mA | Non-Inverting | - | - | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 32-QFN (5x5) |
|
|
ATA6847T-3333H/NHX42V 3-PHASE MOTOR DRIVER WITH 3. |
0 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ATA6847T-5050H/NHX42V 3-PHASE MOTOR DRIVER WITH 5V |
0 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ATA6847T-5033H/NHX42V 3-PHASE MOTOR DRIVER 5V/3.3V |
0 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
