Gate Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) | Input Type | High Side Voltage - Max (Bootstrap) | Rise / Fall Time (Typ) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX5063DASAIC GATE DRVR HALF-BRIDGE 8SOIC |
0 |
|
- |
- | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tube | Obsolete | Not Verified | Half-Bridge | Independent | 2 | N-Channel MOSFET | 8V ~ 12.6V | 0.8V, 2V | 2A, 2A | Inverting, Non-Inverting | 125 V | 65ns, 65ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC-EP |
|
IR1169SPBFIC GATE DRVR LOW-SIDE 8SOIC |
0 |
|
Datasheet |
Advanced Smart Rectifier™ | 8-SOIC (0.154", 3.90mm Width) | Tube | Discontinued at Digi-Key | Not Verified | Low-Side | Single | 1 | N-Channel MOSFET | 11V ~ 19V | 2V, 2.25V | 1A, 4A | Inverting | - | 20ns, 10ns | -25°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
IX4423NTRIC GATE DRVR LOW-SIDE 8SOIC |
0 |
|
- |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 4.5V ~ 30V | 0.8V, 3V | 3A, 3A | Inverting | - | 18ns, 18ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
IX4425NTRIC GATE DRVR LOW-SIDE 8SOIC |
0 |
|
- |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 4.5V ~ 30V | 0.8V, 3V | 3A, 3A | Inverting, Non-Inverting | - | 18ns, 18ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
IX4425NIC GATE DRVR LOW-SIDE 8SOIC |
0 |
|
- |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Not Verified | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 4.5V ~ 30V | 0.8V, 3V | 3A, 3A | Inverting, Non-Inverting | - | 18ns, 18ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
IX4423NIC GATE DRVR LOW-SIDE 8SOIC |
0 |
|
- |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Not Verified | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 4.5V ~ 30V | 0.8V, 3V | 3A, 3A | Inverting | - | 18ns, 18ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
IX4424NIC GATE DRVR LOW-SIDE 8SOIC |
0 |
|
- |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Not Verified | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 4.5V ~ 30V | 0.8V, 3V | 3A, 3A | Non-Inverting | - | 18ns, 18ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|

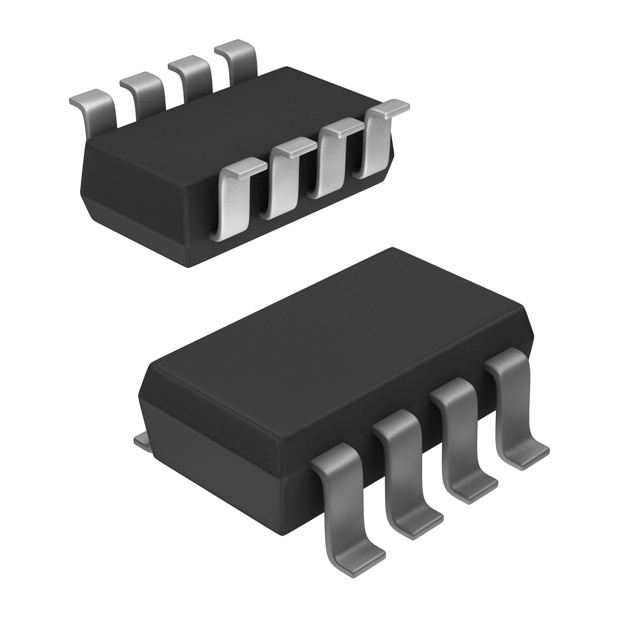

ZXGD3102T8TAIC GATE DRVR HI/LOW SIDE SM8 |
0 |
|
- |
- | SOT-223-8 | Tape & Reel (TR) | Obsolete | Not Verified | High-Side or Low-Side | Single | 1 | N-Channel MOSFET | 5V ~ 15V | - | 2A, 5A | Non-Inverting | - | 9840ns, 78ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | SM8 |
|
IX2113BTRIC GATE DRVR HALF-BRIDGE 16SOIC |
0 |
|
- |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel, P-Channel MOSFET | 10V ~ 20V | 6V, 9.5V | 2A, 2A | Non-Inverting | 600 V | 9.4ns, 9.7ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 16-SOIC |
|
|
IX2113BIC GATE DRVR HALF-BRIDGE 16SOIC |
0 |
|
- |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel, P-Channel MOSFET | 10V ~ 20V | 6V, 9.5V | 2A, 2A | Non-Inverting | 600 V | 9.4ns, 9.7ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 16-SOIC |
|
MIC4604YM-T5IC GATE DRVR HALF-BRIDGE 8SOIC |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Discontinued at Digi-Key | Not Verified | Half-Bridge | Independent | 2 | N-Channel MOSFET | 5.25V ~ 16V | 0.8V, 2.2V | 1.5A, 1A | Non-Inverting | - | 20ns, 20ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
MIC4604YMT-T5IC GATE DRVR HALF-BRIDGE 10TDFN |
0 |
|
Datasheet |
- | 10-UFDFN Exposed Pad | Tape & Reel (TR) | Discontinued at Digi-Key | Not Verified | Half-Bridge | Independent | 2 | N-Channel MOSFET | 5.25V ~ 16V | 0.8V, 2.2V | 1.5A, 1A | Non-Inverting | - | 20ns, 20ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-TDFN (2.5x2.5) |
|
L6743BIC GATE DRVR HALF-BRIDGE 8VFDFPN |
0 |
|
- |
- | 8-VDFN Exposed Pad | Tray | Discontinued at Digi-Key | Not Verified | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 5V ~ 12V | 0.8V, 2V | 2A, - | Non-Inverting | 41 V | - | 0°C ~ 125°C (TJ) | - | - | Surface Mount | 8-VFDFPN (3x3) |
|
|
L6747AIC GATE DRVR HALF-BRIDGE 8VFDFPN |
0 |
|
- |
- | 8-VDFN Exposed Pad | Tray | Discontinued at Digi-Key | Not Verified | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 5V ~ 12V | 0.8V, 2V | 3.5A, - | Inverting | 41 V | - | 0°C ~ 125°C (TJ) | - | - | Surface Mount | 8-VFDFPN (3x3) |
|
|
L6747CIC GATE DRVR HALF-BRIDGE 8VFDFPN |
0 |
|
Datasheet |
- | 8-VDFN Exposed Pad | Tray | Discontinued at Digi-Key | Not Verified | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 5V ~ 12V | 0.8V, 2V | 3.5A, - | Non-Inverting | 41 V | - | 0°C ~ 125°C (TJ) | - | - | Surface Mount | 8-VFDFPN (3x3) |
|
|
P9090-0NLGIIC GATE DRVR SGL PHASE QFN |
0 |
|
- |
* | - | Tray | Active | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FAN3224CMX-F085IC GATE DRVR LOW-SIDE 8SOIC |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | Low-Side | Independent | 2 | N-Channel MOSFET | 4.5V ~ 18V | - | 5A, 5A | Non-Inverting | - | 12ns, 9ns | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 8-SOIC |
|
IR25600PBFIC GATE DRVR LOW-SIDE 8DIP |
0 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | Low-Side | Independent | 2 | IGBT, N-Channel MOSFET | 6V ~ 20V | 0.8V, 2.7V | 2.3A, 3.3A | Non-Inverting | - | 15ns, 10ns | -40°C ~ 150°C (TJ) | - | - | Through Hole | 8-PDIP |
|
|
IR25603PBFIC GATE DRVR HALF-BRIDGE 8DIP |
0 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Discontinued at Digi-Key | Not Verified | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 10V ~ 15.6V | - | 180mA, 260mA | RC Input Circuit | 600 V | 80ns, 45ns | -40°C ~ 150°C (TJ) | - | - | Through Hole | 8-PDIP |
|
|
IRS44262SPBFIC GATE DRVR LOW-SIDE 8SOIC |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Not Verified | Low-Side | Independent | 2 | IGBT, N-Channel MOSFET | 11.2V ~ 20V | 0.8V, 2.5V | 2.3A, 3.3A | Inverting | - | 25ns, 25ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
