Gate Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) | Input Type | High Side Voltage - Max (Bootstrap) | Rise / Fall Time (Typ) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IR2103SPBFIC GATE DRVR HALF-BRIDGE 8SOIC |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 3V | 210mA, 360mA | Inverting, Non-Inverting | 600 V | 100ns, 50ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
IR21363SPBFIC GATE DRVR HALF-BRIDGE 28SOIC |
0 |
|
Datasheet |
- | 28-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Not Verified | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 12V ~ 20V | 0.8V, 3V | 200mA, 350mA | Inverting | 600 V | 125ns, 50ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 28-SOIC |
|
|
IR2308SPBFIC GATE DRVR HALF-BRIDGE 8SOIC |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.9V | 200mA, 350mA | Non-Inverting | 600 V | 150ns, 50ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
IR2106PBFIC GATE DRVR HALF-BRIDGE 8DIP |
0 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.9V | 200mA, 350mA | Non-Inverting | 600 V | 150ns, 50ns | -40°C ~ 150°C (TJ) | - | - | Through Hole | 8-PDIP |
|
IR21365SPBFIC GATE DRVR HALF-BRIDGE 28SOIC |
0 |
|
Datasheet |
- | 28-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Not Verified | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 12V ~ 20V | 0.8V, 3V | 200mA, 350mA | Inverting | 600 V | 125ns, 50ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 28-SOIC |
|
IR2135SPBFIC GATE DRVR HALF-BRIDGE 28SOIC |
0 |
|
Datasheet |
- | 28-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Not Verified | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 250mA, 500mA | Inverting | 600 V | 90ns, 40ns | 125°C (TJ) | - | - | Surface Mount | 28-SOIC |
|
IR21084SPBFIC GATE DRVR HALF-BRIDGE 14SOIC |
0 |
|
Datasheet |
- | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.9V | 200mA, 350mA | Non-Inverting | 600 V | 150ns, 50ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 14-SOIC |
|
|
IR2302PBFIC GATE DRVR HALF-BRIDGE 8DIP |
0 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 5V ~ 20V | 0.8V, 2.9V | 200mA, 350mA | Non-Inverting | 600 V | 130ns, 50ns | -40°C ~ 150°C (TJ) | - | - | Through Hole | 8-PDIP |
|
|
IR2308PBFIC GATE DRVR HALF-BRIDGE 8DIP |
0 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.9V | 200mA, 350mA | Non-Inverting | 600 V | 150ns, 50ns | -40°C ~ 150°C (TJ) | - | - | Through Hole | 8-PDIP |
|
IR21064PBFIC GATE DRVR HI/LOW SIDE 14DIP |
0 |
|
Datasheet |
- | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | High-Side or Low-Side | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.9V | 200mA, 350mA | Non-Inverting | 600 V | 150ns, 50ns | -40°C ~ 150°C (TJ) | - | - | Through Hole | 14-DIP |
|
|
IR2108PBFIC GATE DRVR HALF-BRIDGE 8DIP |
0 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.9V | 200mA, 350mA | Non-Inverting | 600 V | 150ns, 50ns | -40°C ~ 150°C (TJ) | - | - | Through Hole | 8-PDIP |
|
IR21091SPBFIC GATE DRVR HALF-BRIDGE 8SOIC |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Not Verified | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.9V | 200mA, 350mA | Non-Inverting | 600 V | 150ns, 50ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
IR21091PBFIC GATE DRVR HALF-BRIDGE 8DIP |
0 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.9V | 200mA, 350mA | Non-Inverting | 600 V | 150ns, 50ns | -40°C ~ 150°C (TJ) | - | - | Through Hole | 8-PDIP |
|
|
IR21814PBFIC GATE DRVR HALF-BRIDGE 14DIP |
0 |
|
Datasheet |
- | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.7V | 1.9A, 2.3A | Non-Inverting | 600 V | 40ns, 20ns | -40°C ~ 150°C (TJ) | - | - | Through Hole | 14-DIP |
|
|
IXDI402SIIC GATE DRVR LOW-SIDE 8SOIC |
0 |
|
- |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Not Verified | Low-Side | Independent | 2 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 35V | 0.8V, 3V | 2A, 2A | Inverting | - | 8ns, 8ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
TD350IDTIC GATE DRVR HIGH-SIDE 14SO |
0 |
|
Datasheet |
- | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | High-Side | Single | 1 | IGBT, N-Channel MOSFET | 12V ~ 26V | 0.8V, 4.2V | 1.5A, 2.3A | Non-Inverting | - | 130ns, 75ns (Max) | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 14-SO |
|
LM5111-3M/NOPBIC GATE DRVR LOW-SIDE 8SOIC |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Bulk | Obsolete | Not Verified | Low-Side | Independent | 2 | N-Channel MOSFET | 3.5V ~ 14V | 0.8V, 2.2V | 3A, 5A | Inverting, Non-Inverting | - | 14ns, 12ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
ADP3418KRZIC GATE DRVR HALF-BRIDGE 10MSOP |
0 |
|
Datasheet |
- | - | Tube | Obsolete | - | Half-Bridge | - | - | - | - | - | - | - | - | - | - | - | - | - | 10-MSOP |
|

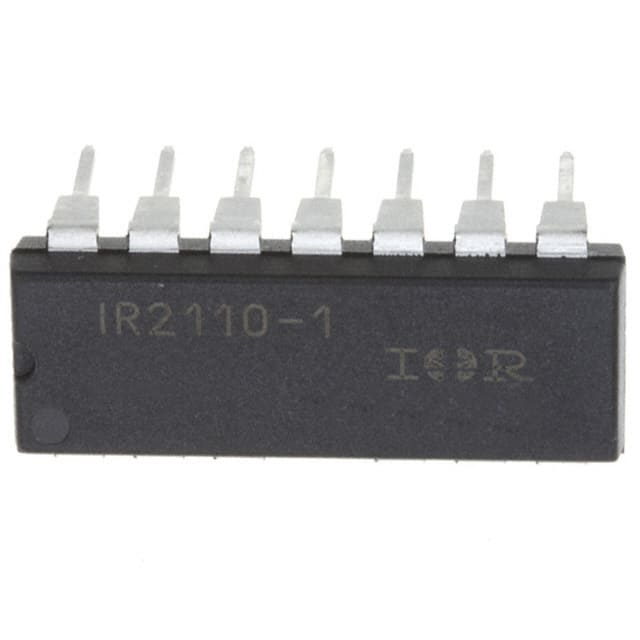

IR2110-1PBFIC GATE DRVR HALF-BRIDGE 14DIP |
0 |
|
Datasheet |
- | 14-DIP (0.300", 7.62mm), 13 Leads | Tube | Obsolete | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 3.3V ~ 20V | 6V, 9.5V | 2A, 2A | Non-Inverting | 500 V | 25ns, 17ns | -40°C ~ 150°C (TJ) | - | - | Through Hole | 14-PDIP |
|

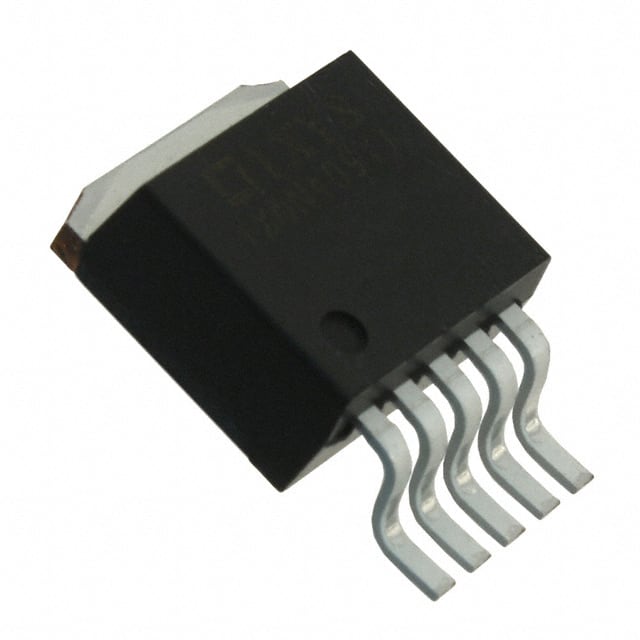

IXDD409YIIC GATE DRVR LOW-SIDE TO263 |
0 |
|
- |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tube | Obsolete | Not Verified | Low-Side | Single | 1 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 35V | 0.8V, 3.5V | 9A, 9A | Non-Inverting | - | 10ns, 10ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263-5 |
