Gate Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) | Input Type | High Side Voltage - Max (Bootstrap) | Rise / Fall Time (Typ) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IR2108STRIC GATE DRVR HALF-BRIDGE 8SOIC |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.9V | 200mA, 350mA | Non-Inverting | 600 V | 150ns, 50ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
IR21271STRIC GATE DRVR HI/LOW SIDE 8SOIC |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | High-Side or Low-Side | Single | 1 | IGBT, N-Channel MOSFET | 9V ~ 20V | 0.8V, 3V | 250mA, 500mA | Non-Inverting | 600 V | 80ns, 40ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
IR2136JTRIC GATE DRVR HALF-BRIDGE 44PLCC |
0 |
|
Datasheet |
- | 44-LCC (J-Lead), 32 Leads | Tape & Reel (TR) | Obsolete | Not Verified | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 3V | 200mA, 350mA | Inverting | 600 V | 125ns, 50ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 44-PLCC, 32 Leads (16.58x16.58) |
|
IR2136STRIC GATE DRVR HALF-BRIDGE 28SOIC |
0 |
|
Datasheet |
- | 28-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 3V | 200mA, 350mA | Inverting | 600 V | 125ns, 50ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 28-SOIC |
|
IR21814STRIC GATE DRVR HALF-BRIDGE 14SOIC |
0 |
|
Datasheet |
- | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.7V | 1.9A, 2.3A | Non-Inverting | 600 V | 40ns, 20ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 14-SOIC |
|
|
IR2183STRIC GATE DRVR HALF-BRIDGE 8SOIC |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.7V | 1.9A, 2.3A | Inverting, Non-Inverting | 600 V | 40ns, 20ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
IXDD404PIIC GATE DRVR LOW-SIDE 8DIP |
0 |
|
- |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | Low-Side | Independent | 2 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 35V | 0.8V, 2.5V | 4A, 4A | Non-Inverting | - | 16ns, 13ns | -55°C ~ 150°C (TJ) | - | - | Through Hole | 8-DIP |
|
|
IXDD404SIIC GATE DRVR LOW-SIDE 8SOIC |
0 |
|
- |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Not Verified | Low-Side | Independent | 2 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 35V | 0.8V, 2.5V | 4A, 4A | Non-Inverting | - | 16ns, 13ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
IXDD404SI-16IC GATE DRVR LOW-SIDE 16SOIC |
0 |
|
- |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Not Verified | Low-Side | Independent | 2 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 35V | 0.8V, 2.5V | 4A, 4A | Non-Inverting | - | 16ns, 13ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 16-SOIC |
|
IXDD408CIIC GATE DRVR LOW-SIDE TO220-5 |
0 |
|
- |
- | TO-220-5 | Tube | Obsolete | Not Verified | Low-Side | Single | 1 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 25V | 0.8V, 3.5V | 8A, 8A | Non-Inverting | - | 14ns, 15ns | -40°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-5 |
|
|
IXDD408SIIC GATE DRVR LOW-SIDE 8SOIC |
0 |
|
- |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Not Verified | Low-Side | Single | 1 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 25V | 0.8V, 3.5V | 8A, 8A | Non-Inverting | - | 14ns, 15ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|

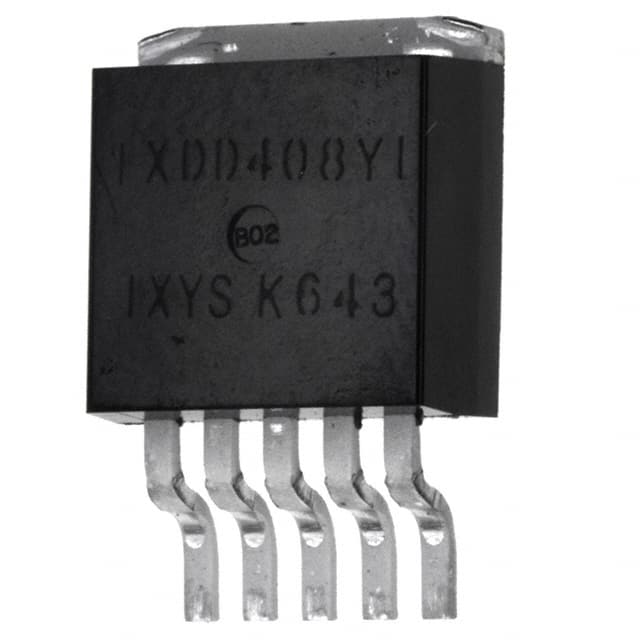

IXDD408YIIC GATE DRVR LOW-SIDE TO263 |
0 |
|
- |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tube | Obsolete | Not Verified | Low-Side | Single | 1 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 25V | 0.8V, 3.5V | 8A, 8A | Non-Inverting | - | 14ns, 15ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263-5 |
|
|
IXDD414CIIC GATE DRVR LOW-SIDE TO220-5 |
0 |
|
- |
- | TO-220-5 | Tube | Obsolete | Not Verified | Low-Side | Single | 1 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 35V | 0.8V, 3.5V | 14A, 14A | Non-Inverting | - | 25ns, 22ns | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-5 |
|
|
IXDD414PIIC GATE DRVR LOW-SIDE 8DIP |
0 |
|
- |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | Low-Side | Single | 1 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 35V | 0.8V, 3.5V | 14A, 14A | Non-Inverting | - | 25ns, 22ns | -55°C ~ 150°C (TJ) | - | - | Through Hole | 8-DIP |
|

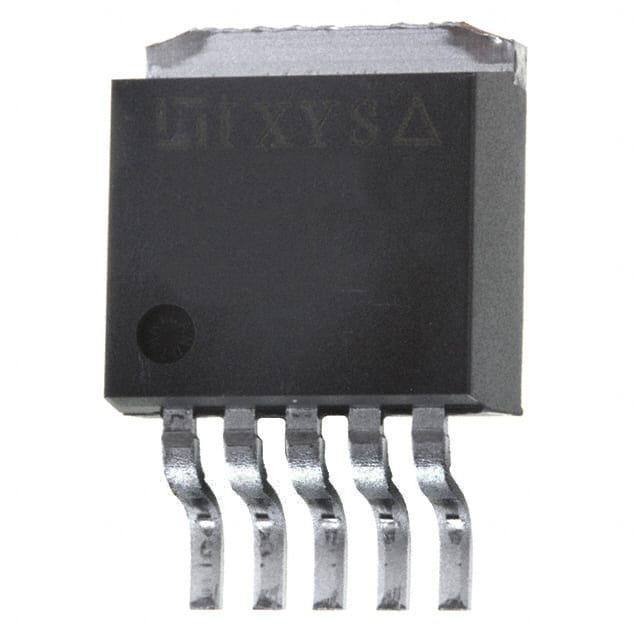

IXDD414YIIC GATE DRVR LOW-SIDE TO263 |
0 |
|
- |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tube | Obsolete | Not Verified | Low-Side | Single | 1 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 35V | 0.8V, 3.5V | 14A, 14A | Non-Inverting | - | 25ns, 22ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263-5 |
|
|
IXBD4410SIIC GATE DRVR LOW-SIDE 16SOIC |
0 |
|
- |
ISOSMART™ | 16-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Not Verified | Low-Side | Single | 1 | IGBT, N-Channel, P-Channel MOSFET | 10V ~ 20V | 1V, 3.65V | 2A, 2A | Non-Inverting | 1200 V | 15ns, 15ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 16-SOIC |
|
IXBD4411PIIC GATE DRVR HIGH-SIDE 16DIP |
0 |
|
- |
ISOSMART™ | 16-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | High-Side | Single | 1 | IGBT, N-Channel, P-Channel MOSFET | 10V ~ 20V | 1V, 3.65V | 2A, 2A | Non-Inverting | 1200 V | 15ns, 15ns | -40°C ~ 150°C (TJ) | - | - | Through Hole | 16-DIP |
|
|
IXBD4411SIIC GATE DRVR HIGH-SIDE 16SOIC |
0 |
|
- |
ISOSMART™ | 16-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Not Verified | High-Side | Single | 1 | IGBT, N-Channel, P-Channel MOSFET | 10V ~ 20V | 1V, 3.65V | 2A, 2A | Non-Inverting | 1200 V | 15ns, 15ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 16-SOIC |
|
|
IXDI404PIIC GATE DRVR LOW-SIDE 8DIP |
0 |
|
- |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | Low-Side | Independent | 2 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 35V | 0.8V, 2.5V | 4A, 4A | Inverting | - | 16ns, 13ns | -55°C ~ 150°C (TJ) | - | - | Through Hole | 8-DIP |
|
|
IXDI404SIIC GATE DRVR LOW-SIDE 8SOIC |
0 |
|
- |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Not Verified | Low-Side | Independent | 2 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 35V | 0.8V, 2.5V | 4A, 4A | Inverting | - | 16ns, 13ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
