Gate Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) | Input Type | High Side Voltage - Max (Bootstrap) | Rise / Fall Time (Typ) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

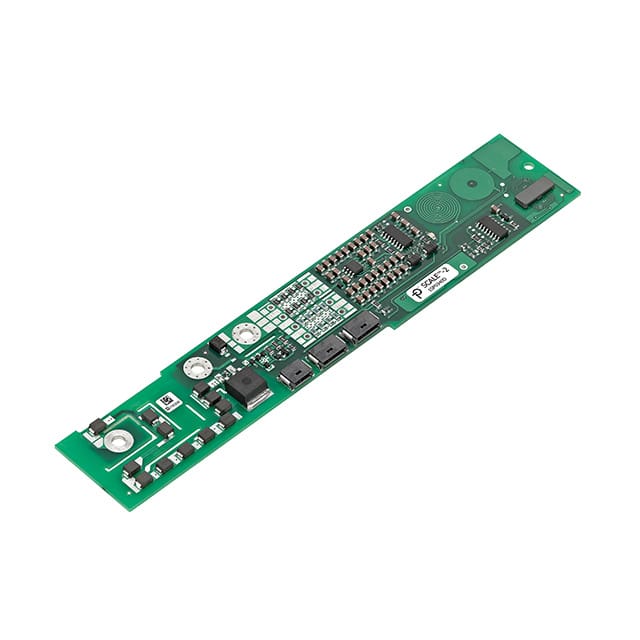

1SP0340D2S0-45IC GATE DRVR HI/LOW SIDE MODULE |
0 |
|
Datasheet |
SCALE™-2 | Module | Bulk | Active | Not Verified | High-Side or Low-Side | Single | 1 | IGBT | 23.5V ~ 26.5V | - | 35A, 35A | - | 4500 V | 10ns, 25ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | Module |
|

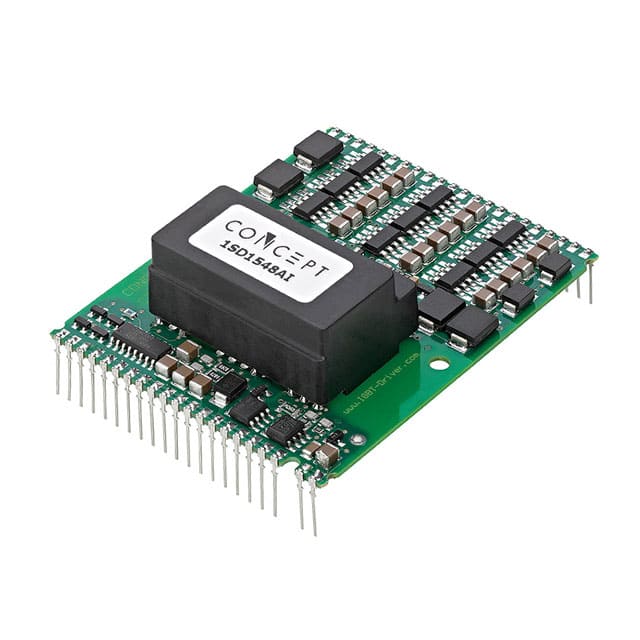

1SD1548AI ULIC GATE DRVR HALF-BRIDGE MODULE |
0 |
|
Datasheet |
SCALE™-1 | Module | Bulk | Active | Not Verified | Half-Bridge | - | 1 | IGBT, N-Channel, P-Channel MOSFET | 15V | - | 48A, 48A | - | - | - | -40°C ~ 85°C (TA) | - | - | Through Hole | Module |
|

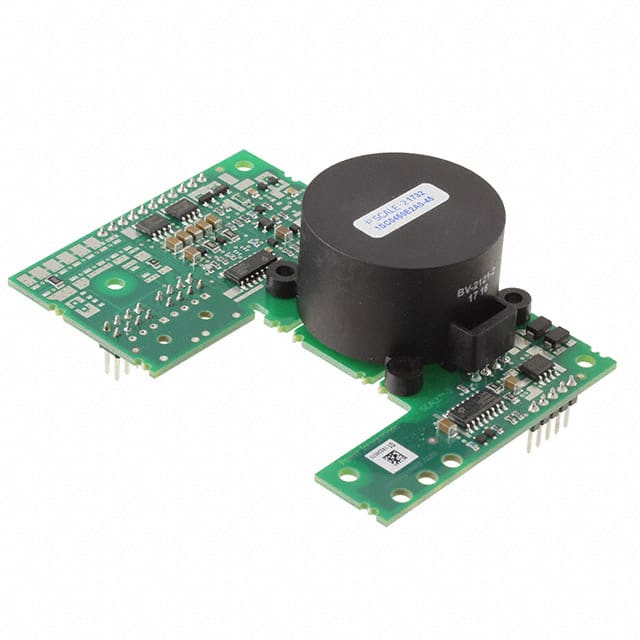

1SC0450E2A0-45IC GATE DRVR HI/LOW SIDE MODULE |
0 |
|
Datasheet |
SCALE™-2 | Module | Tray | Not For New Designs | Not Verified | High-Side or Low-Side | Single | 1 | IGBT | 14.5V ~ 15.5V | - | 50A, 50A | - | 4500 V | 30ns, 25ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | Module |
|

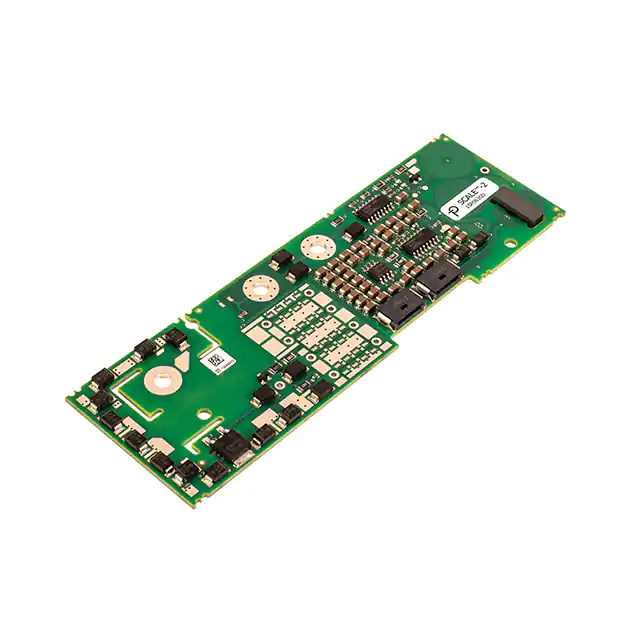

1SP0635D2S1-12IC GATE DRVR HI/LOW SIDE MODULE |
0 |
|
Datasheet |
SCALE™-2 | Module | Bulk | Active | Not Verified | High-Side or Low-Side | Single | 1 | IGBT | 14.5V ~ 15.5V | - | 35A, 35A | - | 1200 V | 9ns, 30ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | Module |
|

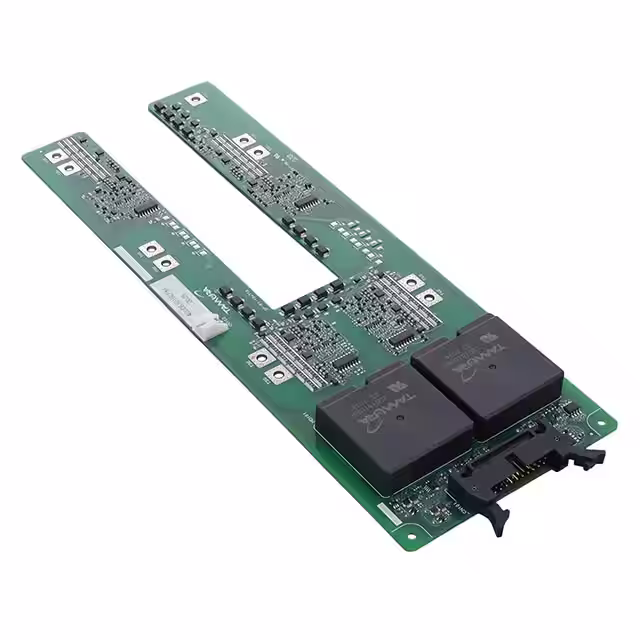

4DUD51016CFN1IC GATE DRVR HALF-BRIDGE MODULE |
0 |
|
- |
- | Module | Tray | Active | Not Verified | Half-Bridge | Synchronous | 4 | IGBT | 13V ~ 28V | - | - | Non-Inverting | 1200 V | - | -40°C ~ 85°C (TA) | - | - | Chassis Mount | Module |
|

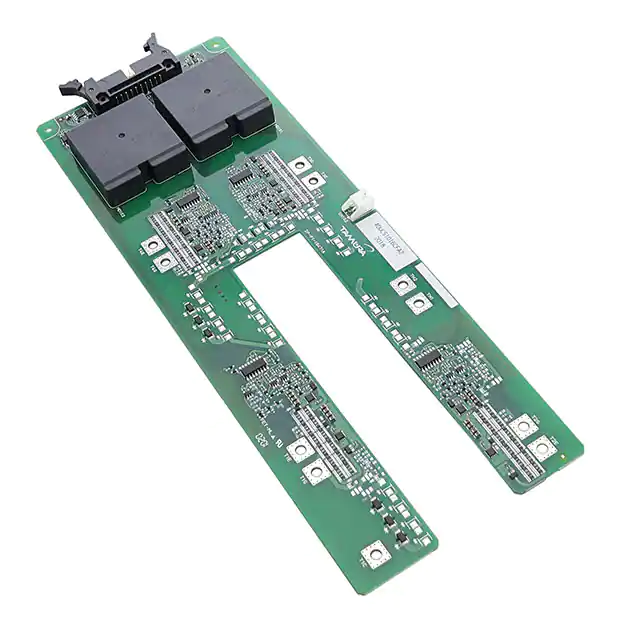

4DUC51016CFA2IC GATE DRVR HALF-BRIDGE MODULE |
0 |
|
- |
- | Module | Tray | Active | Not Verified | Half-Bridge | Synchronous | 4 | IGBT | 13V ~ 28V | - | - | Non-Inverting | 1200 V | - | -40°C ~ 85°C (TA) | - | - | Chassis Mount | Module |
|

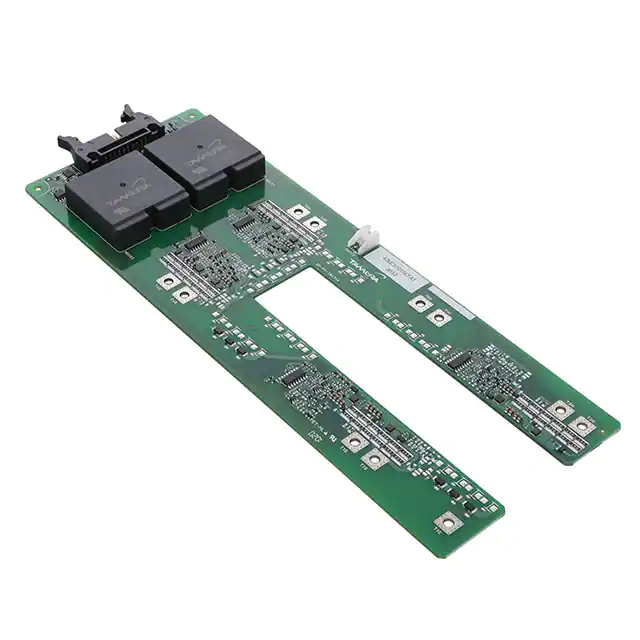

4DUC51016CFA1IC GATE DRVR HALF-BRIDGE MODULE |
0 |
|
- |
- | Module | Tray | Active | Not Verified | Half-Bridge | Synchronous | 4 | IGBT | 13V ~ 28V | - | - | Non-Inverting | 1200 V | - | -40°C ~ 85°C (TA) | - | - | Chassis Mount | Module |
|

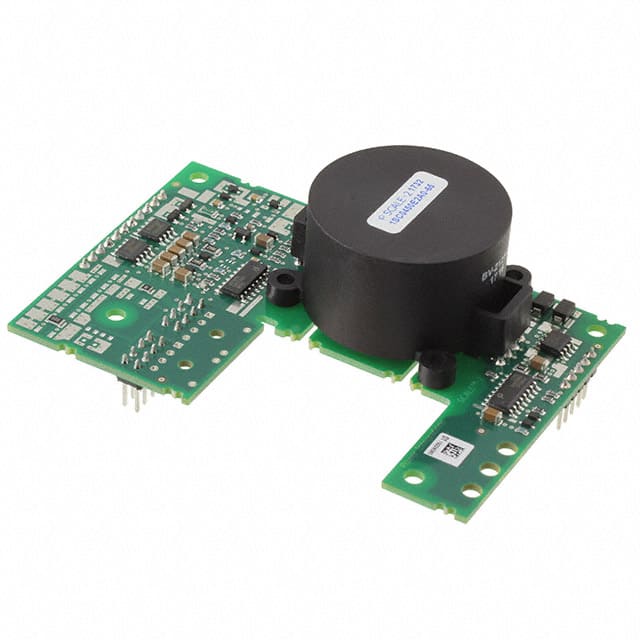

1SC0450E2A0-65IC GATE DRVR HI/LOW SIDE MODULE |
0 |
|
Datasheet |
SCALE™-2 | Module | Tray | Not For New Designs | Not Verified | High-Side or Low-Side | Single | 1 | IGBT | 14.5V ~ 15.5V | - | 50A, 50A | - | 6500 V | 30ns, 25ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | Module |
|
IHD260IC GATE DRVR HALF-BRIDGE MODULE |
0 |
|
Datasheet |
SCALE™-1 | 36-DIP Module, 24 Leads | Box | Obsolete | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 14V ~ 16V | - | - | - | - | 100ns, 80ns | -40°C ~ 85°C (TA) | - | - | Through Hole | Module |
|
|
1SP0335V2M1-FZ500R65KE3IC GATE DRVR HI/LOW SIDE MODULE |
0 |
|
- |
SCALE™-2 | Module | Tray | Active | Not Verified | High-Side or Low-Side | Single | 1 | IGBT | 23.5V ~ 26.5V | - | 35A, 35A | - | 6500 V | 9ns, 30ns | -40°C ~ 85°C | - | - | Chassis Mount | Module |
|
|
1SP0335V2M1-MBN1200H45E2-HIC GATE DRVR HI/LOW SIDE MODULE |
0 |
|
- |
SCALE™-2 | Module | Tray | Active | Not Verified | High-Side or Low-Side | Single | 1 | IGBT | 23.5V ~ 26.5V | - | 35A, 35A | - | 4500 V | 9ns, 30ns | -40°C ~ 85°C | - | - | Chassis Mount | Module |
|
|
1SP0335V2M1-5SNA0400J650100IC GATE DRVR HI/LOW SIDE MODULE |
0 |
|
- |
SCALE™-2 | Module | Tray | Active | Not Verified | High-Side or Low-Side | Single | 1 | IGBT | 23.5V ~ 26.5V | - | 35A, 35A | - | 6500 V | 9ns, 30ns | -40°C ~ 85°C | - | - | Chassis Mount | Module |
|
|
1SP0335V2M1-FZ400R65KE3IC GATE DRVR HI/LOW SIDE MODULE |
0 |
|
- |
SCALE™-2 | Module | Tray | Active | Not Verified | High-Side or Low-Side | Single | 1 | IGBT | 23.5V ~ 26.5V | - | 35A, 35A | - | 6500 V | 9ns, 30ns | -40°C ~ 85°C | - | - | Chassis Mount | Module |
|
|
1SP0335V2M1-5SNA1200G450300IC GATE DRVR HI/LOW SIDE MODULE |
0 |
|
- |
SCALE™-2 | Module | Tray | Active | Not Verified | High-Side or Low-Side | Single | 1 | IGBT | 23.5V ~ 26.5V | - | 35A, 35A | - | 4500 V | 9ns, 30ns | -40°C ~ 85°C | - | - | Chassis Mount | Module |
|
|
1SP0335V2M1-MBN750H65E2IC GATE DRVR HI/LOW SIDE MODULE |
0 |
|
- |
SCALE™-2 | Module | Tray | Active | Not Verified | High-Side or Low-Side | Single | 1 | IGBT | 23.5V ~ 26.5V | - | 35A, 35A | - | 6500 V | 9ns, 30ns | -40°C ~ 85°C | - | - | Chassis Mount | Module |
|
|
1SP0335V2M1-CM600HG-130HIC GATE DRVR HI/LOW SIDE MODULE |
0 |
|
- |
SCALE™-2 | Module | Tray | Active | Not Verified | High-Side or Low-Side | Single | 1 | IGBT | 23.5V ~ 26.5V | - | 35A, 35A | - | 6500 V | 9ns, 30ns | -40°C ~ 85°C | - | - | Chassis Mount | Module |
|
|
1SP0335V2M1-5SNA0600G650100IC GATE DRVR HI/LOW SIDE MODULE |
0 |
|
- |
SCALE™-2 | Module | Tray | Active | Not Verified | High-Side or Low-Side | Single | 1 | IGBT | 23.5V ~ 26.5V | - | 35A, 35A | - | 6500 V | 9ns, 30ns | -40°C ~ 85°C | - | - | Chassis Mount | Module |
|
|
1SP0335V2M1-FZ600R65KE3IC GATE DRVR HI/LOW SIDE MODULE |
0 |
|
- |
SCALE™-2 | Module | Tray | Active | Not Verified | High-Side or Low-Side | Single | 1 | IGBT | 23.5V ~ 26.5V | - | 35A, 35A | - | 6500 V | 9ns, 30ns | -40°C ~ 85°C | - | - | Chassis Mount | Module |
|
|
1SP0335V2M1-FZ250R65KE3IC GATE DRVR HI/LOW SIDE MODULE |
0 |
|
- |
SCALE™-2 | Module | Tray | Active | Not Verified | High-Side or Low-Side | Single | 1 | IGBT | 23.5V ~ 26.5V | - | 35A, 35A | - | 6500 V | 9ns, 30ns | -40°C ~ 85°C | - | - | Chassis Mount | Module |
|
|
1SP0335V2M1-5SNA0750G650300IC GATE DRVR HI/LOW SIDE MODULE |
0 |
|
- |
SCALE™-2 | Module | Tray | Active | Not Verified | High-Side or Low-Side | Single | 1 | IGBT | 23.5V ~ 26.5V | - | 35A, 35A | - | 6500 V | 9ns, 30ns | -40°C ~ 85°C | - | - | Chassis Mount | Module |
