Gate Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) | Input Type | High Side Voltage - Max (Bootstrap) | Rise / Fall Time (Typ) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TC4627MJAIC GATE DRVR HI/LOW SIDE 8CERDIP |
0 |
|
Datasheet |
- | 8-CDIP (0.300", 7.62mm) | Tube | Active | Not Verified | High-Side or Low-Side | Single | 1 | N-Channel, P-Channel MOSFET | 4V ~ 6V | 0.8V, 2.4V | 1.5A, 1.5A | Non-Inverting | - | 33ns, 27ns | -55°C ~ 125°C (TA) | - | - | Through Hole | 8-CERDIP |
|
|
TC4423MJAIC GATE DRVR LOW-SIDE 8CERDIP |
0 |
|
Datasheet |
- | 8-CDIP (0.300", 7.62mm) | Tube | Active | Not Verified | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 3A, 3A | Inverting | - | 23ns, 25ns | -55°C ~ 150°C (TJ) | - | - | Through Hole | 8-CERDIP |
|
|
TC4429MJAIC GATE DRVR LOW-SIDE 8CERDIP |
5 |
|
Datasheet |
- | 8-CDIP (0.300", 7.62mm) | Tube | Active | Not Verified | Low-Side | Single | 1 | N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 6A, 6A | Inverting | - | 25ns, 25ns | -55°C ~ 150°C (TJ) | - | - | Through Hole | 8-CERDIP |
|
2DUD51008CXE1IC GATE DRVR HALF-BRIDGE MODULE |
0 |
|
- |
- | Module | Tray | Obsolete | Not Verified | Half-Bridge | Synchronous | 2 | IGBT | 13V ~ 28V | - | - | Non-Inverting | - | - | -40°C ~ 85°C (TA) | - | - | Chassis Mount | Module |
|
|
2DUD51008DXE1IC GATE DRVR HALF-BRIDGE MODULE |
0 |
|
- |
- | Module | Tray | Obsolete | Not Verified | Half-Bridge | Synchronous | 2 | IGBT | 13V ~ 28V | - | - | Non-Inverting | - | - | -40°C ~ 85°C (TA) | - | - | Chassis Mount | Module |
|
VLA502-01IC GATE DRVR LOW-SIDE MODULE |
0 |
|
Datasheet |
- | 21-SIP Module | Bulk | Active | Not Verified | Low-Side | Single | 1 | IGBT | 14.2V ~ 15.8V | - | 12A, 12A | Non-Inverting | - | 300ns, 300ns | -20°C ~ 60°C (TA) | - | - | Through Hole | Module |
|
|
2SC0106T2A1C-12IC GATE DRVR HALF-BRIDGE MODULE |
0 |
|
Datasheet |
SCALE™-2+ | Module | Bulk | Active | - | Half-Bridge | Independent | 2 | IGBT | 14.5V ~ 15.5V | - | 6A, 6A | Non-Inverting | 1200 V | 20ns, 13ns | -40°C ~ 105°C (TA) | - | - | Chassis Mount | Module |
|

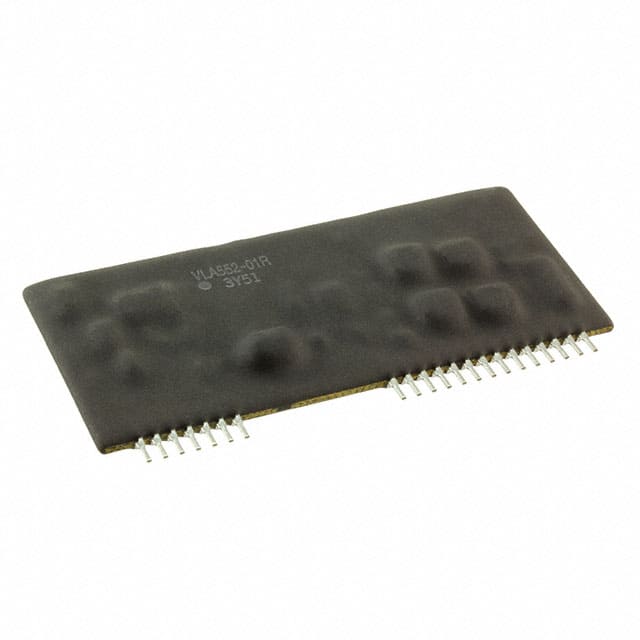

VLA552-01RIC GATE DRVR LOW-SIDE MODULE |
0 |
|
Datasheet |
- | 30-SIP Module, 21 Leads | Bulk | Discontinued at Digi-Key | Not Verified | Low-Side | Single | 1 | IGBT | 14.2V ~ 15.8V | - | - | Inverting, Non-Inverting | - | 600ns, 300ns | -25°C ~ 70°C (TA) | - | - | Through Hole | Module |
.jpg)
|

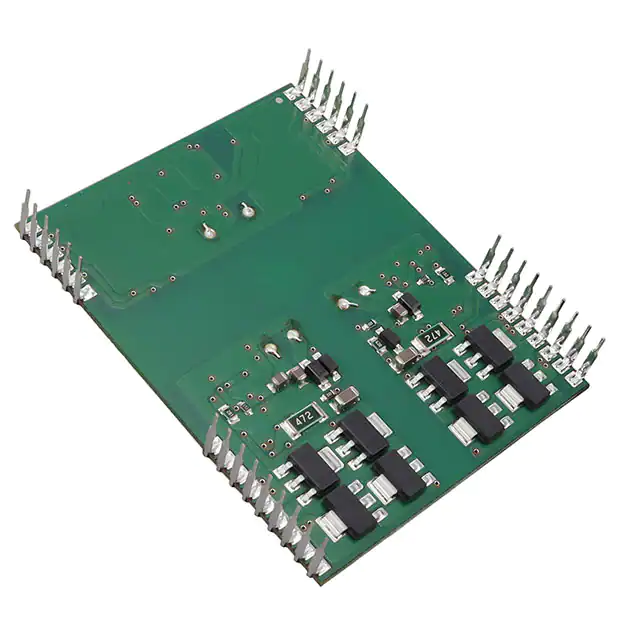

VLA591-01RIC GATE DRVR FULL-BRIDGE MODULE |
0 |
|
Datasheet |
- | 50-DIP Module, 30 Leads | Tray | Discontinued at Digi-Key | Not Verified | Full-Bridge | Independent | 2 | IGBT | 14.5V ~ 15.5V | - | 20A, 20A | Non-Inverting | - | 520ns, 120ns | -40°C ~ 85°C | - | - | Through Hole | Module |
|
2DM150606CMIC GATE DRVR HALF-BRIDGE 0502 |
0 |
|
Datasheet |
- | 34-DIP Module, 31 Leads | Tray | Obsolete | Not Verified | Half-Bridge | Independent | 2 | IGBT | 15V ~ 24V | 0.8V, 2V | - | - | - | - | -30°C ~ 85°C (TA) | - | - | Through Hole | 0502 |
|
|
2DM150806CMIC GATE DRVR HALF-BRIDGE 0502 |
0 |
|
Datasheet |
- | 34-DIP Module, 31 Leads | Tray | Obsolete | Not Verified | Half-Bridge | Independent | 2 | IGBT | 15V ~ 24V | 0.8V, 2V | - | - | - | - | -30°C ~ 85°C (TA) | - | - | Through Hole | 0502 |
|
|
2DM180206CMIC GATE DRVR HALF-BRIDGE 0502 |
0 |
|
Datasheet |
- | 34-DIP Module, 31 Leads | Tray | Obsolete | Not Verified | Half-Bridge | Independent | 2 | N-Channel MOSFET | 15V ~ 24V | 0.8V, 2V | - | - | - | - | -30°C ~ 85°C (TA) | - | - | Through Hole | 0502 |
|
2DM180506CMIC GATE DRVR HALF-BRIDGE 0502 |
0 |
|
Datasheet |
- | 34-DIP Module, 31 Leads | Tray | Obsolete | Not Verified | Half-Bridge | Independent | 2 | N-Channel MOSFET | 15V ~ 24V | 0.8V, 2V | - | - | - | - | -30°C ~ 85°C (TA) | - | - | Through Hole | 0502 |
|
|
2SC0108T2G0C-17IC GATE DRVR HI/LOW SIDE MODULE |
0 |
|
Datasheet |
SCALE™-2+ | Module | Bulk | Active | - | High-Side or Low-Side | Independent | 2 | IGBT | 14.5V ~ 15.5V | - | 8A, 8A | - | 1700 V | 17ns, 15ns | -40°C ~ 85°C (TA) | - | - | Chassis Mount | Module |
|
|
2SP0115T2D0-12IC GATE DRVR HALF-BRIDGE MODULE |
0 |
|
Datasheet |
SCALE™-2 | Module | Bulk | Active | - | Half-Bridge | Independent | 2 | IGBT | 14.5V ~ 15.5V | - | 15A, 15A | - | 1200 V | 5ns, 10ns | -40°C ~ 85°C | - | - | Chassis Mount | Module |
|
|
IGD616IC GATE DRVR HI/LOW SIDE MODULE |
0 |
|
Datasheet |
SCALE™-1 | 36-DIP Module, 24 Leads | Box | Obsolete | Not Verified | High-Side or Low-Side | Single | 1 | IGBT, N-Channel, P-Channel MOSFET | 14V ~ 16V | 0.9V, 3.8V | 16A, 16A | - | - | 100ns, 80ns | -40°C ~ 85°C (TA) | - | - | Through Hole | Module |
|
|
2DUD51008CFP3IC GATE DRVR HALF-BRIDGE MODULE |
0 |
|
- |
- | Module | Tray | Obsolete | Not Verified | Half-Bridge | Synchronous | 2 | IGBT | 13V ~ 28V | - | - | Non-Inverting | 1200 V | - | -40°C ~ 85°C (TA) | - | - | Chassis Mount | Module |
|
|
2SC0435T2H0C-17IC GATE DRVR HI/LOW SIDE MODULE |
0 |
|
Datasheet |
SCALE™-2+ | Module | Bulk | Active | - | High-Side or Low-Side | Independent | 2 | IGBT, N-Channel, P-Channel MOSFET | 14.5V ~ 15.5V | - | 35A, 35A | - | 1700 V | 20ns, 20ns | -40°C ~ 85°C (TA) | - | - | Chassis Mount | Module |
|
2PG010DDC11NIC GATE DRVR HALF-BRIDGE MODULE |
0 |
|
Datasheet |
- | Module | Tray | Obsolete | Not Verified | Half-Bridge | Independent | 2 | IGBT | 13V ~ 28V | 0.5V, 3.3V | 43A, 43A | Non-Inverting | - | 500ns, 500ns | -40°C ~ 85°C | - | - | Chassis Mount | Module |
|
1SP0335D2S1-45IC GATE DRVR HI/LOW SIDE MODULE |
0 |
|
Datasheet |
SCALE™-2 | Module | Bulk | Active | Not Verified | High-Side or Low-Side | Single | 1 | IGBT | 23.5V ~ 26.5V | - | 35A, 35A | - | 4500 V | 9ns, 30ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | Module |
Gate Drivers Electronic Components
Explore Gate Drivers electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
