Gate Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) | Input Type | High Side Voltage - Max (Bootstrap) | Rise / Fall Time (Typ) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX620CWN+IC GATE DRVR HIGH-SIDE 18SOIC |
100 |
|
Datasheet |
- | 18-SOIC (0.295", 7.50mm Width) | Tube | Active | Not Verified | High-Side | Independent | 4 | N-Channel MOSFET | 4.5V ~ 16.5V | 0.8V, 2.4V | - | Non-Inverting | - | 1.7µs, 2.5µs | 0°C ~ 70°C (TA) | - | - | Surface Mount | 18-SOIC |
|
UCD7100APWPIC GATE DRVR LOW-SIDE 14HTSSOP |
90 |
|
Datasheet |
- | 14-PowerTSSOP (0.173", 4.40mm Width) | Tube | Active | Not Verified | Low-Side | Single | 1 | N-Channel MOSFET | 4.25V ~ 14.5V | 1.5V, 1.65V | 4A, 4A | Non-Inverting | - | 10ns, 10ns | -40°C ~ 105°C (TJ) | - | - | Surface Mount | 14-HTSSOP |
|
LTC7000MPMSE-1#PBFIC GATE DRVR HIGH-SIDE 16MSOP |
37 |
|
Datasheet |
- | 16-TFSOP (0.118", 3.00mm Width), 12 Leads, Exposed Pad | Tube | Active | Not Verified | High-Side | Single | 1 | N-Channel MOSFET | 3.5V ~ 135V | 1.8V, 1.7V | - | Non-Inverting | 135 V | 90ns, 40ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 16-MSOP-EP |
|
TC4420IJAIC GATE DRVR LOW-SIDE 8CERDIP |
18 |
|
Datasheet |
- | 8-CDIP (0.300", 7.62mm) | Tube | Active | Not Verified | Low-Side | Single | 1 | N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 6A, 6A | Non-Inverting | - | 25ns, 25ns | -25°C ~ 150°C (TJ) | - | - | Through Hole | 8-CERDIP |
|
|
TC426MJAIC GATE DRVR LOW-SIDE 8CERDIP |
56 |
|
Datasheet |
- | 8-CDIP (0.300", 7.62mm) | Tube | Active | Not Verified | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 1.5A, 1.5A | Inverting | - | 30ns, 30ns | -55°C ~ 125°C (TA) | - | - | Through Hole | 8-CERDIP |
|
|
2EG01XCDN11NIC GATE DRVR HALF-BRIDGE MODULE |
6 |
|
Datasheet |
- | Module | Tray | Active | Not Verified | Half-Bridge | Synchronous | 2 | IGBT | 13.5V ~ 26.4V | 0.5V, 3.3V | - | Non-Inverting | 1700 V | 500ns, 500ns | -40°C ~ 85°C | - | - | Chassis Mount | Module |
|

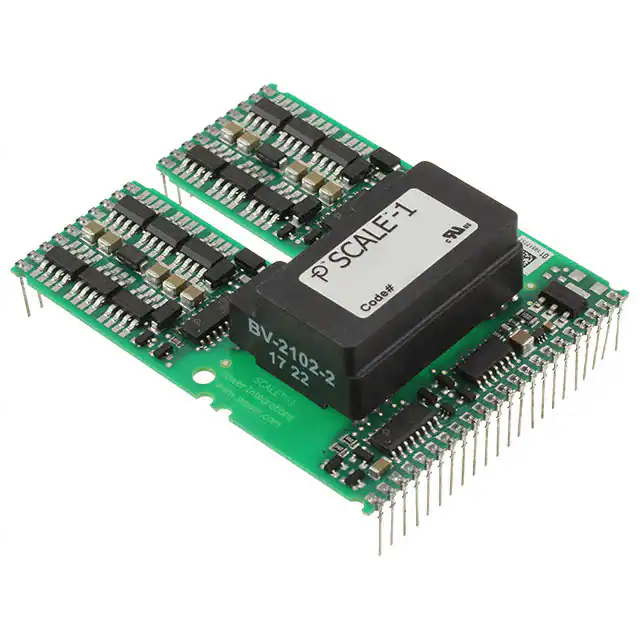

2SD315AI ULIC GATE DRVR HALF-BRIDGE MODULE |
21 |
|
Datasheet |
SCALE™-1 | Module | Tray | Not For New Designs | Not Verified | Half-Bridge | - | 2 | IGBT, N-Channel, P-Channel MOSFET | 15V | - | 18A, 18A | - | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | Module |
|
2SD300C17A4IC GATE DRVR HALF-BRIDGE MODULE |
15 |
|
Datasheet |
SCALE™-2 | Module | Tray | Active | Not Verified | Half-Bridge | - | 2 | IGBT | 14V ~ 16V | - | 30A, 30A | - | - | - | -40°C ~ 85°C (TA) | - | - | Through Hole | Module |
|

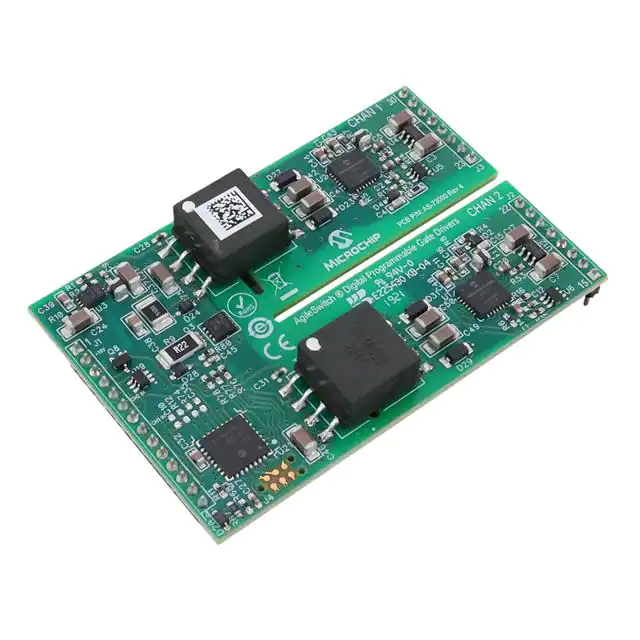

2ASC-12A2HPIC GATE DRVR HALF-BRIDGE MODULE |
5 |
|
Datasheet |
- | 30-DIP Module | Bulk | Active | Not Verified | Half-Bridge | Synchronous | 2 | IGBT, SiC MOSFET | 14V ~ 16V | 1.25V, 3.5V | 10A, 10A | Non-Inverting | - | 80ns, 90ns | -40°C ~ 85°C | - | - | Through Hole | Module |
|
1SP0635D2S1-33IC GATE DRVR HI/LOW SIDE MODULE |
7 |
|
Datasheet |
SCALE™-2 | Module | Bulk | Active | Not Verified | High-Side or Low-Side | Single | 1 | IGBT | 14.5V ~ 15.5V | - | 35A, 35A | - | 3300 V | 9ns, 30ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | Module |
|
|
1SP0635D2S1-17IC GATE DRVR HI/LOW SIDE MODULE |
6 |
|
- |
SCALE™-2 | Module | Bulk | Active | Not Verified | High-Side or Low-Side | Single | 1 | IGBT | 14.5V ~ 15.5V | - | 35A, 35A | - | 1700 V | 9ns, 30ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | Module |
|

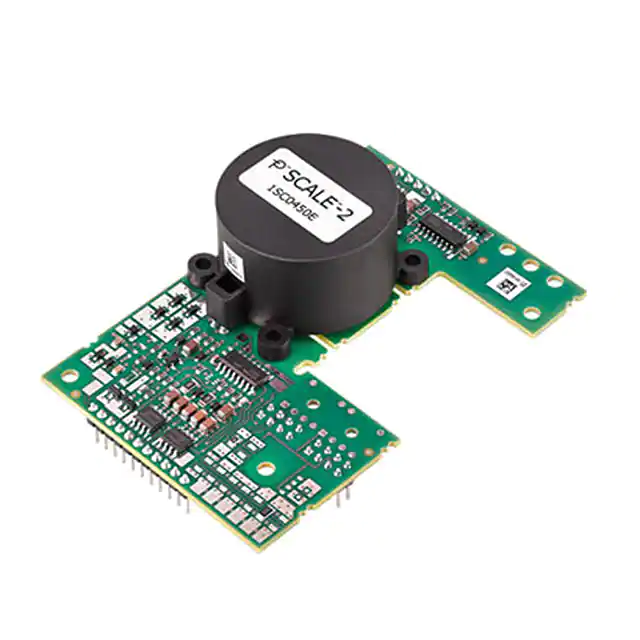

1SC0450E2B0-45IC GATE DRVR HI/LOW SIDE MODULE |
6 |
|
Datasheet |
SCALE™-2 | Module | Tray | Not For New Designs | Not Verified | High-Side or Low-Side | Single | 1 | IGBT | 14.5V ~ 15.5V | - | 50A, 50A | - | 4500 V | 30ns, 25ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | Module |
|
|
1SC0450E2B0-65IC GATE DRVR HI/LOW SIDE MODULE |
5 |
|
Datasheet |
SCALE™-2 | Module | Tray | Not For New Designs | Not Verified | High-Side or Low-Side | Single | 1 | IGBT | 14.5V ~ 15.5V | - | 50A, 50A | - | 6500 V | 30ns, 25ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | Module |
|

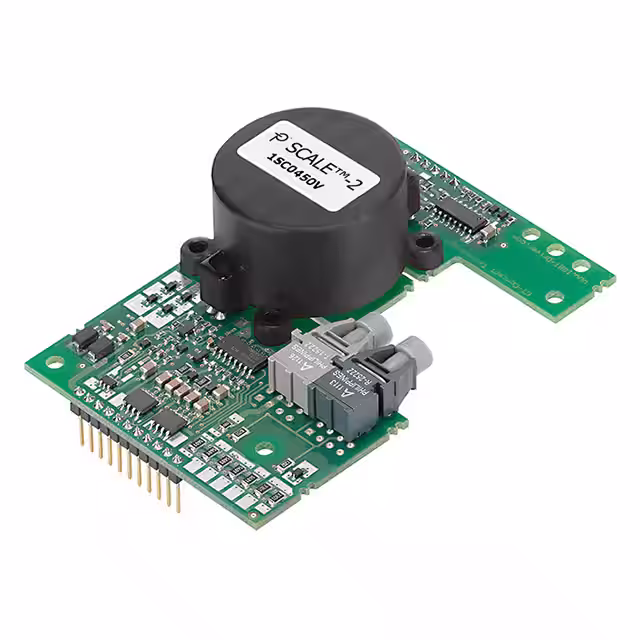

1SC0450V2B0-45IC GATE DRVR HI/LOW SIDE MODULE |
12 |
|
- |
SCALE™-2 | Module | Tray | Not For New Designs | Not Verified | High-Side or Low-Side | Single | 1 | IGBT | 14.5V ~ 15.5V | - | 50A, 50A | - | 4500 V | 30ns, 25ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | Module |
|
|
1SC0450V2B0-65IC GATE DRVR HI/LOW SIDE MODULE |
16 |
|
- |
SCALE™-2 | Module | Tray | Not For New Designs | Not Verified | High-Side or Low-Side | Single | 1 | IGBT | 14.5V ~ 15.5V | - | 50A, 50A | - | 6500 V | 30ns, 25ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | Module |
|
1SP0335V2M1-45IC GATE DRVR HI/LOW SIDE MODULE |
8 |
|
- |
SCALE™-2 | Module | Bulk | Active | Not Verified | High-Side or Low-Side | Single | 1 | IGBT | 23.5V ~ 26.5V | - | 35A, 35A | - | 4500 V | 9ns, 30ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | Module |
|
1SP0635V2M1-12IC GATE DRVR HI/LOW SIDE MODULE |
18 |
|
Datasheet |
SCALE™-2 | Module | Bulk | Active | Not Verified | High-Side or Low-Side | Single | 1 | IGBT | 14.5V ~ 15.5V | - | 35A, 35A | - | 1200 V | 9ns, 30ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | Module |
|
NCP81258MNTBGIC GATE DRVR HALF-BRIDGE 8DFN |
290 |
|
Datasheet |
- | 8-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 4.5V ~ 13.2V | 0.7V, 3.4V | - | Non-Inverting | 35 V | 16ns, 11ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-DFN (2x2) |
|
ISL6208CBZIC GATE DRVR HALF-BRIDGE 8SOIC |
86 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Not Verified | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 4.5V ~ 5.5V | 0.5V, 2V | 2A, 2A | Non-Inverting | 33 V | 8ns, 8ns | -10°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
ISL6208IBZIC GATE DRVR HALF-BRIDGE 8SOIC |
1 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Not Verified | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 4.5V ~ 5.5V | 0.5V, 2V | 2A, 2A | Non-Inverting | 33 V | 8ns, 8ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
Gate Drivers Electronic Components
Explore Gate Drivers electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
