Gate Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) | Input Type | High Side Voltage - Max (Bootstrap) | Rise / Fall Time (Typ) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TC4431EOAIC GATE DRVR HI/LOW SIDE 8SOIC |
50 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Not Verified | High-Side or Low-Side | Single | 1 | N-Channel, P-Channel MOSFET | 4.5V ~ 30V | 0.8V, 2.4V | 1.5A, 1.5A | Inverting | - | 25ns, 33ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
EL7242CSZIC GATE DRVR LOW-SIDE 8SOIC |
13 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Not Verified | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 4.5V ~ 16V | 0.8V, 2.4V | 2A, 2A | Inverting, Non-Inverting | - | 10ns, 10ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
LT1910ES8#PBFIC GATE DRVR HIGH-SIDE 8SOIC |
40 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Not Verified | High-Side | Single | 1 | N-Channel MOSFET | 8V ~ 48V | 0.8V, 2V | - | Non-Inverting | - | - | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 8-SO |
|
LTC7001HMSE#PBFIC GATE DRVR HIGH-SIDE 10MSOP |
75 |
|
Datasheet |
- | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad | Tube | Active | Not Verified | High-Side | Single | 1 | N-Channel MOSFET | 3.5V ~ 15V | - | - | Non-Inverting | 135 V | 90ns, 40ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 10-MSOP-EP |
|
LT1336IS#PBFIC GATE DRVR HALF-BRIDGE 16SOIC |
0 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | Not Verified | Half-Bridge | Independent | 2 | N-Channel MOSFET | 10V ~ 15V | 0.8V, 2V | 1.5A, 1.5A | Non-Inverting | 60 V | 130ns, 60ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-SO |
|

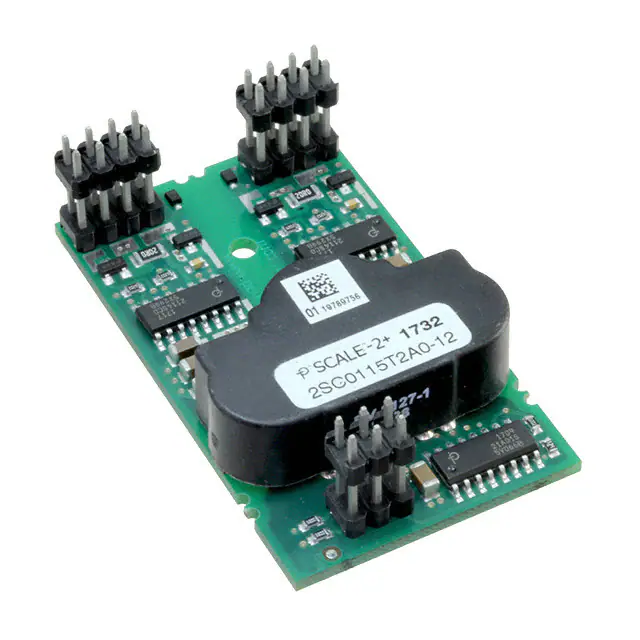

2SC0115T2A0-12IC GATE DRVR HI/LOW SIDE MODULE |
65 |
|
Datasheet |
SCALE™-2+ | Module | Tray | Active | Not Verified | High-Side or Low-Side | Independent | 2 | IGBT | 14.5V ~ 15.5V | - | 15A, 15A | - | 1200 V | 6ns, 12ns | -40°C ~ 105°C (TA) | - | - | Surface Mount | Module |
|
2SP0115T2A0-06IC GATE DRVR HALF-BRIDGE MODULE |
12 |
|
Datasheet |
SCALE™-2 | Module | Tray | Active | Not Verified | Half-Bridge | Independent | 2 | IGBT | 14.5V ~ 15.5V | - | 8A, 15A | - | 600 V | 5ns, 10ns | -20°C ~ 85°C (TA) | - | - | Surface Mount | Module |
|
2SP0320T2A0-12IC GATE DRVR HALF-BRIDGE MODULE |
20 |
|
- |
SCALE™-2 | Module | Tray | Active | Not Verified | Half-Bridge | Independent | 2 | IGBT | 14.5V ~ 15.5V | - | 20A, 20A | - | 1200 V | 7ns, 25ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | Module |
|
|
2SP0320T2A0-17IC GATE DRVR HALF-BRIDGE MODULE |
16 |
|
Datasheet |
SCALE™-2 | Module | Tray | Active | Not Verified | Half-Bridge | Independent | 2 | IGBT | 14.5V ~ 15.5V | - | 20A, 20A | - | 1700 V | 7ns, 25ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | Module |
|
|
2SP0320V2A0-12IC GATE DRVR HALF-BRIDGE MODULE |
3 |
|
- |
SCALE™-2 | Module | Tray | Active | Not Verified | Half-Bridge | Independent | 2 | IGBT | 14.5V ~ 15.5V | - | 20A, 20A | - | 1200 V | 7ns, 25ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | Module |
|

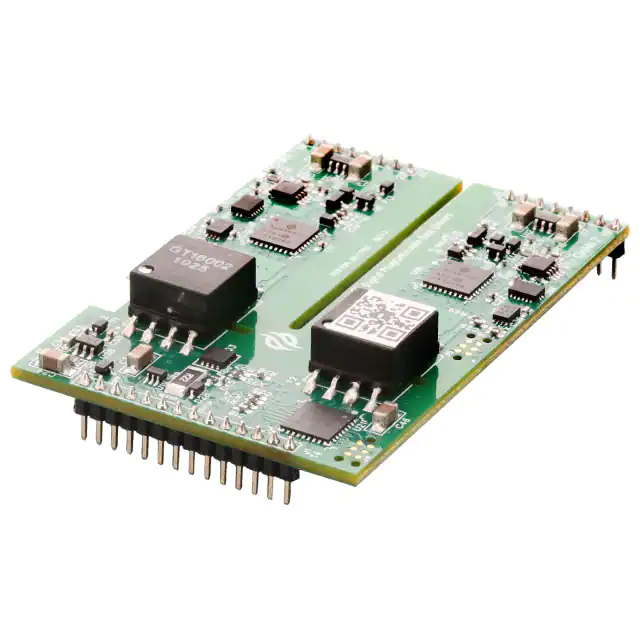

2ASC-17A1HPIC GATE DRVR HALF-BRIDGE MODULE |
17 |
|
Datasheet |
- | Module | Bulk | Active | Verified | Half-Bridge | Single | 1 | SiC MOSFET | - | - | - | - | 1700 V | - | - | - | - | Through Hole | Module |
|
|
2SP0320V2A0-17IC GATE DRVR HALF-BRIDGE MODULE |
12 |
|
Datasheet |
SCALE™-2 | Module | Tray | Active | Not Verified | Half-Bridge | Independent | 2 | IGBT | 14.5V ~ 15.5V | - | 20A, 20A | - | 1700 V | 7ns, 25ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | Module |
|
1SP0635V2M1-33IC GATE DRVR HI/LOW SIDE MODULE |
14 |
|
Datasheet |
SCALE™-2 | Module | Bulk | Active | Not Verified | High-Side or Low-Side | Single | 1 | IGBT | 14.5V ~ 15.5V | - | 35A, 35A | - | 3300 V | 9ns, 30ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | Module |
|
|
1SP0635V2M1-17IC GATE DRVR HI/LOW SIDE MODULE |
5 |
|
- |
SCALE™-2 | Module | Bulk | Active | Not Verified | High-Side or Low-Side | Single | 1 | IGBT | 14.5V ~ 15.5V | - | 35A, 35A | - | 1700 V | 9ns, 30ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | Module |
|
UCC27519DBVRIC GATE DRVR LOW-SIDE SOT23-5 |
625 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Not Verified | Low-Side | Single | 1 | IGBT, N-Channel MOSFET | 4.5V ~ 18V | - | 4A, 4A | Non-Inverting | - | 8ns, 7ns | -40°C ~ 140°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
|
UCC27519DBVTIC GATE DRVR LOW-SIDE SOT23-5 |
834 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Not Verified | Low-Side | Single | 1 | IGBT, N-Channel MOSFET | 4.5V ~ 18V | - | 4A, 4A | Non-Inverting | - | 8ns, 7ns | -40°C ~ 140°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
|
UCC27537DBVTIC GATE DRVR LOW-SIDE SOT23-5 |
842 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Not Verified | Low-Side | Single | 1 | IGBT, N-Channel MOSFET | 10V ~ 32V | 1.2V, 2.2V | 2.5A, 5A | Non-Inverting | - | 15ns, 7ns | -40°C ~ 140°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
|
MCP14628-E/SNIC GATE DRVR HALF-BRIDGE 8SOIC |
58 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Not Verified | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 4.5V ~ 5.5V | 0.5V, 2V | 2A, 2A | Non-Inverting | 36 V | 10ns, 10ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
TC4421AVPAIC GATE DRVR LOW-SIDE 8DIP |
86 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | Not Verified | Low-Side | Single | 1 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 10A, 10A | Inverting | - | 38ns, 33ns | -40°C ~ 150°C (TJ) | - | - | Through Hole | 8-PDIP |
|
|
IR2101PBFIC GATE DRVR HALF-BRIDGE 8DIP |
68 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Not For New Designs | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 3V | 210mA, 360mA | Non-Inverting | 600 V | 100ns, 50ns | -40°C ~ 150°C (TJ) | - | - | Through Hole | 8-PDIP |
Gate Drivers Electronic Components
Explore Gate Drivers electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
