Full Half-Bridge (H Bridge) Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Applications | Interface | Load Type | Technology | Rds On (Typ) | Current - Output / Channel | Current - Peak Output | Voltage - Supply | Voltage - Load | Operating Temperature | Grade | Qualification | Features | Fault Protection | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TND524VS-TL-HIC HALF BRIDGE DRIVER 8VEC |
0 |
|
- |
- | 8-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | Half Bridge | General Purpose | On/Off | Inductive | Power MOSFET | - | - | 200mA, 400mA | 10V ~ 20V | 600V (Max) | -55°C ~ 150°C (TJ) | - | - | - | - | Surface Mount | 8-VEC |
|
TND525SS-TL-2HIC HALF BRIDGE DRIVER 8SOIC |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (2) | General Purpose | Logic | Inductive | Power MOSFET | - | - | 200mA, 400mA | 10V ~ 20V | 600V (Max) | -55°C ~ 150°C (TJ) | - | - | - | - | Surface Mount | 8-SOIC |
|
STK534U362C-EIC HALF BRIDGE DRIVER 10A 29SIP |
0 |
|
Datasheet |
- | 29-SSIP Module, 21 Leads, Formed Leads | Tube | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | IGBT | - | 10A | 20A | 12.5V ~ 17.5V | 450V (Max) | -20°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Through Hole | 29-SIP |
|

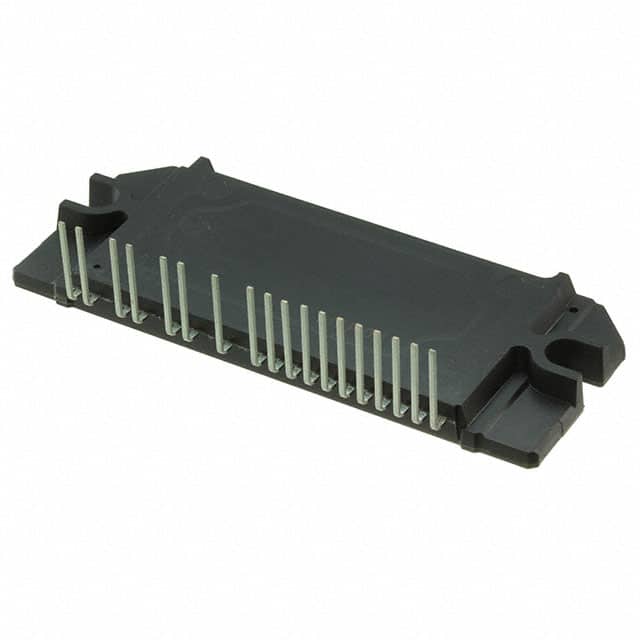

STK581U3C2D-EIC HALF BRIDGE DRIVER 30A 22SIP |
0 |
|
- |
- | 22-SIP, 18 Leads, Formed Leads | Tube | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | IGBT | - | 30A | 45A | 12.5V ~ 17.5V | 450V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Status Flag | Current Limiting, UVLO | Through Hole | 22-SIP |
|
IR3552MTRPBFIC HALF BRIDGE DRIVER 40A 2PQFN |
0 |
|
Datasheet |
PowIRstage® | 25-PowerVFQFN | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters, Voltage Regulators | PWM | Inductive | Power MOSFET | - | 40A | - | 4.5V ~ 5.5V | 4.5V ~ 17V | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit, Status Flag | Over Temperature, Shoot-Through, UVLO | Surface Mount | 25-PQFN (4x6) |
|
|
IR3555AMTRPBFIC GATE DRIVER 60A 30PQFN |
0 |
|
Datasheet |
PowIRstage® | 30-PowerVFQFN | Tape & Reel (TR) | Obsolete | - | Synchronous Buck Converters, Voltage Regulators | PWM | Inductive | - | - | 60A | - | 4.5V ~ 7V | 4.5V ~ 15V | - | - | - | Diode Emulation, Status Flag | Current Limiting, Over Temperature, UVLO | Surface Mount | 30-PQFN (6x6) |
|

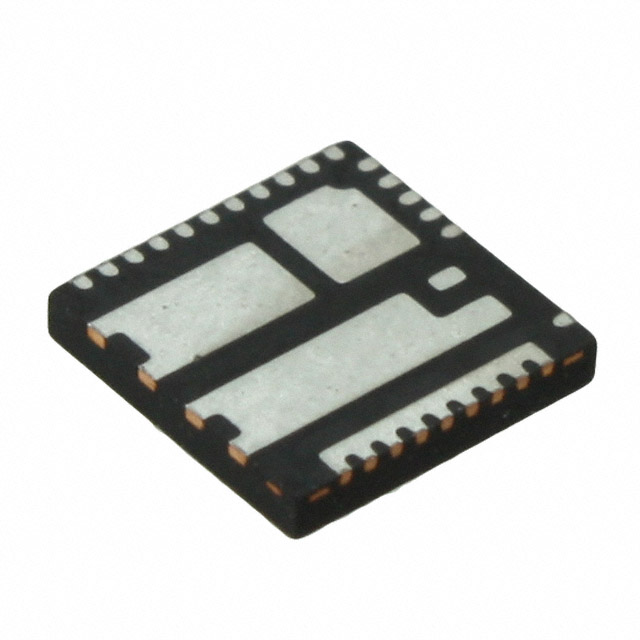

IR3555MTRPBFIC GATE DRIVER 60A 30PQFN |
0 |
|
Datasheet |
PowIRstage® | 30-PowerVFQFN | Tape & Reel (TR) | Obsolete | - | Synchronous Buck Converters, Voltage Regulators | PWM | Inductive | - | - | 60A | - | 4.5V ~ 7V | 4.5V ~ 15V | - | - | - | Diode Emulation, Status Flag | Current Limiting, Over Temperature, Over Voltage, UVLO | Surface Mount | 30-PQFN (6x6) |
|
|
IR3557MTRPBFIC GATE DRIVER 40A 30PQFN |
0 |
|
Datasheet |
PowIRstage® | 30-PowerVFQFN | Tape & Reel (TR) | Obsolete | - | Synchronous Buck Converters, Voltage Regulators | PWM | Inductive | - | - | 40A | - | 4.5V ~ 7V | 4.5V ~ 15V | - | - | - | Diode Emulation, Status Flag | Current Limiting, Over Temperature, Over Voltage, UVLO | Surface Mount | 30-PQFN (6x6) |
|
|
IR3578MTRPBFIC REG BUCK SYNC ADJ 30PQFN |
0 |
|
Datasheet |
PowIRstage® | 30-PowerVFQFN | Tape & Reel (TR) | Obsolete | - | Synchronous Buck Converters, Voltage Regulators | PWM | Inductive | - | - | 50A | - | 4.5V ~ 7V | 4.5V ~ 15V | - | - | - | Diode Emulation, Status Flag | Current Limiting, Over Temperature, Over Voltage, UVLO | Surface Mount | 30-PQFN (6x6) |
|
|
IR3579AMTRPBFIC REG BUCK SYNC ADJ 30PQFN |
0 |
|
Datasheet |
PowIRstage® | 30-PowerVFQFN | Tape & Reel (TR) | Obsolete | - | Synchronous Buck Converters, Voltage Regulators | PWM | Inductive | - | - | 60A | - | 4.5V ~ 7V | 4.5V ~ 15V | - | - | - | Diode Emulation, Status Flag | Current Limiting, Over Temperature, UVLO | Surface Mount | 30-PQFN (6x6) |
|
|
IR3579MTRPBFIC REG BUCK SYNC ADJ 32PQFN |
0 |
|
Datasheet |
PowIRstage® | 30-PowerVFQFN | Tape & Reel (TR) | Obsolete | - | Synchronous Buck Converters, Voltage Regulators | PWM | Inductive | - | - | 60A | - | 4.5V ~ 7V | 4.5V ~ 15V | - | - | - | Diode Emulation, Status Flag | Current Limiting, Over Temperature, Over Voltage, UVLO | Surface Mount | 30-PQFN (6x6) |
|
|
IRSM505-024PAIC HALF BRIDGE DRIVER 1.6A 23SOP |
0 |
|
Datasheet |
µIPM™-DIP | 23-PowerSMD Module | Tube | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 1.8Ohm | 1.6A | 7A | 13.5V ~ 16.5V | 200V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Surface Mount | 23-SOP |
|
|
IRSM505-025DAIC HALF BRIDGE DRIVER 1.5A 23DIP |
0 |
|
Datasheet |
µIPM™-DIP | 32-PowerDIP Module, 23 Leads | Tube | Discontinued at Digi-Key | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 3Ohm | 1.5A | 11A | 13.5V ~ 16.5V | 400V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Through Hole | 23-DIP |
|
|
IRSM505-025DA2IC HALF BRIDGE DRIVER 1.5A 23DIP |
0 |
|
Datasheet |
µIPM™-DIP | 32-PowerDIP Module, 23 Leads | Tube | Discontinued at Digi-Key | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 3Ohm | 1.5A | 11A | 13.5V ~ 16.5V | 400V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Through Hole | 23-DIP |
|
IRSM505-025PAIC HALF BRIDGE DRIVER 1.5A 23SOP |
0 |
|
Datasheet |
µIPM™-DIP | 23-PowerSMD Module | Tube | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 3Ohm | 1.5A | 11A | 13.5V ~ 16.5V | 400V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Surface Mount | 23-SOP |
|
|
IRSM505-035DA2IC HALF BRIDGE DRIVER 2.1A 23DIP |
0 |
|
Datasheet |
µIPM™-DIP | 32-PowerDIP Module, 23 Leads | Tube | Discontinued at Digi-Key | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 1.8Ohm | 2.1A | 15A | 13.5V ~ 16.5V | 400V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Through Hole | 23-DIP |
|
|
IRSM505-035PAIC HALF BRIDGE DRIVER 2.1A 23SOP |
0 |
|
Datasheet |
µIPM™-DIP | 23-PowerSMD Module | Tube | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 1.8Ohm | 2.1A | 15A | 13.5V ~ 16.5V | 400V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Surface Mount | 23-SOP |
|
|
IRSM505-044DA2IC HALF BRIDGE DRIVER 3A 23DIP |
0 |
|
Datasheet |
µIPM™-DIP | 32-PowerDIP Module, 23 Leads | Tube | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 800mOhm | 3A | 15A | 13.5V ~ 16.5V | 200V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Through Hole | 23-DIP |
|
|
IRSM505-044PAIC HALF BRIDGE DRIVER 3A 23SOP |
0 |
|
Datasheet |
µIPM™-DIP | 23-PowerSMD Module | Tube | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 800mOhm | 3A | 15A | 13.5V ~ 16.5V | 200V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Surface Mount | 23-SOP |
|
|
IRSM505-055DAIC HALF BRIDGE DRIVER 2.4A 23DIP |
0 |
|
Datasheet |
µIPM™-DIP | 32-PowerDIP Module, 23 Leads | Tube | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 1.3Ohm | 2.4A | 15A | 13.5V ~ 16.5V | 400V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Through Hole | 23-DIP |
