Full Half-Bridge (H Bridge) Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Applications | Interface | Load Type | Technology | Rds On (Typ) | Current - Output / Channel | Current - Peak Output | Voltage - Supply | Voltage - Load | Operating Temperature | Grade | Qualification | Features | Fault Protection | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IR3411STRPBFIC SW LOW EMI CURR SENSE D2PAK-5 |
0 |
|
Datasheet |
* | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
LB1836M-TLM-EIC MOTOR DRIVER PAR MFP14S |
0 |
|
Datasheet |
- | 14-LSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (4) | DC Motors, General Purpose | Logic | Inductive | Bipolar | - | 1A | - | 2.5V ~ 9V | 1.8V ~ 9V | -40°C ~ 85°C (TA) | - | - | - | Over Temperature | Surface Mount | 14-MFPS |
|
NCV7608DWR2GIC HALF BRIDGE DRIVER 28SOIC |
0 |
|
- |
- | 28-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (4) | DC Motors, Lamps, Relays | SPI | Inductive, Capacitive, Resistive | Power MOSFET | 1.2Ohm | - | 250mA | 3.15V ~ 5.25V | 5.5V ~ 28V | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Slew Rate Controlled, Status Flag | Current Limiting, Open Load Detect, Over Temperature, Over Voltage, UVLO | Surface Mount | 28-SOIC |
|
SIC762CD-T1-GE3IC HALF BRIDGE DRIVER 35A PPAK |
0 |
|
- |
- | PowerPAK® MLP66-40 | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters | PWM | Inductive | DrMOS | - | 35A | - | 4.5V ~ 5.5V | 3V ~ 24V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Diode Emulation, Status Flag | Over Temperature, Shoot-Through, UVLO | Surface Mount | PowerPAK® MLP66-40 |
|
|
SIC769ACD-T1-GE3IC HALF BRIDGE DRIVER 35A PPAK |
0 |
|
- |
- | PowerPAK® MLP66-40 | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters | PWM | Inductive | DrMOS | 1.7mOhm LS, 6mOhm HS | 35A | - | 4.5V ~ 5.5V | 3V ~ 16V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Diode Emulation, Status Flag | Over Temperature, Shoot-Through, UVLO | Surface Mount | PowerPAK® MLP66-40 |
|
NCP5366MNR2GIC HALF BRIDGE DRIVER 40A 40QFN |
0 |
|
Datasheet |
- | 40-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters | PWM | Inductive | Power MOSFET | - | 40A | - | 4.5V ~ 13.2V | 4.5V ~ 25V | 0°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | Over Temperature, UVLO | Surface Mount | 40-QFN (6x6) |
|
|
NCP5369MNR2GIC HALF BRIDGE DRIVER 35A 40QFN |
0 |
|
Datasheet |
- | 40-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters | PWM | Inductive | Power MOSFET | - | 35A | 50A | 4.5V ~ 5.5V | 4.5V ~ 25V | -55°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Status Flag | Over Temperature, Shoot-Through, UVLO | Surface Mount | 40-QFN (6x6) |
|
|
BA5947FP-E2IC HALF BRIDGE DRVR 13MA 28HSOP |
0 |
|
- |
- | 28-SOP (0.295", 7.50mm Width) + 2 Heat Tabs | Tape & Reel (TR) | Obsolete | Half Bridge (8) | DC Motors, General Purpose | Logic | Inductive | Bipolar | - | 13mA | - | 6V ~ 13.2V | 4.4V ~ 5.6V | -35°C ~ 85°C (TA) | - | - | - | Over Temperature | Surface Mount | 28-HSOP-M |
|
BA5947FM-E2IC HALF BRIDGE DRVR 13MA 28HSOP |
0 |
|
Datasheet |
- | 28-SOP (0.295", 7.50mm Width) + 2 Heat Tabs | Tape & Reel (TR) | Obsolete | Half Bridge (8) | DC Motors, General Purpose | Logic | Inductive | Bipolar | - | 13mA | - | 6V ~ 13.2V | 4.4V ~ 5.6V | -35°C ~ 85°C (TA) | - | - | - | Over Temperature | Surface Mount | 28-HSOP-M |
|
BD7790KVT-E2IC HALF BRIDGE DRIVER 3A 48TQFP |
0 |
|
Datasheet |
- | 48-TQFP | Tape & Reel (TR) | Obsolete | Half Bridge (15) | DC Motors, General Purpose | Logic | Inductive | Power MOSFET | - | 3A | - | 4V ~ 5.5V | 4V ~ 5.5V | -30°C ~ 150°C (TJ) | - | - | - | Over Temperature | Surface Mount | 48-TQFP (7x7) |
|
BA5983FP-E2IC HALF BRIDGE DRIVER 1A 28HSOP |
0 |
|
Datasheet |
- | 28-SOP (0.295", 7.50mm Width) + 2 Heat Tabs | Tape & Reel (TR) | Obsolete | Half Bridge (8) | DC Motors, General Purpose | Logic | Inductive | Bipolar | - | 1A | - | 4.3V ~ 13.2V | 6V | -35°C ~ 85°C (TA) | - | - | - | Over Temperature | Surface Mount | 28-HSOP-M |
|
|
BA5969FP-E2IC HALF BRIDGE DRIVER 28HSOP |
0 |
|
Datasheet |
- | 28-SOP (0.295", 7.50mm Width) + 2 Heat Tabs | Tape & Reel (TR) | Obsolete | Half Bridge (8) | DC Motors, General Purpose | Logic | Inductive | Bipolar | - | - | - | 4.3V ~ 9V | 6V | -40°C ~ 85°C (TA) | - | - | - | Over Temperature | Surface Mount | 28-HSOP-M |
|
|
BD8201FM-E2IC HALF BRIDGE DRIVER 28HSOP |
0 |
|
Datasheet |
- | 28-SOP (0.295", 7.50mm Width) + 2 Heat Tabs | Tape & Reel (TR) | Obsolete | Half Bridge (8) | DC Motors, General Purpose | On/Off | Inductive | - | - | - | - | 4.5V ~ 14V | 4.5V ~ 14V | -40°C ~ 85°C (TA) | - | - | - | Over Temperature | Surface Mount | 28-HSOP-M |
|

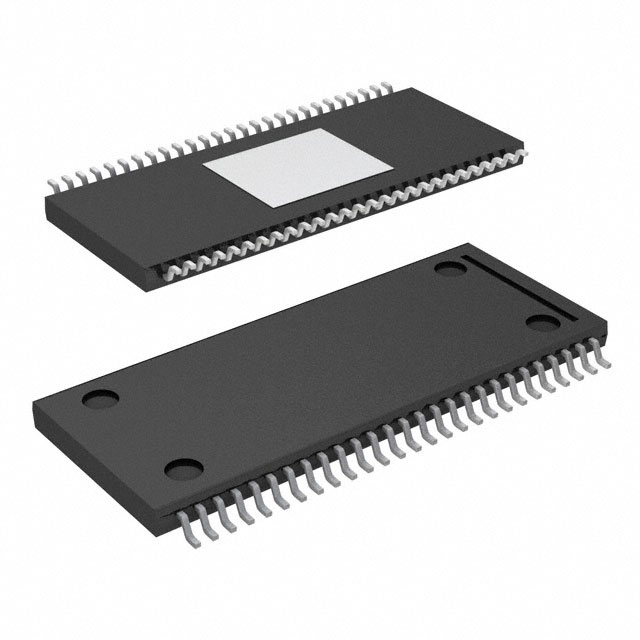

BD7996EFV-E2IC BRIDGE DRIVER PAR 54HTSSOP |
0 |
|
- |
- | 54-VSSOP (0.295", 7.50mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | - | - | Logic | - | - | - | 1.2A | - | 4.3V ~ 14V | - | -20°C ~ 75°C (TA) | - | - | - | - | Surface Mount | 54-HTSSOP-B |
|
TDA21220AUMA1IC HALF BRIDGE DRVR 50A IQFN-40 |
0 |
|
Datasheet |
- | 40-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Half Bridge | Buck Converters | PWM | Inductive | DrMOS | - | 50A | - | 4.5V ~ 5.5V | 5V ~ 16V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | Shoot-Through, UVLO | Surface Mount | PG-IQFN-40-1 |
|
LB1937T-TLM-EIC HALF BRIDGE DRV 800MA 24TSSOP |
0 |
|
Datasheet |
- | 24-TFSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (8) | DC Motors, General Purpose, Stepper Motors | Logic | Inductive | Bipolar | - | 800mA | - | 2.5V ~ 9.5V | 2.5V ~ 9.5V | -30°C ~ 85°C (TA) | - | - | - | Over Temperature | Surface Mount | 24-TSSOP |
.jpg)
|
TND322VD-TL-EIC DVR EXPD 25V 0.8A VEC8 |
0 |
|
- |
- | 8-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | Half Bridge | - | - | - | - | 11Ohm | - | 800mA | 4.5V ~ 25V | - | -40°C ~ 125°C | - | - | - | - | Surface Mount | SOT-28FL/VEC8 |
|
FDMF6705VIC HALF BRIDGE DRIVER 40A 40PQFN |
0 |
|
- |
XS™ DrMOS | 40-PowerTFQFN | Tape & Reel (TR) | Active | Half Bridge | Synchronous Buck Converters | PWM | Inductive | DrMOS | 1Ohm LS, 1Ohm HS | 40A | - | 8V ~ 15V | 3V ~ 15V | -55°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Status Flag | Over Temperature, Shoot-Through, UVLO | Surface Mount | 40-PQFN (6x6) |
|
MC33879TEKIC SW SERIAL OCTAL 32SOIC |
0 |
|
Datasheet |
- | 32-BSSOP (0.295", 7.50mm Width) Exposed Pad | Tube | Obsolete | - | - | - | - | - | 750mOhm | - | 1.2A | 5.5V ~ 26.5V | - | -40°C ~ 125°C | - | - | - | - | Surface Mount | 32-SOIC |
|

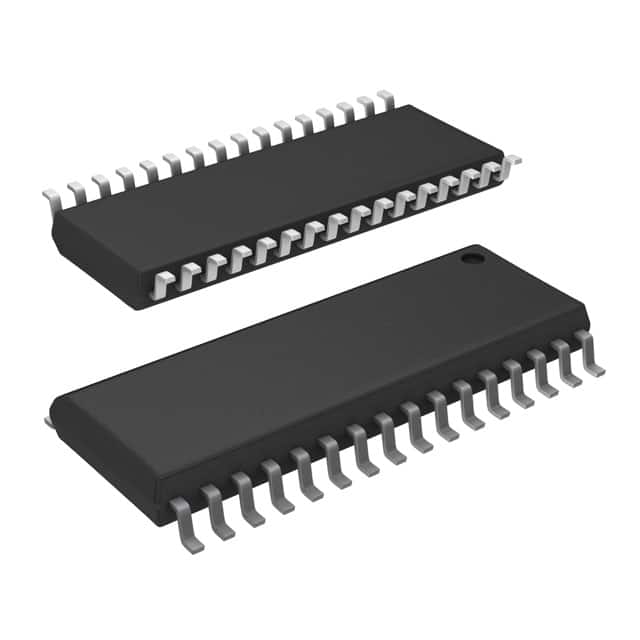

MC33879TEKR2IC SW SERIAL OCTAL 32SOIC |
0 |
|
Datasheet |
- | 32-BSSOP (0.295", 7.50mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | - | - | - | - | - | 750mOhm | - | 1.2A | 5.5V ~ 26.5V | - | -40°C ~ 125°C | - | - | - | - | Surface Mount | 32-SOIC |
