Full Half-Bridge (H Bridge) Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Applications | Interface | Load Type | Technology | Rds On (Typ) | Current - Output / Channel | Current - Peak Output | Voltage - Supply | Voltage - Load | Operating Temperature | Grade | Qualification | Features | Fault Protection | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRSM505-055DA2IC HALF BRIDGE DRIVER 2.4A 23DIP |
0 |
|
Datasheet |
µIPM™-DIP | 32-PowerDIP Module, 23 Leads | Tube | Discontinued at Digi-Key | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 1.3Ohm | 2.4A | 15A | 13.5V ~ 16.5V | 400V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Through Hole | 23-DIP |
|
|
IRSM505-065DA2IC HALF BRIDGE DRIVER 2.6A 23DIP |
0 |
|
Datasheet |
µIPM™-DIP | 32-PowerDIP Module, 23 Leads | Tube | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 1Ohm | 2.6A | 15A | 13.5V ~ 16.5V | 400V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Through Hole | 23-DIP |
|

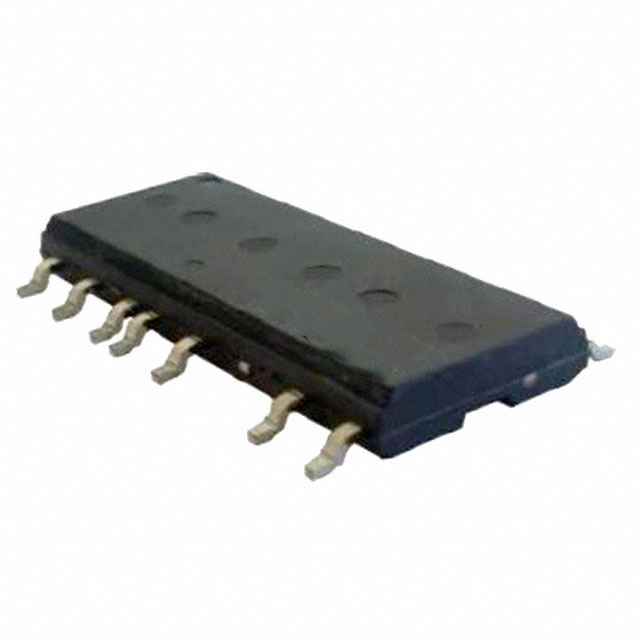

IRSM505-065PAIC HALF BRIDGE DRIVER 2.6A 23SOP |
0 |
|
Datasheet |
µIPM™-DIP | 23-PowerSMD Module | Tube | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 1Ohm | 2.6A | 15A | 13.5V ~ 16.5V | 400V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Surface Mount | 23-SOP |
|
IRSM515-024DAIC HALF BRIDGE DRIVER 1.6A 23DIP |
0 |
|
Datasheet |
µIPM™-DIP | 32-PowerDIP Module, 23 Leads | Tube | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 1.8Ohm | 1.6A | 7A | 13.5V ~ 16.5V | 200V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Through Hole | 23-DIP |
|
|
IRSM515-024DA2IC HALF BRIDGE DRIVER 1.6A 23DIP |
0 |
|
Datasheet |
µIPM™-DIP | 32-PowerDIP Module, 23 Leads | Tube | Discontinued at Digi-Key | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 1.8Ohm | 1.6A | 7A | 13.5V ~ 16.5V | 200V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Through Hole | 23-DIP |
|
|
IRSM515-025DA2IC HALF BRIDGE DRIVER 1.5A 23DIP |
0 |
|
Datasheet |
µIPM™-DIP | 32-PowerDIP Module, 23 Leads | Tube | Discontinued at Digi-Key | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 3Ohm | 1.5A | 11A | 13.5V ~ 16.5V | 400V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Through Hole | 23-DIP |
|
|
IRSM515-025PAIC HALF BRIDGE DRIVER 1.5A 23SOP |
0 |
|
Datasheet |
µIPM™-DIP | 23-PowerSMD Module | Tube | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 3Ohm | 1.5A | 11A | 13.5V ~ 16.5V | 400V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Surface Mount | 23-SOP |
|
|
IRSM515-055DA2IC HALF BRIDGE DRIVER 2.4A 23DIP |
0 |
|
Datasheet |
µIPM™-DIP | 32-PowerDIP Module, 23 Leads | Tube | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 1.3Ohm | 2.4A | 15A | 13.5V ~ 16.5V | 400V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Through Hole | 23-DIP |
|
|
IRSM515-065DA2IC HALF BRIDGE DRIVER 2.6A 23DIP |
0 |
|
Datasheet |
µIPM™-DIP | 32-PowerDIP Module, 23 Leads | Tube | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 1Ohm | 2.6A | 15A | 13.5V ~ 16.5V | 400V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Through Hole | 23-DIP |
|
|
AN44070A-VFIC HALF BRIDGE DRVR 2.5A 24HQFN |
0 |
|
Datasheet |
- | 24-WFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Half Bridge (4) | DC Motors, General Purpose | PWM | Inductive | BCDMOS | - | 2.5A | - | 3V ~ 5.5V | 10V ~ 34V | -20°C ~ 70°C (TA) | - | - | - | Current Limiting, Over Temperature, UVLO | Surface Mount | 24-HQFN (4x4) |
|
|
AN41400A-PBIC HALF BRIDGE DRVR 1.2A 19WLCSP |
0 |
|
Datasheet |
- | - | Tape & Reel (TR) | Obsolete | Half Bridge (2) | General Purpose | Logic | Inductive | DMOS | 190mOhm | 1.2A | - | 2.7V ~ 5.5V | 2V ~ 13.8V | -30°C ~ 85°C (TA) | - | - | - | Over Temperature | Surface Mount | 19-WLCSP (2.41x1.91) |
|
|
AN41406A-PBIC HALF BRIDGE DRV 200MA 17WLCSP |
0 |
|
Datasheet |
- | 17-VFBGA, CSPBGA | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | DMOS | 190mOhm | 200mA | - | 2.7V ~ 5.5V | 4V ~ 13.8V | -30°C ~ 85°C (TA) | - | - | - | Over Temperature | Surface Mount | 17-WLCSP (2.41x1.91) |
|
AN44140A-VBIC HALF BRIDGE DRIVER 24QFN |
0 |
|
Datasheet |
- | 24-WFBGA | Tape & Reel (TR) | Obsolete | Half Bridge (3) | DC Motors, General Purpose | Logic | Inductive | Power MOSFET | 1.2Ohm | - | - | 6V ~ 26.4V | 6V ~ 26.4V | -40°C ~ 95°C (TA) | - | - | - | Current Limiting, Over Temperature, Over Voltage, UVLO | Surface Mount | 24-QFN (4x4) |
|
|
AN44142A-VBIC HALF BRIDGE DRIVER 24HQFN |
0 |
|
Datasheet |
- | 24-WFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Half Bridge (3) | DC Motors, General Purpose | Logic | Inductive | Power MOSFET | 1Ohm | - | - | 4.5V ~ 26.4V | 4.5V ~ 26.4V | -40°C ~ 95°C (TA) | - | - | - | Current Limiting, Over Temperature, Over Voltage, UVLO | Surface Mount | 24-HQFN (4x4) |
.jpg)
|

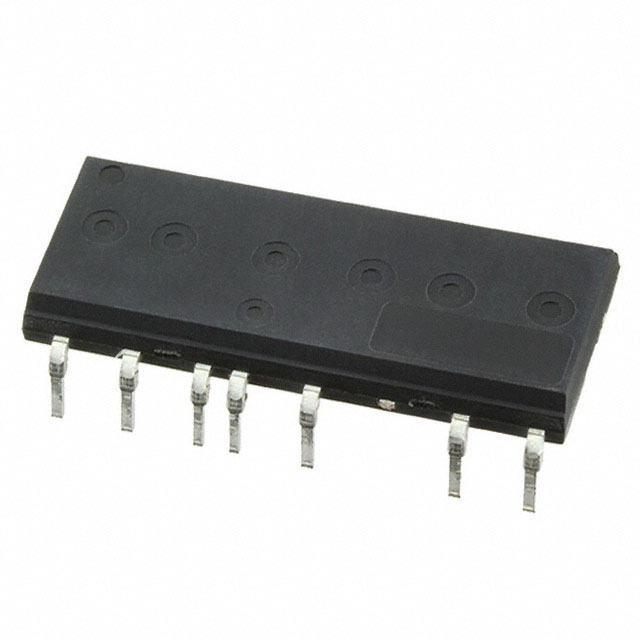

IRSM505-015DAIC HALF BRIDGE DRIVER 1.2A 23DIP |
0 |
|
Datasheet |
µIPM™-DIP | 23-DIP Module | Tube | Discontinued at Digi-Key | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 5Ohm | 1.2A | 9A | 13.5V ~ 16.5V | 400V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Through Hole | 23-DIP |
|
|
IRSM505-015DA2IC HALF BRIDGE DRIVER 1.2A 23DIP |
0 |
|
Datasheet |
µIPM™-DIP | 23-DIP Module | Tube | Discontinued at Digi-Key | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 5Ohm | 1.2A | 9A | 13.5V ~ 16.5V | 400V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Through Hole | 23-DIPA |
|
|
IRSM505-015PAIC HALF BRIDGE DRIVER 1.2A 23SOP |
0 |
|
Datasheet |
µIPM™-DIP | 23-PowerSMD Module | Tube | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 5Ohm | 1.2A | 9A | 13.5V ~ 16.5V | 400V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Surface Mount | 23-SOP |
|
|
IRSM505-084DAIC HALF BRIDGE DRIVER 4.6A 23DIP |
0 |
|
Datasheet |
µIPM™-DIP | 23-DIP Module | Tube | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 340mOhm | 4.6A | 15A | 13.5V ~ 16.5V | 200V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Through Hole | 23-DIP |
|
|
IRSM505-084PAIC HALF BRIDGE DRIVER 4.6A 23SOP |
0 |
|
Datasheet |
µIPM™-DIP | 23-PowerSMD Module | Tube | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 340mOhm | 4.6A | 15A | 13.5V ~ 16.5V | 200V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Surface Mount | 23-SOP |
|
|
IRSM515-015DAIC HALF BRIDGE DRIVER 1.2A 23DIP |
0 |
|
Datasheet |
µIPM™-DIP | 23-DIP Module | Tube | Discontinued at Digi-Key | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 5Ohm | 1.2A | 9A | 13.5V ~ 16.5V | 400V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Through Hole | 23-DIP |
