AC DC Converters, Offline Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Isolation | Internal Switch(s) | Voltage - Breakdown | Topology | Voltage - Start Up | Voltage - Supply (Vcc/Vdd) | Duty Cycle | Frequency - Switching | Power (Watts) | Fault Protection | Control Features | Operating Temperature | Grade | Qualification | Supplier Device Package | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LNK3307D-TLIC OFFLINE SWITCH MULT TOP 8SO |
2,369 |
|
Datasheet |
LinkSwitch®-TNZ | 8-SOIC (0.154", 3.90mm Width), 7 Leads | Tape & Reel (TR) | Active | Isolated | Yes | 725V | Buck, Buck-Boost, Flyback | 18 V | - | 69% | 66kHz | 12 W | Current Limiting, Open Loop, Over Temperature, Over Voltage, Short Circuit | EN, Soft Start | -40°C ~ 150°C (TJ) | - | - | SO-8C | Surface Mount |
|
TNY253PNIC OFFLINE SWITCH FLYBACK 8DIP |
254 |
|
Datasheet |
TinySwitch® | 8-DIP (0.300", 7.62mm) | Tube | Not For New Designs | Isolated | Yes | 700V | Flyback | - | - | 68% | 44kHz | 2 W | Current Limiting, Over Temperature | EN | -40°C ~ 150°C (TJ) | - | - | 8-PDIP | Through Hole |
|
TEA1721AT/N1,118IC OFFLINE SWITCH FLYBACK 7SOIC |
12,308 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width), 7 Leads | Tape & Reel (TR) | Active | - | Yes | 700V | Flyback | 17 V | 8.5V ~ 35V | 75% | 22.5kHz ~ 50.5kHz | 5 W | Over Temperature, Over Voltage, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | 7-SOIC | Surface Mount |
|
VIPER318XDTRIC OFFLINE SWITCH MULT TOP 16SO |
4,990 |
|
Datasheet |
VIPER™ | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Non-Isolated | Yes | 800V | Boost, Buck, Buck-Boost, Flyback | 8 V | 4.5V ~ 30V | - | 30kHz | 1 W | Over Load, Over Temperature, Over Voltage, Short Circuit | Soft Start | -40°C ~ 150°C (TJ) | - | - | 16-SO | Surface Mount |
|
|
VIPER317HDTRIC OFFLINE SWITCH MULT TOP 16SO |
3,449 |
|
Datasheet |
VIPER™ | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Non-Isolated | Yes | 800V | Boost, Buck, Buck-Boost, Flyback | 8 V | 4.5V ~ 30V | - | 132kHz | 1 W | Over Load, Over Temperature, Over Voltage, Short Circuit | Soft Start | -40°C ~ 150°C (TJ) | - | - | 16-SO | Surface Mount |
|
TNY288PGIC OFFLINE SWITCH FLYBACK 8DIP |
2,627 |
|
Datasheet |
TinySwitch®-4 | 8-DIP (0.300", 7.62mm), 7 Leads | Tube | Active | Isolated | Yes | 725V | Flyback | - | - | 67% | 124kHz ~ 140kHz | 16 W | Current Limiting, Open Loop, Over Temperature, Over Voltage, Short Circuit | EN | -40°C ~ 150°C (TJ) | - | - | 8-PDIP-C | Through Hole |
|
VIPER319XDTRIC OFFLINE SWITCH MULT TOP 16SO |
2,549 |
|
Datasheet |
VIPER™ | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Non-Isolated | Yes | 800V | Boost, Buck, Buck-Boost, Flyback | 8 V | 4.5V ~ 30V | - | 132kHz | 1 W | Over Load, Over Power, Over Temperature, Over Voltage, Short Circuit | Soft Start | -40°C ~ 150°C (TJ) | - | - | 16-SO | Surface Mount |
|
CYPAP111A3-10SXQTPRIMARY SIDE STARTUP CONTROLLER |
2,500 |
|
Datasheet |
EZ-PD™ PAG1P | 10-SOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Isolated | No | 500V | Flyback, Secondary Side SR | - | 85V ~ 265V | 70% | 30kHz | - | Current Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO | Frequency Control, Soft Start | -40°C ~ 125°C (TJ) | - | - | 10-SOIC | Surface Mount |
|

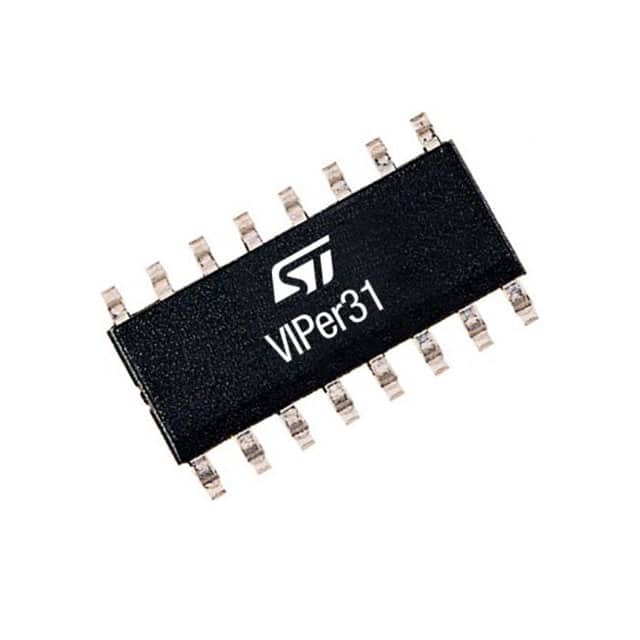

VIPER319LDTRIC OFFLINE SWITCH MULT TOP 16SO |
2,380 |
|
Datasheet |
VIPER™ | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Non-Isolated | Yes | 800V | Boost, Buck, Buck-Boost, Flyback | 8 V | 4.5V ~ 30V | - | 60kHz | 1 W | Over Load, Over Temperature, Over Voltage, Short Circuit | Soft Start | -40°C ~ 150°C (TJ) | - | - | 16-SO | Surface Mount |
|
|
VIPER319HDTRIC OFFLINE SWITCH MULT TOP 16SO |
1,984 |
|
Datasheet |
VIPER™ | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Non-Isolated | Yes | 800V | Boost, Buck, Buck-Boost, Flyback | 8 V | 4.5V ~ 30V | - | 132kHz | 1 W | Over Load, Over Temperature, Over Voltage, Short Circuit | Soft Start | -40°C ~ 150°C (TJ) | - | - | 16-SO | Surface Mount |
|
|
VIPER318LDTRIC OFFLINE SWITCH MULT TOP 16SO |
1,795 |
|
Datasheet |
VIPER™ | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Non-Isolated | Yes | 800V | Boost, Buck, Buck-Boost, Flyback | 8 V | 4.5V ~ 30V | - | 132kHz | 1 W | Over Load, Over Power, Over Temperature, Over Voltage, Short Circuit | Soft Start | -40°C ~ 150°C (TJ) | - | - | 16-SO | Surface Mount |
|
|
VIPER38LDTRIC OFFLINE SWITCH FLYBACK 16SO |
1,699 |
|
Datasheet |
VIPer™ plus | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Isolated | Yes | 800V | Flyback | 14 V | 8.5V ~ 23.5V | 80% | 60kHz | 20 W | Current Limiting, Over Temperature, Over Voltage, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | 16-SO | Surface Mount |
|
|
VIPER37HDIC OFFLINE SWITCH FLYBACK 16SO |
824 |
|
Datasheet |
VIPer™ plus | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | Isolated | Yes | 800V | Flyback | 14 V | 8.5V ~ 23.5V | 80% | 115kHz | 20 W | Current Limiting, Over Temperature, Over Voltage | - | -40°C ~ 150°C (TJ) | - | - | 16-SO | Surface Mount |
|
INN3672C-H601-TLIC OFFLINE SW MULT TOP 24INSOP |
1,704 |
|
Datasheet |
PowiGaN™, InnoSwitch™3-EP | 24-PowerSMD Module (0.425", 10.80mm Width), 17 Leads | Tape & Reel (TR) | Active | Isolated | Yes | 725V | Flyback, Secondary Side SR | - | - | - | 100kHz | 10 W | Current Limiting, Over Temperature, Over Voltage | - | -40°C ~ 105°C (TA) | - | - | InSOP-24D | Surface Mount |
|
|
TNY255PNIC OFFLINE SWITCH FLYBACK 8DIP |
4,168 |
|
Datasheet |
TinySwitch® | 8-DIP (0.300", 7.62mm) | Tube | Not For New Designs | Isolated | Yes | 700V | Flyback | - | - | 67% | 130kHz | 6.5 W | Current Limiting, Over Temperature | EN | -40°C ~ 150°C (TJ) | - | - | 8-PDIP | Through Hole |
|
|
TNY278PGIC OFFLINE SWITCH FLYBACK 8DIP |
1,856 |
|
Datasheet |
TinySwitch®-III | 8-DIP (0.300", 7.62mm), 7 Leads | Tube | Active | Isolated | Yes | 700V | Flyback | - | - | 65% | 132kHz | 28 W | Current Limiting, Open Loop, Over Temperature, Over Voltage, Short Circuit | EN | -40°C ~ 150°C (TJ) | - | - | 8-PDIP-C | Through Hole |
|
TNY179PN25 W (85-265 VAC) 32 W (230 VAC) |
956 |
|
- |
- | 8-DIP (0.300", 7.62mm), 7 Leads | Tube | Active | Isolated | Yes | 650V | Flyback, Secondary Side SR | - | - | 65% | 132kHz | 32 W | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit | EN | -40°C ~ 150°C (TJ) | - | - | 8-PDIP-C | Through Hole |
|
UCC28610DRIC OFFLINE SWITCH FLYBACK 8SOIC |
4,995 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Isolated | No | - | Flyback | 10.2 V | 8V ~ 25V | - | 30kHz ~ 133kHz | 65 W | Current Limiting, Over Temperature, Over Voltage | - | -40°C ~ 150°C (TJ) | - | - | 8-SOIC | Surface Mount |
|
|
VIPER318HDTRIC OFFLINE SWITCH MULT TOP 16SO |
2,434 |
|
Datasheet |
VIPER™ | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Non-Isolated | Yes | 800V | Boost, Buck, Buck-Boost, Flyback | 8 V | 4.5V ~ 30V | - | 132kHz | 1 W | Over Load, Over Power, Over Temperature, Over Voltage, Short Circuit | Soft Start | -40°C ~ 150°C (TJ) | - | - | 16-SO | Surface Mount |
|
VIPER22AS-EIC OFFLINE SWITCH FLYBACK 8SOIC |
911 |
|
Datasheet |
VIPER™ | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Isolated | Yes | 730V | Flyback | 14.5 V | 8V ~ 38V | - | 60kHz | 7 W | Current Limiting, Over Temperature, Over Voltage | - | -40°C ~ 150°C (TC) | - | - | 8-SOIC | Surface Mount |
