AC DC Converters, Offline Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Isolation | Internal Switch(s) | Voltage - Breakdown | Topology | Voltage - Start Up | Voltage - Supply (Vcc/Vdd) | Duty Cycle | Frequency - Switching | Power (Watts) | Fault Protection | Control Features | Operating Temperature | Grade | Qualification | Supplier Device Package | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LNK6407D-TLIC OFFLINE SWITCH FLYBACK 8SO |
6,290 |
|
Datasheet |
LinkSwitch™-3 | 8-SOIC (0.154", 3.90mm Width), 7 Leads | Tape & Reel (TR) | Active | Isolated | Yes | 725V | Flyback | - | - | 55% | Up to 85kHz | 7.5 W | Current Limiting, Open Loop, Over Temperature, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | SO-8C | Surface Mount |
|
|
LNK3204D-TLIC OFFLINE SWITCH MULT TOP 8SO |
10,323 |
|
Datasheet |
LinkSwitch™-TN2 | 8-SOIC (0.154", 3.90mm Width), 7 Leads | Tape & Reel (TR) | Active | Non-Isolated | Yes | 725V | Buck, Buck-Boost, Flyback | - | - | 69% | 66kHz | - | Current Limiting, Over Temperature, Over Voltage, Short Circuit | - | -40°C ~ 125°C (TJ) | - | - | SO-8C | Surface Mount |
|
SR10LG-GIC OFFLINE SWITCH SHUNT 8SOIC |
2,353 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Non-Isolated | Yes | - | Shunt | - | - | - | 50Hz ~ 60Hz | - | Current Limiting | - | -40°C ~ 125°C (TJ) | - | - | 8-SOIC | Surface Mount |
|
|
TNY285DG-TLIC OFFLINE SWITCH FLYBACK 8SO |
13,484 |
|
Datasheet |
TinySwitch®-4 | 8-SOIC (0.154", 3.90mm Width), 7 Leads | Tape & Reel (TR) | Active | Isolated | Yes | 725V | Flyback | - | - | 67% | 124kHz ~ 140kHz | 8.5 W | Current Limiting, Open Loop, Over Temperature, Over Voltage, Short Circuit | EN | -40°C ~ 150°C (TJ) | - | - | SO-8C | Surface Mount |
|
|
LNK304DN-TLIC OFFLINE SWITCH MULT TOP 8SO |
30,200 |
|
Datasheet |
LinkSwitch®-TN | 8-SOIC (0.154", 3.90mm Width), 7 Leads | Tape & Reel (TR) | Active | Non-Isolated | Yes | 700V | Buck, Buck-Boost, Flyback | - | - | 69% | 66kHz | - | Current Limiting, Open Loop, Over Temperature, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | SO-8C | Surface Mount |
|
TNY285KG-TLIC OFFLINE SWITCH FLYBACK 12ESOP |
7,931 |
|
Datasheet |
TinySwitch®-4 | 12-BESOP (0.350", 8.89mm Width), 11 Leads, Exposed Pad | Tape & Reel (TR) | Active | Isolated | Yes | 725V | Flyback | - | - | 67% | 124kHz ~ 140kHz | 11 W | Current Limiting, Open Loop, Over Temperature, Over Voltage, Short Circuit | EN | -40°C ~ 150°C (TJ) | - | - | 12-ESOP | Surface Mount |
|
|
LNK3206D-TLIC OFFLINE SWITCH MULT TOP 8SO |
4,584 |
|
Datasheet |
LinkSwitch™-TN2 | 8-SOIC (0.154", 3.90mm Width), 7 Leads | Tape & Reel (TR) | Active | Non-Isolated | Yes | 725V | Buck, Buck-Boost, Flyback | - | - | 69% | 66kHz | - | Current Limiting, Over Temperature, Over Voltage, Short Circuit | - | -40°C ~ 125°C (TJ) | - | - | SO-8C | Surface Mount |
|
|
LNK623DG-TLIC OFFLINE SWITCH FLYBACK 8SO |
2,881 |
|
Datasheet |
LinkSwitch®-CV | 8-SOIC (0.154", 3.90mm Width), 7 Leads | Tape & Reel (TR) | Active | Isolated | Yes | 725V | Flyback | - | - | 54% | 100kHz | 9 W | Current Limiting, Open Loop, Over Temperature, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | SO-8C | Surface Mount |
|
TNY286PGIC OFFLINE SWITCH FLYBACK 8DIP |
4,504 |
|
Datasheet |
TinySwitch®-4 | 8-DIP (0.300", 7.62mm), 7 Leads | Tube | Active | Isolated | Yes | 725V | Flyback | - | - | 67% | 124kHz ~ 140kHz | 13 W | Current Limiting, Open Loop, Over Temperature, Over Voltage, Short Circuit | EN | -40°C ~ 150°C (TJ) | - | - | 8-PDIP-C | Through Hole |
|
|
LNK624DG-TLIC OFFLINE SWITCH FLYBACK 8SO |
7,054 |
|
Datasheet |
LinkSwitch®-CV | 8-SOIC (0.154", 3.90mm Width), 7 Leads | Tape & Reel (TR) | Active | Isolated | Yes | 725V | Flyback | - | - | 54% | 100kHz | 11 W | Current Limiting, Open Loop, Over Temperature, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | SO-8C | Surface Mount |
|
|
LNK604DG-TLIC OFFLINE SWITCH FLYBACK 8SO |
2,514 |
|
Datasheet |
LinkSwitch®-II | 8-SOIC (0.154", 3.90mm Width), 7 Leads | Tape & Reel (TR) | Active | Isolated | Yes | 700V | Flyback | - | - | 55% | Up to 85kHz | 4.1 W | Current Limiting, Open Loop, Over Temperature, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | SO-8C | Surface Mount |
|
UCC28704DBVR-1IC OFFLINE SW FLYBACK SOT23-6 |
14,533 |
|
Datasheet |
- | SOT-23-6 | Tape & Reel (TR) | Active | Isolated | No | - | Flyback | 21 V | 8.5V ~ 35V | - | 85kHz | - | Current Limiting, Over Temperature, Over Voltage, Short Circuit | - | -40°C ~ 125°C (TJ) | - | - | SOT-23-6 | Surface Mount |
|

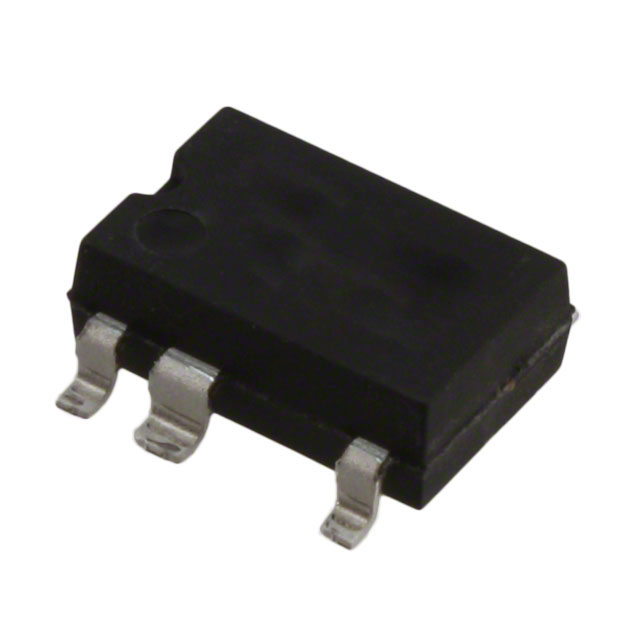

TNY275GN-TLIC OFFLINE SWITCH FLYBACK 8SMD |
14,594 |
|
Datasheet |
TinySwitch®-III | 8-SMD (7 Leads), Gull Wing | Tape & Reel (TR) | Active | Isolated | Yes | 700V | Flyback | - | - | 65% | 132kHz | 15 W | Current Limiting, Open Loop, Over Temperature, Over Voltage, Short Circuit | EN | -40°C ~ 150°C (TJ) | - | - | SMD-8C | Surface Mount |
|
LNK3207D-TLIC OFFLINE SWITCH MULT TOP 8SO |
8,648 |
|
Datasheet |
LinkSwitch®-TN2 | 8-SOIC (0.154", 3.90mm Width), 7 Leads | Tape & Reel (TR) | Active | Non-Isolated | Yes | 725V | Buck, Buck-Boost, Flyback | - | - | 69% | 66kHz | - | Current Limiting, Over Temperature, Over Voltage, Short Circuit | EN, Frequency Control, Soft Start | -40°C ~ 150°C (TJ) | - | - | SO-8C | Surface Mount |
|
L6565DTRIC OFFLINE SWITCH FLYBACK 8SO |
13,020 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Isolated | No | - | Flyback | 13.5 V | 10.3V ~ 18V | - | - | - | Current Limiting | - | -40°C ~ 150°C (TJ) | - | - | 8-SOIC | Surface Mount |
|

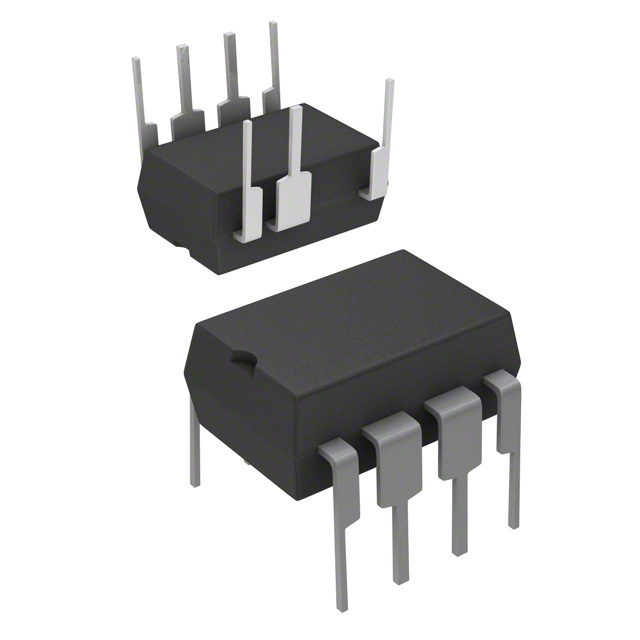

LNK306PNIC OFFLINE SWITCH MULT TOP 8DIP |
6,917 |
|
Datasheet |
LinkSwitch®-TN | 8-DIP (0.300", 7.62mm), 7 Leads | Tube | Active | Non-Isolated | Yes | 700V | Buck, Buck-Boost, Flyback | - | - | 69% | 66kHz | - | Current Limiting, Open Loop, Over Temperature, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | 8-PDIP-B | Through Hole |
|
LNK306GN-TLIC OFFLINE SWITCH MULT TOP 8SMD |
6,013 |
|
Datasheet |
LinkSwitch®-TN | 8-SMD (7 Leads), Gull Wing | Tape & Reel (TR) | Active | Non-Isolated | Yes | 700V | Buck, Buck-Boost, Flyback | - | - | 69% | 66kHz | - | Current Limiting, Open Loop, Over Temperature, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | SMD-8B | Surface Mount |
|
|
LNK306DN-TLIC OFFLINE SWITCH MULT TOP 8SO |
21,143 |
|
Datasheet |
LinkSwitch®-TN | 8-SOIC (0.154", 3.90mm Width), 7 Leads | Tape & Reel (TR) | Active | Non-Isolated | Yes | 700V | Buck, Buck-Boost, Flyback | - | - | 69% | 66kHz | - | Current Limiting, Open Loop, Over Temperature, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | SO-8C | Surface Mount |
|
|
LNK306DG-TLIC OFFLINE SWITCH MULT TOP 8SO |
9,476 |
|
Datasheet |
LinkSwitch®-TN | 8-SOIC (0.154", 3.90mm Width), 7 Leads | Tape & Reel (TR) | Active | Non-Isolated | Yes | 700V | Buck, Buck-Boost, Flyback | - | - | 69% | 66kHz | - | Current Limiting, Open Loop, Over Temperature, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | SO-8C | Surface Mount |
|
TNY254PNIC OFFLINE SWITCH FLYBACK 8DIP |
19,555 |
|
Datasheet |
TinySwitch® | 8-DIP (0.300", 7.62mm) | Tube | Not For New Designs | Isolated | Yes | 700V | Flyback | - | - | 68% | 44kHz | 4 W | Current Limiting, Over Temperature | EN | -40°C ~ 150°C (TJ) | - | - | 8-PDIP | Through Hole |
AC DC Converters, Offline Switches Electronic Components
Explore AC DC Converters, Offline Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
