AC DC Converters, Offline Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Isolation | Internal Switch(s) | Voltage - Breakdown | Topology | Voltage - Start Up | Voltage - Supply (Vcc/Vdd) | Duty Cycle | Frequency - Switching | Power (Watts) | Fault Protection | Control Features | Operating Temperature | Grade | Qualification | Supplier Device Package | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TNY274PGIC OFFLINE SWITCH FLYBACK 8DIP |
2,298 |
|
Datasheet |
TinySwitch®-III | 8-DIP (0.300", 7.62mm), 7 Leads | Tube | Active | Isolated | Yes | 700V | Flyback | - | - | 65% | 132kHz | 11 W | Current Limiting, Open Loop, Over Temperature, Over Voltage, Short Circuit | EN | -40°C ~ 150°C (TJ) | - | - | 8-PDIP-C | Through Hole |
|
AP3304W6-7ACDC PWM SWITCHER SOT26 T&R 3K |
1,751 |
|
- |
- | SOT-23-6 | Tape & Reel (TR) | Active | Isolated | No | - | Flyback | 15.8 V | 10V ~ 50V | - | 23kHz ~ 100kHz | - | Current Limiting, Over Load, Over Temperature, Over Voltage | Soft Start | -40°C ~ 85°C (TA) | - | - | SOT-26 (Type A1) | Surface Mount |
|
LNK6774K-TLIC OFFLINE SWITCH FLYBACK 12ESOP |
6,345 |
|
Datasheet |
LinkSwitch™-HP | 12-BESOP (0.350", 8.89mm Width), 11 Leads, Exposed Pad | Tape & Reel (TR) | Active | Isolated | Yes | 725V | Flyback | - | - | 64% | 120kHz ~ 136kHz | 39 W | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | 12-ESOP | Surface Mount |
|
LNK603DG-TLIC OFFLINE SWITCH FLYBACK 8SO |
5,931 |
|
Datasheet |
LinkSwitch®-II | 8-SOIC (0.154", 3.90mm Width), 7 Leads | Tape & Reel (TR) | Active | Isolated | Yes | 700V | Flyback | - | - | 55% | Up to 85kHz | 3.3 W | Current Limiting, Open Loop, Over Temperature, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | SO-8C | Surface Mount |
|
VIPER17HDTRIC OFFLINE SWITCH FLYBACK 16SO |
2,472 |
|
Datasheet |
VIPer™ plus | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Isolated | Yes | 800V | Flyback | 14 V | 8.5V ~ 23.5V | 70% | 115kHz | 10 W | Current Limiting, Over Temperature, Over Voltage | - | -40°C ~ 150°C (TJ) | - | - | 16-SO | Surface Mount |
|
|
LNK6428K-TLIC OFFLINE SWITCH FLYBACK 12ESOP |
1,762 |
|
Datasheet |
LinkSwitch™-3 | 12-BESOP (0.350", 8.89mm Width), 11 Leads, Exposed Pad | Tape & Reel (TR) | Active | Isolated | Yes | 725V | Flyback | - | - | 55% | Up to 85kHz | 10 W | Current Limiting, Open Loop, Over Temperature, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | 12-ESOP | Surface Mount |
|
VIPER222XSTRIC OFFLINE SWITCH FLYBACK 10SSOP |
13,951 |
|
Datasheet |
VIPER™ | 10-SOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Isolated | Yes | 730V | Flyback | 30 V | 4.5V ~ 30V | 80% | 30kHz | 13 W | Current Limiting, Over Temperature, Over Voltage | - | -40°C ~ 150°C (TJ) | - | - | 10-SSOP | Surface Mount |
|
|
VIPER222LSTRIC OFFLINE SWITCH FLYBACK 10SSOP |
4,580 |
|
Datasheet |
VIPER™ | 10-SOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Isolated | Yes | 730V | Flyback | 30 V | 4.5V ~ 30V | 80% | 60kHz | 13 W | Current Limiting, Over Temperature, Over Voltage | - | -40°C ~ 150°C (TJ) | - | - | 10-SSOP | Surface Mount |
|
|
TNY275PGIC OFFLINE SWITCH FLYBACK 8DIP |
5,071 |
|
Datasheet |
TinySwitch®-III | 8-DIP (0.300", 7.62mm), 7 Leads | Tube | Active | Isolated | Yes | 700V | Flyback | - | - | 65% | 132kHz | 15 W | Current Limiting, Open Loop, Over Temperature, Over Voltage, Short Circuit | EN | -40°C ~ 150°C (TJ) | - | - | 8-PDIP-C | Through Hole |
|
VIPER16HNIC OFFLINE SWITCH MULT TOP 7DIP |
1,830 |
|
Datasheet |
VIPer™ plus | 8-DIP (0.300", 7.62mm), 7 Leads | Tube | Active | Either | Yes | 800V | Buck, Buck-Boost, Flyback | 13 V | 11.5V ~ 23.5V | 70% | 115kHz | 10 W | Current Limiting, Over Temperature | - | -40°C ~ 150°C (TJ) | - | - | 7-DIP | Through Hole |
|

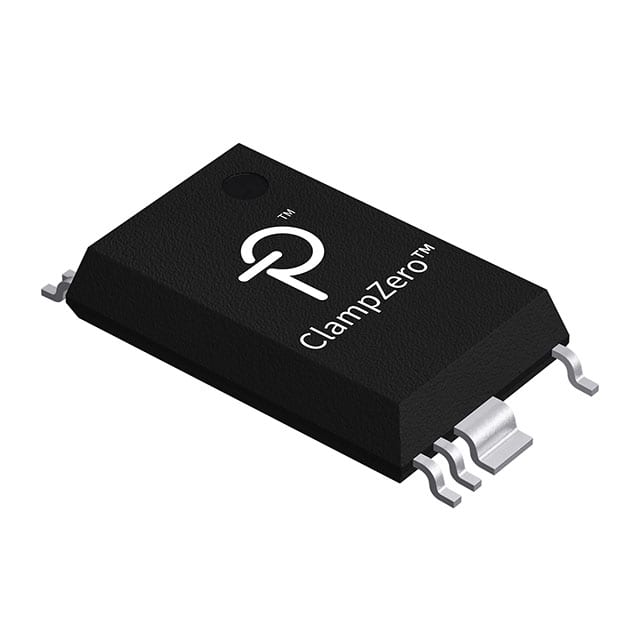

CPZ1061M-TLIC OFFLINE SWITCH FLYBACK MINSOP |
1,584 |
|
Datasheet |
ClampZero™ | 16-PowerSMD Module (0.354", 9.00mm Width), 12 Leads | Tape & Reel (TR) | Active | Isolated | Yes | 650V | Flyback | - | - | - | - | 85 W | Current Limiting, Over Temperature | EN, Frequency Control | -40°C ~ 105°C (TA) | - | - | MinSOP-16A | Surface Mount |
|
|
TNY286KG-TLIC OFFLINE SWITCH FLYBACK 12ESOP |
19,560 |
|
Datasheet |
TinySwitch®-4 | 12-BESOP (0.350", 8.89mm Width), 11 Leads, Exposed Pad | Tape & Reel (TR) | Active | Isolated | Yes | 725V | Flyback | - | - | 67% | 124kHz ~ 140kHz | 10 W | Current Limiting, Open Loop, Over Temperature, Over Voltage, Short Circuit | EN | -40°C ~ 150°C (TJ) | - | - | 12-ESOP | Surface Mount |
|
TEA1733T/N1,118IC OFFLINE SWITCH FLYBACK 8SO |
7,243 |
|
Datasheet |
GreenChip™ | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Isolated | No | - | Flyback | 20.6 V | 12.2V ~ 30V | 72% | 66.5kHz | 75 W | Current Limiting, Over Power, Over Temperature, Over Voltage | - | -40°C ~ 150°C (TJ) | - | - | 8-SO | Surface Mount |
|
|
VIPER06LSTRIC OFFLINE SWITCH MULT TOP 10SSO |
19,072 |
|
Datasheet |
VIPer™ plus | 10-SOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Either | Yes | 800V | Buck, Flyback | 13 V | 11.5V ~ 23.5V | 70% | 60kHz | 8 W | Current Limiting, Open Loop, Over Temperature | - | -40°C ~ 150°C (TJ) | - | - | 10-SSOP | Surface Mount |
|
AP3917CS7-13IC OFFLINE SWITCH MULT TOP 7SO |
4,730 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width), 7 Leads | Tape & Reel (TR) | Active | Non-Isolated | Yes | 650V | Buck, Flyback | - | 8.2V ~ 8.8V | - | - | 1 W | Current Limiting, Open Loop, Over Load, Over Temperature, Short Circuit | - | -40°C ~ 125°C (TA) | - | - | 7-SO | Surface Mount |
|
AP3103AKTR-G1IC OFFLINE SW FLYBACK SOT23-6 |
5,600 |
|
Datasheet |
- | SOT-23-6 | Tape & Reel (TR) | Active | Isolated | No | - | Flyback | 15.5 V | 10V ~ 25V | 75% | 65kHz | - | Current Limiting, Over Load, Over Voltage | - | -40°C ~ 150°C (TJ) | - | - | SOT-23-6 | Surface Mount |
|
|
LNK305DG-TLIC OFFLINE SWITCH MULT TOP 8SO |
6,519 |
|
Datasheet |
LinkSwitch®-TN | 8-SOIC (0.154", 3.90mm Width), 7 Leads | Tape & Reel (TR) | Active | Non-Isolated | Yes | 700V | Buck, Buck-Boost, Flyback | - | - | 69% | 66kHz | - | Current Limiting, Open Loop, Over Temperature, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | SO-8C | Surface Mount |
|
|
AP3981BS7-13IC OFFLINE SWITCH FLYBACK 7SO |
15,017 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width), 7 Leads | Tape & Reel (TR) | Active | Isolated | Yes | 650V | Flyback | 16 V | 10V ~ 28V | - | - | 7.5 W | Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage, Short Circuit | - | -40°C ~ 85°C (TA) | - | - | 7-SO | Surface Mount |
|
|
ALTAIR05T-800TRIC OFFLINE SWITCH FLYBACK 16SO |
5,863 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Isolated | Yes | 800V | Flyback | 13 V | 11.5V ~ 23V | - | - | - | - | - | -25°C ~ 125°C (TJ) | - | - | 16-SO | Surface Mount |
|
|
TNY276PGIC OFFLINE SWITCH FLYBACK 8DIP |
4,161 |
|
Datasheet |
TinySwitch®-III | 8-DIP (0.300", 7.62mm), 7 Leads | Tube | Active | Isolated | Yes | 700V | Flyback | - | - | 65% | 132kHz | 19 W | Current Limiting, Open Loop, Over Temperature, Over Voltage, Short Circuit | EN | -40°C ~ 150°C (TJ) | - | - | 8-PDIP-C | Through Hole |
