Oscillators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Base Resonator | Type | Frequency | Function | Output | Voltage - Supply | Frequency Stability | Absolute Pull Range (APR) | Operating Temperature | Spread Spectrum Bandwidth | Current - Supply (Max) | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TG2520SMN 20.0000M-ECGNNM3XTAL OSC TCXO 20.0000MHZ CSWV |
2,293 |
|
Datasheet |
TG2520SMN | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | 20 MHz | - | Clipped Sine Wave | 1.8V | ±500ppb | - | -40°C ~ 85°C | - | 1.5mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.031" (0.80mm) |
|
SG-3031CM 32.7680KB3XTAL OSC XO 32.768HZ SMD |
1,244 |
|
Datasheet |
SG-3031CM | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 32.768 kHz | - | CMOS | 1.2V ~ 5.5V | - | - | -40°C ~ 105°C | - | 1.3µA | - | Surface Mount | 4-SMD (3.2x1.5) | 0.126" L x 0.059" W (3.20mm x 1.50mm) | 0.035" (0.90mm) |
|
7Z-26.000MDG-TXTAL OSC TCXO 26.0000MHZ SNWV |
5,026 |
|
Datasheet |
7Z | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | 26 MHz | - | Clipped Sine Wave | 1.8V | ±500ppb | - | -30°C ~ 85°C | - | 2mA | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.031" (0.80mm) |
|
TG2016SMN 38.4000M-MCGNNM3XTAL OSC TCXO 38.4000MHZ CSWV |
1,511 |
|
Datasheet |
TG2016SMN | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | 38.4 MHz | - | Clipped Sine Wave | 2.8V ~ 3.3V | ±500ppb | - | -40°C ~ 85°C | - | 1.8mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.029" (0.73mm) |
|
|
TG2016SMN 25.0000M-ECGNNM3XTAL OSC TCXO 25.0000MHZ CSWV |
774 |
|
Datasheet |
TG2016SMN | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | 25 MHz | - | Clipped Sine Wave | 1.8V | ±500ppb | - | -40°C ~ 85°C | - | 1.5mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.029" (0.73mm) |
|
|
TG2016SMN 38.4000M-ECGNNM3XTAL OSC TCXO 38.4000MHZ CSWV |
617 |
|
Datasheet |
TG2016SMN | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | 38.4 MHz | - | Clipped Sine Wave | 1.8V | ±500ppb | - | -40°C ~ 85°C | - | 1.8mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.029" (0.73mm) |
|

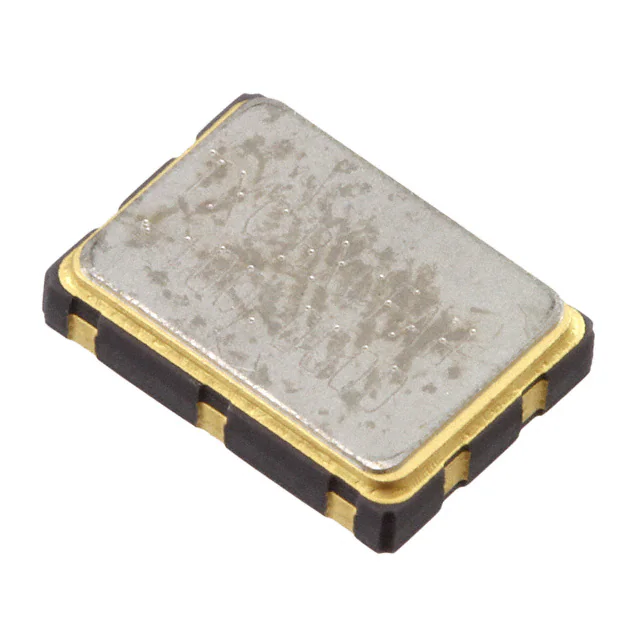

BX-100.000MBE-TXTAL OSC XO 100.0000MHZ HCSL SMD |
6,592 |
|
Datasheet |
BX | 6-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 100 MHz | Enable/Disable | HCSL | 3.3V | ±50ppm | - | -40°C ~ 85°C | - | 30mA | - | Surface Mount | - | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.059" (1.50mm) |
|
SG3225VAN 100.000000M-KEGA3XTAL OSC XO 100.0000MHZ LVDS SMD |
1,012 |
|
Datasheet |
SG3225VAN | 6-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 100 MHz | Enable/Disable | LVDS | 2.5V ~ 3.3V | ±30ppm | - | -40°C ~ 85°C | - | 30mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
SG5032VAN 400.000000M-KEGA3XTAL OSC XO 400.0000MHZ LVDS SMD |
1,107 |
|
Datasheet |
SG5032VAN | 6-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 400 MHz | Enable/Disable | LVDS | 2.5V ~ 3.3V | ±30ppm | - | -40°C ~ 85°C | - | 30mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.047" (1.20mm) |
|
|
SG5032VAN 200.000000M-KEGA3XTAL OSC XO 200.0000MHZ LVDS SMD |
600 |
|
Datasheet |
SG5032VAN | 6-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 200 MHz | Enable/Disable | LVDS | 2.5V ~ 3.3V | ±30ppm | - | -40°C ~ 85°C | - | 30mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.047" (1.20mm) |
|
|
SG3225VAN 250.000000M-KEGA3XTAL OSC XO 250.0000MHZ LVDS SMD |
1,038 |
|
Datasheet |
SG3225VAN | 6-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 250 MHz | Enable/Disable | LVDS | 2.5V ~ 3.3V | ±30ppm | - | -40°C ~ 85°C | - | 30mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
SG3225VAN 80.000000M-KEGA3XTAL OSC XO 80.0000MHZ LVDS SMD |
694 |
|
Datasheet |
SG3225VAN | 6-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 80 MHz | Enable/Disable | LVDS | 2.5V ~ 3.3V | ±30ppm | - | -40°C ~ 85°C | - | 30mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
SG3225VAN 400.000000M-KEGA3XTAL OSC XO 400.0000MHZ LVDS SMD |
484 |
|
Datasheet |
SG3225VAN | 6-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 400 MHz | Enable/Disable | LVDS | 2.5V ~ 3.3V | ±30ppm | - | -40°C ~ 85°C | - | 30mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
EG-2121CA 100.0000M-LHPABXTAL OSC SO 100.0000MHZ LVDS SMD |
568 |
|
Datasheet |
EG-2121CA | 6-SMD, No Lead | Strip | Active | Crystal | SO (SAW) | 100 MHz | Enable/Disable | LVDS | 2.5V | ±100ppm | - | 0°C ~ 70°C | - | 30mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.055" (1.40mm) |
|
SG-8002CA 14.7456M-PHMBXTAL OSC XO 14.7456MHZ CMOS SMD |
846 |
|
Datasheet |
SG-8002 | 4-SMD, No Lead | Bulk | Not For New Designs | Crystal | XO (Standard) | 14.7456 MHz | Enable/Disable | CMOS | 5V | ±100ppm | - | -40°C ~ 85°C | - | 45mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.059" (1.50mm) |
|
XG-2102CA 156.2500M-LGPAL3XTAL OSC SO 156.2500MHZ LVDS SMD |
1,519 |
|
Datasheet |
XG-2102CA | 6-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | SO (SAW) | 156.25 MHz | Enable/Disable | LVDS | 3.3V | ±50ppm | - | 0°C ~ 70°C | - | 30mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.055" (1.40mm) |
|
|
XG-2102CA 100.0000M-LGPAL3XTAL OSC SO 100.0000MHZ LVDS SMD |
118 |
|
Datasheet |
XG-2102CA | 6-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | SO (SAW) | 100 MHz | Enable/Disable | LVDS | 3.3V | ±50ppm | - | 0°C ~ 70°C | - | 30mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.055" (1.40mm) |
|
SG3225HBN 156.250000M-CJGA3XTAL OSC XO 156.2500MHZ HCSL SMD |
635 |
|
Datasheet |
SG3225HBN | 6-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 156.25 MHz | Enable/Disable | HCSL | 3.3V | ±50ppm | - | -40°C ~ 85°C | - | 35mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
SG3225VEN 156.250000M-DDGA0XTAL OSC XO 156.2500MHZ LVDS SMD |
962 |
|
Datasheet |
SG3225VEN | 6-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 156.25 MHz | Enable/Disable | LVDS | 2.5V | ±25ppm | - | -40°C ~ 85°C | - | 25mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
EG-2121CA 125.0000M-LHPABXTAL OSC SO 125.0000MHZ LVDS SMD |
198 |
|
Datasheet |
EG-2121CA | 6-SMD, No Lead | Strip | Active | Crystal | SO (SAW) | 125 MHz | Enable/Disable | LVDS | 2.5V | ±100ppm | - | 0°C ~ 70°C | - | 30mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.055" (1.40mm) |
