Oscillators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Base Resonator | Type | Frequency | Function | Output | Voltage - Supply | Frequency Stability | Absolute Pull Range (APR) | Operating Temperature | Spread Spectrum Bandwidth | Current - Supply (Max) | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SG3225VAN 156.250000M-KEGA3XTAL OSC XO 156.2500MHZ LVDS SMD |
8,510 |
|
Datasheet |
SG3225VAN | 6-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 156.25 MHz | Enable/Disable | LVDS | 2.5V ~ 3.3V | ±30ppm | - | -40°C ~ 85°C | - | 30mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
SG3225VAN 200.000000M-KEGA3XTAL OSC XO 200.0000MHZ LVDS SMD |
1,962 |
|
Datasheet |
SG3225VAN | 6-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 200 MHz | Enable/Disable | LVDS | 2.5V ~ 3.3V | ±30ppm | - | -40°C ~ 85°C | - | 30mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|

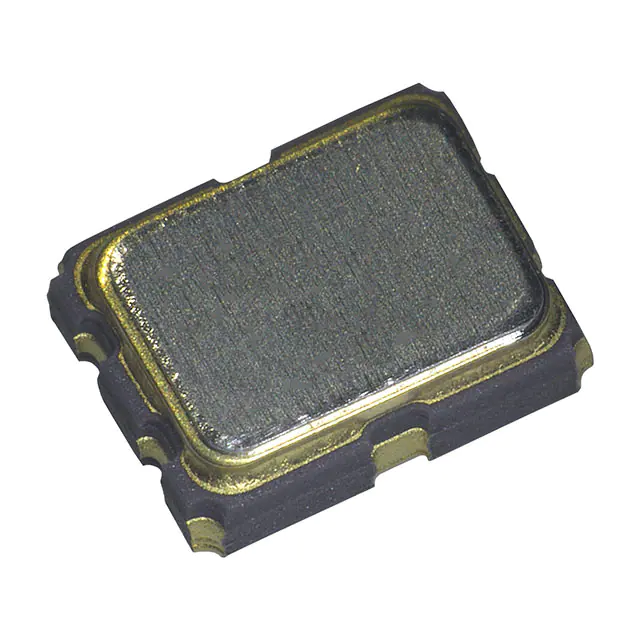

SG3225HBN 100.000000M-CJGA0XTAL OSC XO 100.0000MHZ HCSL SMD |
322 |
|
Datasheet |
SG3225HBN | 6-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 100 MHz | Enable/Disable | HCSL | 3.3V | ±50ppm | - | -40°C ~ 85°C | - | 35mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|

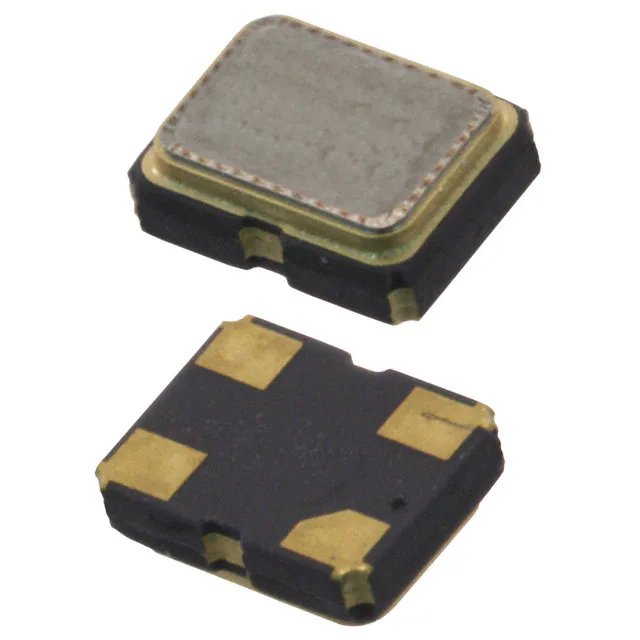

VG-4231CE 27.0000M-PSCM3XTAL OSC VCXO 27.0000MHZ CMOS |
11,168 |
|
Datasheet |
VG-4231CE | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | VCXO | 27 MHz | - | CMOS | 3.3V | ±37ppm | ±95ppm | -40°C ~ 85°C | - | 7mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
TG2016SMN 19.2000M-MCGNNM3XTAL OSC TCXO 19.2000MHZ CSWV |
368 |
|
Datasheet |
TG2016SMN | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | 19.2 MHz | - | Clipped Sine Wave | 2.8V ~ 3.3V | ±500ppb | - | -40°C ~ 85°C | - | 1.5mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.029" (0.73mm) |
|

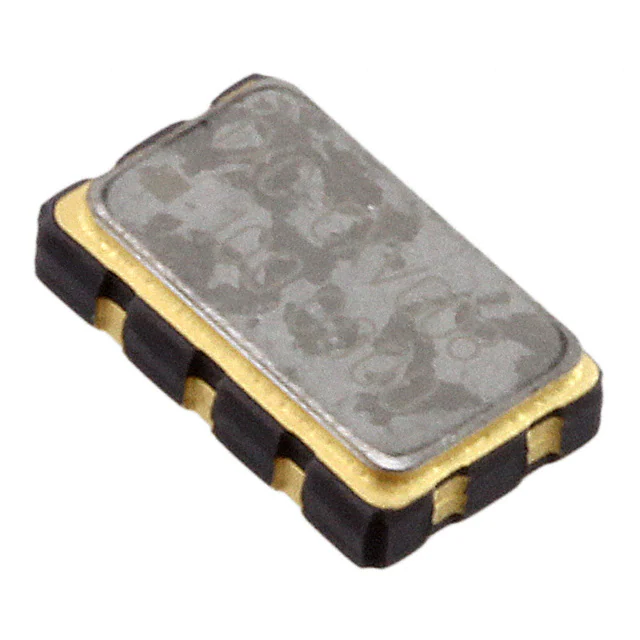

CX-100.000MBE-TXTAL OSC XO 100.0000MHZ HCSL SMD |
4,323 |
|
Datasheet |
CX | 6-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 100 MHz | Enable/Disable | HCSL | 3.3V | ±50ppm | - | -40°C ~ 85°C | - | 30mA | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.087" (2.20mm) |
|
SG5032VAN 100.000000M-KEGA3XTAL OSC XO 100.0000MHZ LVDS SMD |
5,026 |
|
Datasheet |
SG5032VAN | 6-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 100 MHz | Enable/Disable | LVDS | 2.5V ~ 3.3V | ±30ppm | - | -40°C ~ 85°C | - | 30mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.047" (1.20mm) |
|
|
SG5032VAN 250.000000M-KEGA3XTAL OSC XO 250.0000MHZ LVDS SMD |
1,494 |
|
Datasheet |
SG5032VAN | 6-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 250 MHz | Enable/Disable | LVDS | 2.5V ~ 3.3V | ±30ppm | - | -40°C ~ 85°C | - | 30mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.047" (1.20mm) |
|
TG-3541CE 32.7680KXB3XTAL OSC TCXO 32.7680KHZ CMOS |
4,808 |
|
Datasheet |
TG-3541CE | 10-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | 32.768 kHz | Enable/Disable | CMOS | 1.5V ~ 5.5V | - | - | -40°C ~ 105°C | - | 3µA | - | Surface Mount | 10-SMD | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.039" (1.00mm) |
|
|
SG3225VAN 125.000000M-KEGA3XTAL OSC XO 125.0000MHZ LVDS SMD |
1,047 |
|
Datasheet |
SG3225VAN | 6-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 125 MHz | Enable/Disable | LVDS | 2.5V ~ 3.3V | ±30ppm | - | -40°C ~ 85°C | - | 30mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
TG-3541CE 32.7680KXA3XTAL OSC TCXO 32.7680KHZ CMOS |
10,090 |
|
Datasheet |
TG-3541CE | 10-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | 32.768 kHz | Enable/Disable | CMOS | 1.5V ~ 5.5V | - | - | -40°C ~ 105°C | - | 3µA | - | Surface Mount | 10-SMD | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.039" (1.00mm) |
|
|
SG3225HBN 100.000000M-CJGA3XTAL OSC XO 100.0000MHZ HCSL SMD |
581 |
|
Datasheet |
SG3225HBN | 6-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 100 MHz | Enable/Disable | HCSL | 3.3V | ±50ppm | - | -40°C ~ 85°C | - | 35mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
SG7050EEN 125.0000M-CDGA0XTAL OSC XO 125.0000MHZ LVPECL S |
738 |
|
Datasheet |
SG7050EEN | 6-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 125 MHz | Enable/Disable | LVPECL | 3.3V | ±25ppm | - | -40°C ~ 85°C | - | 60mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.067" (1.70mm) |
|
EG-2121CA 200.0000M-LGPNBXTAL OSC SO 200.0000MHZ LVDS SMD |
236 |
|
Datasheet |
EG-2121CA | 6-SMD, No Lead | Strip | Active | Crystal | SO (SAW) | 200 MHz | Enable/Disable | LVDS | 2.5V | ±50ppm | - | 0°C ~ 70°C | - | 30mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.055" (1.40mm) |
|
7N-20.000MBP-TXTAL OSC TCXO 20.0000MHZ CMOS |
3,578 |
|
Datasheet |
7N | 10-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | 20 MHz | Enable/Disable | CMOS | 3.3V | ±280ppb | - | -40°C ~ 85°C | - | 10mA | - | Surface Mount | - | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.079" (2.00mm) |
|
SG2520VHN 156.2500M-ECHPZA6XTAL OSC XO 156.2500MHZ LVDS SMD |
2,044 |
|
Datasheet |
SG2520 | 6-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 156.25 MHz | Enable/Disable | LVDS | 1.8V | ±20ppm | - | -40°C ~ 105°C | - | 25mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.033" (0.85mm) |
|

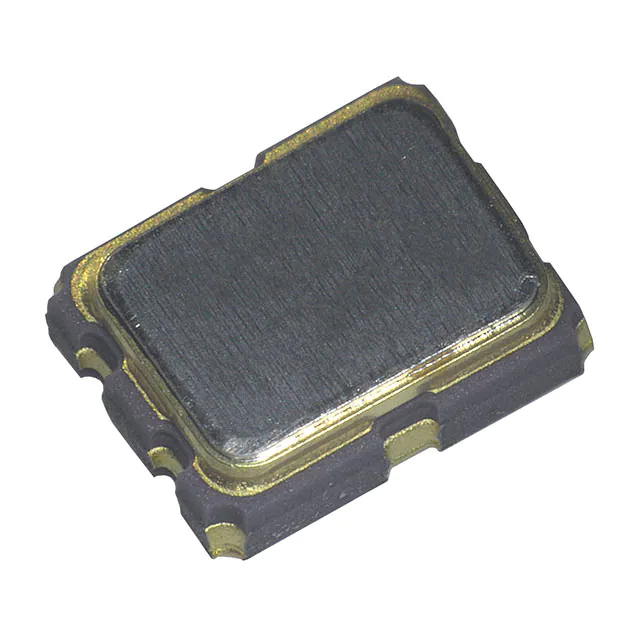

SG3225VEN 125.000000M-CDGA3XTAL OSC XO 125.0000MHZ LVDS SMD |
773 |
|
Datasheet |
SG3225VEN | 6-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 125 MHz | Enable/Disable | LVDS | 3.3V | ±25ppm | - | -40°C ~ 85°C | - | 25mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|

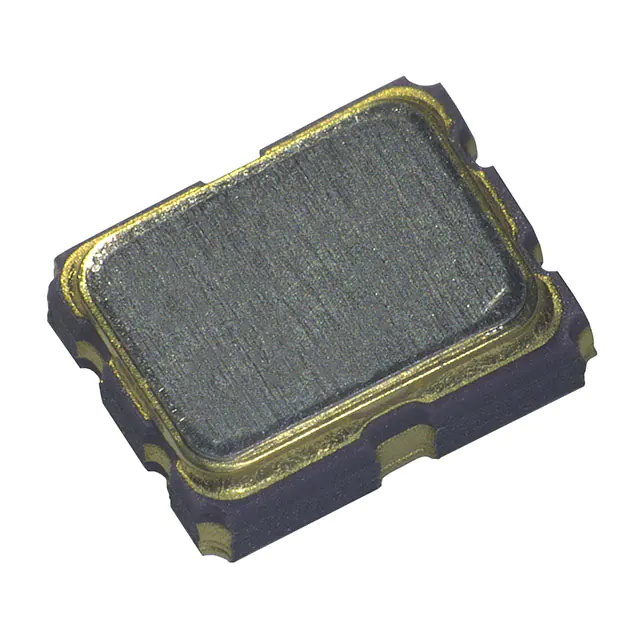

SG3225EEN 156.250000M-CJHA3XTAL OSC XO 156.2500MHZ LVPECL |
123 |
|
Datasheet |
SG3225EEN | 6-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 156.25 MHz | Enable/Disable | LVPECL | 3.3V | ±50ppm | - | -40°C ~ 105°C | - | 60mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
EG-2121CA 200.0000M-LGPAL3XTAL OSC SO 200.0000MHZ LVDS SMD |
1,056 |
|
Datasheet |
EG-2121CA | 6-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | SO (SAW) | 200 MHz | Enable/Disable | LVDS | 2.5V | - | - | 0°C ~ 70°C | - | 30mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.055" (1.40mm) |
|
|
SG3225VEN 125.000000M-DJHA3XTAL OSC XO 125.0000MHZ LVDS SMD |
611 |
|
Datasheet |
SG3225VEN | 6-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 125 MHz | Enable/Disable | LVDS | 2.5V | ±50ppm | - | -40°C ~ 105°C | - | 25mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
