Oscillators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Base Resonator | Type | Frequency | Function | Output | Voltage - Supply | Frequency Stability | Absolute Pull Range (APR) | Operating Temperature | Spread Spectrum Bandwidth | Current - Supply (Max) | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8NE-24.000MBM-TXTAL OSC XO 24.000MHZ CMOS SMD |
5,143 |
|
Datasheet |
8NE | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 24 MHz | Enable/Disable | CMOS (Low EMI) | 3.3V | ±50ppm | - | -40°C ~ 125°C | - | 10mA | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.032" (0.81mm) |
|
|
8NE-30.000MBM-TXTAL OSC XO 30.000MHZ CMOS SMD |
4,646 |
|
Datasheet |
8NE | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 30 MHz | Enable/Disable | CMOS (Low EMI) | 3.3V | ±50ppm | - | -40°C ~ 125°C | - | 10mA | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.032" (0.81mm) |
|
|
8NE-20.000MBM-TXTAL OSC XO 20.000MHZ CMOS SMD |
3,630 |
|
Datasheet |
8NE | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 20 MHz | Enable/Disable | CMOS (Low EMI) | 3.3V | ±50ppm | - | -40°C ~ 125°C | - | 10mA | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.032" (0.81mm) |
|
8WE-30.000MBM-TXTAL OSC XO 30.000MHZ CMOS SMD |
2,423 |
|
Datasheet |
8WE | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 30 MHz | Enable/Disable | CMOS (Low EMI) | 3.3V | ±50ppm | - | -40°C ~ 125°C | - | 10mA | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.035" (0.90mm) |
|
SG-210STF 12.0000MLXTAL OSC XO 12.0000MHZ CMOS SMD |
3,363 |
|
Datasheet |
SG-210STF | 4-SMD, No Lead | Strip | Active | Crystal | XO (Standard) | 12 MHz | Standby (Power Down) | CMOS | 1.6V ~ 3.6V | ±50ppm | - | -40°C ~ 85°C | - | 1.8mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.035" (0.90mm) |
|
|
SG-210STF 26.0000MLXTAL OSC XO 26.0000MHZ CMOS SMD |
2,403 |
|
Datasheet |
SG-210STF | 4-SMD, No Lead | Strip | Active | Crystal | XO (Standard) | 26 MHz | Standby (Power Down) | CMOS | 1.6V ~ 3.6V | ±50ppm | - | -40°C ~ 85°C | - | 2.2mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.035" (0.90mm) |
|
7X-48.000MBB-TXTAL OSC XO 48.0000MHZ CMOS SMD |
15,204 |
|
Datasheet |
7X | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 48 MHz | Enable/Disable | CMOS | 3.3V | ±50ppm | - | -10°C ~ 70°C | - | 20mA | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.043" (1.10mm) |
|
7C-27.000MBA-TXTAL OSC XO 27.0000MHZ CMOS SMD |
940 |
|
Datasheet |
7C | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 27 MHz | Enable/Disable | CMOS | 3.3V | ±25ppm | - | -10°C ~ 70°C | - | 30mA | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.055" (1.40mm) |
|

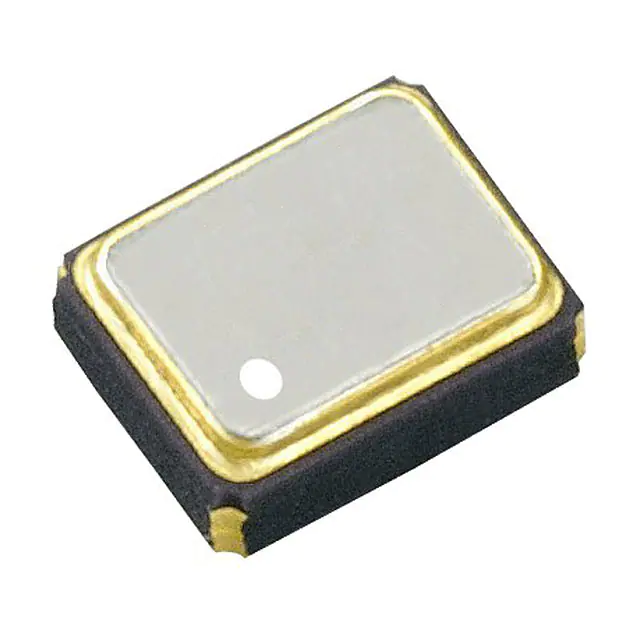

TG-5006CG-12H 26.0000M0XTAL OSC TCXO 26.0000MHZ SMD |
3,958 |
|
Datasheet |
TG-5006CG | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | 26 MHz | - | - | 1.8V ~ 3.3V | ±2ppm | - | -30°C ~ 85°C | - | 1.5mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.035" (0.90mm) |
|
AU-24.000MBE-TXTAL OSC XO 24.0000MHZ CMOS SMD |
14,915 |
|
Datasheet |
AU | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 24 MHz | Enable/Disable | CMOS | 3.3V | ±50ppm | - | -40°C ~ 85°C | - | 6mA | AEC-Q100 | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.043" (1.10mm) |
|
|
AU-28.63636MBE-TXTAL OSC XO 28.63636MHZ CMOS SMD |
5,752 |
|
Datasheet |
AU | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 28.63636 MHz | Enable/Disable | CMOS | 3.3V | ±50ppm | - | -40°C ~ 85°C | - | 6mA | AEC-Q100 | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.043" (1.10mm) |
.jpg)
|
SG5032CCN 4.000000M-HJGA3XTAL OSC XO 4.0000MHZ CMOS SMD |
1,100 |
|
Datasheet |
SG5032CCN | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 4 MHz | Enable/Disable | CMOS | 4.5V ~ 5.5V | ±50ppm | - | -40°C ~ 85°C | - | 20mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.051" (1.30mm) |
|
SG3225CAN 24.5760M-TJGA3XTAL OSC XO 24.5760MHZ CMOS SMD |
1,967 |
|
Datasheet |
SG3225CAN | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 24.576 MHz | Enable/Disable | CMOS | 1.6V ~ 3.63V | ±50ppm | - | -40°C ~ 85°C | - | 2.2mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
SG-210STF 48.0000MLXTAL OSC XO 48.0000MHZ CMOS SMD |
390 |
|
Datasheet |
SG-210STF | 4-SMD, No Lead | Strip | Active | Crystal | XO (Standard) | 48 MHz | Standby (Power Down) | CMOS | 1.6V ~ 3.6V | ±50ppm | - | -40°C ~ 85°C | - | 2.6mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.035" (0.90mm) |
|
|
SG-210STF 40.0000ML3XTAL OSC XO 40.0000MHZ CMOS SMD |
387 |
|
Datasheet |
SG-210STF | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 40 MHz | Standby (Power Down) | CMOS | 1.6V ~ 3.6V | ±50ppm | - | -40°C ~ 85°C | - | 2.2mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.035" (0.90mm) |
|
|
SG5032CCN 18.432000M-HJGA3XTAL OSC XO 18.4320MHZ CMOS SMD |
240 |
|
Datasheet |
SG5032CCN | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 18.432 MHz | Enable/Disable | CMOS | 4.5V ~ 5.5V | ±50ppm | - | -40°C ~ 85°C | - | 20mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.051" (1.30mm) |
|
|
SG-210STF 24.5760MLXTAL OSC XO 24.5760MHZ CMOS SMD |
157 |
|
Datasheet |
SG-210STF | 4-SMD, No Lead | Strip | Active | Crystal | XO (Standard) | 24.576 MHz | Standby (Power Down) | CMOS | 1.6V ~ 3.6V | ±50ppm | - | -40°C ~ 85°C | - | 2.2mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.035" (0.90mm) |
|
|
SG-210STF 4.0000MLXTAL OSC XO 4.0000MHZ CMOS SMD |
119 |
|
Datasheet |
SG-210STF | 4-SMD, No Lead | Strip | Active | Crystal | XO (Standard) | 4 MHz | Standby (Power Down) | CMOS | 1.6V ~ 3.6V | ±50ppm | - | -40°C ~ 85°C | - | 1.8mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.035" (0.90mm) |
|
|
TG2520SMN 27.0000M-MCGNNM3XTAL OSC TCXO 27.0000MHZ CSWV |
457 |
|
Datasheet |
TG2520SMN | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | 27 MHz | - | Clipped Sine Wave | 2.8V ~ 3.3V | ±500ppb | - | -40°C ~ 85°C | - | 1.8mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.031" (0.80mm) |
|
|
SG5032CCN 4.915200M-HJGA3XTAL OSC XO 4.9152MHZ CMOS SMD |
1,835 |
|
Datasheet |
SG5032CCN | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 4.9152 MHz | Enable/Disable | CMOS | 4.5V ~ 5.5V | ±50ppm | - | -40°C ~ 85°C | - | 20mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.051" (1.30mm) |
