Microphones
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Output Type | Direction | Frequency Range | Sensitivity | S/N Ratio | Impedance | Voltage - Rated | Voltage Range | Current - Supply | Port Location | Ratings | Termination | Size / Dimension | Height (Max) | Shape | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PMM-3738-WP-RMIC PIEZO MEMS ANLG OMNI -37DB |
0 |
|
Datasheet |
PMM | Tape & Reel (TR) | Obsolete | Piezo MEMS | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -37dB ±3dB @ 94dB SPL | 61dB | 400 Ohms | 2.1 V | 1.6 V ~ 3.6 V | 150 µA | Bottom | IP68 - Dust Tight, Waterproof | Solder Pads | 0.148" L x 0.116" W (3.76mm x 2.95mm) | 0.043" (1.10mm) | Rectangular | - | - |
|
|
PMM-3738-WP-2-RMIC PIEZO MEMS ANLG OMNI -38DB |
0 |
|
Datasheet |
PMM | Tape & Reel (TR) | Obsolete | Piezo MEMS | Analog | Omnidirectional | 250 Hz ~ 10 kHz | -38dB ±3dB @ 94dB SPL | 60dB | 400 Ohms | 2.1 V | 1.6 V ~ 3.6 V | 150 µA | Bottom | IP68 - Dust Tight, Waterproof | Solder Pads | 0.148" L x 0.116" W (3.76mm x 2.95mm) | 0.043" (1.10mm) | Rectangular | - | - |
|
MMICT5818-00-012MIC MEMS DIGITAL PDM OMNI -41DB |
0 |
|
Datasheet |
T5818 | Tape & Reel (TR) | Last Time Buy | MEMS (Silicon) | Digital, PDM | Omnidirectional | 40 Hz ~ 20 kHz | -41dB ±1dB @ 94dB SPL | 66dB | - | 1.8 V | 1.65 V ~ 3.63 V | 220 µA | Bottom | - | Solder Pads | 0.138" L x 0.104" W (3.50mm x 2.65mm) | 0.039" (0.98mm) | Rectangular | - | - |
|
SPM0404HD5-PBMIC MEMS ANALOG OMNI -42DB |
0 |
|
Datasheet |
SiSonic™ | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -42dB ±3dB @ 94dB SPL | 59dB | 100 Ohms | - | 1.5 V ~ 3.6 V | 250 µA | Top | - | Solder Pads | 0.186" L x 0.148" W (4.72mm x 3.76mm) | 0.053" (1.35mm) | Rectangular | - | - |
|
PMO-4015MN-42HXQMIC MAG ANALOG OMNI -42DB 4MM D |
0 |
|
Datasheet |
PMO | Bulk | Active | Electret Condenser | Analog | Omnidirectional | 50 Hz ~ 12 kHz | -42dB ±2dB @ 94dB SPL | 58dB | 2.2 kOhms | 2 V | 1 V ~ 10 V | 500 µA | Top | - | Solderless (Bullseye) | 0.157" Dia (4.00mm) | 0.067" (1.70mm) | Circular | - | - |
|
MO064202-2MIC COND ANLG OMNI -42DB 0.236"D |
0 |
|
Datasheet |
- | Box | Active | Electret Condenser | Analog | Omnidirectional | 50 Hz ~ 16 kHz | -42dB | 60dB | - | 2 V | - | 500 µA | Top | - | Solder Pads | 0.236" Dia (6.00mm) | 0.114" (2.90mm) | Circular | - | - |
|

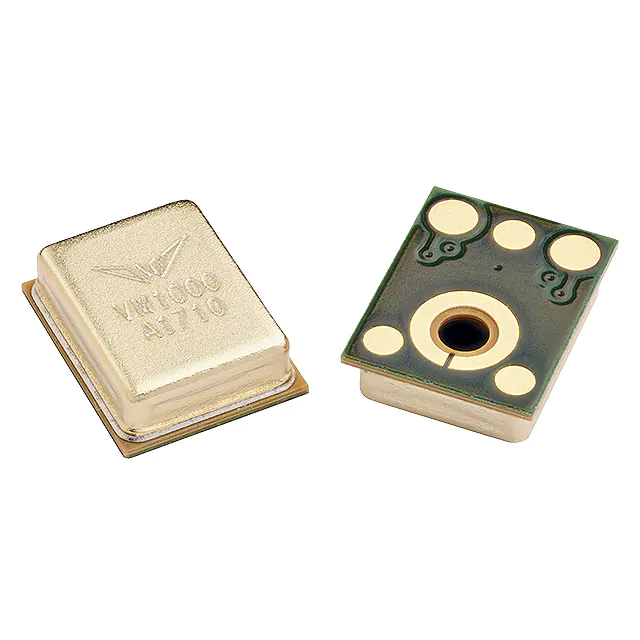

PMM-3738-VM1000-RMIC PIEZO MEMS ANLG OMNI -38DB |
0 |
|
Datasheet |
Vesper | Tape & Reel (TR) | Obsolete | Piezo MEMS | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -38dB ±3dB @ 94dB SPL | 61dB | 400 Ohms | - | 1.6 V ~ 3.6 V | 165 µA | Bottom | IP57 - Dust Protected, Waterproof | Solder Pads | 0.148" L x 0.116" W (3.76mm x 2.95mm) | 0.043" (1.10mm) | Rectangular | - | - |
|
MN045302-1MIC MEMS ANLG NC -54DB 0.177"DIA |
0 |
|
Datasheet |
- | Box | Active | MEMS (Silicon) | Analog | Noise Cancelling | 100 Hz ~ 10 kHz | -54dB ±3dB | 55dB | - | 2 V | - | 500 µA | Top | - | Solder Pads | 0.177" Dia (4.50mm) | 0.126" (3.20mm) | Circular | - | - |
|

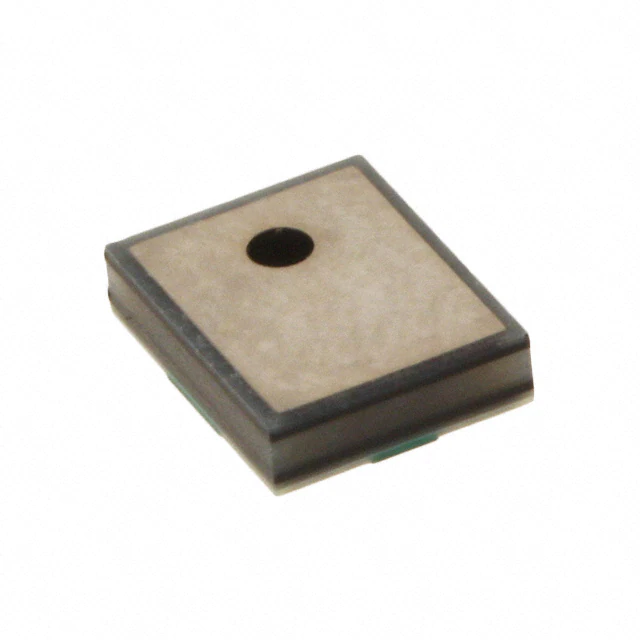

SPM0404HE5H-PB-6MIC MEMS ANALOG OMNI -42DB |
0 |
|
Datasheet |
SiSonic™ SPM | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -42dB ±3dB @ 94dB SPL | 59dB | 200 Ohms | - | 1.5 V ~ 3.6 V | 190 µA | Top | - | Solder Pads | 0.186" L x 0.148" W (4.72mm x 3.76mm) | 0.053" (1.35mm) | Rectangular | - | - |
|
IM67D130AXTSA1MIC MEMS DIGITAL PDM NC -36DB |
0 |
|
Datasheet |
XENSIV™ | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Digital, PDM | Noise Cancelling | - | -36dB | 67dB | - | - | 1.62 V ~ 3.6 V | 980 µA | Bottom | - | Solder Pads | - | - | Rectangular | Automotive | AEC-Q103 |
|
INMP522ACEZ-R7MIC MEMS DIGITAL PDM OMNI -26DB |
0 |
|
Datasheet |
INMP522 | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Digital, PDM | Omnidirectional | 75 Hz ~ 20 kHz | -26dB ±1dB @ 94dB SPL | 65dB | - | - | 1.62 V ~ 3.63 V | 1.4 mA | Bottom | - | Solder Pads | 0.157" L x 0.118" W (4.00mm x 3.00mm) | 0.043" (1.10mm) | Rectangular | - | - |
|
MP45DT02MIC MEMS DIGITAL PDM OMNI -26DB |
0 |
|
Datasheet |
- | Tray | Obsolete | MEMS (Silicon) | Digital, PDM | Omnidirectional | 100 Hz ~ 10 kHz | -26dB ±3dB @ 94dB SPL | 61dB | - | 1.8 V | 1.64 V ~ 3.6 V | 650 µA | Top | - | Solder Pads | 0.186" L x 0.148" W (4.72mm x 3.76mm) | 0.054" (1.38mm) | Rectangular | - | - |
|

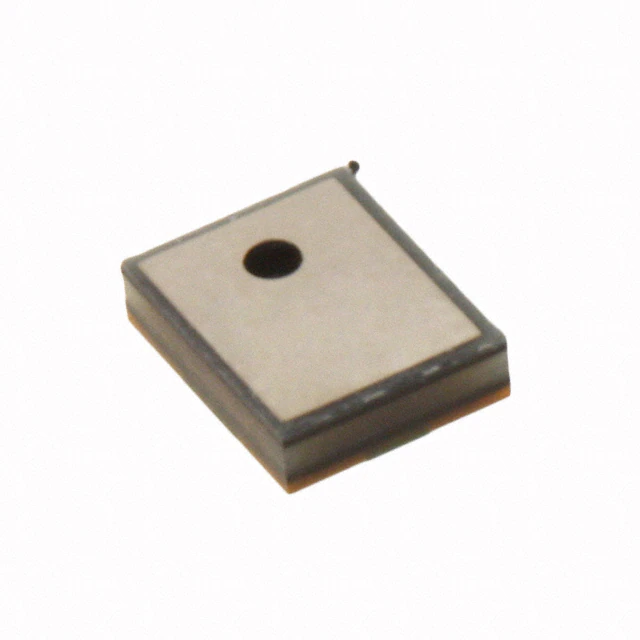

SPM0408HD5H-SBMIC MEMS ANALOG OMNI -22DB |
0 |
|
Datasheet |
SiSonic™ | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -22dB ±3dB @ 94dB SPL | 59dB | 300 Ohms | - | 1.5 V ~ 3.6 V | 350 µA | Top | - | Solder Pads | 0.186" L x 0.148" W (4.72mm x 3.76mm) | 0.053" (1.35mm) | Rectangular | - | - |
|
SP0404LE5H-PBMIC MEMS ANALOG OMNI -42DB |
0 |
|
Datasheet |
SiSonic™ | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Analog | Omnidirectional | 100 Hz ~ 8 kHz | -42dB ±4dB @ 94dB SPL | 59dB | 300 Ohms | - | 1.5 V ~ 3.6 V | 250 µA | Top | - | Solder Pads | 0.242" L x 0.148" W (6.15mm x 3.76mm) | 0.049" (1.25mm) | Rectangular | - | - |
|
MMICT5919-00-012MIC MEMS DIGITAL PDM OMNI -41DB |
0 |
|
Datasheet |
T5919 | Tape & Reel (TR) | Last Time Buy | MEMS (Silicon) | Digital, PDM | Omnidirectional | - | -41dB ±1dB @ 94dB SPL | 64.5dB | - | 1.8 V | 1.65 V ~ 1.98 V | 590 µA | Bottom | - | Surface Mount | 0.138" L x 0.104" W (3.50mm x 2.65mm) | 0.039" (0.98mm) | Rectangular | - | - |
|
SPM0408HE5H-SBMIC MEMS ANALOG OMNI -22DB |
0 |
|
Datasheet |
SiSonic™ | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -22dB ±3dB @ 94dB SPL | 59dB | 300 Ohms | - | 1.5 V ~ 3.6 V | 350 µA | Top | - | Solder Pads | 0.186" L x 0.148" W (4.72mm x 3.76mm) | 0.053" (1.35mm) | Rectangular | - | - |
|
|
EM-4015LRNW-40CMICROPHONE, OMNIDIRECTIONAL, 2V, |
0 |
|
Datasheet |
- | Bulk | Active | Electret Condenser | Analog | Omnidirectional | 50 Hz ~ 10 kHz | -40dB ±3dB @ 94dB SPL | 58dB | 2.2 kOhms | - | 1 V ~ 10 V | 500 µA | Top | IP67 - Dust Tight, Waterproof | Wire Leads | 0.157" Dia (4.00mm) | 0.067" (1.70mm) | Round | - | - |
|
SPM0407HE3H-SBMIC MEMS ANALOG OMNI -32DB |
0 |
|
Datasheet |
SiSonic™ | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -32dB ±10dB @ 94dB SPL | 59dB | 100 Ohms | - | 1.5 V ~ 5.5 V | 370 µA | Top | - | Solder Pads | 0.186" L x 0.148" W (4.72mm x 3.76mm) | 0.053" (1.35mm) | Rectangular | - | - |
|
INMP401ACEZ-R7MIC MEMS ANALOG OMNI -42DB |
0 |
|
Datasheet |
INMP401 | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Analog | Omnidirectional | 60 Hz ~ 15 kHz | -42dB ±3dB @ 94dB SPL | 62dB | 200 Ohms | - | 1.5 V ~ 3.3 V | 250 µA | Bottom | - | Solder Pads | 0.186" L x 0.148" W (4.72mm x 3.76mm) | 0.043" (1.10mm) | Rectangular | - | - |
|
SP0408LE5H-SBMIC MEMS ANALOG OMNI -22DB |
0 |
|
Datasheet |
SiSonic™ | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Analog | Omnidirectional | 100 Hz ~ 8 kHz | -22dB ±3dB @ 94dB SPL | 59dB | 300 Ohms | - | 1.5 V ~ 3.6 V | 350 µA | Top | - | Solder Pads | 0.242" L x 0.148" W (6.15mm x 3.76mm) | 0.049" (1.25mm) | Rectangular | - | - |
Microphones Electronic Components
Explore Microphones electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
