Microphones
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Output Type | Direction | Frequency Range | Sensitivity | S/N Ratio | Impedance | Voltage - Rated | Voltage Range | Current - Supply | Port Location | Ratings | Termination | Size / Dimension | Height (Max) | Shape | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPW2430HR5H-BMIC MEMS ANALOG OMNI -42DB |
0 |
|
Datasheet |
SiSonic™ SPW | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -42dB ±3dB @ 94dB SPL | 59dB | 450 Ohms | - | 1.5 V ~ 3.6 V | 110 µA | Top | - | Solder Pads | 0.122" L x 0.098" W (3.10mm x 2.50mm) | 0.043" (1.10mm) | Rectangular | - | - |
|
MO044003-1MIC COND ANLG OMNI -40DB 0.177"D |
0 |
|
Datasheet |
- | Tray | Active | Electret Condenser | Analog | Omnidirectional | 50 Hz ~ 16 kHz | -40dB ±2dB | 60dB | - | 3 V | - | 500 µA | Top | - | PC Pins | 0.177" Dia (4.50mm) | 0.094" (2.40mm) | Circular | - | - |
|
MO044202-7MIC COND ANLG OMNI -42DB 0.177"D |
0 |
|
Datasheet |
- | Tray | Active | Electret Condenser | Analog | Omnidirectional | 50 Hz ~ 16 kHz | -42dB ±3dB | 60dB | - | 2 V | - | 500 µA | Top | - | PC Pins | 0.177" Dia (4.50mm) | 0.114" (2.90mm) | Circular | - | - |
|
AOM-4546P-NF-RMIC COND ANLG OMNI -46DB 0.382"D |
0 |
|
Datasheet |
AOM | Bulk | Active | Electret Condenser | Analog | Omnidirectional | 30 Hz ~ 15 kHz | -46dB ±3dB | 60dB | 2.2 kOhms | 1.5 V | 1.5 V ~ 10 V | 500 µA | Top | - | Solder Pads | 0.382" Dia (9.70mm) | 0.185" (4.70mm) | Circular | - | - |
|

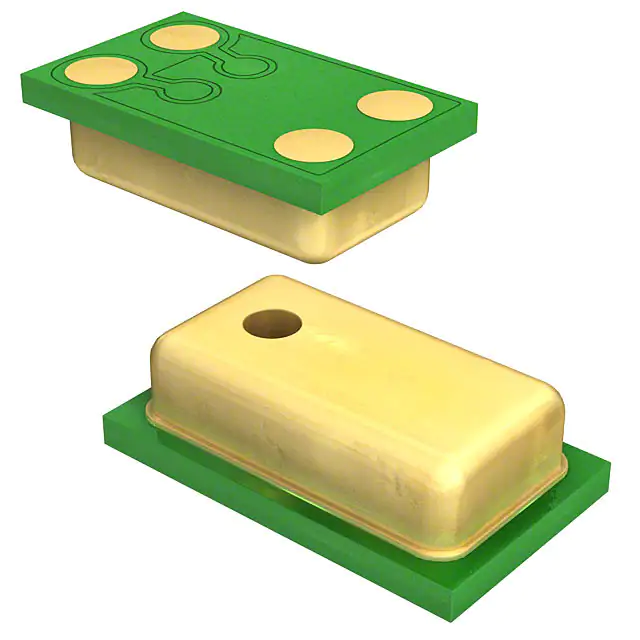

SPQ1410HR5H-BMIC MEMS ANALOG OMNI -42DB |
0 |
|
Datasheet |
SiSonic™ | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -42dB ±3dB @ 94dB SPL | 59dB | 400 Ohms | - | 1.5 V ~ 3.6 V | 160 µA | Top | - | Solder Pads | 0.148" L x 0.088" W (3.76mm x 2.24mm) | 0.047" (1.20mm) | Rectangular | - | - |
|
SPU0410HR5H-1MIC MEMS ANALOG OMNI -42DB |
0 |
|
Datasheet |
SiSonic™ SPU | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -42dB ±1dB @ 94dB SPL | 59dB | 400 Ohms | - | 1.5 V ~ 3.6 V | 160 µA | Top | - | Solder Pads | 0.148" L x 0.116" W (3.76mm x 2.95mm) | 0.047" (1.20mm) | Rectangular | - | - |
|
MP23AB02BTRMIC MEMS ANALOG OMNI -38DB |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Analog | Omnidirectional | 20 Hz ~ 20 kHz | -38dB ±3dB @ 94dB SPL | 64dB | - | 1.8 V | 1.6 V ~ 3.6 V | 220 µA | Bottom | - | Solder Pads | 0.132" L x 0.098" W (3.35mm x 2.50mm) | 0.043" (1.08mm) | Rectangular | - | - |
|
SPU0410HR5H-PBMIC MEMS ANALOG OMNI -42DB |
0 |
|
Datasheet |
SiSonic™ SPU | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -42dB ±3dB @ 94dB SPL | 59dB | 300 Ohms | - | 1.5 V ~ 3.6 V | 250 µA | Top | - | Solder Pads | 0.148" L x 0.116" W (3.76mm x 2.95mm) | 0.047" (1.20mm) | Rectangular | - | - |
|

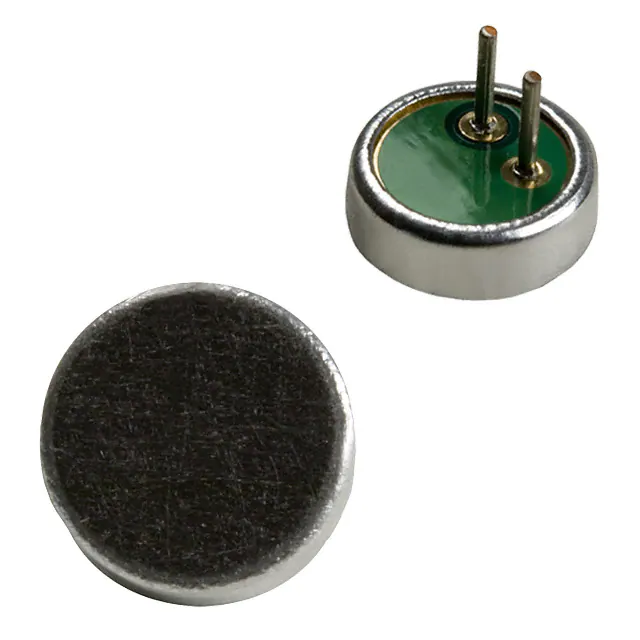

MB6022APC-0MIC COND ANLG OMNI -40DB 0.236"D |
0 |
|
Datasheet |
MB | Bulk | Obsolete | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -40dB ±2dB @ 94dB SPL | 60dB | 2.2 kOhms | 2 V | 2 V ~ 10 V | 500 µA | Top | - | PC Pins | 0.236" Dia (6.00mm) | 0.094" (2.40mm) | Circular | - | - |
|

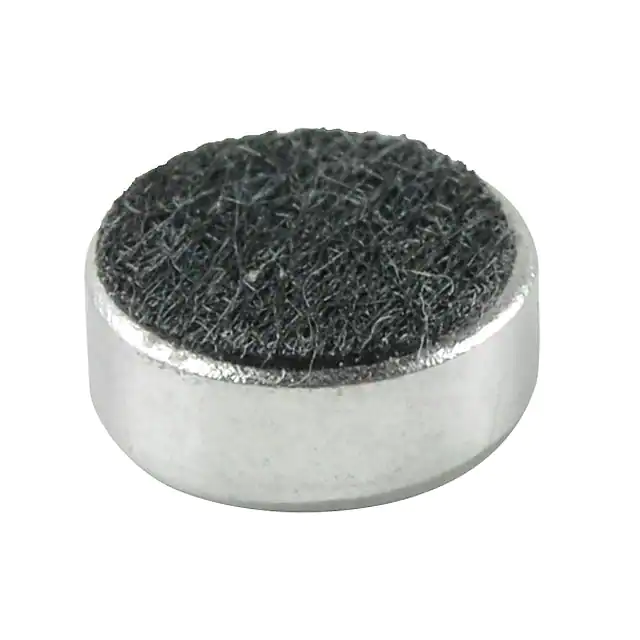

CMC-6022-38TMIC COND ANLG OMNI -38DB 0.236"D |
0 |
|
Datasheet |
CMC | Box | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 20 kHz | -38dB ±3dB @ 94dB SPL | 60dB | 2.2 kOhms | 2 V | 2 V ~ 10 V | 500 µA | Top | - | Solder Pads | 0.236" Dia (6.00mm) | 0.094" (2.40mm) | Circular | - | - |
|
CMC-6022-42PMIC COND ANLG OMNI -42DB 0.236"D |
0 |
|
Datasheet |
CMC | Box | Active | Electret Condenser | Analog | Omnidirectional | 20 Hz ~ 20 kHz | -42dB ±3dB @ 94dB SPL | 58dB | 2.2 kOhms | 2 V | 2 V ~ 10 V | 500 µA | Top | - | PC Pins | 0.236" Dia (6.00mm) | 0.094" (2.40mm) | Circular | - | - |
|

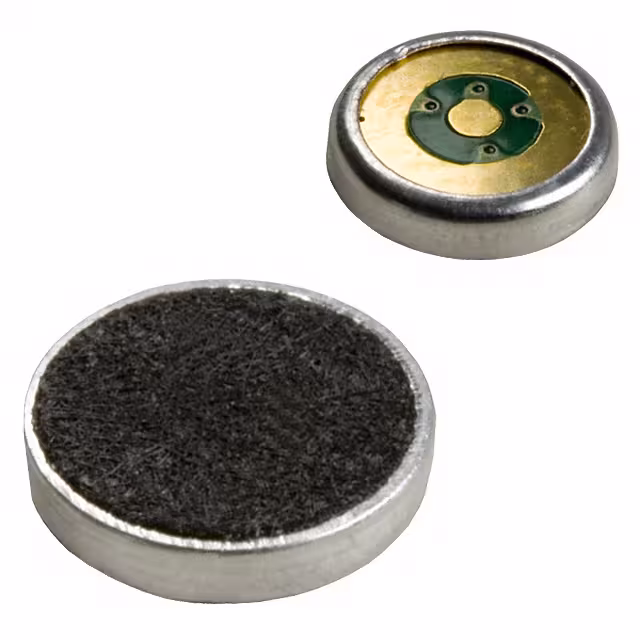

MB6013ABC-2MIC COND ANLG OMNI -44DB 0.236"D |
0 |
|
Datasheet |
MB | Bulk | Obsolete | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -44dB ±2dB @ 94dB SPL | 60dB | 2.2 kOhms | 2 V | 2 V ~ 10 V | 500 µA | Top | - | Solderless (Bullseye) | 0.236" Dia (6.00mm) | 0.061" (1.55mm) | Circular | - | - |
|
MO064002-3MIC COND ANALOG OMNI 0.236"DIA |
0 |
|
Datasheet |
- | Box | Active | Electret Condenser | Analog | Omnidirectional | 50 Hz ~ 16 kHz | - | 60dB | - | 2 V | - | 500 µA | Top | - | PC Pins | 0.236" Dia (6.00mm) | 0.114" (2.90mm) | Circular | - | - |
|
MO064202-1MIC COND ANLG OMNI -42DB 0.236"D |
0 |
|
Datasheet |
- | Box | Active | Electret Condenser | Analog | Omnidirectional | 50 Hz ~ 16 kHz | -42dB ±3dB | 60dB | - | 2 V | - | 500 µA | Top | - | Solder Pads | 0.236" Dia (6.00mm) | 0.114" (2.90mm) | Circular | - | - |
|

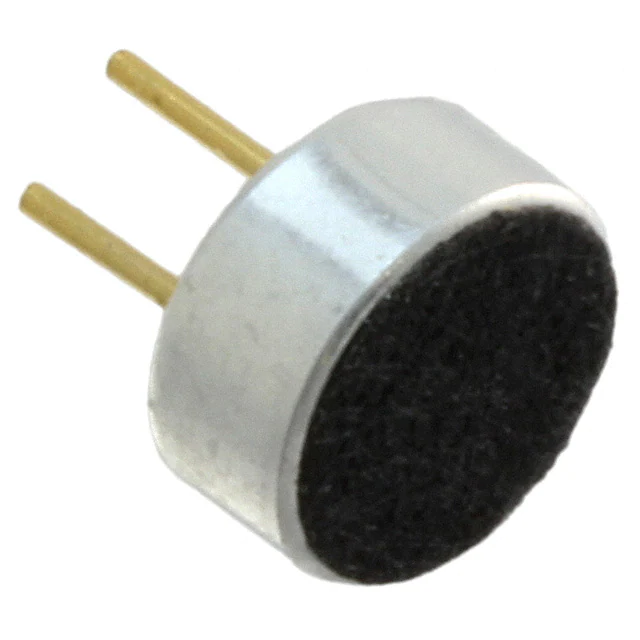

PMO-4530PN-47UQMIC MAG ANLG OMNI -47DB 4.5MM D |
0 |
|
Datasheet |
PMO | Bulk | Obsolete | Electret Condenser | Analog | Omnidirectional | 20 Hz ~ 16 kHz | -47dB ±3dB @ 94dB SPL | 58dB | 2.2 kOhms | 2 V | 1 V ~ 10 V | 500 µA | Top | - | PC Pins | 0.177" Dia (4.50mm) | 0.126" (3.20mm) | Circular | - | - |
|
MP45DT02TRMIC MEMS DIGITAL PDM OMNI -26DB |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Digital, PDM | Omnidirectional | 100 Hz ~ 10 kHz | -26dB ±3dB @ 94dB SPL | 61dB | - | 1.8 V | 1.64 V ~ 3.6 V | 650 µA | Top | - | Solder Pads | 0.186" L x 0.148" W (4.72mm x 3.76mm) | 0.054" (1.38mm) | Rectangular | - | - |
|
MO044202-5MIC COND ANLG OMNI -42DB 0.157"D |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Electret Condenser | Analog | Omnidirectional | 50 Hz ~ 16 kHz | -42dB ±3dB | 60dB | - | 2 V | - | 500 µA | Top | - | Solderless (Bullseye) | 0.157" Dia (4.00mm) | 0.055" (1.40mm) | Circular | - | - |
|
POM-5242L-RMIC COND ANLG OMNI -42DB 0.236"D |
0 |
|
Datasheet |
POM | Bulk | Active | Electret Condenser | Analog | Omnidirectional | - | -42dB ±3dB | 60dB | 2.2 kOhms | 2 V | 2 V ~ 10 V | 500 µA | Top | - | Solder Pads | 0.236" Dia (6.00mm) | 0.213" (5.40mm) | Circular | - | - |
|
MM042602-4MIC MEMS DIGITAL OMNI -26DB |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | MEMS (Silicon) | Digital, PDM | Omnidirectional | 100 Hz ~ 7 kHz | -26dB ±3dB | 58dB | - | 2.1 V | 1.64 V ~ 3.6 V | 800 µA | Top | - | Solder Pads | 0.186" L x 0.148" W (4.72mm x 3.76mm) | - | Rectangular | - | - |
|
MO044202-1MIC COND ANLG OMNI -42DB 0.157"D |
0 |
|
Datasheet |
- | Tray | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 16 kHz | -42dB ±3dB | 60dB | - | 2 V | - | 500 µA | Top | - | Solderless (Bullseye) | 0.157" Dia (4.00mm) | 0.067" (1.70mm) | Circular | - | - |
Microphones Electronic Components
Explore Microphones electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
