Microphones
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Output Type | Direction | Frequency Range | Sensitivity | S/N Ratio | Impedance | Voltage - Rated | Voltage Range | Current - Supply | Port Location | Ratings | Termination | Size / Dimension | Height (Max) | Shape | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

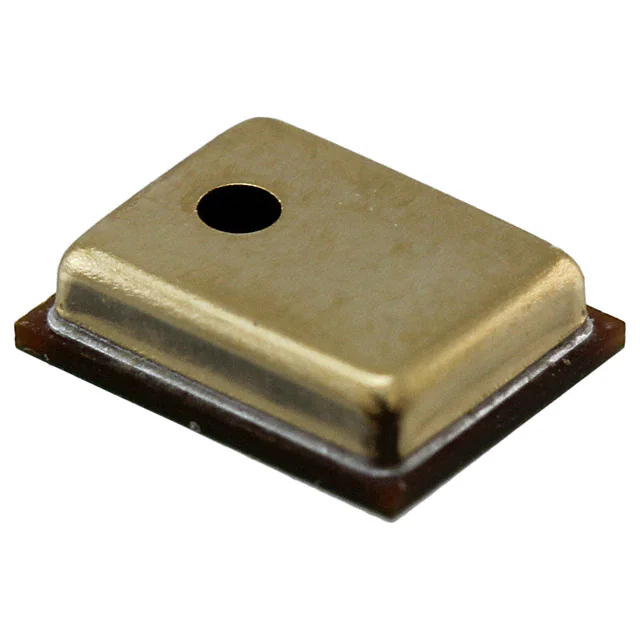

SPM1437HM4H-BMIC MEMS DIGITAL PDM OMNI -22DB |
0 |
|
Datasheet |
SiSonic™ | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Digital, PDM | Omnidirectional | 100 Hz ~ 10 kHz | -22dB ±3dB @ 94dB SPL | 61.5dB | - | - | 1.6 V ~ 3.6 V | 500 µA | Top | - | Solder Pads | 0.186" L x 0.148" W (4.72mm x 3.76mm) | 0.049" (1.25mm) | Rectangular | - | - |
|
MO044202-6MIC COND ANLG OMNI -42DB 0.157"D |
0 |
|
Datasheet |
- | Tray | Active | Electret Condenser | Analog | Omnidirectional | 50 Hz ~ 16 kHz | -42dB ±3dB | 60dB | - | 2 V | - | 500 µA | Top | - | Solder Pads | 0.157" Dia (4.00mm) | 0.067" (1.70mm) | Circular | - | - |
|
SPU0409HD5H-PBMIC MEMS ANALOG OMNI -42DB |
0 |
|
Datasheet |
SiSonic™ | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Analog | Omnidirectional | 100 Hz ~ 100 kHz | -42dB ±3dB @ 94dB SPL | 59dB | 100 Ohms | - | 1.5 V ~ 3.6 V | 190 µA | Top | - | Solder Pads | 0.148" L x 0.116" W (3.76mm x 2.95mm) | 0.035" (0.90mm) | Rectangular | - | - |
|
MMICT4078-00-908MICROPHONE MEMS ANALOG -38DB |
0 |
|
Datasheet |
MMIC | Tape & Reel (TR) | Last Time Buy | MEMS (Silicon) | Analog | - | 80 Hz ~ 20 kHz | -38db ±1dB @ 136dB | 66dB | - | - | 1.52 V ~ 3.6 V | - | Bottom | - | Solder Pads | 0.132" L x 0.098" W (3.35mm x 2.50mm) | 0.039" (0.98mm) | Rectangular | - | - |
|
MP45DT02TR-MMIC MEMS DIGITAL PDM OMNI -26DB |
0 |
|
- |
- | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Digital, PDM | Omnidirectional | 100 Hz ~ 10 kHz | -26dB ±3dB @ 94dB SPL | 61dB | - | 1.8 V | 1.64 V ~ 3.6 V | 650 µA | Top | - | Solder Pads | 0.186" L x 0.148" W (4.72mm x 3.76mm) | 0.053" (1.35mm) | Rectangular | - | - |
|
IA610-TMIC MEMS I2S PDM TDM OMNI |
0 |
|
Datasheet |
IA | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | I2S, PDM, TDM | Omnidirectional | 768 kHz ~ 200 MHz | -37.5dB ±1dB @ 94dB SPL | 66dB | - | 1.8 V | 1.71 V ~ 1.98 V | 7.5 mA | Top | - | Solder Pads | 0.157" L x 0.118" W (4.00mm x 3.00mm) | 0.051" (1.30mm) | Rectangular | - | - |
|
|
EM-4015SMICROPHONE, 2V, 42DB, 4MM DIA. X |
0 |
|
Datasheet |
- | Bulk | Active | Electret Condenser | Analog | Omnidirectional | 50 Hz ~ 10 kHz | -42dB ±3dB @ 94dB SPL | 58dB | 2.2 kOhms | - | 1.4 V ~ 5 V | 500 µA | Top | IP50 - Dust Protection | Pressure Contact | 0.157" Dia (4.00mm) | 0.067" (1.70mm) | Round | - | - |
|
|
MW042502-2MIC COND ANLG OMNI -25DB 0.181"D |
0 |
|
Datasheet |
MW | Box | Active | Electret Condenser | Analog | Omnidirectional | 50 Hz ~ 16 kHz | -25dB ±3dB | 60dB | 2.2 kOhms | 2 V | 1 V ~ 10 V | 500 µA | Top | IP67 - Dust Tight, Waterproof | PC Pins | 0.181" Dia (4.60mm) | 0.079" (2.00mm) | Circular | - | - |
|
POM-2742P-C33-RMIC COND ANLG OMNI -42DB 0.236"D |
0 |
|
- |
POM | Bulk | Active | Electret Condenser | Analog | Omnidirectional | 30 Hz ~ 15 kHz | -42dB ±3dB | 60dB | 2.2 kOhms | 2 V | 2 V ~ 10 V | 500 µA | Top | - | PC Pins | 0.236" Dia (6.00mm) | 0.114" (2.90mm) | Circular | - | - |
|
|
POM-2746P-RMIC COND ANLG OMNI -46DB 0.236"D |
0 |
|
- |
POM | Bulk | Active | Electret Condenser | Analog | Omnidirectional | 30 Hz ~ 15 kHz | -46dB ±3dB | 60dB | 2.2 kOhms | 2 V | 2 V ~ 10 V | 500 µA | Top | - | PC Pins | 0.236" Dia (6.00mm) | 0.114" (2.90mm) | Circular | - | - |
|
SPM0423HE4H-WBMIC MEMS DIGITAL PDM OMNI -26DB |
0 |
|
Datasheet |
SiSonic™ | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Digital, PDM | Omnidirectional | 100 Hz ~ 10 kHz | -26dB ±3dB @ 94dB SPL | 56dB | - | - | 1.6 V ~ 3.6 V | 600 µA | Top | - | Solder Pads | 0.186" L x 0.148" W (4.72mm x 3.76mm) | 0.053" (1.35mm) | Rectangular | - | - |
|
MMICT3903-00-012MIC MEMS DIGITAL PDM OMNI -37DB |
0 |
|
Datasheet |
T3903 | Tape & Reel (TR) | Last Time Buy | MEMS (Silicon) | Digital, PDM | Omnidirectional | - | -37dB ±1dB @ 94dB SPL | 66dB | - | 1.8 V | 1.65 V ~ 3.63 V | 590 µA | Bottom | - | Surface Mount | 0.138" L x 0.104" W (3.50mm x 2.65mm) | 0.039" (0.98mm) | Rectangular | - | - |
|
ROM-2244P-NF-RMIC COND ANLG OMNI -44DB 0.228"D |
0 |
|
- |
- | Bulk | Active | Electret Condenser | Analog | Omnidirectional | 30 Hz ~ 15 kHz | -44dB ±3dB | 60dB | 2.2 kOhms | 2 V | 2 V ~ 10 V | 500 µA | Top | - | PC Pins | 0.228" Dia (5.80mm) | 0.094" (2.40mm) | Circular | - | - |
|
MP34DB01TRMIC MEMS DIGITAL PDM OMNI -26DB |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Digital, PDM | Omnidirectional | 20 Hz ~ 20 kHz | -26dB ±3dB @ 94dB SPL | 62.6dB | - | 1.8 V | 1.64 V ~ 3.6 V | 650 µA | Bottom | - | Solder Pads | 0.157" L x 0.118" W (4.00mm x 3.00mm) | 0.043" (1.10mm) | Rectangular | - | - |
|
ICS-40180MIC MEMS ANALOG OMNI -38DB |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Analog | Omnidirectional | 60 Hz ~ 20 kHz | -38dB ±1dB @ 94dB SPL | 65dB | 350 Ohms | - | 1.5 V ~ 3.63 V | 260 µA | Bottom | - | Solder Pads | 0.138" L x 0.104" W (3.50mm x 2.65mm) | 0.043" (1.10mm) | Rectangular | - | - |
|
ICS-40181MIC MEMS ANALOG OMNI -38DB |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Analog | Omnidirectional | 60 Hz ~ 20 kHz | -38db ±1dB | 65dB | 350 Ohms | - | 1.5 V ~ 3.63 V | 250 µA | Top | - | Solder Pads | 0.138" L x 0.104" W (3.50mm x 2.65mm) | 0.043" (1.10mm) | Rectangular | - | - |
|
INMP621ACEZ-R0MIC MEMS DIGITAL PDM OMNI -46DB |
0 |
|
Datasheet |
INMP621 | Tape & Reel (TR) | Not For New Designs | MEMS (Silicon) | Digital, PDM | Omnidirectional | 45 Hz ~ 20 kHz | -46dB ±2dB @ 94dB SPL | 65dB | - | - | 1.62 V ~ 3.63 V | 1.6 mA | Bottom | - | Solder Pads | 0.157" L x 0.118" W (4.00mm x 3.00mm) | 0.043" (1.10mm) | Rectangular | - | - |
|
MP34DT04TRMIC MEMS DIGITAL PDM OMNI -26DB |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Digital, PDM | Omnidirectional | 100 Hz ~ 10 kHz | -26dB ±3dB @ 94dB SPL | 64dB | - | 1.8 V | 1.6 V ~ 3.6 V | 700 µA | Top | - | Solder Pads | 0.157" L x 0.118" W (4.00mm x 3.00mm) | 0.047" (1.20mm) | Rectangular | - | - |
|
TOM-1545S-RMIC COND ANLG OMNI -45DB 0.157"D |
0 |
|
- |
TOM | Bulk | Active | Electret Condenser | Analog | Omnidirectional | - | -45dB ±3dB | 60dB | 2.2 kOhms | 2 V | 2 V ~ 10 V | 500 µA | Top | - | Solderless (Bullseye) | 0.157" Dia (4.00mm) | 0.067" (1.70mm) | Circular | - | - |
|
|
SPU0414HR5H-SBMIC MEMS ANALOG OMNI -22DB |
0 |
|
Datasheet |
SiSonic™ SPU | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -22dB ±3dB @ 94dB SPL | 59dB | 400 Ohms | - | 1.5 V ~ 3.6 V | 220 µA | Top | - | Solder Pads | 0.148" L x 0.116" W (3.76mm x 2.95mm) | 0.047" (1.20mm) | Rectangular | - | - |
