Microphones
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Output Type | Direction | Frequency Range | Sensitivity | S/N Ratio | Impedance | Voltage - Rated | Voltage Range | Current - Supply | Port Location | Ratings | Termination | Size / Dimension | Height (Max) | Shape | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CME-1538-100LBMIC COND ANLG OMNI -38DB 0.157"D |
0 |
|
Datasheet |
- | Bag | Active | Electret Condenser | Analog | Omnidirectional | 20 Hz ~ 20 kHz | -38dB ±3dB @ 94dB SPL | 58dB | 2.2 kOhms | 2 V | 2 V ~ 10 V | 500 µA | Top | IP67 - Dust Tight, Waterproof | Wire Leads | 0.157" Dia (4.00mm) | 0.114" (2.90mm) | Circular | - | - |
|
EA-21842-C36MIC COND ANALOG OMNI -59DB |
0 |
|
Datasheet |
EA | Bulk | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 4.8 kHz | -59dB ±3dB @ 74dB SPL | - | 3.5 kOhms | 1.3 V | - | 50 µA | Side | - | Solder Pads | 0.219" L x 0.157" W (5.56mm x 3.99mm) | 0.089" (2.26mm) | Rectangular | - | - |
|
EK-23024-000MIC COND ANALOG OMNI -53DB |
0 |
|
Datasheet |
EK | Bulk | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 5.5 kHz | -53dB ±3dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | 1.3 V ~ 10 V | 50 µA | Top | - | Solder Pads | 0.219" L x 0.157" W (5.56mm x 3.99mm) | 0.089" (2.26mm) | Rectangular | - | - |
|
FG-23629-P16MIC COND ANLG OMNI -53DB 0.101"D |
0 |
|
Datasheet |
FG | Bulk | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -53dB ±3dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | 1.3 V ~ 3 V | 50 µA | Top | - | Wire Leads | 0.101" Dia (2.57mm) | 0.101" (2.57mm) | Circular | - | - |
|

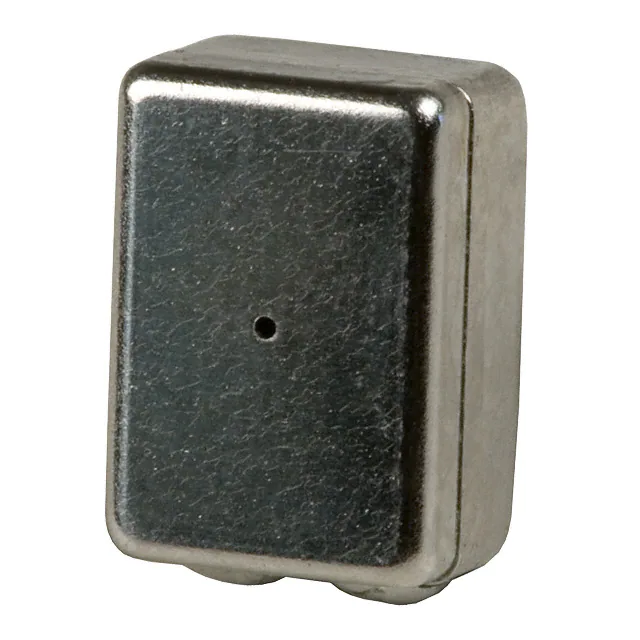

BJ-21590-000MIC MAG ANALOG OMNI -75.5DB |
0 |
|
Datasheet |
BJ | Bulk | Active | Magnetic | Analog | Omnidirectional | 300 Hz ~ 5 kHz | -75.5dB ±3dB @ 74dB SPL | - | 3.9 kOhms | - | - | - | Top | - | Solder Pads | 0.310" L x 0.220" W (7.87mm x 5.59mm) | 0.160" (4.06mm) | Rectangular | - | - |
|
FG-23329-P07MIC COND ANLG OMNI -53DB 0.101"D |
0 |
|
Datasheet |
FG | Bulk | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -53dB ±3dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | 1.3 V ~ 3 V | 50 µA | Top | - | Wire Leads | 0.101" Dia (2.57mm) | 0.101" (2.57mm) | Circular | - | - |
|
CMC-5042PF-ACMIC COND ANLG OMNI -42DB 0.236"D |
2 |
|
Datasheet |
- | Box | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 20 kHz | -42dB ±3dB @ 94dB SPL | 56dB | 2.2 kOhms | 2 V | 2 V ~ 10 V | 500 µA | Top | - | PC Pins | 0.236" Dia (6.00mm) | 0.205" (5.20mm) | Circular | - | - |
|

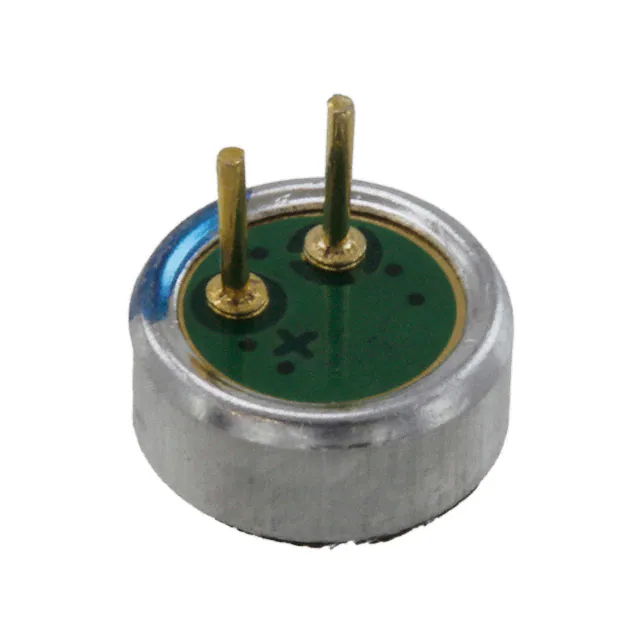

EM-6027PMIC COND ANLG OMNI -43DB 0.236"D |
0 |
|
Datasheet |
EM | Tray | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 15 kHz | -43dB ±5dB @ 94dB SPL | 58dB | 2.2 kOhms | 2 V | 1 V ~ 10 V | 500 µA | Top | - | PC Pins | 0.236" Dia (6.00mm) | 0.114" (2.90mm) | Circular | - | - |
|
MW064202-1MIC COND ANLG OMNI -42DB 0.236"D |
0 |
|
Datasheet |
MW | Box | Active | Electret Condenser | Analog | Omnidirectional | 50 Hz ~ 16 kHz | -42dB ±3dB | 60dB | 2.2 kOhms | 2 V | 1 V ~ 10 V | 500 µA | Top | IP67 - Dust Tight, Waterproof | Wire Leads | 0.236" Dia (6.00mm) | 0.114" (2.90mm) | Circular | - | - |
|
PNM-5054L-C3310-RMIC COND ANLG NC -54DB 0.236"DIA |
0 |
|
Datasheet |
PNM | Box | Active | Electret Condenser | Analog | Noise Cancelling | - | -54dB ±3dB | 56dB | - | 2 V | - | 500 µA | Top | - | Solder Pads | 0.236" Dia (6.00mm) | 0.205" (5.20mm) | Circular | - | - |
|
CMP-5247TF-KMIC COND ANLG NC -47DB 0.382"DIA |
0 |
|
Datasheet |
- | Box | Active | Electret Condenser | Analog | Noise Cancelling | 100 Hz ~ 20 kHz | -47dB ±3dB @ 94dB SPL | 58dB | 2.2 kOhms | - | 1.5 V ~ 10 V | 500 µA | Top | - | Solder Pads | 0.382" Dia (9.70mm) | 0.213" (5.40mm) | Circular | - | - |
|
CMC-6027-42L100MIC COND ANLG OMNI -42DB 0.236"D |
0 |
|
Datasheet |
CMC | Box | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 20 kHz | -42dB ±3dB @ 94dB SPL | 57dB | 2.2 kOhms | 2 V | 2 V ~ 10 V | 500 µA | Top | IP57 - Dust Protected, Waterproof | Wire Leads | 0.236" Dia (6.00mm) | 0.161" (4.10mm) | Circular | - | - |
|
POW-3535L-3-LW100-B-RMIC COND ANLG OMNI -35DB 0.315"D |
0 |
|
Datasheet |
POW | Box | Active | Electret Condenser | Analog | Omnidirectional | - | -35dB ±4dB | 68dB | 2.2 kOhms | 2 V | 2 V ~ 10 V | 500 µA | Top | IP57 - Dust Protected, Waterproof | Wire Leads | 0.315" Dia (8.00mm) | 0.146" (3.70mm) | Circular | - | - |
|
CMC-4015-130TMIC COND ANLG OMNI -42DB 0.157"D |
0 |
|
Datasheet |
CMC | Box | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 20 kHz | -42dB ±3dB @ 94dB SPL | 60dB | 2.2 kOhms | 2 V | 2 V ~ 10 V | 500 µA | Top | IP67 - Dust Tight, Waterproof | Solder Pads | 0.157" Dia (4.00mm) | 0.059" (1.50mm) | Circular | - | - |
|
CMC-6035-130TMIC COND ANLG OMNI -42DB 0.236"D |
20 |
|
Datasheet |
CMC | Box | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 20 kHz | -42dB ±3dB @ 94dB SPL | 70dB | 2.2 kOhms | 2 V | 2 V ~ 10 V | 500 µA | Top | IP67 - Dust Tight, Waterproof | Solder Pads | 0.236" Dia (6.00mm) | 0.138" (3.50mm) | Circular | - | - |
|
FB-BW-30335-000MIC BOOM ANLG NC -59DB 0.315"DIA |
0 |
|
Datasheet |
FB-BW | Bulk | Active | Boom | Analog | Noise Cancelling | 300 Hz ~ 4 kHz | -59dB ±4dB @ 74dB SPL | - | 2.2 kOhms | 1.3 V | 1.3 V ~ 10 V | 300 µA | Bottom, Top | IP67 - Dust Tight, Waterproof | Wire Leads | 0.315" Dia (8.00mm) | 0.185" (4.70mm) | Circular | - | - |
|
FB-FO-23225-000MIC BOOM ANLG NC -60DB 0.340"DIA |
0 |
|
Datasheet |
FB | Bulk | Active | Boom | Analog | Noise Cancelling | 300 Hz ~ 4 kHz | -60dB ±3dB @ 74dB SPL | - | 2.2 kOhms | 1.3 V | 1.3 V ~ 10 V | 200 µA | Top | - | Wire Leads | 0.340" Dia (8.64mm) | - | Circular | - | - |
|
FB-EM-30343-000MIC BOOM ANLG NC -51DB 0.748"DIA |
0 |
|
Datasheet |
FB-EM | Bulk | Active | Boom | Analog | Noise Cancelling | 300 Hz ~ 6 kHz | -51dB ±4dB @ 74dB SPL | - | 2 kOhms | 1.3 V | 1.3 V ~ 10 V | 300 µA | Bottom, Top | - | Wire Leads | 0.748" Dia (19.00mm) | 0.245" (6.22mm) | Circular | - | - |
|
EM-9750PMIC COND ANLG OMNI -42DB 0.382"D |
0 |
|
Datasheet |
EM | Tray | Active | Electret Condenser | Analog | Omnidirectional | 50 Hz ~ 10 kHz | -42dB ±3dB @ 94dB SPL | 58dB | 2.2 kOhms | 2 V | 1 V ~ 10 V | 500 µA | Top | IP50 - Dust Protection | PC Pins | 0.382" Dia (9.70mm) | 0.205" (5.20mm) | Circular | - | - |
|
AOM-4540P-RMIC COND ANLG OMNI -40DB 0.382"D |
0 |
|
Datasheet |
AOM | Bulk | Active | Electret Condenser | Analog | Omnidirectional | 30 Hz ~ 15 kHz | -40dB ±3dB | 60dB | 2.2 kOhms | 1.5 V | 1.5 V ~ 10 V | 500 µA | Top | - | PC Pins | 0.382" Dia (9.70mm) | 0.185" (4.70mm) | Circular | - | - |
Microphones Electronic Components
Explore Microphones electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
