Sensor Matched Magnets
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | For Use With/Related Products | Housing Material | Material - Magnet | Size | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAG10-2R-60.15.25RING MAGNET FOR SENSORS OD6 ID1. |
0 |
|
Datasheet |
MAG10 | Cylinder | Tape & Reel (TR) | Active | MAG10 | - | Nd-Fe-B | 0.236" Dia x 0.098" L (6.00mm x 2.50mm) | 150°C (TA) |
|
|
MAG10-2B-80.25BIAXIAL MAGNET FOR SENSORS OD8 H |
0 |
|
Datasheet |
MAG10 | Cylinder | Tape & Reel (TR) | Active | MAG10 | - | Nd-Fe-B | 0.315" Dia x 0.098" L (8.00mm x 2.50mm) | 150°C (TA) |
|
|
MAG10-2C-80.25CYLINDER MAGNET FOR SENSORS OD8 |
0 |
|
Datasheet |
MAG10 | Cylinder | Tape & Reel (TR) | Active | MAG10 | - | Nd-Fe-B | 0.315" Dia x 0.098" L (8.00mm x 2.50mm) | 150°C (TA) |
|
|
MAG10-2R-80.20.25RING MAGNET FOR SENSORS OD8 ID2 |
0 |
|
Datasheet |
MAG10 | Cylinder | Tape & Reel (TR) | Active | MAG10 | - | Nd-Fe-B | 0.315" Dia x 0.098" L (8.00mm x 2.50mm) | 150°C (TA) |
|
|
57141-00057141-000 ACTUATOR |
0 |
|
Datasheet |
- | - | Box | Active | - | - | - | - | - |
|
|
S1443BLUE RECTANGULAR ENCAPSULATED NI |
0 |
|
Datasheet |
- | Flange Mount | Bulk | Active | PSMM | Nylon | - | 1.181" L x 0.787" W x 0.276" H (30.00mm x 20.00mm x 7.00mm) | - |
|
|
PRM-SA-001 BLUEBLUE ALUMINIUM RECTANGULAR ENCAP |
0 |
|
Datasheet |
- | Flange Mount | Bulk | Active | PRM-SA | Aluminum | - | 1.496" L x 0.472" W x 0.315" H (38.00mm x 12.00mm x 8.00mm) | 105°C (TA) |
|
|
PA320000MAGNET DIA. 3 LENGTH 20 MOULDED |
0 |
|
Datasheet |
- | Module | Box | Active | - | - | Alnico (AlNiCo) | 0.906" L x 0.551" W x 0.236" H (23.00mm x 14.00mm x 6.00mm) | 100°C |
|
|
P3150000MAGNET DIA. 3 LENGTH 15 MOULDED |
0 |
|
Datasheet |
- | Module | Box | Active | - | - | Alnico (AlNiCo) | 1.260" L x 0.591" W x 0.268" H (32.00mm x 15.00mm x 6.80mm) | 100°C |
|
|
P4200000MAGNET DIA. 4 LENGTH 20 MOULDED |
0 |
|
Datasheet |
- | Module | Box | Active | - | - | Alnico (AlNiCo) | 1.260" L x 0.591" W x 0.268" H (32.00mm x 15.00mm x 6.80mm) | 100°C |
|
|
P4160000MAGNET DIA. 5 LENGTH 25 MOULDED |
0 |
|
Datasheet |
- | Module | Box | Active | - | - | Alnico (AlNiCo) | 2.008" L x 0.335" W x 0.453" H (51.00mm x 8.50mm x 11.50mm) | 100°C |
|

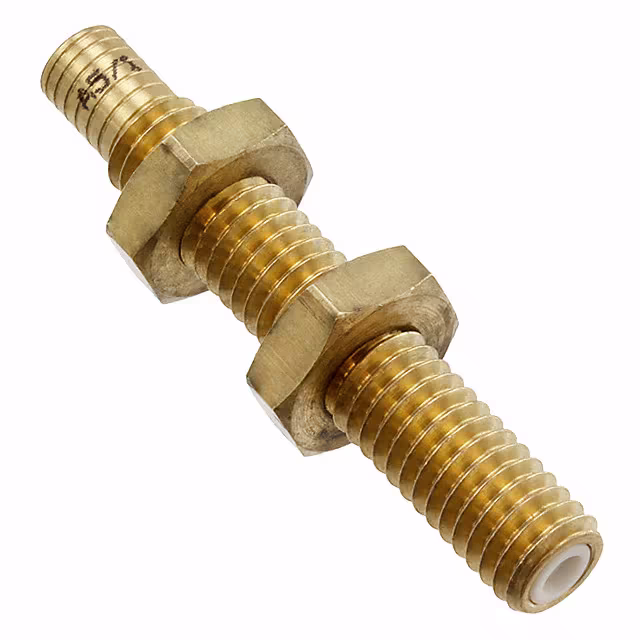

M11/B6MAGNET 0.236"DIA X 1.5"L BRASS |
0 |
|
Datasheet |
M11 | Cylinder, Threaded | Bulk | Active | MK11/B6 | Brass | - | 0.236" Dia x 1.50" L (6.00mm x 38.0mm) | 70°C (TA) |
|
|
P6250000-AMAGNET DIA. 6 LENGTH 25 MOULDED+ |
0 |
|
Datasheet |
- | Module | Box | Active | PA, PH, PL, PT | - | Alnico (AlNiCo) | 1.260" L x 0.591" W x 0.268" H (32.00mm x 15.00mm x 6.80mm) | 100°C |
|

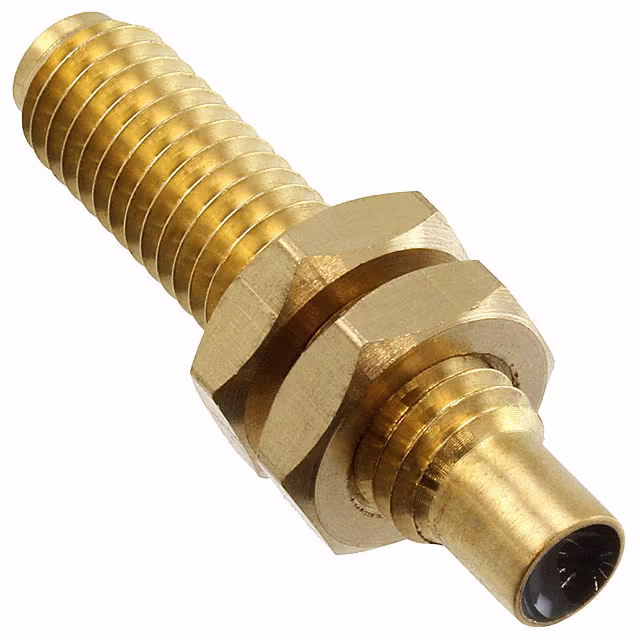

M11/B8MAGNET 0.315"DIA X 1.5"L BRASS |
0 |
|
Datasheet |
M11 | Cylinder, Threaded | Bulk | Active | MK11/B8 | Brass | Alnico 5 (AlNiCo) | 0.315" Dia x 1.50" L (8.00mm x 38.0mm) | 70°C (TA) |
|
|
PTM 12M12 NP PLATED BRASS ENCAPSULATED |
0 |
|
Datasheet |
- | Cylinder, Threaded - M12 | Bulk | Active | PTM | Brass | - | - | 85°C (TA) |
|
|
S1467M12 NP PLATED BRASS ENCAPSULATED |
0 |
|
Datasheet |
- | Cylinder, Threaded - M12 | Bulk | Active | PTSM | Brass | - | - | - |
|
|
PT505000MAGNET M8 PLASTIQUE FOR PTI4/PTI |
0 |
|
Datasheet |
- | Cylinder, Threaded - M8 | Box | Active | - | Plastic | Nd-Fe-B | 0.256" Dia x 1.228" L (6.50mm x 31.20mm) | 80°C |
|

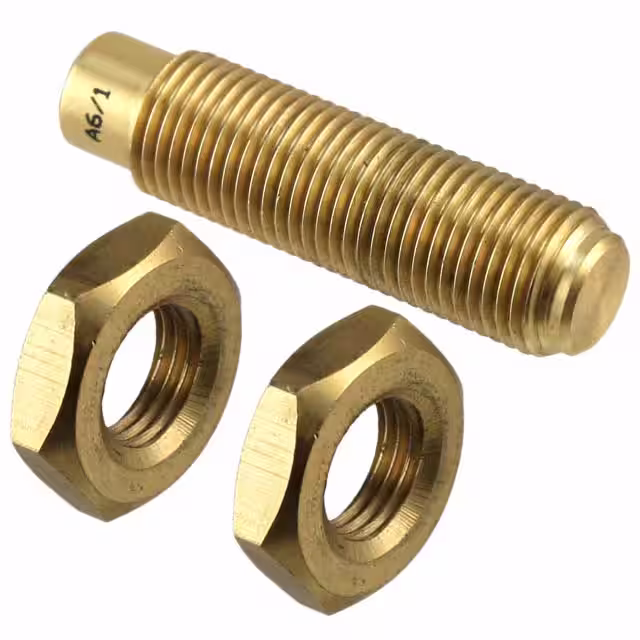

M11/B10MAGNET 0.394"DIA X 1.5"L BRASS |
0 |
|
Datasheet |
M11 | Cylinder, Threaded | Bulk | Active | MK11/B10 | Brass | Alnico 5 (AlNiCo) | 0.394" Dia x 1.50" L (10.0mm x 38.0mm) | 70°C (TA) |
|
M11/B12MAGNET 0.472"DIA X 1.5"L BRASS |
0 |
|
Datasheet |
M11 | Cylinder, Threaded | Bulk | Active | MK11/B12 | Brass | Alnico 5 (AlNiCo) | 0.472" Dia x 1.50" L (12.0mm x 38.0mm) | 70°C (TA) |
|
|
PTM 18M18 NP PLATED BRASS ENCAPSULATED |
0 |
|
Datasheet |
- | Cylinder, Threaded - M18 | Bulk | Active | PTM | Brass | - | - | 85°C (TA) |
