Sensor Matched Magnets
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | For Use With/Related Products | Housing Material | Material - Magnet | Size | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2602-4002-000MAGNETIC ACTUATOR FOR REED SENSO |
250 |
|
Datasheet |
- | Module, Wire Leads | Retail Package | Active | 2602 Series | Stainless Steel | Alnico 5 (AlNiCo) | 0.313" Dia x 1.250" L (7.95mm x 31.75mm) | 105°C |
|
2020-4100-000MAGNETIC ACTUATOR FOR REED SENSO |
250 |
|
Datasheet |
- | Module | Retail Package | Active | 2020 Series | Celanex 3316 | - | 2.625" L x 0.340" W x 0.340" H (66.68mm x 8.64mm x 8.64mm) | 525°C |
|
2451-4006-000MAGNETIC ACTUATOR FOR REED SENSO |
250 |
|
Datasheet |
- | Module, Wire Leads | Retail Package | Active | Magnetic Reed Sensors | Aluminum | - | 0.313" Dia x 1.50" L (7.95mm x 38.1mm) | 525°C |
|
2053-4109-000MAGNETIC ACTUATOR FOR REED SENSO |
250 |
|
Datasheet |
- | Module, Wire Leads | Retail Package | Active | 2052 Series | Celanex 3316 | Alnico 5 (AlNiCo) | - | 105°C |
|
2230-4013-000MAGNETIC ACTUATOR FOR REED SENSO |
250 |
|
Datasheet |
- | Module, Wire Leads | Retail Package | Active | 2230 Series | Celanex 3316 | Alnico 5 (AlNiCo) | 0.245" Dia x 1.000" L (6.22mm x 25.40mm) | 105°C |
|
2501-4932-000MAGNETIC ACTUATOR FOR REED SENSO |
250 |
|
Datasheet |
- | Module, Wire Leads | Retail Package | Active | Magnetic Reed Sensors | Aluminum | - | 0.375" Dia x 2.13" L (9.5mm x 54.0mm) | 80°C |
|
PRMALCOMAX UNPLATED 6MM X 18.0MM RO |
57 |
|
Datasheet |
- | Cylinder | Bulk | Active | - | - | Alcomax, Alnico (AlNiCo) | 0.236" Dia x 0.709" L (6.00mm x 18.00mm) | 550°C (TA) |
|
P6250000MAGNET DIA. 6 LENGTH 25 MOULDED |
28 |
|
Datasheet |
- | Module | Box | Active | PA, PH, PL, PT | - | Alnico (AlNiCo) | 1.26" L x 0.59" W x 0.27" H (32.0mm x 15.0mm x 6.8mm) | 100°C |
|
P2000100MAGNET FOR PXS |
27 |
|
Datasheet |
- | Module | Box | Active | PXS | - | - | 2.01" L x 0.63" W x 0.28" H (51.0mm x 16.0mm x 7.0mm) | 85°C |
|
SI-MAGB1MMCODED MAG USE WITH SI-MAGB1SM |
65 |
|
- |
SI-MAG | Flange Mount | Bulk | Active | SI-MAG Series | Thermoplastic | - | 3.465" L x 0.984" W x 0.512" H (88.0mm x 25.0mm x 13.0mm) | -25°C ~ 70°C |
|
SI-MAGB3MMCODED MAG USE W/SI-MAGB3SM |
18 |
|
- |
SI-MAG | Flange Mount | Bulk | Active | SI-MAG Series | Thermoplastic | - | 1.378" Dia x 0.591" H (35.0mm x 15.0mm) | -25°C ~ 70°C |
|
GLS-M1MAGNET 1.968"L X 0.394"W PLASTIC |
8 |
|
Datasheet |
GLS | Flange Mount | Bulk | Active | GLS | Plastic | - | 1.968" L x 0.394" W x 0.551" H (50.0mm x 10.0mm x 14.0mm) | 80°C (TA) |
|
S1258BLUE RECTANGULAR ENCAPSULATED UN |
57 |
|
Datasheet |
- | Flange Mount | Bulk | Active | PSM | Nylon | - | 1.181" L x 0.787" W x 0.276" H (30.00mm x 20.00mm x 7.00mm) | - |
|
S1684BLUE RH RECTANGULAR ENCAPSULATED |
52 |
|
Datasheet |
- | Flange Mount | Bulk | Active | MPSM | Nylon | - | 0.906" L x 0.551" W x 0.236" H (23.00mm x 14.00mm x 6.00mm) | 105°C (TA) |
|
PRM-SA-003ALUMINIUM RECTANGULAR ENCAPSULAT |
42 |
|
Datasheet |
- | Flange Mount | Bulk | Active | S1938 | Powder Coated Aluminium | - | 1.496" L x 0.984" W x 0.394" H (38.00mm x 25.00mm x 10.00mm) | 85°C (TA) |
|
P3000100MAGNET FOR PSS |
13 |
|
Datasheet |
- | Module | Box | Active | PSS | - | - | 2.01" L x 0.63" W x 0.28" H (51.0mm x 16.0mm x 7.0mm) | 85°C |
|
|
SI-MAGB1MMHFCODED MAG USE WITH SI-MAGB1SM |
12 |
|
- |
SI-MAG | Flange Mount | Bulk | Active | SI-MAG Series | Thermoplastic | - | 3.465" L x 0.984" W x 0.512" H (88.0mm x 25.0mm x 13.0mm) | -25°C ~ 70°C |
|
450-00136BMAG KIT SENTRIUS BT610 I/O SENSO |
50 |
|
Datasheet |
Sentrius™ | Module | Bulk | Active | BT610 | Plastic | - | 4.980" L x 3.209" W x 1.575" H (126.50mm x 81.50mm x 40.00mm) | 85°C (TA) |
|

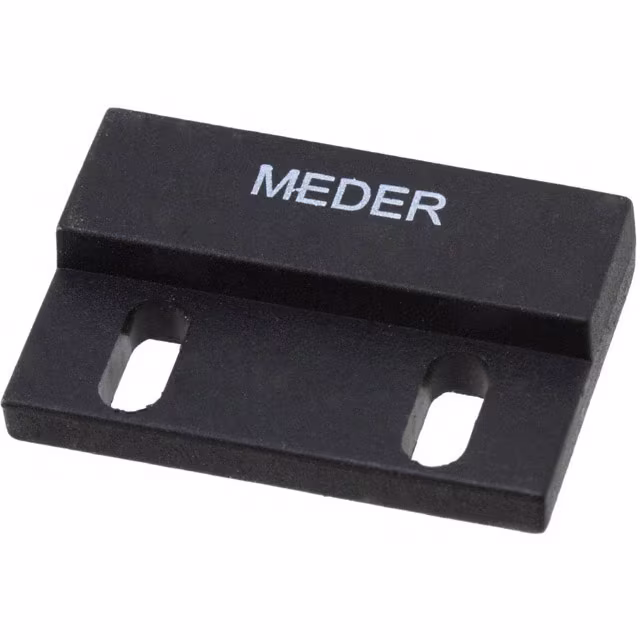

M21P/2MAGNET 1.122"L X 0.246"W PBT |
44 |
|
Datasheet |
M22 | Flange Mount | Bulk | Active | MK21 | Polybutylene Terephthalate (PBT), Glass Filled | Alnico (AlNiCo) | 1.122" L x 0.246" W x 0.750" H (28.5mm x 6.25mm x 19.0mm) | 150°C (TA) |
|
S1371BLACK 125VAC/0.28A TUBULAR PROXI |
70 |
|
Datasheet |
- | Cylinder | Bulk | Active | PRM | Polystyrene | - | 0.236" Dia x 1.102" L (6.00mm x 28.00mm) | 85°C (TA) |
Sensor Matched Magnets Electronic Components
Explore Sensor Matched Magnets electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
