Magnetic, Reed Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Circuit | Operate Range | Release Range | Current - Switching | Voltage - Switching AC | Voltage - Switching DC | Power - Rated | Operate Time | Release Time | Mounting Type | Termination Style | Length - Overall | Size - Body | Height Above Board | Operating Temperature | Capacitance | Current - Carry |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MK23-90-B-1SWITCH REED SPDT 500MA 175V |
0 |
|
Datasheet |
MK23 | Tape & Reel (TR) | Active | Glass Body Reed | SPDT | 10 ~ 15AT | - | 500mA (AC/DC) | 175 V | 175 V | 10W | 0.7 ms | 1.5 ms | Through Hole | Axial | 0.980" (24.90mm) | 0.100" Dia x 0.551" L (2.54mm x 14.00mm) | - | -40°C ~ 130°C | 1.5 pF | 1A (AC/DC) |
|
AI441535SWITCH REED SPST-NO 750MA |
0 |
|
Datasheet |
- | Tray | Obsolete | Glass Body Reed | SPST-NO | - | - | 750mA (DC) | - | 200 V | 30W | 650 µs | 30 µs | Through Hole | Axial | 2.157" (54.79mm) | 0.106" Dia x 0.807" L (2.70mm x 20.50mm) | - | -55°C ~ 125°C | 0.2 pF | 2A (DC) |
|
|
MVSR-20-Q1464SWITCH REED SPST CUSTOM |
0 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AI443040REED SWITCHES FOR. A-20MM-40W/20 |
0 |
|
- |
- | Bulk | Active | Glass Body Reed | SPST-NO | 30 ~ 40AT | - | 750mA (DC) | - | 200 V | 30W | 650 µs | 30 µs | Through Hole | Axial | 2.157" (54.79mm) | 0.106" Dia x 0.807" L (2.70mm x 20.50mm) | 0.106" (2.70mm) | -55°C ~ 125°C | 0.2 pF | 2A (DC) |
|
|
AI442530REED SWITCHES FOR. A-20MM-40W/20 |
0 |
|
- |
- | Bulk | Active | Glass Body Reed | SPST-NO | 25 ~ 30AT | - | 750mA (DC) | - | 200 V | 30W | 650 µs | 30 µs | Through Hole | Axial | 2.157" (54.79mm) | 0.106" Dia x 0.807" L (2.70mm x 20.50mm) | 0.106" (2.70mm) | -55°C ~ 125°C | 0.2 pF | 2A (DC) |
|
MK23-90-B-2SWITCH REED SPDT 500MA 175V |
0 |
|
Datasheet |
MK23 | Tape & Reel (TR) | Active | Glass Body Reed | SPDT | 10 ~ 15AT | - | 500mA (AC/DC) | 175 V | 175 V | 10W | 0.7 ms | 1.5 ms | Surface Mount | Gull Wing | 1.000" (25.40mm) | 0.100" Dia x 0.551" L (2.54mm x 14.00mm) | 0.110" (2.80mm) | -40°C ~ 130°C | 1.5 pF | 1A (AC/DC) |
|
MK24-C-1SWITCH REED SPST-NO 300MA 30V |
0 |
|
Datasheet |
MK24 | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 50 ~ 86AT | - | 300mA (AC/DC) | 30 V | 30 V | 3W | 0.2 ms | 0.15 ms | Surface Mount | Axial, Flat | 0.303" (7.70mm) | 0.197" L x 0.087" W x 0.067" H (5.00mm x 2.20mm x 1.70mm) | - | -40°C ~ 130°C | 0.1 pF | 500mA (AC/DC) |
|
|
MK24-D-1SWITCH REED SPST-NO 300MA 30V |
0 |
|
Datasheet |
MK24 | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 61 ~ 100AT | - | 300mA (AC/DC) | 30 V | 30 V | 3W | 0.2 ms | 0.15 ms | Surface Mount | Axial, Flat | 0.303" (7.70mm) | 0.197" L x 0.087" W x 0.067" H (5.00mm x 2.20mm x 1.70mm) | - | -40°C ~ 130°C | 0.1 pF | 500mA (AC/DC) |
|
|
MK24-E-1SWITCH REED SPST-NO 300MA 30V |
0 |
|
Datasheet |
MK24 | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | - | - | 300mA (AC/DC) | 30 V | 30 V | 3W | 0.2 ms | 0.15 ms | Surface Mount | Axial, Flat | 0.303" (7.70mm) | 0.197" L x 0.087" W x 0.067" H (5.00mm x 2.20mm x 1.70mm) | - | -40°C ~ 130°C | 0.1 pF | 500mA (AC/DC) |
|
MK06-8-ISWITCH REED SPDT 500MA 175V |
0 |
|
Datasheet |
MK06 | Bulk | Active | Molded Body Reed | SPDT | 20 ~ 25AT | - | 500mA (AC/DC) | 175 V | 175 V | 10W | 0.7 ms | 1.5 ms | Through Hole | PC Pin | 0.879" (22.33mm) | 0.879" L x 0.130" W x 0.165" H (22.33mm x 3.30mm x 4.20mm) | 0.165" (4.20mm) | -20°C ~ 85°C | 1.5 pF | 1A (AC/DC) |
|
MK24-C-2SWITCH REED SPST-NO 300MA 30V |
0 |
|
Datasheet |
MK24 | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 50 ~ 86AT | - | 300mA (AC/DC) | 30 V | 30 V | 3W | 0.2 ms | 0.15 ms | Surface Mount | Gull Wing | 0.272" (6.91mm) | 0.197" L x 0.087" W x 0.067" H (5.00mm x 2.20mm x 1.70mm) | 0.071" (1.80mm) | -40°C ~ 130°C | 0.1 pF | 500mA (AC/DC) |
|
|
MK24-E-2SWITCH REED SPST-NO 300MA 30V |
0 |
|
Datasheet |
MK24 | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | - | - | 300mA (AC/DC) | 30 V | 30 V | 3W | 0.2 ms | 0.15 ms | Surface Mount | Gull Wing | 0.272" (6.91mm) | 0.197" L x 0.087" W x 0.067" H (5.00mm x 2.20mm x 1.70mm) | 0.071" (1.80mm) | -40°C ~ 130°C | 0.1 pF | 500mA (AC/DC) |
|
|
AX412730REED SWITCHES FOR. A-15MM-70W/10 |
0 |
|
- |
- | Bulk | Active | Glass Body Reed | SPST-NO | 27 ~ 30AT | - | 1.5A (AC/DC) | - | 750 V | 70W | 800 µs | 0.1 ms | Through Hole | Axial | 2.126" (54.00mm) | 0.098" Dia x 0.799" L (2.50mm x 20.30mm) | 0.098" (2.50mm) | -40°C ~ 125°C | 0.3 pF | 2.5A (DC) |
|
CT05-2550-J1SWITCH REED SPST-NO 250MA 100V |
0 |
|
Datasheet |
CT05 | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 25 ~ 50AT | 5 ~ 45AT | 250mA (AC), 350mA (DC) | 100 V | 140 V | 5W | - | - | Surface Mount | J Lead | 0.298" (7.57mm) | 0.252" L x 0.091" W x 0.091" H (6.40mm x 2.31mm x 2.31mm) | 0.094" (2.40mm) | -40°C ~ 125°C | - | 500mA (DC) |
|
|
MG-A2-0.0-N-45NSWITCH MAGNETIC SPST-NO 250MA |
0 |
|
- |
N | Bulk | Active | Magnasphere® Magnetic | SPST-NO | - | - | 250mA (DC) | - | 30 V | - | - | - | Through Hole | PC Pin | 0.615" (15.62mm) | 0.244" Dia x 0.175" L (6.20mm x 4.45mm) | 0.175" (4.45mm) | -40°C ~ 150°C | 1 pF | - |
|
CT05-1535-G1SWITCH REED SPST-NO 250MA 100V |
0 |
|
Datasheet |
CT05 | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 15 ~ 35AT | - | 250mA (AC), 350mA (DC) | 100 V | 140 V | 5W | - | - | Surface Mount | Gull Wing | 0.376" (9.55mm) | 0.252" L x 0.091" W x 0.091" H (6.40mm x 2.31mm x 2.31mm) | 0.094" (2.40mm) | -40°C ~ 125°C | - | 500mA (DC) |
|
|
CG211535SWITCH REED SPDT 250MA |
0 |
|
Datasheet |
- | Box | Obsolete | Glass Body Reed | SPDT | - | - | 250mA (DC) | - | 100 V | 8W | 1.5 ms | 2 ms | Through Hole | Axial | 2.063" (52.40mm) | 0.102" Dia x 0.551" L (2.60mm x 14.00mm) | - | -40°C ~ 125°C | 2.5 pF | 500mA (DC) |
|

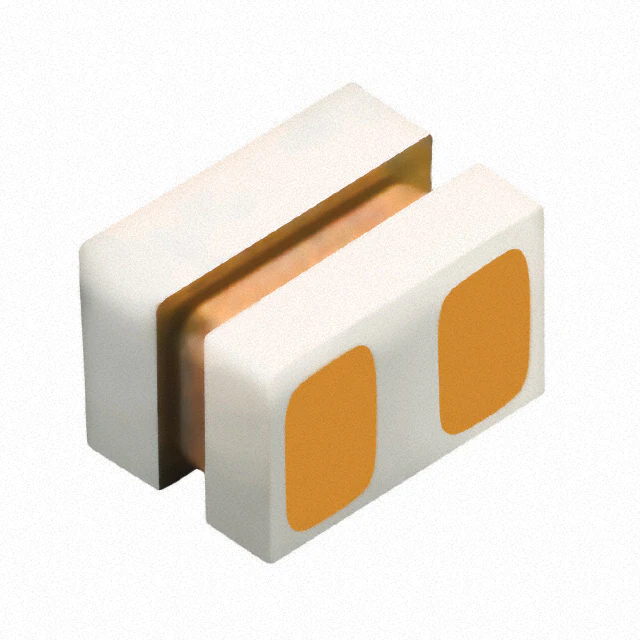

RR100-JWTRSWITCH REED SPST-NO 1MA |
0 |
|
Datasheet |
RedRock™ | Tape & Reel (TR) | Obsolete | Molded Body Reed | SPST-NO | 20mT | - | 1mA (DC) | - | 6 V | - | 0.5 ms | 0.5 ms | Surface Mount | SMD (SMT) Tab | 0.052" (1.32mm) | 0.052" L x 0.033" W x 0.041" H (1.32mm x 0.84mm x 1.05mm) | 0.041" (1.05mm) | -40°C ~ 85°C | 0.2 pF | - |
|
|
MG-B2-0.0-LSWITCH MAGNETIC NC L SERIES |
10 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AB212035SWITCH REED SPST-NO 1A |
0 |
|
Datasheet |
- | Box | Obsolete | Glass Body Reed | SPST-NO | - | - | 1A (DC) | - | 350 V | 100VA | 1.1 ms | 50 ms | Through Hole | Axial | 2.181" (55.40mm) | 0.108" Dia x 0.827" L (2.75mm x 21.00mm) | - | -40°C ~ 125°C | 0.5 pF | 2.5A (DC) |
