Magnetic, Reed Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Circuit | Operate Range | Release Range | Current - Switching | Voltage - Switching AC | Voltage - Switching DC | Power - Rated | Operate Time | Release Time | Mounting Type | Termination Style | Length - Overall | Size - Body | Height Above Board | Operating Temperature | Capacitance | Current - Carry |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AC032025REED SWITCHES FOR. A-10MM-10W/10 |
0 |
|
- |
- | Bulk | Active | Glass Body Reed | SPST-NO | 20 ~ 25AT | 20 ~ 25AT | 500mA (DC) | - | 100 V | 10W | 0.5 ms | 0.1 ms | Through Hole | Axial | 1.646" (41.80mm) | 0.071" Dia x 0.394" L (1.80mm x 10.00mm) | 0.071" (1.80mm) | -60°C ~ 125°C | 0.5 pF | 700mA (DC) |
|
|
AC031520REED SWITCHES FOR. A-10MM-10W/10 |
0 |
|
- |
- | Bulk | Active | Glass Body Reed | SPST-NO | 15 ~ 20AT | 15 ~ 20AT | 500mA (DC) | - | 100 V | 10W | 0.5 ms | 0.1 ms | Through Hole | Axial | 1.646" (41.80mm) | 0.071" Dia x 0.394" L (1.80mm x 10.00mm) | 0.071" (1.80mm) | -60°C ~ 125°C | 0.5 pF | 700mA (DC) |
|
|
AC051015REED SWITCHES FOR. A-14MM-10W/10 |
0 |
|
- |
- | Bulk | Active | Glass Body Reed | SPST-NO | 10 ~ 15AT | 10 ~ 15AT | 500mA (DC) | - | 100 V | 10W | 1 ms | 0.4 ms | Through Hole | Axial | 1.760" (44.70mm) | 0.091" Dia x 0.559" L (2.30mm x 14.20mm) | 0.091" (2.30mm) | -60°C ~ 155°C | 0.7 pF | 700mA (DC) |
|
|
AC051520REED SWITCHES FOR. A-14MM-10W/10 |
0 |
|
- |
- | Bulk | Active | Glass Body Reed | SPST-NO | 15 ~ 20AT | 15 ~ 20AT | 500mA (DC) | - | 100 V | 10W | 1 ms | 0.4 ms | Through Hole | Axial | 1.760" (44.70mm) | 0.091" Dia x 0.559" L (2.30mm x 14.20mm) | 0.091" (2.30mm) | -60°C ~ 155°C | 0.7 pF | 700mA (DC) |
|
FR2025SWITCH REED SPST-NO 500MA 200V |
0 |
|
Datasheet |
FR2 | Tape & Reel (TR) | Obsolete | Glass Body Reed | SPST-NO | 15 ~ 20AT | - | 500mA (AC/DC) | 200 V | 200 V | 10VA | 0.5 ms | 0.2 ms | Surface Mount | Gull Wing | 0.770" (19.56mm) | 0.600" L x 0.090" W x 0.065" H (15.24mm x 2.29mm x 1.65mm) | 0.080" (2.03mm) | -40°C ~ 125°C | 0.3 pF | 1.5A (AC/DC) |
|
FR2026SWITCH REED SPST-NO 500MA 200V |
0 |
|
Datasheet |
FR2 | Tape & Reel (TR) | Obsolete | Glass Body Reed | SPST-NO | 20 ~ 25AT | - | 500mA (AC/DC) | 200 V | 200 V | 10VA | 0.5 ms | 0.2 ms | Surface Mount | Gull Wing | 0.770" (19.56mm) | 0.600" L x 0.090" W x 0.065" H (15.24mm x 2.29mm x 1.65mm) | 0.080" (2.03mm) | -40°C ~ 125°C | 0.3 pF | 1.5A (AC/DC) |
|

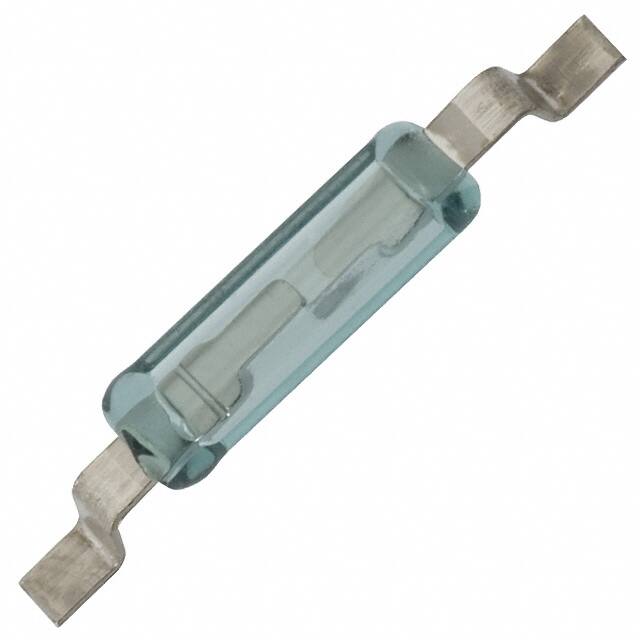

UM2378SWITCH REED SPST-NO 250MA 175V |
0 |
|
Datasheet |
UM2 | Tape & Reel (TR) | Obsolete | Glass Body Reed | SPST-NO | 20 ~ 25AT | - | 250mA (AC/DC) | 175 V | 175 V | 5VA | 0.4 ms | 0.1 ms | Surface Mount | Gull Wing | 0.400" (10.16mm) | 0.232" L x 0.076" W x 0.060" H (5.89mm x 1.93mm x 1.53mm) | 0.064" (1.64mm) | -40°C ~ 125°C | 0.3 pF | 500mA (AC/DC) |
|
CT10-1530-G4SWITCH REED SPST-NO 500MA 140V |
0 |
|
Datasheet |
CT10 | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 15 ~ 30AT | - | 500mA (AC/DC) | 140 V | 200 V | 10W | - | - | Surface Mount | Gull Wing | 0.770" (19.56mm) | 0.505" L x 0.090" W x 0.095" H (12.83mm x 2.29mm x 2.41mm) | 0.100" (2.54mm) | -40°C ~ 125°C | - | 500mA (DC) |
|
CT10-1540-G4SWITCH REED SPST-NO 500MA 140V |
0 |
|
Datasheet |
CT10 | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 15 ~ 40AT | - | 500mA (AC/DC) | 140 V | 200 V | 10W | - | - | Surface Mount | Gull Wing | 0.770" (19.56mm) | 0.505" L x 0.090" W x 0.095" H (12.83mm x 2.29mm x 2.41mm) | 0.100" (2.54mm) | -40°C ~ 125°C | - | 500mA (DC) |
|
MK23-87-C-2SWITCH REED SPST-NO 400MA 200V |
0 |
|
Datasheet |
MK23 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 15 ~ 20AT | - | 400mA (AC/DC) | 200 V | 200 V | 10W | 0.6 ms | 0.05 ms | Surface Mount | Gull Wing | 0.614" (15.60mm) | 0.079" Dia x 0.394" L (2.00mm x 10.00mm) | 0.089" (2.26mm) | -40°C ~ 130°C | 0.2 pF | 500mA (AC/DC) |
|
MISM-3V1B-6-10SWITCH REED SPST-NO 180MA 120V |
0 |
|
Datasheet |
MISM-3V1 | Box | Obsolete | Glass Body Reed | SPST-NO | 6 ~ 10AT | - | 180mA (AC), 250mA (DC) | 120 V | 170 V | 10W | 0.45 ms | 0.2 ms | Surface Mount | Gull Wing | 0.540" (13.72mm) | 0.071" Dia x 0.276" L (1.80mm x 7.00mm) | 0.090" (2.28mm) | -40°C ~ 125°C | 0.3 pF | 500mA (DC) |
|
MK17-B-1SWITCH REED SPST-NO 500MA 170V |
0 |
|
Datasheet |
MK17 | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 10 ~ 15AT | - | 500mA (AC/DC) | 170 V | 170 V | 10W | 0.6 ms | 0.05 ms | Surface Mount | Axial, Flat | 0.492" (12.50mm) | 0.335" L x 0.083" W x 0.083" H (8.50mm x 2.10mm x 2.10mm) | - | -40°C ~ 130°C | 0.4 pF | 500mA (AC/DC) |
|
CM15-2259SWITCH REED SPST-NO 500MA 200V |
0 |
|
Datasheet |
CM15 | Tape & Reel (TR) | Obsolete | Molded Body Reed | SPST-NO | 10 ~ 20AT | - | 500mA (AC/DC) | 200 V | 200 V | 10VA | 0.5 ms | 0.2 ms | Surface Mount | Gull Wing | 0.800" (20.32mm) | 0.640" L x 0.150" W x 0.106" H (16.25mm x 3.80mm x 2.70mm) | 0.115" (2.92mm) | -40°C ~ 125°C | 0.3 pF | 1.5A (AC/DC) |
|
|
RI-80SMD-0510-JSWITCH REED SPST-NO 250MA 140V |
0 |
|
Datasheet |
RI-80 SMD | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 5 ~ 10AT | 2 ~ 8AT | 250mA (AC), 350mA (DC) | 140 V | 175 V | 5W | 0.35 ms | 0.02 ms | Surface Mount | J Lead | 0.279" (7.09mm) | 0.070" Dia x 0.196" L (1.78mm x 4.98mm) | 0.075" (1.90mm) | -55°C ~ 125°C | 0.45 pF | 500mA (DC) |
|
|
CM15-2024SWITCH REED SPST-NO 500MA 200V |
0 |
|
Datasheet |
CM15 | Tape & Reel (TR) | Obsolete | Molded Body Reed | SPST-NO | 10 ~ 15AT | - | 500mA (AC/DC) | 200 V | 200 V | 10VA | 0.5 ms | 0.2 ms | Surface Mount | Gull Wing | 0.800" (20.32mm) | 0.640" L x 0.150" W x 0.106" H (16.25mm x 3.80mm x 2.70mm) | 0.115" (2.92mm) | -40°C ~ 125°C | 0.3 pF | 1.5A (AC/DC) |
|
|
CM15-2025SWITCH REED SPST-NO 500MA 200V |
0 |
|
Datasheet |
CM15 | Tape & Reel (TR) | Obsolete | Molded Body Reed | SPST-NO | 15 ~ 20AT | - | 500mA (AC/DC) | 200 V | 200 V | 10VA | 0.5 ms | 0.2 ms | Surface Mount | Gull Wing | 0.800" (20.32mm) | 0.640" L x 0.150" W x 0.106" H (16.25mm x 3.80mm x 2.70mm) | 0.115" (2.92mm) | -40°C ~ 125°C | 0.3 pF | 1.5A (AC/DC) |
|
CM5-2341SWITCH REED SPST-NO 250MA 175V |
0 |
|
Datasheet |
CM5 | Tape & Reel (TR) | Obsolete | Molded Body Reed | SPST-NO | 15 ~ 25AT | - | 250mA (AC/DC) | 175 V | 175 V | 5VA | 0.4 ms | 0.1 ms | Surface Mount | Gull Wing | 0.394" (10.00mm) | 0.265" L x 0.115" W x 0.094" H (6.73mm x 2.92mm x 2.40mm) | 0.120" (3.05mm) | -40°C ~ 125°C | 0.3 pF | 500mA (AC/DC) |
|
|
FR2024SWITCH REED SPST-NO 500MA 200V |
0 |
|
Datasheet |
FR2 | Tape & Reel (TR) | Obsolete | Glass Body Reed | SPST-NO | 10 ~ 15AT | - | 500mA (AC/DC) | 200 V | 200 V | 10VA | 0.5 ms | 0.2 ms | Surface Mount | Gull Wing | 0.770" (19.56mm) | 0.600" L x 0.090" W x 0.065" H (15.24mm x 2.29mm x 1.65mm) | 0.080" (2.03mm) | -40°C ~ 125°C | 0.3 pF | 1.5A (AC/DC) |
|
CT10-1020-A2SWITCH REED SPST-NO 500MA 140V |
0 |
|
Datasheet |
CT10 | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 10 ~ 20AT | - | 500mA (AC/DC) | 140 V | 200 V | 10W | - | - | Surface Mount | Axial, Flat | 0.614" (15.60mm) | 0.505" L x 0.095" W x 0.095" H (12.83mm x 2.41mm x 2.41mm) | - | -40°C ~ 125°C | - | 500mA (DC) |
|
|
AX211030SWITCH REED SPST-NO 500MA |
0 |
|
Datasheet |
- | Box | Obsolete | Glass Body Reed | SPST-NO | - | - | 500mA (DC) | - | 100 V | 10VA | 0.6 ms | 0.1 ms | Through Hole | Axial | 2.126" (54.00mm) | 0.091" Dia x 0.559" L (2.30mm x 14.20mm) | - | -40°C ~ 125°C | 0.2 pF | 1A (DC) |
