Magnetic, Reed Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Circuit | Operate Range | Release Range | Current - Switching | Voltage - Switching AC | Voltage - Switching DC | Power - Rated | Operate Time | Release Time | Mounting Type | Termination Style | Length - Overall | Size - Body | Height Above Board | Operating Temperature | Capacitance | Current - Carry |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PMC-5002XSWITCH REED LATCHING 3A 230V |
0 |
|
Datasheet |
- | Bulk | Active | Glass Body Reed | SPST-NO, Latching | - | - | 3A (AC/DC) | 230 V | 230 V | 150W | 2 ms | 1 ms | Surface Mount | Axial | 3.150" (80.00mm) | 0.244" Dia x 1.969" L (6.20mm x 50.00mm) | - | -60°C ~ 100°C | - | 3A (AC/DC) |
|
AC011015SWITCH REED SPST-NO 50MA |
0 |
|
Datasheet |
- | Tray | Obsolete | Glass Body Reed | SPST-NO | - | - | 50mA (DC) | - | 30 V | 1VA | 200 µs | 0.1 ms | Through Hole | Axial | 1.417" (36.00mm) | 0.059" Dia x 0.193" L (1.50mm x 4.90mm) | - | -40°C ~ 125°C | 0.3 pF | 500mA (DC) |
|
|
AD284590SWITCH REED SPST-NO 3A 250V |
0 |
|
Datasheet |
- | Box | Obsolete | Glass Body Reed | SPST-NO | - | - | 3A (AC) | 250 V | - | 120W | 3.5 ms | 0.5 ms | Through Hole | Axial | 3.110" (79.00mm) | 0.213" Dia x 2.047" L (5.40mm x 52.00mm) | - | -40°C ~ 150°C | 1 pF | 5A (DC) |
|
|
AD288590REED SWITCHES FOR. A-50MM-120W/2 |
0 |
|
- |
- | Bulk | Active | Glass Body Reed | SPST-NO | 85 ~ 90AT | - | 3A (AC) | 250 V | - | 120W | 3.5 ms | 0.2 ms | Through Hole | Axial | 3.110" (79.00mm) | 0.213" Dia x 2.047" L (5.40mm x 52.00mm) | 0.213" (5.40mm) | -40°C ~ 150°C | 1 pF | 5A (AC/DC) |
|

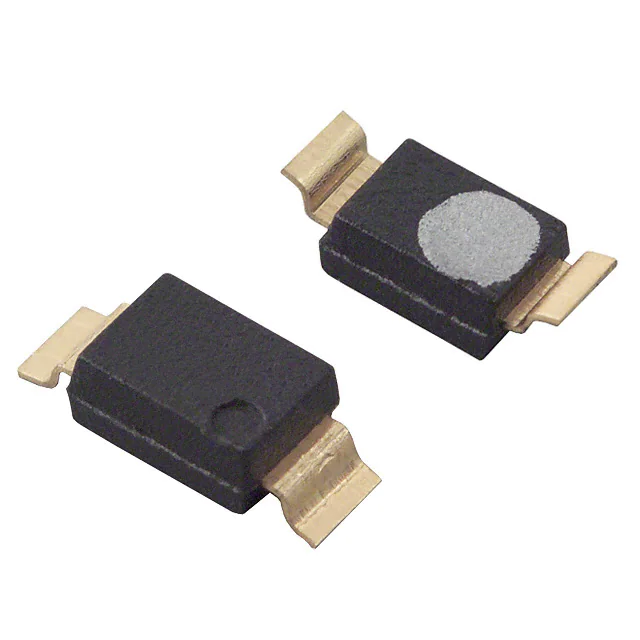

MMS-B-2SWITCH REED SPST-NO 0.1MA 3V |
0 |
|
Datasheet |
MMS | Tape & Reel (TR) | Obsolete | Molded Body Reed | SPST-NO | 1.8 ~ 4mT | 0.5 ~ 3.2mT | 0.1mA (AC/DC) | 3 V | 3 V | 0.3mW | 0.1 ms | 0.05 ms | Surface Mount | Gull Wing | 0.189" (4.80mm) | 0.110" L x 0.081" W x 0.049" H (2.80mm x 2.05mm x 1.25mm) | 0.053" (1.35mm) | -20°C ~ 100°C | 0.2 pF | 0.1mA (AC/DC) |
|
|
MG-A2-5.0-TW N52SWITCH MAGNETIC NO 30V |
4 |
|
- |
* | - | Discontinued at Digi-Key | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MK02/6-1SWITCH REED SPST-NO 500MA 170V |
0 |
|
Datasheet |
MK02 | Bulk | Active | Molded Body Reed | SPST-NO | 3.5 ~ 5.5mm | 3.7 ~ 7mm | 500mA (AC/DC) | 170 V | 170 V | 10W | 0.6 ms | 0.05 ms | Through Hole | PC Pin | 0.945" (24.00mm) | 0.945" L x 0.350" W x 0.303" H (24.00mm x 8.90mm x 7.70mm) | 0.303" (7.70mm) | -20°C ~ 80°C | 0.4 pF | 500mA (AC/DC) |
|
MK02/6-0SWITCH REED SPST-NO 500MA 170V |
0 |
|
Datasheet |
MK02 | Bulk | Active | Molded Body Reed | SPST-NO | 3.5 ~ 5.5mm | 3.7 ~ 7mm | 500mA (AC/DC) | 170 V | 170 V | 10W | 0.6 ms | 0.05 ms | Through Hole | PC Pin | 0.945" (24.00mm) | 0.945" L x 0.350" W x 0.303" H (24.00mm x 8.90mm x 7.70mm) | 0.303" (7.70mm) | -20°C ~ 80°C | 0.4 pF | 500mA (AC/DC) |
|
|
CS266070REED SWITCHES FOR. C-35MM-60W/40 |
0 |
|
- |
- | Bulk | Active | Glass Body Reed | SPST-NO | 60 ~ 70AT | - | 1A (AC/DC) | 400 V | 400 V | 60W | 550 µs | 0.5 ms | Through Hole | Axial | 2.756" (70.00mm) | 0.220" Dia x 1.417" L (5.59mm x 36.00mm) | 0.220" (5.60mm) | -40°C ~ 150°C | 1 pF | 2A (AC/DC) |
|
|
CS265560REED SWITCHES FOR. C-35MM-60W/40 |
0 |
|
- |
- | Bulk | Active | Glass Body Reed | SPST-NO | 55 ~ 60AT | - | 1A (AC/DC) | 400 V | 400 V | 60W | 550 µs | 0.5 ms | Through Hole | Axial | 2.756" (70.00mm) | 0.220" Dia x 1.417" L (5.59mm x 36.00mm) | 0.220" (5.60mm) | -40°C ~ 150°C | 1 pF | 2A (AC/DC) |
|
|
CS2655100SWITCH REED SPDT 1A 400V |
0 |
|
Datasheet |
- | Box | Obsolete | Glass Body Reed | SPDT | - | - | 1A (AC/DC) | 400 V | 400 V | 60W | 4 ms | 0.5 ms | Through Hole | Axial | 2.750" (69.85mm) | 0.220" Dia x 1.417" L (5.59mm x 36.00mm) | - | -40°C ~ 150°C | 1 pF | 2A (DC) |
|
|
CD30060100SWITCH REED SPDT 3A 500V |
0 |
|
Datasheet |
- | Tray | Active | Glass Body Reed | SPDT | - | - | 3A (AC/DC) | 500 V | 500 V | 100VA | 3 ms | - | Through Hole | Axial | 3.390" (86.10mm) | 0.213" Dia x 1.350" L (5.40mm x 34.30mm) | - | -40°C ~ 125°C | 1 pF | - |
|
|
AV10100120REED SWITCHES FOR. A-50MM-50W/75 |
0 |
|
- |
- | Bulk | Active | Glass Body Reed | SPST-NO | 10 ~ 120AT | - | 300mA (DC) | - | 7.5 kV | 50W | 30 ms | - | Through Hole | Axial | 3.287" (83.50mm) | 0.217" Dia x 2.000" L (5.50mm x 50.80mm) | 0.413" (10.50mm) | - | - | 3A (DC) |
|
|
AV1080130SWITCH REED SPST-NO 300MA |
0 |
|
Datasheet |
- | Box | Obsolete | Glass Body Reed | SPST-NO | - | - | 300mA (DC) | - | 7.5 kV | 50VA | 3 ms | - | Through Hole | Axial | 3.287" (83.50mm) | 0.217" Dia x 2.000" L (5.50mm x 50.80mm) | - | - | - | 3A (DC) |
|
|
DRR-DTH-50-65SWITCH REED SPDT 350MA 350V |
0 |
|
Datasheet |
DRR-DTH | Bulk | Obsolete | Glass Body Reed | SPDT | 50 ~ 65AT | - | 350mA (AC), 500mA (DC) | 350 V | 500 V | 30W | 4.5 ms | 7 ms | Through Hole | Axial | 3.375" (85.73mm) | 0.210" Dia x 1.500" L (5.33mm x 38.10mm) | - | -20°C ~ 125°C | 2 pF | 3A (DC) |
|
MARR-5-22-33SWITCH REED SPST-NO 350MA 265V |
0 |
|
Datasheet |
MARR-5 | Bulk | Obsolete | Glass Body Reed | SPST-NO | 22 ~ 33AT | - | 350mA (AC), 500mA (DC) | 265 V | 1000 V | 10W | 0.75 ms | 0.3 ms | Through Hole | Axial | 2.235" (56.77mm) | 0.105" Dia x 0.775" L (2.66mm x 19.69mm) | - | -75°C ~ 125°C | 0.2 pF | 1.3A (DC) |
|
DRR-129-47-68SWITCH REED SPST-NO 2.1A 280V |
0 |
|
Datasheet |
DRR-129 | Bulk | Obsolete | Glass Body Reed | SPST-NO | 47 ~ 68AT | - | 2.1A (AC), 3A (DC) | 280 V | 400 V | 100W | 4.5 ms | 2.5 ms | Surface Mount | Axial, Flat | 3.250" (82.55mm) | 0.207" Dia x 2.000" L (5.25mm x 50.80mm) | - | -40°C ~ 125°C | 0.6 pF | 6A (DC) |
|
DRT-DTH-50-65SWITCH REED SPDT 1A 350V |
0 |
|
Datasheet |
DRT-DTH | Bulk | Obsolete | Glass Body Reed | SPDT | 50 ~ 65AT | - | 1A (AC), 1.5A (DC) | 350 V | 500 V | 50W | 5.5 ms | 8 ms | Through Hole | Axial | 3.375" (85.73mm) | 0.210" Dia x 1.500" L (5.33mm x 38.10mm) | - | -20°C ~ 125°C | 2 pF | 2A (DC) |
|
|
MRPR-8-22-38SWITCH REED SPST-NO 700MA 265V |
0 |
|
Datasheet |
MRPR-8 | Bulk | Obsolete | Glass Body Reed | SPST-NO | 22 ~ 38AT | - | 700mA (AC), 1A (DC) | 265 V | 250 V | 50W | 0.75 ms | 0.3 ms | Through Hole | Axial | 2.230" (56.64mm) | 0.112" Dia x 0.800" L (2.84mm x 20.32mm) | - | -20°C ~ 125°C | 0.2 pF | 2.5A (DC) |
|
|
MARR-2-185SWITCH REED SPST-NO 750MA |
0 |
|
Datasheet |
MARR-2 | Bulk | Active | Glass Body Reed | SPST-NO | - | - | 750mA (DC) | - | 200 V | 10W | 0.75 ms | 0.3 ms | Through Hole | Axial | 2.235" (56.77mm) | 0.105" Dia x 0.775" L (2.66mm x 19.69mm) | - | -40°C ~ 125°C | 0.2 pF | 1.5A (DC) |
