Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D44C-R1RDSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
D4 | Bulk | Obsolete | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | Explosion Proof | 147gf | - | 0.764" (19.4mm) | 0.125" (3.2mm) | 0.031" (0.8mm) | 0.087" (2.2mm) | -40°C ~ 85°C |
|
|
D44L-R1MDSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
D4 | Bulk | Obsolete | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | Explosion Proof | 25gf | - | 0.535" (13.6mm) | 0.200" (5.1mm) | 0.050" (1.3mm) | 0.141" (3.6mm) | -40°C ~ 85°C |
|
|
D44L-R1RDSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
D4 | Bulk | Obsolete | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | Explosion Proof | 41gf | - | 0.764" (19.4mm) | 0.125" (3.2mm) | 0.031" (0.8mm) | 0.087" (2.2mm) | -40°C ~ 85°C |
|
|
DA3C-B1LBSWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
- |
DA | Bulk | Obsolete | SPDT | On-Mom | 100mA (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 27gf | - | 0.350" (8.9mm) | 0.140" (3.6mm) | 0.027" (0.7mm) | 0.055" (1.4mm) | -40°C ~ 85°C |
|
|
DA3C-B1RBSWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
- |
DA | Bulk | Obsolete | SPDT | On-Mom | 100mA (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 30gf | - | 0.571" (14.5mm) | 0.131" (3.3mm) | 0.025" (0.6mm) | 0.047" (1.2mm) | -40°C ~ 85°C |
|
|
DA3C-D1MBSWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
- |
DA | Bulk | Obsolete | SPDT | On-Mom | 100mA (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder Lug | - | - | 9.000gf | - | 0.350" (8.9mm) | 0.416" (10.6mm) | 0.080" (2.0mm) | 0.079" (2.0mm) | -40°C ~ 85°C |
|
|
DA3C-D1SBSWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
- |
DA | Bulk | Obsolete | SPDT | On-Mom | 100mA (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Solder Lug | - | - | 30gf | - | 0.571" (14.5mm) | 0.131" (3.3mm) | 0.025" (0.6mm) | 0.047" (1.2mm) | -40°C ~ 85°C |
|
|
DA3C-F1UASWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
- |
DA | Bulk | Obsolete | SPDT | On-Mom | 100mA (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.093" (2.3mm) | - | - | 10gf | - | - | - | - | - | -40°C ~ 85°C |
|

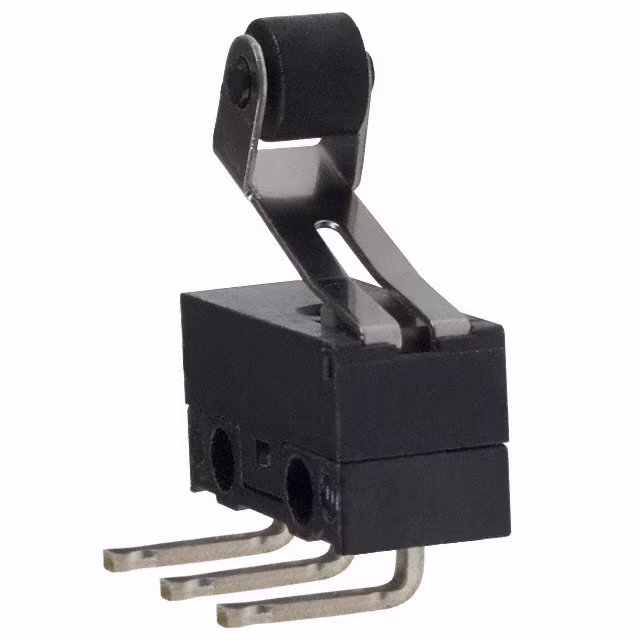

DG23-B2RASWITCH SNAP ACT SPDT 0.05A 30V |
0 |
|
Datasheet |
DG | Bulk | Obsolete | SPDT | On-Mom | 50mA (DC) | - | 30 V | Lever, Roller | Through Hole, Right Angle | PC Pin | IP40 | - | 60gf | - | 0.488" (12.4mm) | 0.060" (1.5mm) | 0.020" (0.5mm) | 0.022" (0.55mm) | -25°C ~ 85°C |
|
|
0E1401M0SWITCH SNAP ACT SPST-NO 25A 125V |
0 |
|
Datasheet |
E | Bulk | Active | SPST-NO | Off-Mom | 25A (AC), 2A (DC) | 125 V | 48 V | Overtravel Plunger | Panel Mount | Quick Connect - 0.250" (6.3mm) | - | - | 850gf | - | 0.776" (19.7mm) | 0.100" (2.5mm) | 0.015" (0.38mm) | 0.168" (4.3mm) | -40°C ~ 105°C |
|
|
0E6500A0SWITCH SNAP ACTION SPDT 16A 125V |
0 |
|
Datasheet |
E | Bulk | Active | SPDT | On-Mom | 16A (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | - | - | 708gf | - | 0.720" (18.3mm) | 0.125" (3.2mm) | 0.045" (1.1mm) | 0.375" (9.5mm) | -40°C ~ 85°C |
|
|
DB1CB1LBSWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
DB | Bulk | Active | SPDT | On-Mom | 5A (AC), 1A (DC) | 125 V | 48 V | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP50 - Dust Protected | - | 60gf | - | 0.420" (10.7mm) | 0.157" (4.0mm) | 0.020" (0.5mm) | 0.079" (2.0mm) | -40°C ~ 120°C |
|

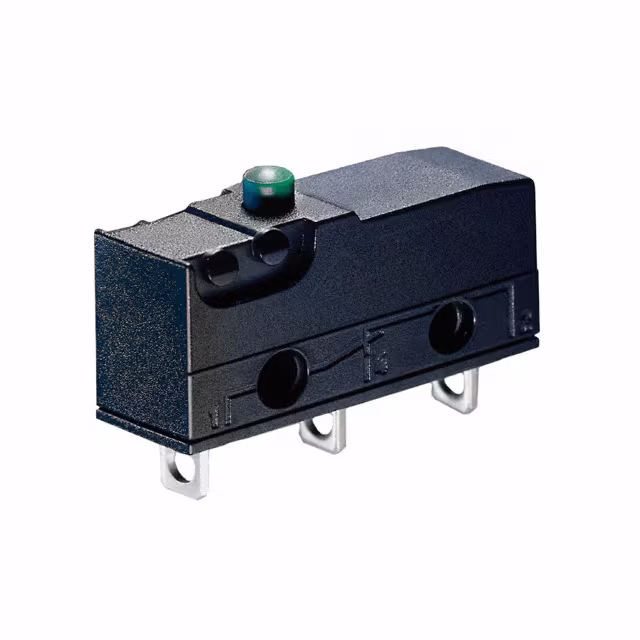

DB2CB1AASWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
- |
DB | Bulk | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP50 - Dust Protected | - | 250gf | - | 0.330" (8.4mm) | 0.040" (1.0mm) | 0.004" (0.1mm) | 0.025" (0.6mm) | -40°C ~ 120°C |
|

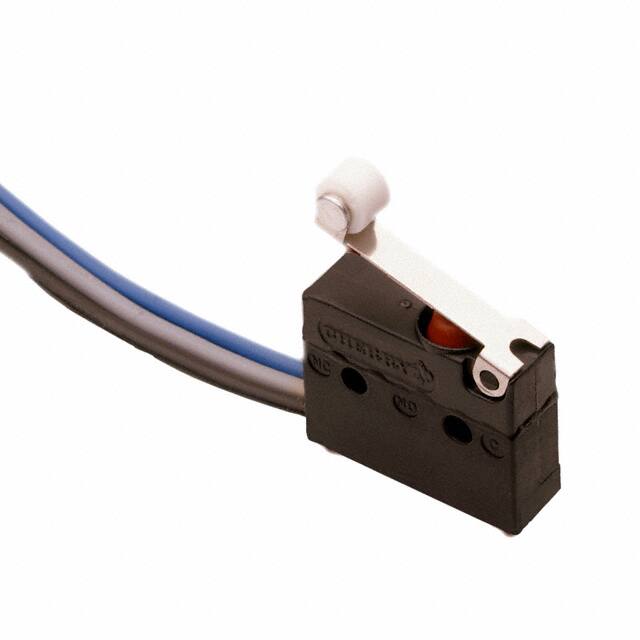

DC3CM5RBSWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
DC | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 125 V | - | Lever, Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 92gf | - | 0.600" (15.2mm) | 0.180" (4.6mm) | 0.020" (0.5mm) | 0.060" (1.5mm) | -40°C ~ 105°C |
|
LCGGX1A10ECSWITCH SNAP ACTION SPDT 1A 125V |
0 |
|
Datasheet |
LC | Tray | Obsolete | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Solder Lug | - | - | 48gf | 6.000gf | 0.560" (14.2mm) | 0.140" (3.6mm) | 0.034" (0.86mm) | 0.029" (0.74mm) | -25°C ~ 85°C |
|

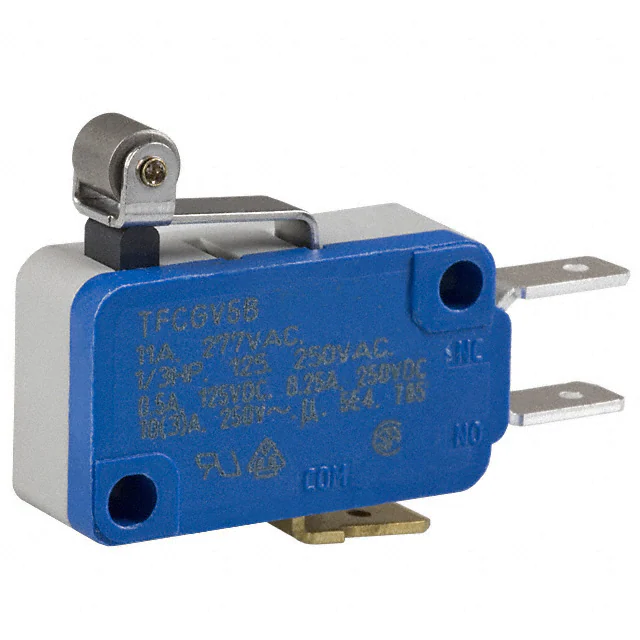

TFCGV3VA105BCSWITCH SNAP ACTION SPDT 11A 277V |
0 |
|
Datasheet |
TF | Bulk | Obsolete | SPDT | On-Mom | 11A (AC), 500mA (DC) | 277 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 90gf | 15gf | 0.812" (20.6mm) | 0.060" (1.5mm) | 0.015" (0.38mm) | 0.030" (0.76mm) | -40°C ~ 85°C |
|

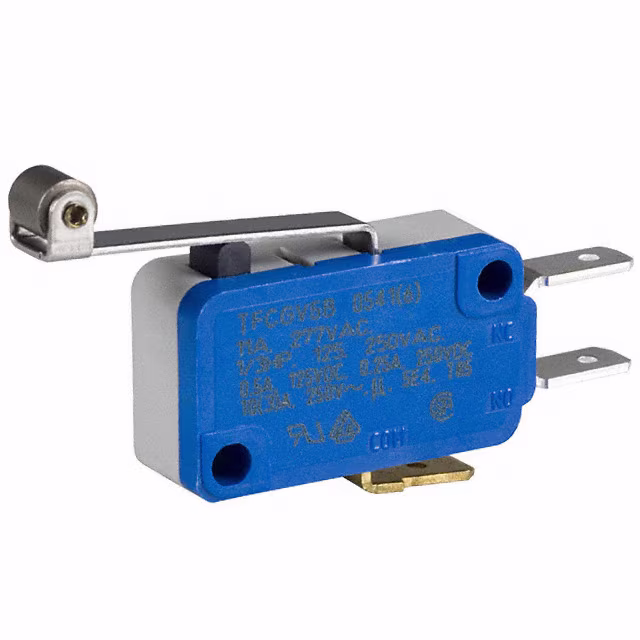

TFCGV3VA155BCSWITCH SNAP ACTION SPDT 11A 277V |
0 |
|
Datasheet |
TF | Bulk | Obsolete | SPDT | On-Mom | 11A (AC), 500mA (DC) | 277 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 45gf | 5.000gf | 0.812" (20.6mm) | 0.100" (2.5mm) | 0.030" (0.76mm) | 0.065" (1.7mm) | -40°C ~ 85°C |
|

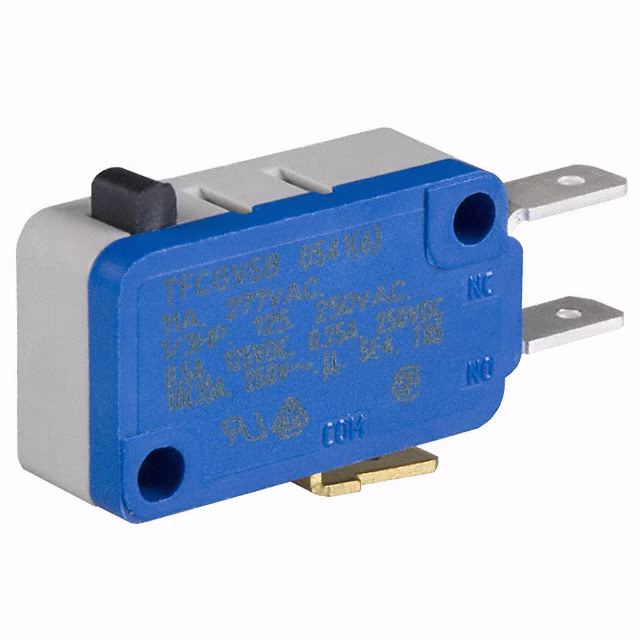

TFCGV3VP005BCSWITCH SNAP ACTION SPDT 11A 277V |
0 |
|
Datasheet |
TF | Bulk | Obsolete | SPDT | On-Mom | 11A (AC), 500mA (DC) | 277 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 75gf | 15gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.050" (1.27mm) | -40°C ~ 85°C |
|

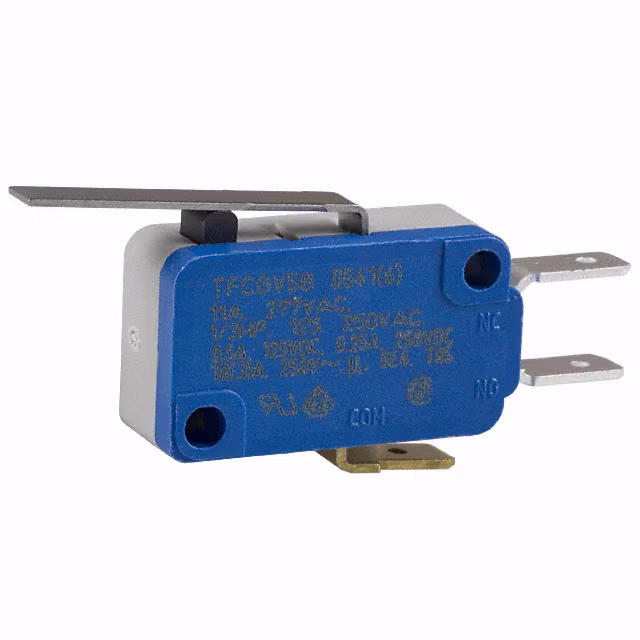

TFCGV3VT155BCSWITCH SNAP ACTION SPDT 11A 277V |
0 |
|
Datasheet |
TF | Bulk | Obsolete | SPDT | On-Mom | 11A (AC), 500mA (DC) | 277 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 40gf | 5.000gf | 0.600" (15.2mm) | 0.110" (2.8mm) | 0.030" (0.76mm) | 0.065" (1.7mm) | -40°C ~ 85°C |
|
TFCGV3VT185BCSWITCH SNAP ACTION SPDT 11A 277V |
0 |
|
Datasheet |
TF | Bulk | Obsolete | SPDT | On-Mom | 11A (AC), 500mA (DC) | 277 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 20gf | 2.000gf | 0.600" (15.2mm) | 0.300" (7.6mm) | 0.062" (1.6mm) | 0.155" (3.9mm) | -40°C ~ 85°C |
