Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LSYAB6BSWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Plug In | - | - | 46gfm | - | - | 15° | 7° | 60° | -40°C ~ 121°C |
|
LZD1SWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
- |
LZ | Bulk | Obsolete | SPDT | On-Mom | 10A (AC) | 120 V | - | Roller Plunger | Chassis Mount | Screw Terminal | - | Sealed | 714gf | - | - | 0.100" (2.5mm) | 0.004" (0.1mm) | 0.197" (5.0mm) | - |
|
LSA1A-2JSWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary, Adjustable Roller | Chassis Mount | Plug In | - | Nylon Roller, Front Mounted | 46gfm | - | - | 15° | 5° | 60° | -12°C ~ 121°C |
|
|
9007C52BSWITCH LIMIT 10A 600V |
0 |
|
Datasheet |
C | Box | Active | - | - | 10A (AC) | 600 V | - | - | - | - | - | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
|
601.0853.001SWITCH LIMIT REMOTE RESET |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
601.0853.003SWITCH LIMIT REMOTE RESET |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
5SE218-3SWITCH SNAP ACTION SPDT 7A 28V |
0 |
|
Datasheet |
SE | Bulk | Active | SPDT | On-Mom | 7A (DC) | - | 28 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | - | - | 141 ~ 482gf | 113gf | 0.425" (10.8mm) | 0.050" (1.27mm) | 0.004" (0.1mm) | 0.003" (0.076mm) | -26°C ~ 85°C |
|
|
616.1100.424FOOT SWITCH DPST 3A 240V |
0 |
|
Datasheet |
F1 | Bulk | Active | DPST-NO/NC | On-Off, Off-On | 3A (AC) | 240 V | - | Foot Switch | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -30°C ~ 80°C |
|
|
LSQL7M123SWITCH LEVER FOR ROTARY |
0 |
|
Datasheet |
LSQ | Bulk | Active | SPDT (DB/DM) | On-On | - | - | - | Side Rotary - No Lever | Chassis Mount | Connector | - | - | - | - | - | - | - | - | -12°C ~ 121°C |
|
LSC3KSWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 1814gf | - | - | 0.071" (1.8mm) | 0.016" (0.4mm) | 0.190" (4.8mm) | -12°C ~ 93°C |
|

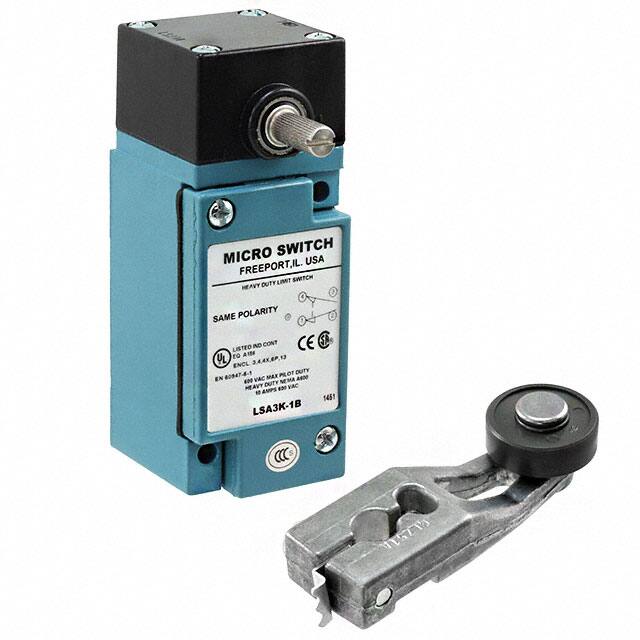

LSA3K-1BSWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | - | Steel Roller, Front Mounted | 46gfm | - | - | 15° | 5° | 60° | -12°C ~ 121°C |
|
|
LSA3K-1ASWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | - | Nylon Roller, Front Mounted | 46gfm | - | - | 15° | 5° | 60° | -12°C ~ 121°C |
|
|
618.1335.248SWITCH LIMIT PLASTIC BODY |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
LSQ300SWITCH SNAP ACTION SPDT |
0 |
|
Datasheet |
HDLS | Bulk | Active | SPDT (DB/DM) | On-On | - | - | - | Side Rotary - No Lever | Chassis Mount | Screw Terminal | - | - | 46gfm | - | - | 55° | - | - | - |
|
|
GLHA32A1BLIMIT SWITCH |
0 |
|
- |
GLH | Bulk | Active | DPDT | On-On | 6A (AC), 2.8A (DC) | 120 V | 24 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 296gf | - | - | - | - | - | -40°C ~ 85°C |
|
3SE51620CA001CA0SWITCH LIMIT 4PST 6A 125V |
0 |
|
Datasheet |
3SE5 | Box | Active | 4PST-2NO/2NC | On-Mom, Off-Mom | 6A (AC), 3A (DC) | 125 V | 24 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 3059gf | - | - | - | - | - | -25°C ~ 85°C |
|
|
6SE315SEALED AERO SWITCH |
1 |
|
Datasheet |
SE | Bulk | Obsolete | SPST-NC | On-Mom | 5A (AC/DC) | 250 V | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 482gf | - | - | 0.050" (1.27mm) | 0.004" (0.1mm) | 0.003" (0.076mm) | -53°C ~ 105°C |
|
|
924CE16-S3SWITCH SNAP ACTION SPDT 10A 250V |
0 |
|
Datasheet |
924CE | Bulk | Active | SPDT (BBM) | On-Mom | 10A (AC) | 250 V | - | Side Rotary - No Lever | Chassis Mount | Cable Leads | IP66 - Dust Tight, Water Resistant | Cable Length 3' | 31gfm | - | - | 26° | - | - | 0°C ~ 70°C |
|
LSJ1A-7NSWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Spring, Cable | Chassis Mount | Plug In | - | - | 198gf | - | - | 1.500" (38.0mm) | - | - | -12°C ~ 93°C |
|
|
9007C62DM11SWITCH LIMIT DPDT 6A 120V |
0 |
|
Datasheet |
9007 | Box | Active | DPDT (DB/DM) | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -29°C ~ 85°C |
