Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

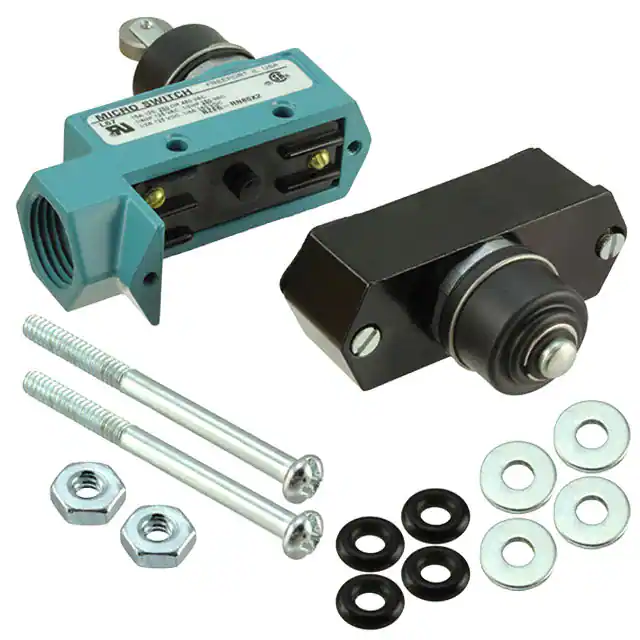

BZE6-RN80X2SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
E6 | Bulk | Active | SPDT | On-On | 15A (AC), 500mA (DC) | 125 V | 125 V | Roller Plunger | Chassis Mount | Screw Terminal | IP56 - Dust Protected, Water Resistant | Actuator Seal Boot, Reset Plunger | 595 ~ 1587gf | - | 2.232" (56.7mm) | 0.078" (2.0mm) | - | 0.187" (4.75mm) | -32°C ~ 71°C |
|
LSZ7A5ASWITCH LIMIT |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
5SE218SWITCH SNAP ACTION SPDT 7A 28V |
0 |
|
Datasheet |
SE | Bulk | Active | SPDT | On-Mom | 7A (DC) | - | 28 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | - | - | 141 ~ 482gf | 113gf | 0.425" (10.8mm) | 0.050" (1.27mm) | 0.004" (0.1mm) | 0.003" (0.076mm) | -26°C ~ 85°C |
|
|
XCKM121H7SWITCH LIMIT DPST 3A 240V |
0 |
|
Datasheet |
XC | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Lever, Roller | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
XCKL115X1SWITCH LIMIT DPST 3A 240V |
0 |
|
Datasheet |
XC | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
201LS144SWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
LS | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary, Roller | Chassis Mount | Plug In | IP67 - Dust Tight, Waterproof | Steel Roller, Front Mounted | 51gfm | 8.640gfm | 20° | 20° | 12° | 30° | -29°C ~ 71°C |
|
|
44501-3620SWITCH SNAP ACT 2NC/2NO FLX ACT |
0 |
|
- |
T5009-6 | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
44505-2220SWITCH SNAP ACTION METAL 2NC/2NO |
0 |
|
- |
SL-STI | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
8LS1SWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
LS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Flexible Cable | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 141gf | - | 1.125" (28.6mm) | 1.125" (28.6mm) | - | - | -29°C ~ 71°C |
|
|
LSYVC7LSWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Obsolete | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Adjustable Plunger | Chassis Mount | Screw Terminal | - | - | 1814gf | - | - | 0.071" (1.8mm) | 0.020" (0.5mm) | 0.190" (4.8mm) | -12°C ~ 121°C |
|
|
39SE10SEALED SWITCH |
0 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9007C68T10M11SWITCH LIMIT DPDT 1.2A 600V |
0 |
|
Datasheet |
9007 | Box | Active | DPDT (DB/DM) | On-Mom | 1.2A (AC), 100mA (DC) | 600 V | 600 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
|
9007MS05S0082SWITCH LIMIT SPDT 6A 120V |
0 |
|
Datasheet |
9007 | Box | Active | SPDT | On-Mom | 6A (AC), 5A (DC) | 120 V | 28 V | Spring, Wire | Chassis Mount | Connector | IP54 - Dust Protected, Water Resistant | - | - | - | - | - | - | - | -40°C ~ 104°C |
|
VPX1E2ABRG1A2BSWITCH SNAP ACT SPDTX2 15A 150V |
0 |
|
Datasheet |
VPX | Bulk | Obsolete | SPDT x 2 | On-On | 15A (AC) | 150 V | - | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Explosion Proof, Valve Position Indicator | 102gfm | - | - | - | - | - | -40°C ~ 60°C |
|
|
LSYCC6BSWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Obsolete | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Round (Pin Plunger) | Chassis Mount | Plug In | - | - | 1814gf | - | - | 0.071" (1.8mm) | 0.020" (0.5mm) | 0.190" (4.8mm) | -12°C ~ 121°C |
|
|
LSYMB6D-2DSWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Obsolete | DPDT (DB/DM) | Mom-Off-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary, Adjustable Roller | Chassis Mount | Plug In | - | Steel Roller, Front Mounted | 46gfm | - | - | 18° | 10° | 57° | -40°C ~ 121°C |
|

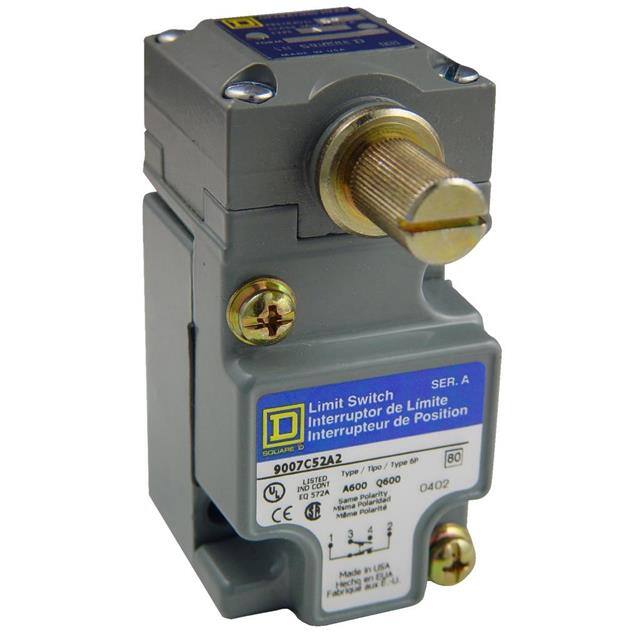

9007C62B2P6SWITCH NEMA LIMIT 4PST 6A 120V |
0 |
|
Datasheet |
Square D 9007C | Box | Active | 4PST-2NO/2NC | On-Mom, Off-Mom | 6A (AC), 220mA (DC) | 120 V | 120 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
9007C62N2SWITCH NEMA LIMIT 4PST 6A 120V |
0 |
|
Datasheet |
Square D 9007C | Box | Active | 4PST-2NO/2NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
|
9007C62B2Y128Y223SWITCH LIMIT 10A 600V |
0 |
|
Datasheet |
C | Box | Active | - | - | 10A (AC) | 600 V | - | - | - | - | - | - | - | - | - | - | - | - | -40°C ~ 85°C |
|
SL1-DKSWITCH SNAP ACT SPDT 100MA 125V |
0 |
|
Datasheet |
SL1 | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Cross Roller Plunger | Panel Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1200gf | 500gf | 1.235" (31.4mm) | 0.060" (1.5mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | -10°C ~ 70°C |
Limit Switches Electronic Components
Explore Limit Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
