Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D4CC-4050SWITCH SNAP ACTION SPDT 1A 30V |
0 |
|
Datasheet |
D4CC | Bulk | Active | SPDT | On-Mom | 1A (DC) | - | 30 V | Spring, Rod | Chassis Mount | Connector | IP67 - Dust Tight, Waterproof | Status Indicator | 150gf | - | - | 15° | - | - | -10°C ~ 70°C |
|
D4E-1A23L2NSWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
D4E-xN | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Roller Plunger | Panel Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Status Indicator | 1200gf | 500gf | 1.235" (31.4mm) | 0.060" (1.5mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | -10°C ~ 80°C |
|
D4E-1H00NSWITCH SNAP ACTION SPDT 1A 125V |
0 |
|
Datasheet |
D4E-xN | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Connector | IP67 - Dust Tight, Waterproof | - | 400gf | 80gf | 1.350" (34.3mm) | 0.080" (2.0mm) | 0.012" (0.3mm) | 0.158" (4.0mm) | -10°C ~ 80°C |
|

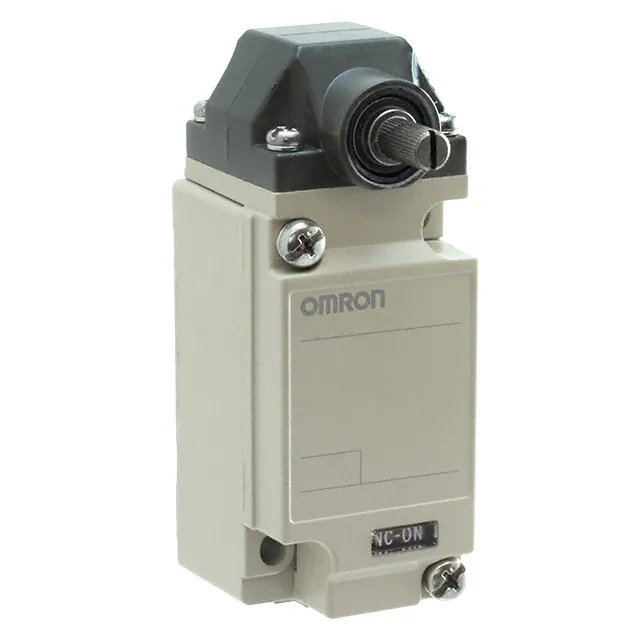

D4A-1301NSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
D4A | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Status Indicator | 40gfm | 5.103gfm | - | 15° | 5° | 70° | -10°C ~ 80°C |
|
|
D4C-3060-DK1EJ03SWITCH SNAP ACTION SPDT 1A 30V |
0 |
|
Datasheet |
D4C | Bulk | Active | SPDT | On-Mom | 1A (DC) | - | 30 V | Lever, Roller | Chassis Mount | Cable with Connector | IP67 - Dust Tight, Waterproof | Cable Length 0.3m, Status Indicator | 680gf | 150gf | - | 10° | 3° | 50° | -10°C ~ 70°C |
|
|
SHL-W255-L6MD11SWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
SHL | Bulk | Active | SPDT | On-Mom | 10A (AC), 5A (DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | - | IP67 - Dust Tight, Waterproof | Status Indicator | 400gf | 80gf | 1.300" (33.0mm) | 0.315" (8.0mm) | 0.098" (2.5mm) | 0.118" (3.0mm) | -10°C ~ 80°C |
|
|
ZC-Q55-MR VCT 1MSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
ZC | Bulk | Active | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Round (Pin Plunger) | Panel Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 1m | 1200gf | 500gf | 1.504" (38.2mm) | 0.060" (1.5mm) | 0.008" (0.2mm) | 0.118" (3.0mm) | -10°C ~ 80°C |
|
|
D4C-0029SWITCH LIMIT HEAD W/ LVR |
0 |
|
Datasheet |
D4C | Bulk | Active | SPDT | On-Mom | - | - | - | Side Rotary, Adjustable Rod | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -10°C ~ 70°C |
|
|
D4A-3112NSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
D4A | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Spring, Wire | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 100gf | - | - | 15° | - | - | -20°C ~ 100°C |
|
|
D4C-2333SWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
D4C | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Cross Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Oil Resistant Cable 5m, Status Indicator | 1800gf | 450gf | 1.350" (34.3mm) | 0.071" (1.8mm) | 0.008" (0.2mm) | 0.118" (3.0mm) | -10°C ~ 70°C |
|
|
ZC-Q55-ML VCT 3MSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
ZC | Bulk | Active | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Round (Pin Plunger) | Panel Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 3m | 1200gf | 500gf | 1.504" (38.2mm) | 0.060" (1.5mm) | 0.008" (0.2mm) | 0.118" (3.0mm) | -10°C ~ 80°C |
|
|
WLG2-LD-M1TJBSWITCH LIMIT SPDT 5A 125V |
0 |
|
Datasheet |
WL | Bulk | Active | SPDT (DB/DM) | On-Mom | 5A (AC), 400mA (DC) | 125 V | 125 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1000gf | 100gf | - | 10° | 7° | 65° | -10°C ~ 80°C |
|
|
LSP1ESWITCH SNAP ACT SPDT 50MA 250V |
0 |
|
Datasheet |
HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 50mA (AC/DC) | 250 V | 60 V | Side Rotary - No Lever | Chassis Mount | Plug In | - | - | 46gfm | - | - | 9° | 3° | 66° | -12°C ~ 121°C |
|
|
14XE24SWITCH SNAP ACTION SPDT 7A 28V |
0 |
|
Datasheet |
XE | Bulk | Obsolete | SPDT | On-Mom | 7A (DC) | - | 28 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | - | - | 141 ~ 482gf | 113gf | 0.425" (10.8mm) | 0.050" (1.27mm) | 0.005" (0.13mm) | 0.004" (0.1mm) | -53°C ~ 105°C |
|
LSK3K-8ASWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Spring, Cat Whisker | Chassis Mount | Screw Terminal | - | - | 141gf | - | - | 2.000" (50.8mm) | - | - | -12°C ~ 93°C |
|
|
LSYLB6CSWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Obsolete | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Plug In | - | Sequence Action | 46gfm | - | - | 15° | 5° | 48° | -40°C ~ 121°C |
|
|
LSA1A-2ASWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary, Adjustable Roller | Chassis Mount | Plug In | - | Nylon Roller, Back Mounted | 46gfm | - | - | 15° | 5° | 60° | -12°C ~ 121°C |
|
|
LSA1A-4MSWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary, Adjustable Rod | Chassis Mount | Plug In | - | - | 46gfm | - | - | 15° | 5° | 60° | -12°C ~ 121°C |
|
|
XCSM3716L5SWITCH SAFETY LMT 3PST 1.5A 240V |
0 |
|
Datasheet |
XCSM | Box | Active | 3PST-2NC/1NO | On-Off, Off-On | 1.5A (AC), 100mA (DC) | 240 V | 250 V | Side Rotary, Roller | Chassis Mount | Cable Leads | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
LSXF3K5SWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
LSX | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Roller Plunger | Chassis Mount | Screw Terminal | - | - | 2720gf | - | 1.735" (44.1mm) | 0.100" (2.5mm) | 0.045" (1.1mm) | 0.190" (4.8mm) | -12°C ~ 93°C |
Limit Switches Electronic Components
Explore Limit Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
