Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

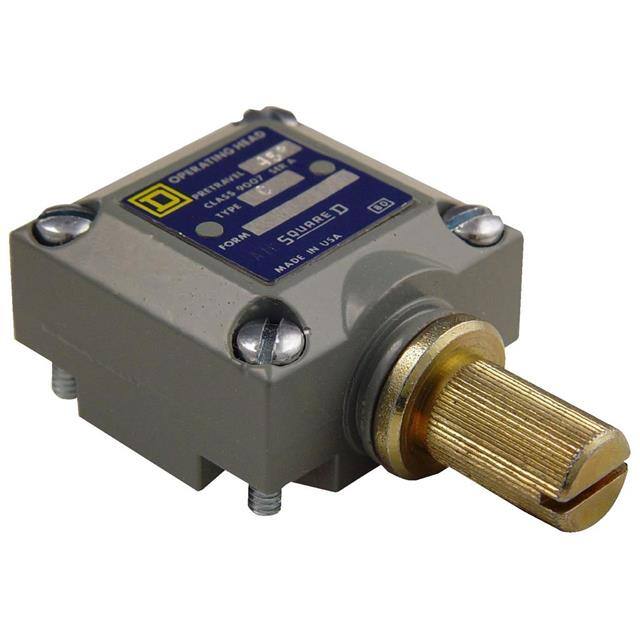

9007C62GSWITCH LIMIT 4PST 6A 120V |
0 |
|
Datasheet |
Square D 9007C | Box | Active | 4PST-2NO/2NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
9007C54HSWITCH LIMIT SPDT 1.2A 600V |
0 |
|
Datasheet |
9007 | Box | Active | SPDT (DB/DM) | On-Mom | 1.2A (AC), 100mA (DC) | 600 V | 600 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
|
51.704BFOOT SWITCHFM2SU1(2X)F1BLK SPDTM |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9007AP323SWITCH SNAP ACTION SPDT 15A 120V |
0 |
|
Datasheet |
9007 | Box | Active | SPDT (DB/DM) | On-Mom | 15A (AC), 500mA (DC) | 120 V | 125 V | Roller Plunger | Panel Mount | Screw Terminal | IP20 | - | - | - | - | - | - | - | -29°C ~ 85°C |
|

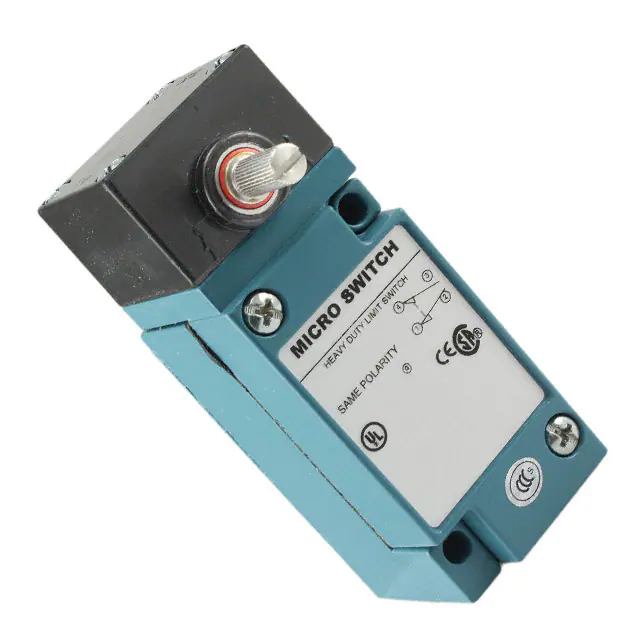

LSH1ASWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Plug In | - | - | 19gfm | - | - | 9° | 3° | 66° | -1°C ~ 121°C |
|
|
LSYMC4NSWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Obsolete | DPDT (DB/DM) | Mom-Off-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | - | - | 46gfm | - | - | 18° | 10° | 57° | -1°C ~ 121°C |
|
|
445211029SWITCH SNAP ACTION 1NC/1NO |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
D4F-120-1RSWITCH SNAP ACTION DPST 15A 120V |
0 |
|
Datasheet |
D4F | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 15A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary, Roller | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 1m | 510gf | 51gf | - | 12° | - | 40° | -30°C ~ 70°C |
|
|
D4F-402-1RSWITCH SNAP ACT 4PST-NC 15A 120V |
0 |
|
Datasheet |
D4F | Bulk | Active | 4PST-NC | On-Mom | 15A (AC), 550mA (DC) | 120 V | 125 V | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 1m | 1224gf | 153gf | 1.156" (29.4mm) | 0.047" (1.2mm) | - | 0.125" (3.2mm) | -30°C ~ 70°C |
|
|
D4F-420-1DSWITCH SNAP ACT 4PST-NC 15A 120V |
0 |
|
Datasheet |
D4F | Bulk | Active | 4PST-NC | On-Mom | 15A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary, Roller | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 1m | 510gf | 51gf | - | 12° | - | 40° | -30°C ~ 70°C |
|
|
WLSD3LDNSWITCH HRZTL BALL PLNGR LED |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
WLSD3LENSWITCH HRZTL BALL PLNGR NEON |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
WLCAL5-2LE-NSWITCH LIMIT WITH INDICATOR |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
WLCAL5-2LD-NSWITCH LIMIT WITH LED |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
WLNJRPNSWITCH FLX ROD140X6.5MM CORR |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
WLSD2TCNSWITCH SNAP ACTION PLNGR |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
WLSD2THNSWITCH SNAP ACTION PLNGR |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LSA1A-2BSWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary, Adjustable Roller | Chassis Mount | Plug In | - | Steel Roller, Back Mounted | 46gfm | - | - | 15° | 5° | 60° | -12°C ~ 121°C |
|
BZLN-200-RHSWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
LN | Bulk | Obsolete | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | - | Actuator Mounted Right Side | 227 ~ 283gf | 454gf | 1.640" (41.65mm) | 0.025" (0.65mm) | 0.003" (0.075mm) | 0.203" (5.15mm) | -32°C ~ 71°C |
|
|
BZLN-200-LHSWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
LN | Bulk | Obsolete | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | - | Actuator Mounted Left Side | 227 ~ 283gf | 454gf | 1.640" (41.65mm) | 0.025" (0.65mm) | 0.003" (0.075mm) | 0.203" (5.15mm) | -32°C ~ 71°C |
