Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D4C-1920SWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
D4C | Bulk | Active | SPDT | On-Mom | 5A (AC), 4A (DC) | 250 V | 30 V | Side Rotary, Roller | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 2m | 580gf | 150gf | - | 25° | - | 40° | -10°C ~ 70°C |
|
|
D4C-2350SWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
D4C | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Spring, Rod | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Oil Resistant Cable 5m, Status Indicator | 150gf | - | - | 15° | - | - | -10°C ~ 70°C |
|
|
D4E-2D21NSWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
D4E-xN | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | 1200gf | 500gf | 1.625" (41.3mm) | 0.060" (1.5mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | -10°C ~ 80°C |
|
|
2VE-10CA2-13SWITCH LIMIT |
0 |
|
- |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
WLCA12-P1-NSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
WL-N | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1360gf | 120gf | - | 15° | 12° | 70° | -10°C ~ 80°C |
|
|
D4CC-4024-BSWITCH LIMIT SPDT 1A 30V |
0 |
|
Datasheet |
D4C | Bulk | Active | SPDT | On-Mom | 1A (DC) | - | 30 V | Side Rotary, Roller | Chassis Mount | Connector | IP67 - Dust Tight, Waterproof | - | 580gf | 150gf | - | 10° | 3° | 50° | -10°C ~ 70°C |
|
|
D4CC-4032-BSWITCH LIMIT SPDT 1A 30V |
0 |
|
Datasheet |
D4C | Bulk | Active | SPDT | On-Mom | 1A (DC) | - | 30 V | Roller Plunger | Chassis Mount | Connector | IP67 - Dust Tight, Waterproof | - | 1800gf | 450gf | 1.350" (34.3mm) | 0.071" (1.8mm) | 0.008" (0.2mm) | 0.118" (3.0mm) | -10°C ~ 70°C |
|
9007MS04G0500SWITCH LIMIT SPDT 0.1A 125V |
0 |
|
Datasheet |
Square D 9007MS | Box | Active | SPDT | On-Mom | 100mA (AC), 30mA (DC) | 125 V | 28 V | Side Rotary - No Lever | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -40°C ~ 104°C |
|
|
LSF1FSWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Roller Plunger | Chassis Mount | Plug In | - | - | 2720gf | - | - | 0.100" (2.5mm) | 0.025" (0.6mm) | 0.190" (4.8mm) | -12°C ~ 93°C |
|
3SE51220PC02SWITCH SNAP ACTION 3PST 6A 125V |
0 |
|
Datasheet |
3SE5 | Box | Active | 3PST-2NO/1NC | On-Mom, Off-Mom | 6A (AC), 3A (DC) | 125 V | 24 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 2039gf | - | - | - | - | 0.118" (3.0mm) | -25°C ~ 85°C |
|
|
3SE51220KC02SWITCH LIMIT 3PST 6A 125V |
0 |
|
Datasheet |
3SE5 | Box | Active | 3PST-2NC/1NO | On-Mom, Off-Mom | 6A (AC), 3A (DC) | 125 V | 24 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 2039gf | - | - | - | - | 0.059" (1.5mm) | -25°C ~ 85°C |
|
3SE51120KC02SWITCH LIMIT 3PST 6A 125V |
0 |
|
Datasheet |
3SE5 | Box | Active | 3PST-2NC/1NO | On-Mom, Off-Mom | 6A (AC), 3A (DC) | 125 V | 24 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 2039gf | - | - | - | - | 0.118" (3.0mm) | -25°C ~ 85°C |
|
|
WLNJ21NSWITCH FLEX RES ROD 240X8 AIRT |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
3SE54130CP201EA2SWITCH SNAP ACTION DPST 6A 125V |
0 |
|
Datasheet |
3SE5 | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 125 V | 125 V | Side Rotary, Roller | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -25°C ~ 85°C |
|

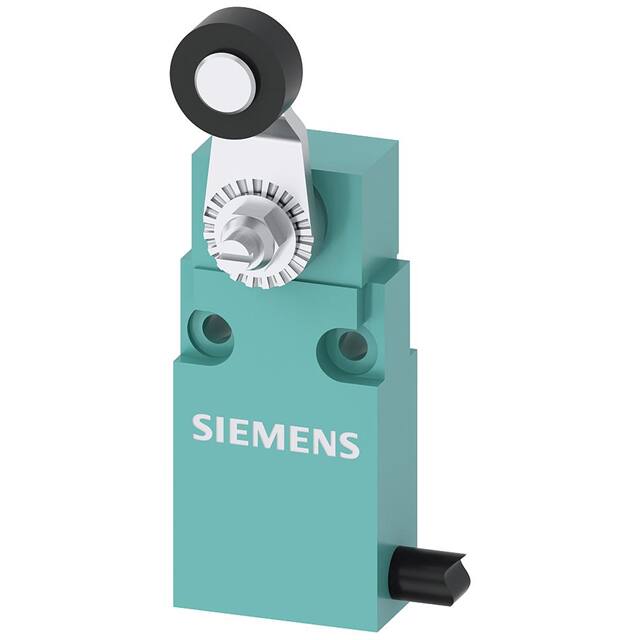

3SE54130CN201EA2SWITCH LIMIT DPST 6A 125V |
0 |
|
Datasheet |
3SE5 | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 125 V | 125 V | Side Rotary, Roller | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -25°C ~ 85°C |
|
|
LSA7L-1BSWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Obsolete | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | - | Steel Roller, Front Mounted | 46gfm | - | - | 15° | 7° | 60° | -12°C ~ 121°C |
|
|
D4C-3002-DK1EJ03SWITCH SNAP ACTION SPDT 1A 30V |
1 |
|
Datasheet |
D4C | Bulk | Active | SPDT | On-Mom | 1A (DC) | - | 30 V | Roller Plunger | Chassis Mount | Cable with Connector | IP67 - Dust Tight, Waterproof | Cable Length 0.3m, Status Indicator | 1200gf | 450gf | 1.122" (28.5mm) | 0.071" (1.8mm) | 0.008" (0.2mm) | 0.118" (3.0mm) | -10°C ~ 70°C |
|

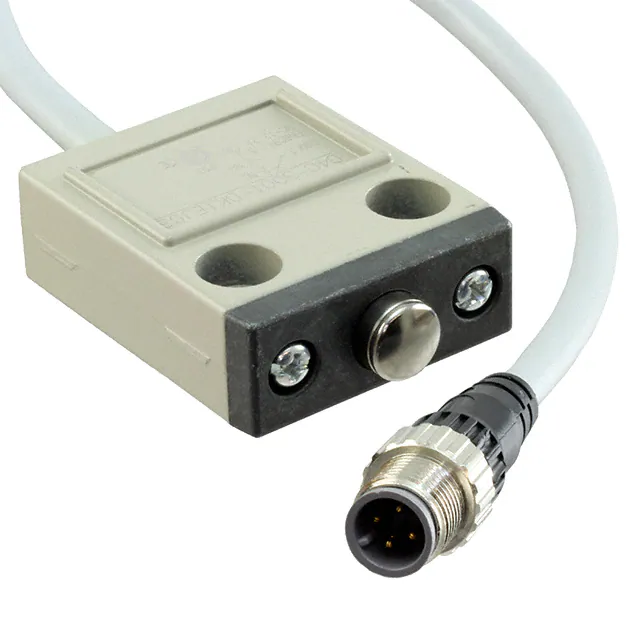

D4C-3001-DK1EJ03SWITCH SNAP ACTION SPDT 1A 30V |
1 |
|
Datasheet |
D4C | Bulk | Active | SPDT | On-Mom | 1A (DC) | - | 30 V | Round (Pin Plunger) | Chassis Mount | Cable with Connector | IP67 - Dust Tight, Waterproof | Cable Length 0.3m, Status Indicator | 1200gf | 450gf | 0.618" (15.7mm) | 0.071" (1.8mm) | 0.008" (0.2mm) | 0.118" (3.0mm) | -10°C ~ 70°C |
|
|
SHL-Q2155-MD VCTF 1MSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
SHL | Bulk | Obsolete | SPDT | On-Mom | 10A (AC), 5A (DC) | 125 V | 30 V | Roller Plunger | Panel Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | 1000gf | 200gf | 1.695" (43.05mm) | 0.060" (1.5mm) | 0.020" (0.5mm) | 0.079" (2.0mm) | -10°C ~ 80°C |
|
|
WLG2-LDK17-NSWITCH LIMIT ROLLER LEVER |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
