Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5SE3-3SWITCH SNAP ACTION SPDT 7A 28V |
0 |
|
Datasheet |
SE | Bulk | Active | SPDT | On-Mom | 7A (DC) | - | 28 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | - | - | 141 ~ 482gf | 113gf | 0.425" (10.8mm) | 0.050" (1.27mm) | 0.004" (0.1mm) | 0.003" (0.076mm) | -26°C ~ 85°C |
|
|
51.663NFOOT SWITCHFM1SU1DSU1L1UGYREDGD |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
51.663RFOOT SWITCHFM1SU1DSU1L1UBKREDGD |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LSYAC1A-1BSWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary, Roller | Chassis Mount | Plug In | - | Steel Roller, Front Mounted | 46gfm | - | - | 15° | 5° | 60° | -12°C ~ 121°C |
|
|
9007MS12S0054SWITCH LIMIT SPDT 3A 120V |
0 |
|
Datasheet |
9007 | Box | Active | SPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Roller Plunger | Chassis Mount | Connector | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -40°C ~ 104°C |
|

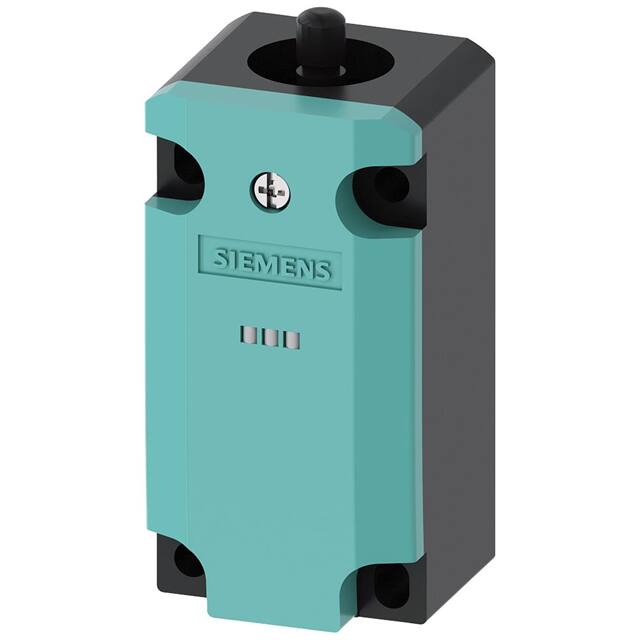

3SE51121KA00SWITCH LIMIT 3PST 3A 24V |
0 |
|
Datasheet |
3SE5 | Box | Active | 3PST-2NC/1NO | On-Mom, Off-Mom | 3A (DC) | - | 24 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 2039gf | - | - | - | - | - | -25°C ~ 60°C |
|
3SE52340HK501AC4SWITCH LIMIT DPST 4A 125V PLNGR |
0 |
|
Datasheet |
3SE5 | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 4A (AC), 3A (DC) | 125 V | 24 V | Side Rotary, Adjustable Roller | Chassis Mount | Connector | IP65 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 85°C |
|
3SE51220BC02SWITCH LIMIT DPST 6A 125V |
0 |
|
Datasheet |
3SE5 | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 3A (DC) | 125 V | 24 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 2039gf | - | - | - | - | 0.059" (1.5mm) | -25°C ~ 85°C |
|
3SE51120BC02SWITCH LIMIT DPST 6A 125V |
0 |
|
Datasheet |
3SE5 | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 3A (DC) | 125 V | 24 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 2039gf | - | - | - | - | 0.118" (3.0mm) | -25°C ~ 85°C |
|
3SE51221KA00SWITCH LIMIT 3PST 3A 24V |
0 |
|
Datasheet |
3SE5 | Box | Active | 3PST-2NC/1NO | On-Mom, Off-Mom | 3A (DC) | - | 24 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 2039gf | - | - | - | - | - | -25°C ~ 60°C |
|
|
1XE1-6SWITCH SNAP ACTION SPDT 7A 115V |
0 |
|
Datasheet |
XE | Bulk | Active | SPDT | On-Mom | 7A (AC/DC) | 115 V | 28 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | - | Cable Length 6' | 141 ~ 482gf | 113gf | 0.425" (10.8mm) | 0.050" (1.27mm) | 0.005" (0.13mm) | 0.004" (0.1mm) | -54°C ~ 105°C |
|
|
XCMD2517L1SWITCH LIMIT DPST 1.5A 240V |
0 |
|
Datasheet |
XC | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 1.5A (AC), 100mA (DC) | 240 V | 250 V | Ball Bearing Plunger | Chassis Mount | Cable Leads | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
6AS25SWITCH SNAP ACT SPDTX2 20A 125V |
0 |
|
Datasheet |
AS | Bulk | Active | SPDT x 2 | On-Mom | 20A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Screw Terminal | - | - | 397gf | 113gf | 0.735" (18.67mm) | - | - | 0.040" (1.0mm) | -55°C ~ 85°C |
-A7.jpg)
|
DT-2RV3-A7SWITCH SNAP ACTION DPDT 10A 125V |
0 |
|
Datasheet |
DT | Bulk | Active | DPDT | On-Mom | 10A (AC), 300mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Screw Terminal | - | - | 113 ~ 198gf | 14gf | 0.720" (18.3mm) | 0.270" (6.85mm) | 0.190" (4.8mm) | 0.010" (0.25mm) | -55°C ~ 85°C |
|
|
618.6127.104SWITCH LIMIT PLASTIC BODY |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LS4W1ASWITCH PLUG-INSIDE PLUNGER SPDT |
0 |
|
Datasheet |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
44502-0100SWITCH SNAP ACTION 2NC/1NO |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
3SE52320CK311AJ0SWITCH LIMIT DPST 6A 120V PLNGR |
0 |
|
Datasheet |
3SE5 | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 3A (DC) | 120 V | 24 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -40°C ~ 85°C |
|

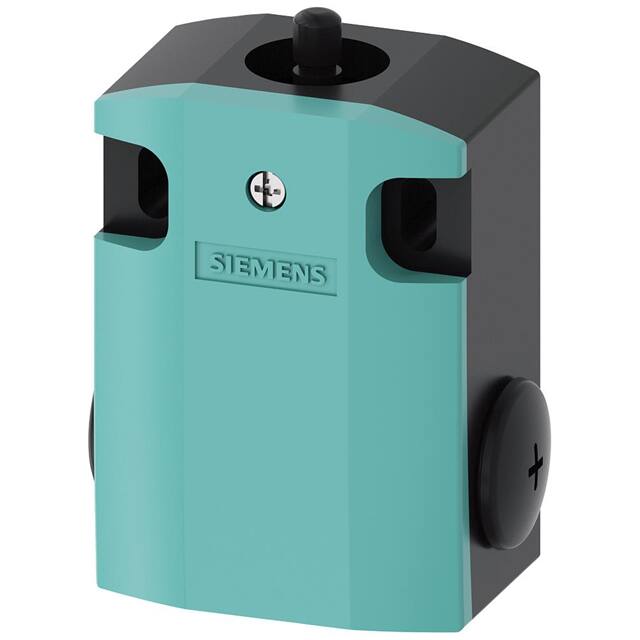

3SE51220KA001AJ0SWITCH LIMIT 3PST 6A 125V |
0 |
|
Datasheet |
3SE5 | Box | Active | 3PST-2NC/1NO | On-Mom, Off-Mom | 6A (AC), 3A (DC) | 125 V | 24 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 2039gf | - | - | - | - | - | -40°C ~ 85°C |
|
RDI2RBS2SWITCH LIMIT ELEV DOOR |
0 |
|
Datasheet |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Limit Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Limit Switches?
This category includes related Limit Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Limit Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Limit Switches and other electronic components.
