Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9007CP221SWITCH SNAP ACTION DPDT 3A 240V |
0 |
|
Datasheet |
Square D 9007C | Box | Active | DPDT (DB/DM) | On-On | 3A (AC), 200mA (DC) | 240 V | 120 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP20 | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
|
ZCKJ11DSAHSWITCH LIMIT 10A 240V |
0 |
|
Datasheet |
- | Box | Active | - | - | 10A (AC) | 240 V | - | - | Chassis Mount | Cable Leads | - | - | - | - | - | - | - | - | - |
|
DT-2RV239-A7SWITCH SNAP ACTION DPDT 10A 125V |
0 |
|
Datasheet |
DT | Bulk | Obsolete | DPDT | On-Mom | 10A (AC), 300mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | - | - | 156 ~ 269gf | 21gf | 1.156" (29.4mm) | 0.195" (4.95mm) | 0.135" (3.4mm) | 0.010" (0.25mm) | -55°C ~ 85°C |
|
|
LSA3K-4MSWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary, Adjustable Rod | Chassis Mount | Screw Terminal | - | - | 46gfm | - | - | 15° | 5° | 60° | -12°C ~ 121°C |
|
|
LSZ7S1HSWITCH LIMIT |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LSM2D-1BSWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Obsolete | DPDT (DB/DM) | Mom-Off-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary, Roller | Chassis Mount | Plug In | - | - | 46gfm | - | - | 18° | 10° | 57° | -1°C ~ 121°C |
|
9007AC1SWITCH LIMIT SPDT-DB 15A 120V |
0 |
|
Datasheet |
Square D 9007 | Box | Active | SPDT-DB | On-Mom | 15A (AC), 250mA (DC) | 120 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP20 | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
|
LSA7L-5CSWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Obsolete | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | - | Nylon Roller, Front Mounted | 46gfm | - | - | 15° | 7° | 60° | -12°C ~ 121°C |
|
|
LSA7L-4RSWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Obsolete | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary, Adjustable Rod | Chassis Mount | Screw Terminal | - | - | 46gfm | - | - | 15° | 7° | 60° | -12°C ~ 121°C |
|
|
WLSDTCNSWITCH HRZTL PLNGR LOW TEMP |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
WLCA2-26N-NSWITCH LIMIT ROLLER LEVER |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
WLSDTHNSWITCH HRZTL PLNGR HIGH TEMP |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GLAA21A1B-13C02SWITCH SNAP ACTION DPDT 6A 120V |
0 |
|
Datasheet |
GLS | Bulk | Obsolete | DPDT | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary, Roller | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Sequence Action | 33gfm | - | 26° | 26° | 12° | 59° | -25°C ~ 85°C |
|

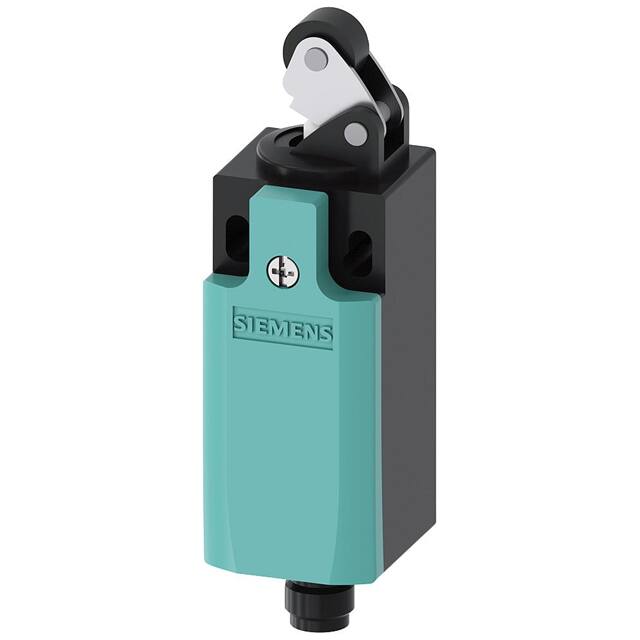

3SE52340HE101AC4SWITCH LIMIT DPST 4A 125V |
0 |
|
Datasheet |
3SE5 | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 4A (AC), 3A (DC) | 125 V | 24 V | Top Rotary, Roller | Chassis Mount | Connector | IP65 - Dust Tight, Water Resistant | - | 1020gf | - | - | - | - | - | -25°C ~ 85°C |
|
|
D4C-4250SWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
D4C | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Spring, Rod | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Oil Resistant Cable 3m | 150gf | - | - | 15° | - | - | -10°C ~ 70°C |
|
|
D4C-4502SWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
D4C | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 5m | 1200gf | 450gf | 1.122" (28.5mm) | 0.071" (1.8mm) | 0.008" (0.2mm) | 0.118" (3.0mm) | -10°C ~ 70°C |
|
|
D4C-6242SWITCH SNAP ACTION SPDT 0.1A 30V |
0 |
|
Datasheet |
D4C | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Roller Plunger | Panel Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Oil Resistant Cable 3m, Status Indicator | 1200gf | 450gf | 1.449" (36.8mm) | 0.071" (1.8mm) | 0.008" (0.2mm) | 0.118" (3.0mm) | -10°C ~ 70°C |
|
|
D4C-6303SWITCH SNAP ACTION SPDT 0.1A 30V |
0 |
|
Datasheet |
D4C | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Cross Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Oil Resistant Cable 5m, Status Indicator | 1200gf | 450gf | 1.122" (28.5mm) | 0.071" (1.8mm) | 0.008" (0.2mm) | 0.118" (3.0mm) | -10°C ~ 70°C |
|
|
D4E-2H20NSWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
D4E-xN | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 400gf | 80gf | 1.350" (34.3mm) | 0.080" (2.0mm) | 0.012" (0.3mm) | 0.158" (4.0mm) | -10°C ~ 80°C |
|
|
D4C-1604SWITCH LIMIT SPDT 5A 250V |
0 |
|
Datasheet |
D4C | Bulk | Active | SPDT | On-Mom | 5A (AC), 4A (DC) | 250 V | 30 V | - | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | 1200gf | 450gf | 1.122" (28.5mm) | 0.071" (1.8mm) | 0.008" (0.2mm) | 0.118" (3.0mm) | -10°C ~ 70°C |
Limit Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Limit Switches?
This category includes related Limit Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Limit Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Limit Switches and other electronic components.
