Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LSJ1E-7MSWITCH SNAP ACT SPDT 50MA 250V |
0 |
|
Datasheet |
HDLS | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 50mA (AC/DC) | 250 V | 60 V | Spring, Wire | Chassis Mount | Plug In | - | - | 141gf | - | - | 4.000" (102mm) | - | - | -12°C ~ 93°C |
|
3SE51140KA001AE1SWITCH LIMIT 3PST 4A 125V |
0 |
|
Datasheet |
3SE5 | Box | Active | 3PST-2NC/1NO | On-Mom, Off-Mom | 4A (AC), 3A (DC) | 125 V | 24 V | Round (Pin Plunger) | Chassis Mount | Connector | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 2039gf | - | - | - | - | - | -25°C ~ 85°C |
|
|
XCKP2146N12SIILIMIT SWITCH PLASTIC NO NC |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
604.1118.581SWITCH LIMIT DPST 3A 240V |
0 |
|
Datasheet |
D | Bulk | Active | DPST-NO/NC | On-Off, Off-On | 3A (AC) | 240 V | - | Roller Plunger | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -30°C ~ 80°C |
|
3SE51121LA00SWITCH LIMIT 3PST 3A 24V |
0 |
|
Datasheet |
3SE5 | Box | Active | 3PST-2NC/1NO | On-Mom, Off-Mom | 3A (DC) | - | 24 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 2039gf | - | - | - | - | - | -25°C ~ 60°C |
|
3SE51220CC02SWITCH LIMIT DPST 6A 125V |
0 |
|
Datasheet |
3SE5 | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 3A (DC) | 125 V | 24 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 2039gf | - | - | - | - | 0.118" (3.0mm) | -25°C ~ 85°C |
|
3SE51221LA00SWITCH LIMIT 3PST 3A 24V |
0 |
|
Datasheet |
3SE5 | Box | Active | 3PST-2NC/1NO | On-Mom, Off-Mom | 3A (DC) | - | 24 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 2039gf | - | - | - | - | - | -25°C ~ 60°C |
|
3SE52140KC051AE1SWITCH SNAP ACTION 3PST 4A 125V |
0 |
|
Datasheet |
3SE5 | Box | Active | 3PST-2NC/1NO | On-Mom, Off-Mom | 4A (AC), 3A (DC) | 125 V | 24 V | Round (Pin Plunger) | Chassis Mount | Connector | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 2039gf | - | - | - | - | - | -25°C ~ 85°C |
|

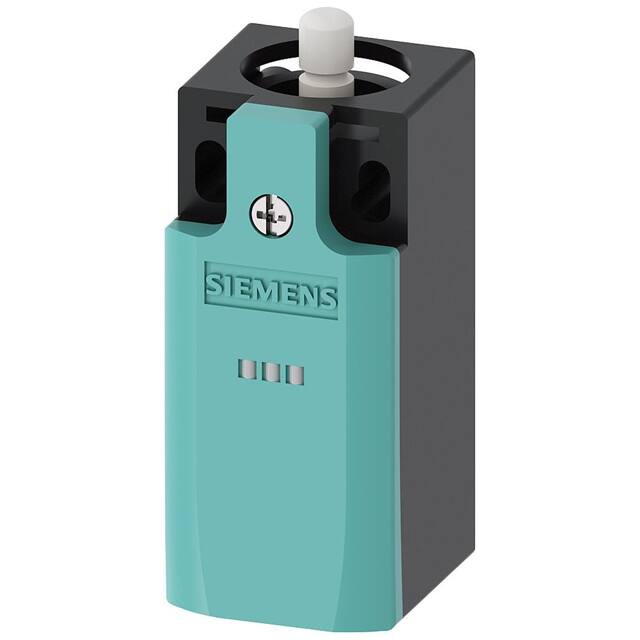

3SE52123KC05SWITCH LIMIT 3PST 6A 230V PLNGR |
0 |
|
Datasheet |
3SE5 | Box | Active | 3PST-2NC/1NO | On-Mom, Off-Mom | 6A (AC) | 230 V | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 2039gf | - | - | - | - | - | -25°C ~ 60°C |
|
|
LSN1FSWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Obsolete | SPDT (DB/DM) | On-On | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Plug In | - | - | 46gfm | - | - | 65° | 40° | 20° | -1°C ~ 121°C |
|
|
601.9390.038SWITCH SAFETY HINGE |
0 |
|
- |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
604.1118.229SWITCH LIMIT METAL BODY |
0 |
|
Datasheet |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LSK1A-8BSWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Discontinued at Digi-Key | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Spring, Cat Whisker | Chassis Mount | Plug In | - | - | 85gf | - | - | 4.500" (114mm) | - | - | -12°C ~ 93°C |
|
|
LSA8A7SWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Plug In | - | Status Indicator | 46gfm | - | - | 15° | 5° | 60° | -12°C ~ 93°C |
|
|
XCMD21G1M12SWITCH LIMIT SPDT 1.5A 240V |
0 |
|
Datasheet |
XC | Box | Active | SPDT | On-On | 1.5A (AC), 100mA (DC) | 240 V | 250 V | Round (Pin Plunger) | Chassis Mount | Connector | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
914CE31-3SWITCH SNAP ACTION SPDT 5A 240V |
0 |
|
Datasheet |
914CE | Bulk | Active | SPDT | On-Mom | 5A (AC), 3A (DC) | 240 V | 28 V | Roller Plunger | Chassis Mount | Cable Leads | IP66 - Dust Tight, Water Resistant | Cable Length 3' | 1785gf | 450gf | 1.354" (34.4mm) | 0.071" (1.8mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | 0°C ~ 105°C |
|
|
LSYHC1ASWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Plug In | - | - | 19gfm | - | - | 9° | 3° | 66° | -1°C ~ 121°C |
|
|
GLAC01A2ASWITCH SNAP ACTION SPDT 6A 120V |
0 |
|
Datasheet |
GLS | Bulk | Active | SPDT | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Nylon Roller | 33gfm | - | 26° | 26° | 12° | 59° | -25°C ~ 85°C |
|
|
3SE51140CA001AC5SWITCH LIMIT DPST 4A 125V |
0 |
|
Datasheet |
3SE5 | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 4A (AC), 3A (DC) | 125 V | 24 V | Round (Pin Plunger) | Chassis Mount | Connector | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 2039gf | - | - | - | - | - | -25°C ~ 85°C |
|
|
XCSM4115L5SWITCH SAFETY LMT 4PST 1.5A 240V |
0 |
|
Datasheet |
XCSM | Box | Active | 4PST-2NO/2NC | On-Off, Off-On | 1.5A (AC), 100mA (DC) | 240 V | 250 V | Side Rotary, Roller | Chassis Mount | Cable Leads | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
Limit Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Limit Switches?
This category includes related Limit Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Limit Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Limit Switches and other electronic components.
