Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T2008-02TRMSWITCH SNAP ACTION FLAT ACT |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BZE6-2RN2-F6SWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
E6 | Bulk | Obsolete | SPDT | On-Mom | 10A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Cable Leads | IP66 - Dust Tight, Water Resistant | Actuator Seal Boot | 397 ~ 737gf | 283gf | - | 0.188" (4.8mm) | 0.006" (0.15mm) | 0.219" (5.6mm) | -32°C ~ 71°C |
|
914CE66-3SWITCH SNAP ACTION SPDT 5A 240V |
0 |
|
Datasheet |
914CE | Bulk | Active | SPDT | On-Mom | 5A (AC), 3A (DC) | 240 V | 28 V | Ball Bearing Plunger | Chassis Mount | Cable Leads | IP66 - Dust Tight, Water Resistant | Cable Length 3' | 1200gf | 450gf | 0.961" (24.4mm) | 0.071" (1.8mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | 0°C ~ 105°C |
|
3SE51140LA001AE1SWITCH LIMIT 3PST 4A 125V |
0 |
|
Datasheet |
3SE5 | Box | Active | 3PST-2NC/1NO | On-Mom, Off-Mom | 4A (AC), 3A (DC) | 125 V | 24 V | Round (Pin Plunger) | Chassis Mount | Connector | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 2039gf | - | - | - | - | - | -25°C ~ 85°C |
|
|
XCKJ20511SWITCH LIMIT 10A 240V |
0 |
|
Datasheet |
XC | Box | Active | - | - | 10A (AC) | 240 V | - | Side Rotary, Adjustable Roller | - | - | - | - | - | - | - | - | - | - | - |
|
914CE18-9SWITCH SNAP ACTION SPDT 5A 240V |
0 |
|
Datasheet |
914CE | Bulk | Active | SPDT | On-Mom | 5A (AC), 3A (DC) | 240 V | 28 V | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP66 - Dust Tight, Water Resistant | Cable Length 9' | 2300gf | 450gf | 0.980" (24.9mm) | 0.071" (1.8mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | 0°C ~ 105°C |
|

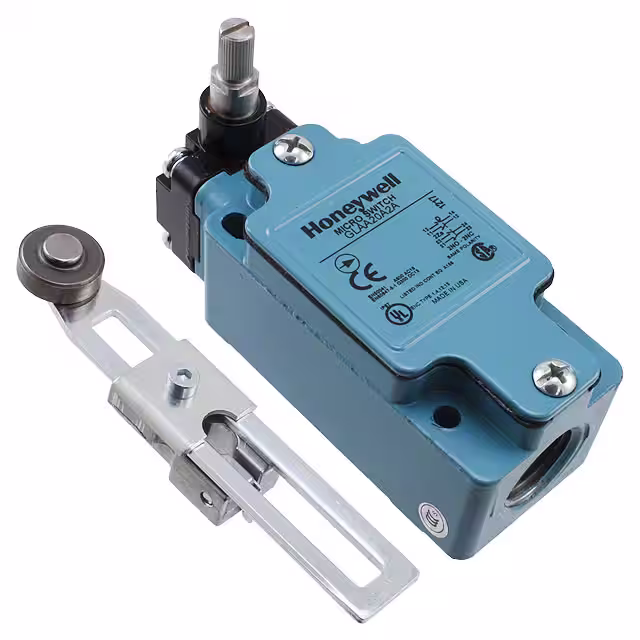

GLAA20A2ASWITCH SNAP ACTION DPDT 6A 120V |
0 |
|
Datasheet |
GLS | Bulk | Active | DPDT | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Nylon Roller | 33gfm | - | 26° | 26° | 12° | 59° | -25°C ~ 85°C |
|
|
LS4A1ESWITCH SNAP ACT SPDT 0.05A 250V |
0 |
|
Datasheet |
HDLS | Bulk | Obsolete | SPDT | On-Mom | 50mA (AC/DC) | 250 V | 60 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | - | - | 46gf | - | - | 15° | 5° | 60° | -12°C ~ 121°C |
|
|
GLHC01A1BSWITCH SNAP ACTION SPDT 6A 30V |
0 |
|
Datasheet |
GLS | Bulk | Obsolete | SPDT | On-Mom | 6A (DC) | - | 30 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Status Indicator, Steel Roller | 33gfm | - | 26° | 26° | 12° | 59° | -25°C ~ 85°C |
|
|
XCKD2527P16SWITCH LIMIT DPST 3A 240V |
0 |
|
Datasheet |
XC | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Lever, Roller | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
XCKD2506P16SWITCH LIMIT DPST 3A 240V |
0 |
|
Datasheet |
XC | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Spring, Cat Whisker | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
XCTR2518G11SWITCH LIMIT DPST 3A 240V |
0 |
|
- |
XC | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|

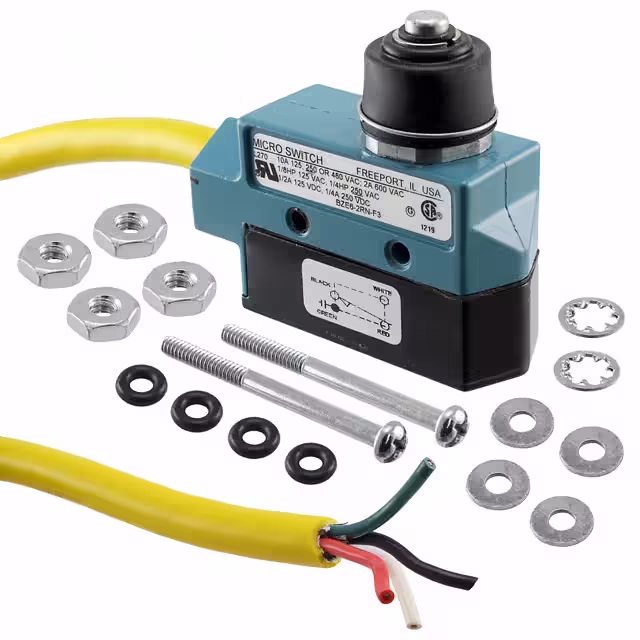

BZE6-2RN-F3SWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
E6 | Bulk | Active | SPDT | On-Mom | 10A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP66 - Dust Tight, Water Resistant | Actuator Seal Boot | 425 ~ 1106gf | 283gf | 1.720" (43.7mm) | 0.078" (2.0mm) | 0.002" (0.05mm) | 0.219" (5.6mm) | -32°C ~ 71°C |
|
|
LS2Z52ESWITCH LIMIT |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
3SE52140LC051AE1SWITCH LIMIT 3PST 4A 125V |
0 |
|
Datasheet |
3SE5 | Box | Active | 3PST-2NC/1NO | On-Mom, Off-Mom | 4A (AC), 3A (DC) | 125 V | 24 V | Round (Pin Plunger) | Chassis Mount | Connector | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 2039gf | - | - | - | - | - | -25°C ~ 85°C |
|
3SE51120CA001AJ0SWITCH LIMIT DPST 6A 125V |
0 |
|
Datasheet |
3SE5 | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 3A (DC) | 125 V | 24 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 2039gf | - | - | - | - | - | -40°C ~ 85°C |
|
|
618.8185.018SWITCH LIMIT PLASTIC BODY |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

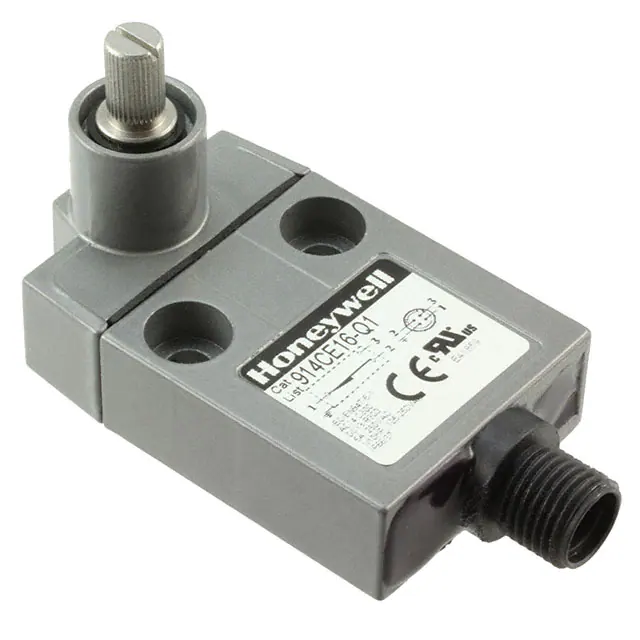

914CE16-Q1SWITCH SNAP ACTION SPDT 3A 125V |
1 |
|
Datasheet |
914CE | Bulk | Active | SPDT | On-Mom | 3A (AC) | 125 V | - | Side Rotary - No Lever | Chassis Mount | Connector | IP66 - Dust Tight, Water Resistant | - | 34gfm | 7.200gfm | - | 30° | 3° | 40° | 0°C ~ 105°C |
|
1SE402-3SWITCH SNAP ACTION SPDT 1A 30V |
0 |
|
Datasheet |
SE | Bulk | Active | SPDT | On-Mom | 1A (DC) | - | 30 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | - | Cable Length 3' | 141 ~ 482gf | 113gf | 0.425" (10.8mm) | 0.050" (1.27mm) | 0.004" (0.1mm) | 0.003" (0.076mm) | -54°C ~ 105°C |
|
914CE3-6ASWITCH SNAP ACTION SPDT 5A 240V |
0 |
|
Datasheet |
914CE | Bulk | Active | SPDT | On-Mom | 5A (AC), 3A (DC) | 240 V | 28 V | Cross Roller Plunger | Chassis Mount | Cable Leads | IP66 - Dust Tight, Water Resistant | Cable Length 6' | 1200gf | 450gf | 1.122" (28.5mm) | 0.071" (1.8mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | 0°C ~ 105°C |
Limit Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Limit Switches?
This category includes related Limit Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Limit Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Limit Switches and other electronic components.
