Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D4B-1A11NSWITCH SNAP ACT DPST-NC 10A 120V |
0 |
|
Datasheet |
D4B-N | Bulk | Obsolete | DPST-NC | On-Mom | 10A (AC), 6A (DC) | 120 V | 30 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 960gf | 150gf | 21° | 21° | - | 50° | -40°C ~ 80°C |
|
|
D4B-3A11NSWITCH SNAP ACT DPST-NC 10A 120V |
0 |
|
Datasheet |
D4B-N | Bulk | Obsolete | DPST-NC | On-Mom | 10A (AC), 6A (DC) | 120 V | 30 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 960gf | 150gf | 21° | 21° | - | 50° | -40°C ~ 80°C |
|
|
D4B-3A16NSWITCH SNAP ACT DPST-NC 10A 120V |
0 |
|
Datasheet |
D4B-N | Bulk | Obsolete | DPST-NC | On-Mom | 10A (AC), 6A (DC) | 120 V | 30 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 960gf | 150gf | 21° | 21° | - | 50° | -40°C ~ 80°C |
|
|
603.3371.006SWITCH LIMIT METAL BODY |
0 |
|
- |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
618.6800.324SWITCH LIMIT PLASTIC BODY |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

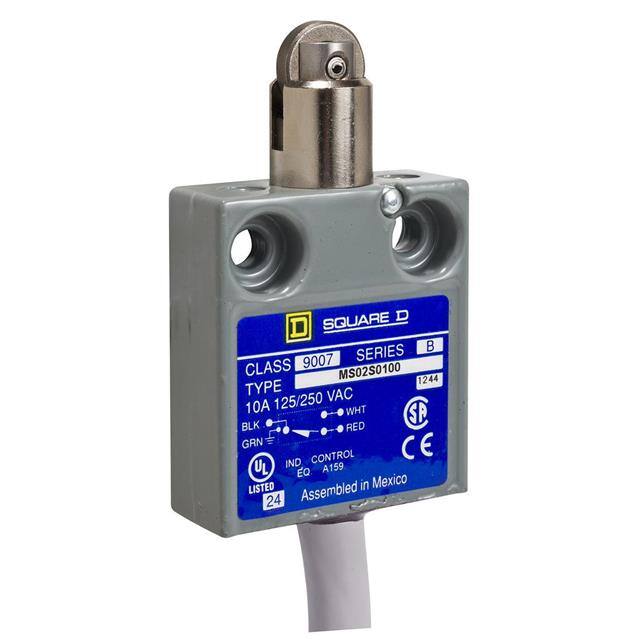

9007MS02S0410SWITCH LIMIT SPDT 6A 120V |
0 |
|
Datasheet |
Square D 9007MS | Box | Active | SPDT | On-Mom | 6A (AC), 5A (DC) | 120 V | 28 V | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -40°C ~ 104°C |
|
9007MS03S0400SWITCH LIMIT SPDT 6A 120V |
0 |
|
Datasheet |
Square D 9007MS | Box | Active | SPDT | On-Mom | 6A (AC), 5A (DC) | 120 V | 28 V | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -40°C ~ 104°C |
|

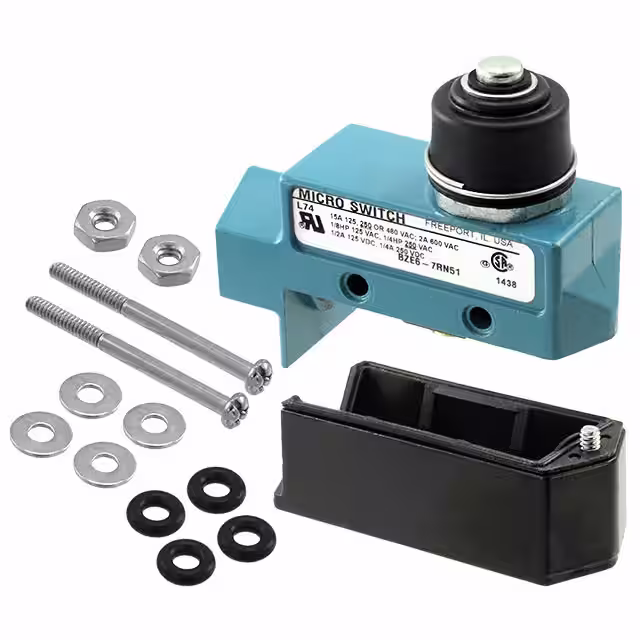

BZE6-7RN51SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
E6 | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP54 - Dust Protected, Water Resistant | Actuator Seal Boot | 794 ~ 1531gf | 283gf | 1.720" (43.7mm) | 0.078" (2.0mm) | 0.005" (0.13mm) | 0.219" (5.6mm) | -32°C ~ 71°C |
|
|
D4C-1602-CSWITCH LIMIT SPDT 1A 125V |
0 |
|
Datasheet |
D4C | Bulk | Obsolete | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | 1200gf | 450gf | 1.122" (28.5mm) | 0.071" (1.8mm) | 0.008" (0.2mm) | 0.118" (3.0mm) | -10°C ~ 70°C |
|
3SE52340HC051AC4SWITCH LIMIT DPST 4A 125V PLNGR |
0 |
|
Datasheet |
3SE5 | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 4A (AC), 3A (DC) | 125 V | 24 V | Round (Pin Plunger) | Chassis Mount | Connector | IP65 - Dust Tight, Water Resistant | - | 2039gf | - | - | - | - | - | -25°C ~ 85°C |
|

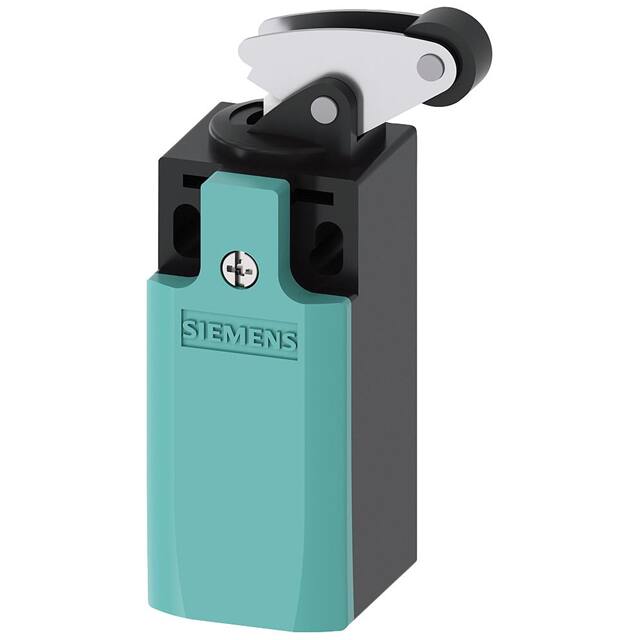

3SE52120LF10SWITCH LIMIT 3PST 6A 120V |
0 |
|
Datasheet |
3SE5 | Box | Active | 3PST-2NC/1NO | On-Mom, Off-Mom | 6A (AC), 3A (DC) | 120 V | 24 V | Top Rotary, Roller | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 1020gf | - | - | - | - | - | -25°C ~ 85°C |
|
3SE51120CB01SWITCH LIMIT DPST 6A 125V |
0 |
|
Datasheet |
3SE5 | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 3A (DC) | 125 V | 24 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 2039gf | - | - | - | - | - | -25°C ~ 85°C |
|

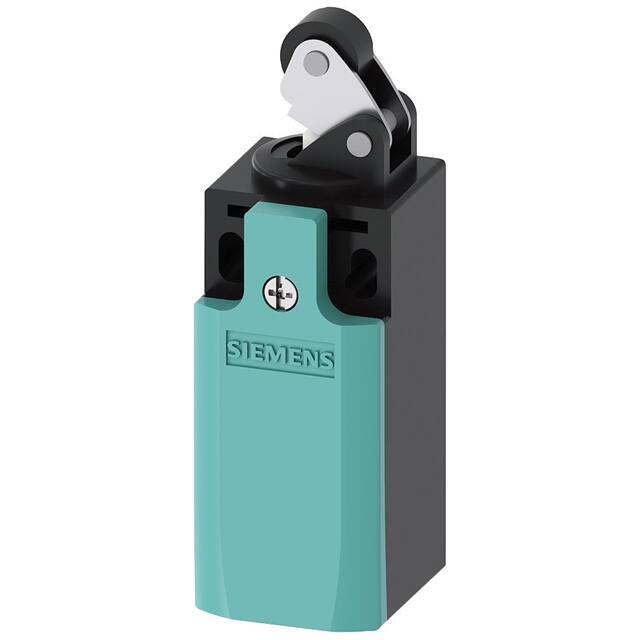

3SE52120LE10SWITCH LIMIT 3PST 6A 120V |
0 |
|
Datasheet |
3SE5 | Box | Active | 3PST-2NC/1NO | On-Mom, Off-Mom | 6A (AC), 3A (DC) | 120 V | 24 V | Top Rotary, Roller | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 1020gf | - | - | - | - | - | -25°C ~ 85°C |
|

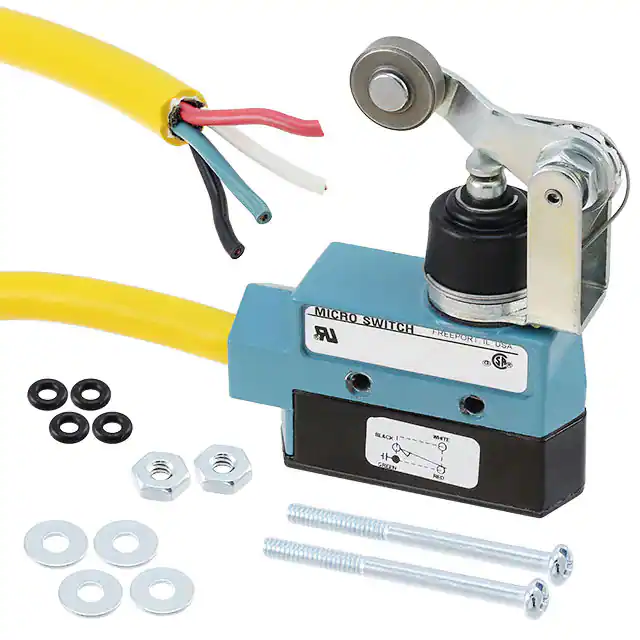

BZE6-2RN2-F3SWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
E6 | Bulk | Obsolete | SPDT | On-Mom | 10A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Cable Leads | IP66 - Dust Tight, Water Resistant | Actuator Seal Boot | 397 ~ 737gf | 283gf | - | 0.188" (4.8mm) | 0.006" (0.15mm) | 0.219" (5.6mm) | -32°C ~ 71°C |
|
|
BZE6-2RN221SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
E6 | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Actuator Seal Boot | 397 ~ 737gf | 283gf | - | 0.188" (4.8mm) | 0.006" (0.15mm) | 0.219" (5.6mm) | -32°C ~ 71°C |
|

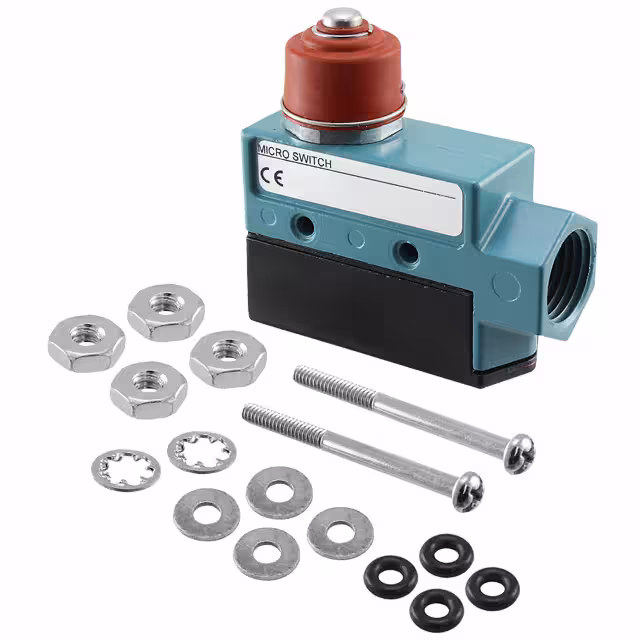

BZE6-2RN34SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
E6 | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Actuator Seal Boot | 425 ~ 1106gf | 283gf | 1.720" (43.7mm) | 0.078" (2.0mm) | 0.002" (0.05mm) | 0.219" (5.6mm) | -32°C ~ 71°C |
|
|
GLAB01ASWITCH SNAP ACTION SPDT 6A 120V |
0 |
|
Datasheet |
GLS | Bulk | Active | SPDT | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 33gfm | - | 26° | 26° | 12° | 59° | -25°C ~ 85°C |
|
|
XCKM510H29SWITCH LIMIT DPST 3A 240V |
0 |
|
Datasheet |
XC | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
D4C-4231SWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
D4C | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Oil Resistant Cable 3m | 1800gf | 450gf | 0.980" (24.9mm) | 0.071" (1.8mm) | 0.008" (0.2mm) | 0.118" (3.0mm) | -10°C ~ 70°C |
|
|
D4E-2A21NSWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
D4E-xN | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Roller Plunger | Panel Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | 1200gf | 500gf | 1.235" (31.4mm) | 0.060" (1.5mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | -10°C ~ 80°C |
