Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
914CE2-6GSWITCH SNAP ACTION SPDT 1A 125V |
0 |
|
Datasheet |
914CE | Bulk | Obsolete | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Roller Plunger | Chassis Mount | Cable Leads | IP66 - Dust Tight, Water Resistant | Cable Length 6' | 1200gf | 450gf | 1.122" (28.5mm) | 0.071" (1.8mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | 0°C ~ 105°C |
|
|
XCKP2718G11X1SWITCH LIMIT DPST 3A 240V |
0 |
|
Datasheet |
XC | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Lever, Roller | Chassis Mount | Connector | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
XCKP2745G11X1SWITCH LIMIT DPST 3A 240V |
0 |
|
Datasheet |
XC | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Lever, Roller | Chassis Mount | Connector | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
3SE52120KK21SWITCH LIMIT 3PST 6A 120V |
0 |
|
Datasheet |
3SE5 | Box | Active | 3PST-2NC/1NO | On-Mom, Off-Mom | 6A (AC), 3A (DC) | 120 V | 24 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 85°C |
|
|
WLD18-NSWITCH SNAP ACTION PLUNGER |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
XCKP2539P16SWITCH LIMIT DPST 3A 240V |
0 |
|
Datasheet |
XC | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
BZ-2RW85564T-SSWITCH LARGE BASIC |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GLEB24C-6SWITCH SNAP ACTION DPDT 6A 120V |
0 |
|
Datasheet |
GLS | Bulk | Active | DPDT | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Roller Perpendicular to Mounting Surface | 1315gf | - | 1.100" (28.0mm) | 0.120" (3.0mm) | 0.025" (0.6mm) | 0.118" (3.0mm) | -40°C ~ 85°C |
|
3SE51120BB01SWITCH LIMIT DPST 6A 125V |
0 |
|
Datasheet |
3SE5 | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 3A (DC) | 125 V | 24 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 2039gf | - | - | - | - | - | -25°C ~ 85°C |
|
3SE51220BB01SWITCH LIMIT DPST 6A 125V |
0 |
|
Datasheet |
SIRIUS | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 2039gf | - | - | - | - | - | -25°C ~ 85°C |
|
3SE51320LF05SWITCH LIMIT 3PST 6A 125V |
0 |
|
Datasheet |
3SE5 | Box | Active | 3PST-2NC/1NO | On-Mom, Off-Mom | 6A (AC), 3A (DC) | 125 V | 24 V | Top Rotary, Roller | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 1020gf | - | - | - | - | - | -25°C ~ 85°C |
|
|
3SE51320KA001AJ0SWITCH LIMIT 3PST 6A 125V |
0 |
|
Datasheet |
3SE5 | Bulk | Active | 3PST-2NC/1NO | On-Off, Off-On | 6A (AC), 3A (DC) | 125 V | 24 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 2039gf | - | - | - | - | - | -40°C ~ 85°C |
|
914CE1-QSWITCH SNAP ACTION SPDT 3A 125V |
0 |
|
Datasheet |
914CE | Bulk | Active | SPDT | On-Mom | 3A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Connector | IP66 - Dust Tight, Water Resistant | - | 1200gf | 450gf | 0.618" (15.7mm) | 0.071" (1.8mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | 0°C ~ 105°C |
|
|
SCB-ER30SWITCH SNAP ACTION 1NC/1NO |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
445211028SWITCH SNAP ACTION 1NC/1NO |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
601.1231.909SWITCH LIMIT |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
9007MS12S0310SWITCH LIMIT SPDT 6A 120V |
0 |
|
Datasheet |
Square D 9007MS | Box | Active | SPDT | On-Mom | 6A (AC), 5A (DC) | 120 V | 28 V | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -40°C ~ 104°C |
|
GLAB01A-5SWITCH SNAP ACTION SPDT 6A 120V |
0 |
|
Datasheet |
GLS | Bulk | Active | SPDT | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 33gfm | - | 26° | 26° | 12° | 59° | -25°C ~ 85°C |
|
BZE6-2RQ81SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
E6 | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Cross Roller Plunger | Chassis Mount | Screw Terminal | IP40 | - | 255 ~ 368gf | 113gf | 1.953" (49.6mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.141" (3.6mm) | -32°C ~ 71°C |
|

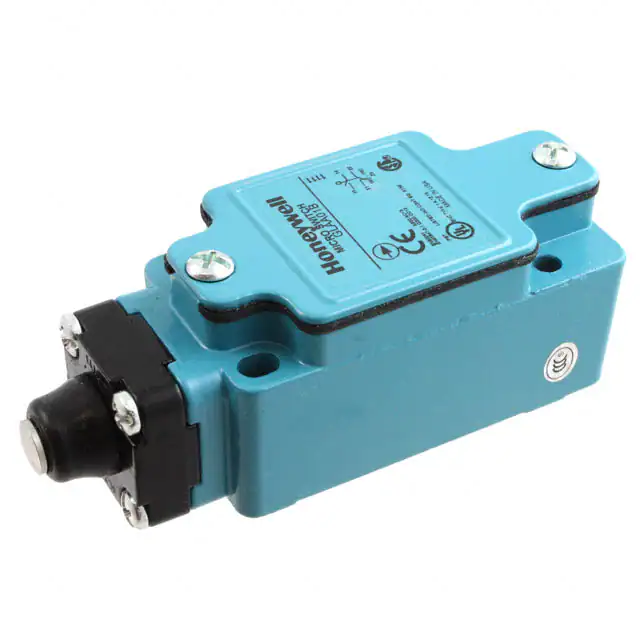

GLAA01BSWITCH SNAP ACTION SPDT 6A 120V |
0 |
|
Datasheet |
GLS | Bulk | Active | SPDT | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1632gf | - | 1.380" (35.0mm) | 0.100" (2.5mm) | 0.035" (0.9mm) | 0.180" (4.6mm) | -25°C ~ 85°C |
Limit Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Limit Switches?
This category includes related Limit Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Limit Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Limit Switches and other electronic components.
