Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4AC60SWITCH SNAP ACT SPDTX2 15A 125V |
0 |
|
- |
AC | Bulk | Active | SPDT x 2 | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Push-Pull Plunger | Chassis Mount | Screw Terminal | - | - | - | - | - | 0.188" (4.8mm) | - | 0.125" (3.2mm) | -55°C ~ 85°C |
|
DT-2R4-B6SWITCH SNAP ACTION DPDT 10A 125V |
0 |
|
Datasheet |
DT | Bulk | Obsolete | DPDT | On-Mom | 10A (AC), 300mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 340 ~ 567gf | 28gf | 0.615" (15.6mm) | 0.090" (2.3mm) | 0.060" (1.5mm) | 0.015" (0.4mm) | -55°C ~ 85°C |
|
|
D4E-1E21NSWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
D4E-xN | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | 1200gf | 500gf | 1.625" (41.3mm) | 0.060" (1.5mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | -10°C ~ 80°C |
|
|
SHL-Q2255-01L4MR VCTF 3MSWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
SHL | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Roller Plunger | Panel Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Status Indicator | 1000gf | 200gf | 1.695" (43.05mm) | 0.060" (1.5mm) | 0.020" (0.5mm) | 0.079" (2.0mm) | -10°C ~ 80°C |
|
|
SHL-W2155-L3MRSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
SHL | Bulk | Active | SPDT | On-Mom | 10A (AC), 5A (DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Status Indicator | 260gf | 50gf | 1.319" (33.5mm) | 0.512" (13.0mm) | 0.156" (4.0mm) | 0.217" (5.5mm) | -10°C ~ 80°C |
|
|
ZC-N2255-L3SWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
ZC | Bulk | Active | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Status Indicator | 700gf | 170gf | 1.866" (47.4mm) | 0.060" (1.5mm) | 0.008" (0.2mm) | 0.098" (2.5mm) | -10°C ~ 80°C |
|
|
ZV-N22-2SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
ZV | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Roller Plunger | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | 500gf | 100gf | 2.961" (75.2mm) | 0.040" (1.0mm) | 0.005" (0.13mm) | 0.138" (3.5mm) | -10°C ~ 80°C |
|
|
91SE2-6SEALED SWITCH |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

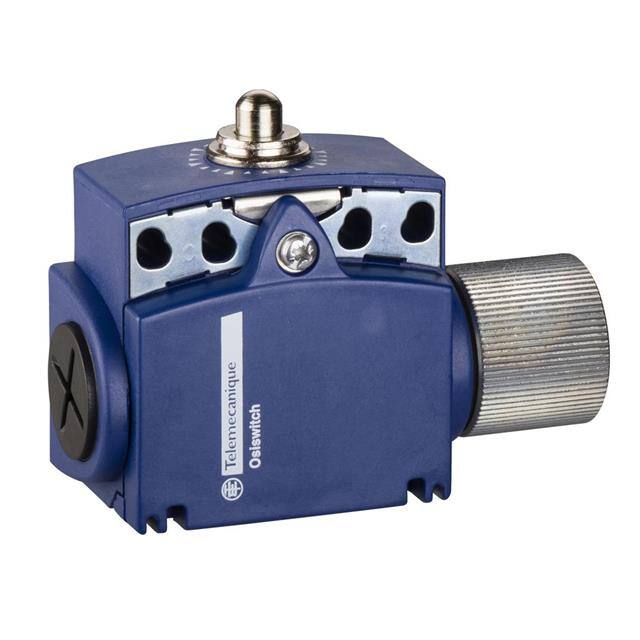

XCKT2710N12S23SWITCH LIMIT DPST-NC 3A 240V |
0 |
|
Datasheet |
XCKT | Box | Active | DPST-NC | On-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
XCKD6118G11SWITCH LIMIT DPST 3A 240V |
0 |
|
Datasheet |
XCKD | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
XCKJ50541H29SWITCH LIMIT DPST 3A 240V |
0 |
|
Datasheet |
XC | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
XCKD6845G11SWITCH LIMIT 3A 240V |
0 |
|
Datasheet |
XCKD | Box | Active | - | - | 3A (AC) | 240 V | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
618.1176.304SWITCH LIMIT PLASTIC BODY |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D4N-1F26SWITCH SNAP ACTION 3PST 3A 240V |
0 |
|
Datasheet |
D4N | Bulk | Active | 3PST-2NC/1NO (MBB) | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Metal Lever, Bearing Roller | 510gf | 51gf | - | 28° | - | 40° | -30°C ~ 70°C |
|
|
D4N-2CLESWITCH SNAP ACTION 3PST 3A 240V |
0 |
|
Datasheet |
D4N | Bulk | Active | 3PST-2NC/1NO | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Fork Lever Lock (Yoke) | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Left Operation, Rubber Rollers | 653gf | - | 6.5° | - | - | - | -30°C ~ 70°C |
|
|
D4N-4CLESWITCH SNAP ACTION 3PST 3A 240V |
0 |
|
Datasheet |
D4N | Bulk | Active | 3PST-2NC/1NO | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Fork Lever Lock (Yoke) | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Left Operation, Rubber Rollers | 653gf | - | 6.5° | - | - | - | -30°C ~ 70°C |
|
|
D4N-4CRESWITCH SNAP ACTION 3PST 3A 240V |
0 |
|
Datasheet |
D4N | Bulk | Last Time Buy | 3PST-2NC/1NO | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Fork Lever Lock (Yoke) | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Right Operation, Rubber Rollers | 653gf | - | 6.5° | - | - | - | -30°C ~ 70°C |
|
|
D4N-4DLESWITCH SNAP ACT 3PST-NC 3A 240V |
0 |
|
Datasheet |
D4N | Bulk | Active | 3PST-NC | On-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Fork Lever Lock (Yoke) | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Left Operation, Rubber Rollers | 653gf | - | 6.5° | - | - | - | -30°C ~ 70°C |
|
|
D4N-4DRESWITCH SNAP ACT 3PST-NC 3A 240V |
0 |
|
Datasheet |
D4N | Bulk | Last Time Buy | 3PST-NC | On-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Fork Lever Lock (Yoke) | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Right Operation, Rubber Rollers | 653gf | - | 6.5° | - | - | - | -30°C ~ 70°C |
|
|
SCN-2603SCSWITCH SNAP ACT SPST-NC 10A 125V |
0 |
|
Datasheet |
WZ | Bulk | Obsolete | SPST-NC | On-Mom | 10A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | - | - | 283gf | 43gf | 1.188" (30.2mm) | - | 0.030" (0.76mm) | 0.094" (2.4mm) | -55°C ~ 85°C |
Limit Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Limit Switches?
This category includes related Limit Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Limit Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Limit Switches and other electronic components.
