Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PS21L-NS11P0-M00SWITCH SNAP ACT DPST 5.5A 130V |
0 |
|
Datasheet |
PS21L | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 5.5A (AC), 2.8A (DC) | 130 V | 24 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | 3059gf | - | - | - | - | - | -25°C ~ 70°C |
|
BZ-2RQ18-P4SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Roller Plunger | Panel Mount | Screw Terminal | - | - | 255 ~ 368gf | 113gf | 1.313" (33.4mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.141" (3.6mm) | -55°C ~ 85°C |
|
XCMH2110L2LS PL MINI MTL PLUGR NCNO SNAP 2 |
0 |
|
Datasheet |
XCMH | Bulk | Active | DPST-NO/NC | On-Off, Off-On | 750mA (AC), 100mA (DC) | 240 V | 250 V | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
XCMH2159L1LS PL MINI PLASTIC ROD NCNO SNAP |
0 |
|
Datasheet |
XCMH | Bulk | Active | DPST-NO/NC | On-Off, Off-On | 750mA (AC), 100mA (DC) | 240 V | 250 V | Side Rotary, Adjustable Rod | Chassis Mount | Cable Leads | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
11SM423-H2SWITCH SNAP ACTION SPDT 1A 125V |
0 |
|
Datasheet |
SM | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 99gf | 28gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.001" (0.025mm) | 0.005" (0.13mm) | -55°C ~ 125°C |
|
|
11SM423-H4SWITCH SNAP ACTION SPDT 1A 125V |
0 |
|
Datasheet |
SM | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder, Quick Connect - 0.110" (2.8mm) | - | - | 99gf | 28gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.001" (0.025mm) | 0.005" (0.13mm) | -55°C ~ 125°C |
|
|
XCKN2118G11SWITCH LIMIT DPST 3A 240V |
0 |
|
Datasheet |
XC | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 100mA (DC) | 240 V | 250 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
XCKN2510P20SWITCH SNAP ACTION DPST 3A 240V |
0 |
|
Datasheet |
XC | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 100mA (DC) | 240 V | 250 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
D4N-3162SWITCH SNAP ACTION DPST 3A 240V |
0 |
|
Datasheet |
D4N | Bulk | Obsolete | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Lever, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 510gf | 82gf | 1.457" (37.0mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.197" (5.0mm) | -30°C ~ 70°C |
|
|
XCKN2121P20SWITCH LIMIT DPST 3A 240V |
0 |
|
Datasheet |
XC | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 100mA (DC) | 240 V | 250 V | Lever, Roller | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
XCKN2106P20SWITCH LIMIT DPST 3A 240V |
0 |
|
Datasheet |
XC | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 100mA (DC) | 240 V | 250 V | Spring, Cat Whisker | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
XCKN2103G11SWITCH SNAP ACTION DPST 3A 240V |
0 |
|
Datasheet |
XC | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 100mA (DC) | 240 V | 250 V | Roller Plunger | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|

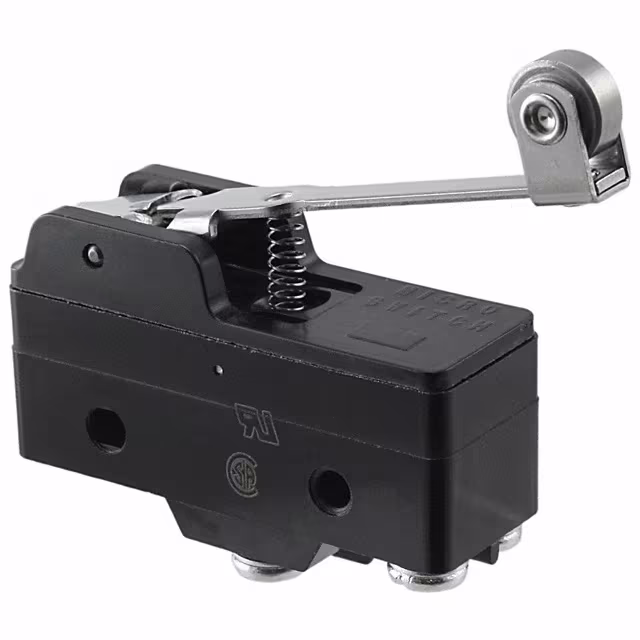

BZ-3YWT82SWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Screw Terminal | - | - | 127gf | 21gf | 1.188" (30.2mm) | - | 0.075" (1.9mm) | 0.156" (3.96mm) | -55°C ~ 85°C |
|
|
608.3000.201SWITCH LIMIT |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
608.3000.205SWITCH LIMIT |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
608.3000.206SWITCH LIMIT |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1SM282-1525SWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
- |
SM | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 141gf | 28gf | 0.330" (8.4mm) | 0.030" (0.8mm) | 0.002" (0.05mm) | 0.005" (0.13mm) | -55°C ~ 125°C |
|
83240020SWITCH SNAP ACTION DPST 6A 250V |
0 |
|
Datasheet |
PBX | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 600mA (DC) | 250 V | 250 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP40 | - | 459gf | - | 0.260" (6.6mm) | - | 0.040" (1.0mm) | - | -50°C ~ 85°C |
|
|
83242020SWITCH SNAP ACTION DPST 6A 250V |
0 |
|
Datasheet |
PBX | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 600mA (DC) | 250 V | 250 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP40 | - | 663gf | - | 0.260" (6.6mm) | - | 0.040" (1.0mm) | - | -50°C ~ 85°C |
|
|
D4V-8166Z-NSWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
D4V | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 24 V | Spring, Coil | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | 90gf | - | - | 1.181" (30.0mm) | - | - | -20°C ~ 60°C |
Limit Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Limit Switches?
This category includes related Limit Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Limit Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Limit Switches and other electronic components.
