Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
600.8107.019SWITCH LIMIT PLASTIC BODY |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
41SM1-H58SWITCH SNAP ACTION SPDT 11A 250V |
0 |
|
Datasheet |
SM | Bulk | Obsolete | SPDT | On-Mom | 11A (AC), 5A (DC) | 250 V | 30 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.058" (Round) | - | - | 141gf | 28gf | 0.330" (8.4mm) | 0.030" (0.8mm) | 0.004" (0.1mm) | 0.005" (0.13mm) | -55°C ~ 125°C |
|
|
GLDC01K8BSWITCH SNAP ACTION SPDT 6A 120V |
0 |
|
Datasheet |
GLS | Bulk | Obsolete | SPDT | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Spring, Cat Whisker | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 132gf | - | 16° | 16° | 10° | - | -25°C ~ 85°C |
|
|
MC2711BSWITCH PLUNGER ASSMBLY |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
XCKN2106G11SWITCH LIMIT DPST 3A 240V |
0 |
|
Datasheet |
XC | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 100mA (DC) | 240 V | 250 V | Spring, Cat Whisker | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
XCKN2127P20SWITCH SNAP ACTION DPST 3A 240V |
0 |
|
Datasheet |
XC | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 100mA (DC) | 240 V | 250 V | Lever, Roller | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
D4N-3A20SWITCH SNAP ACTION DPST 3A 240V |
0 |
|
Datasheet |
D4N | Bulk | Obsolete | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Resin Lever, Resin Roller | 510gf | 51gf | - | 18° | - | 40° | -30°C ~ 70°C |
|
|
D4N-1E62SWITCH SNAP ACTION DPST 3A 240V |
0 |
|
Datasheet |
D4N | Bulk | Active | DPST-NO/NC (MBB) | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Lever, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 510gf | 82gf | 1.417" (36.0mm) | 0.157" (4.0mm) | - | 0.197" (5.0mm) | -30°C ~ 70°C |
|
|
D4N-1E72SWITCH SNAP ACTION DPST 3A 240V |
0 |
|
Datasheet |
D4N | Bulk | Active | DPST-NO/NC (MBB) | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Lever, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 510gf | 82gf | 1.028" (26.1mm) | 0.157" (4.0mm) | - | 0.197" (5.0mm) | -30°C ~ 70°C |
|
|
D4N-4E62SWITCH SNAP ACTION DPST 3A 240V |
0 |
|
Datasheet |
D4N | Bulk | Active | DPST-NO/NC (MBB) | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Lever, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 510gf | 82gf | 1.417" (36.0mm) | 0.157" (4.0mm) | - | 0.197" (5.0mm) | -30°C ~ 70°C |
|

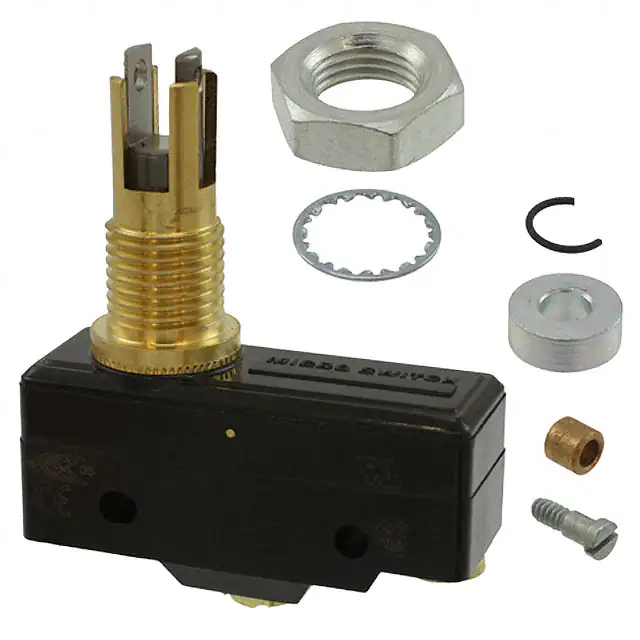

BZ-2RQ69SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Overtravel Plunger | Panel Mount | Screw Terminal | - | - | 255 ~ 368gf | 113gf | 1.703" (43.3mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.141" (3.6mm) | -55°C ~ 85°C |
|
|
600.8104.025SWITCH LIMIT PLASTIC BODY |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
NGCPB07BX07A6BSWITCH COMPACT LIMIT |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
NGCPB10AX07LSWITCH LIMIT |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
BZ-3YQ1TSWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT | On-Mom | 5A (AC) | 250 V | - | Overtravel Plunger | Panel Mount | Screw Terminal | - | - | 454 ~ 737gf | 113gf | 0.859" (21.8mm) | 0.030" (0.8mm) | 0.004" (0.1mm) | 0.219" (5.6mm) | -55°C ~ 85°C |
|
|
83139025SWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
83139 | Bulk | Active | SPDT (DB/DM) | On-Mom | 5A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Cable Length 0.5m | 265gf | 36gf | - | - | 0.028" (0.7mm) | - | 0°C ~ 85°C |
|
|
83139026SWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
83139 | Bulk | Active | SPDT (DB/DM) | On-Mom | 5A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Cable Length 0.5m | 173gf | 20gf | - | - | 0.049" (1.25mm) | - | 0°C ~ 85°C |
|
|
608.3000.200SWITCH LIMIT |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
608.3000.202SWITCH LIMIT |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
608.3000.204SWITCH LIMIT |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
