Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9224-07SWITCH BALL PLNGR SPST-NC 3A 24V |
0 |
|
- |
- | Bulk | Obsolete | SPST-NC | On-Mom | 3A (DC) | - | 24 V | Ball Bearing Plunger | Panel Mount | Screw Terminal | - | - | - | - | - | - | - | - | - |
|
|
NGCMB30AX01BSWITCH COMPACT LIMIT |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
NGCPB10AX01A1BSWITCH COMPACT LIMIT |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

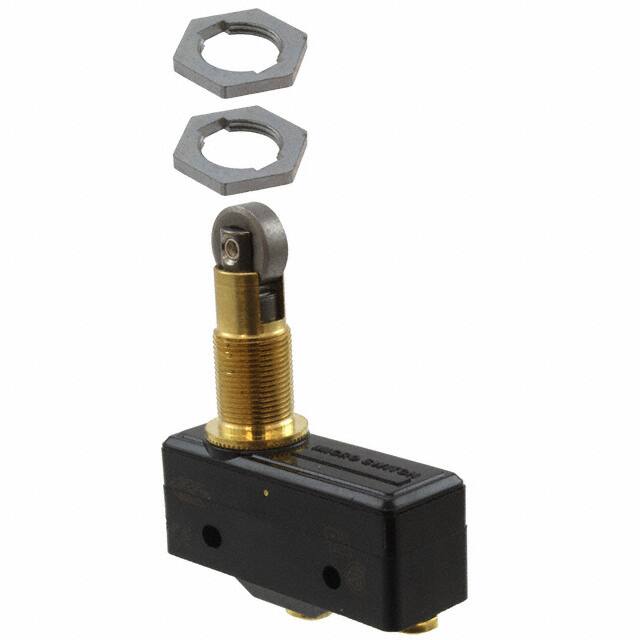

BZ-2RQ1872-A2SWITCH SNAP ACTION SPDT 1A 125V |
0 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 1A (AC) | 125 V | - | Roller Plunger | Panel Mount | Screw Terminal | - | - | 255 ~ 368gf | 113gf | 1.313" (33.4mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.141" (3.6mm) | -55°C ~ 85°C |
|
|
D4N-3131SWITCH SNAP ACTION DPST 3A 240V |
0 |
|
Datasheet |
D4N | Bulk | Obsolete | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 663gf | 153gf | 0.715" (18.2mm) | 0.080" (2.0mm) | 0.040" (1.0mm) | 0.158" (4.0mm) | -30°C ~ 70°C |
|
|
12BS211SWITC ADJ PLUNGER SPDT 15A SCREW |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
D4N-3132SWITCH SNAP ACTION DPST 3A 240V |
0 |
|
Datasheet |
D4N | Bulk | Obsolete | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 663gf | 153gf | 1.125" (28.6mm) | 0.080" (2.0mm) | 0.040" (1.0mm) | 0.158" (4.0mm) | -30°C ~ 70°C |
|

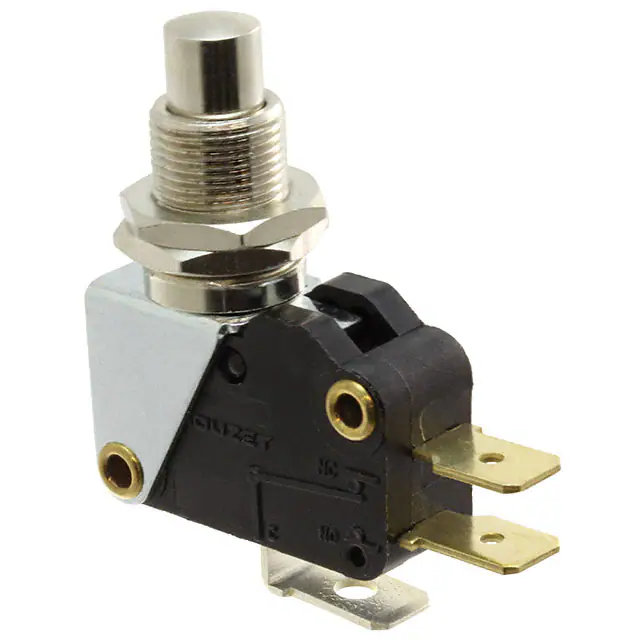

83131904SWITCH SNAP ACT QC PSH BTN ACT |
0 |
|
- |
83131 | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
Z-10FWY-BSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
Z | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Screw Terminal | IP00 | - | 90gf | 14gf | 0.748" (19.0mm) | - | 0.094" (2.4mm) | 0.219" (5.6mm) | -25°C ~ 80°C |
|
|
Z-15GW44A55-B5VSWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
Z | Bulk | Active | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Screw Terminal | IP62 | - | 90gf | 14gf | 0.748" (19.0mm) | - | 0.138" (3.5mm) | 0.219" (5.6mm) | -15°C ~ 80°C |
|
|
XCMN2115L10DSWITCH LIMIT THERMOPLASTIC RLLR |
0 |
|
Datasheet |
XCMN | Box | Active | DPST-NO/NC | On-Off, Off-On | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
32NT92-10SEALED OI SWITCH |
0 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
600.8101.007SWITCH LIMIT PLASTIC BODY |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BZ-7RL36872TSWITCH LARGE BASIC |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
XCMN2110L1SWITCH LIMIT DPST 1.5A 240V |
0 |
|
Datasheet |
XC | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 1.5A (AC), 100mA (DC) | 240 V | 250 V | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP65 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
XEP4E1W7A454SWITCH SNAP ACT SPDT 1.5A 240V |
0 |
|
Datasheet |
OsiSense XC | Box | Active | SPDT | On-On | 1.5A (AC), 100mA (DC) | 240 V | 250 V | Lever, Roller | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -40°C ~ 125°C |
|
|
XEP3S2W2B524SWITCH SNAP ACT SPDT 1.5A 240V |
0 |
|
Datasheet |
OsiSense XC | Box | Active | SPDT | On-On | 1.5A (AC), 300mA (DC) | 240 V | 250 V | Lever, Straight | Chassis Mount | Solder Lug | IP40 | - | - | - | - | - | - | - | -25°C ~ 125°C |
|
|
XEP3S1W2B524SWITCH SNAP ACT SPDT 1.5A 240V |
0 |
|
Datasheet |
OsiSense XC | Box | Active | SPDT | On-On | 1.5A (AC), 100mA (DC) | 240 V | 250 V | Lever, Straight | Chassis Mount | Solder Lug | IP40 | - | - | - | - | - | - | - | -25°C ~ 125°C |
|
|
XEP3S2W3B524SWITCH SNAP ACT SPDT 1.5A 240V |
0 |
|
- |
OsiSense XC | Box | Active | SPDT | On-On | 1.5A (AC), 300mA (DC) | 240 V | 250 V | Lever, Straight | Chassis Mount | Cable Leads | IP40 | - | - | - | - | - | - | - | -25°C ~ 125°C |
|
|
XEP3S1W3B524SWITCH SNAP ACT SPDT 1.5A 240V |
0 |
|
Datasheet |
OsiSense XC | Box | Active | SPDT | On-On | 1.5A (AC), 100mA (DC) | 240 V | 250 V | Lever, Straight | Chassis Mount | Cable Leads | IP40 | - | - | - | - | - | - | - | -25°C ~ 125°C |
Limit Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Limit Switches?
This category includes related Limit Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Limit Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Limit Switches and other electronic components.
