Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D2SW-3DSSWITCH SNAP ACTION SPDT 3A 125V |
572 |
|
Datasheet |
D2SW | Tray | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | - | 180gf | 30gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.020" (0.5mm) | -40°C ~ 85°C |
|

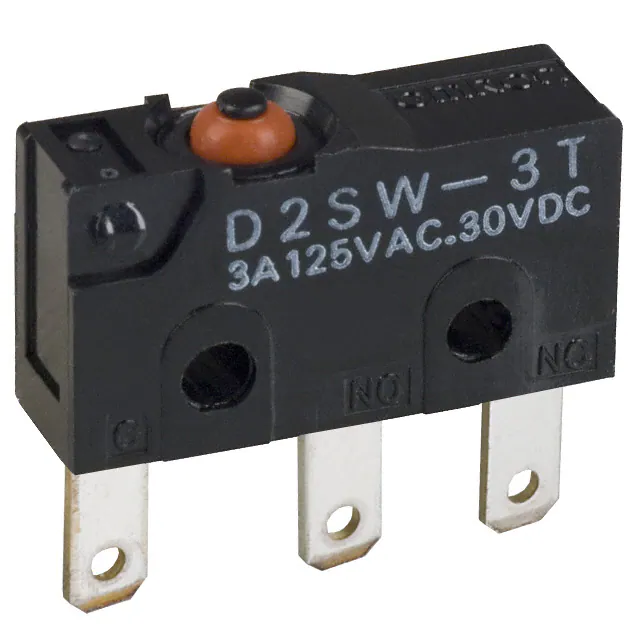

D2SW-3TSSWITCH SNAP ACTION SPDT 3A 125V |
503 |
|
Datasheet |
D2SW | Tray | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | 180gf | 30gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.020" (0.5mm) | -40°C ~ 85°C |
|
D2HW-C202MSWITCH SNP ACT SPST-NC 0.1A 125V |
341 |
|
Datasheet |
D2HW | Bulk | Active | SPST-NC | On-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 76gf | 10gf | 0.250" (6.4mm) | - | 0.010" (0.25mm) | 0.055" (1.4mm) | -40°C ~ 85°C |
|

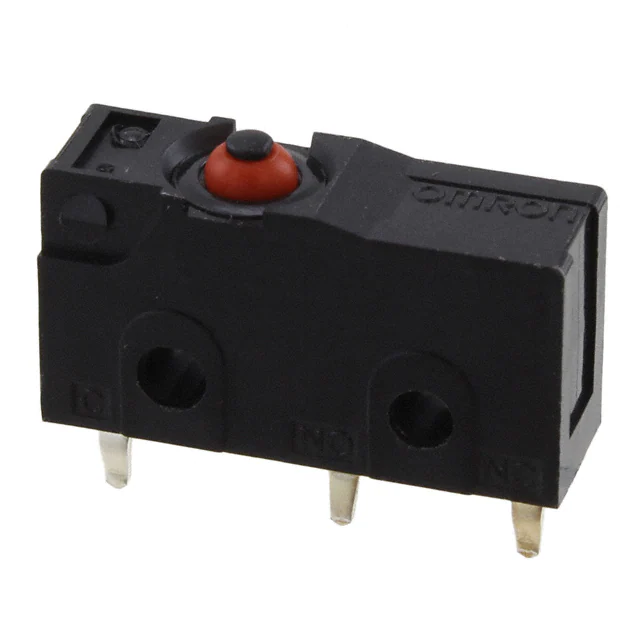

D2SW-3DSWITCH SNAP ACTION SPDT 3A 125V |
357 |
|
Datasheet |
D2SW | Bulk | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | - | 180gf | 30gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.020" (0.5mm) | -40°C ~ 85°C |
|
ABS461150SWITCH SNAP ACTION SPDT 2A 125V |
145 |
|
Datasheet |
ABS | Bulk | Active | SPDT | On-Mom | 2A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 60gf | 4.079gf | 0.345" (8.8mm) | 0.100" (2.5mm) | 0.020" (0.5mm) | 0.032" (0.81mm) | -40°C ~ 85°C |
|
X0230674SWITCH SNAP ACT SPDT 0.1A 250V |
1,067 |
|
Datasheet |
83170 | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | Actuator Mounted Left Side | 9.000gf | 1.500gf | 0.520" (13.2mm) | - | 0.041" (1.05mm) | 0.138" (3.5mm) | -20°C ~ 130°C |
|
VX-56-1C23SWITCH SNAP ACTION SPDT 5A 125V |
1,061 |
|
Datasheet |
VX | Tray | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 30gf | - | 0.815" (20.7mm) | 0.157" (4.0mm) | 0.031" (0.8mm) | 0.062" (1.6mm) | -25°C ~ 80°C |
|
D2HW-C283MRSWITCH SNP ACT SPST-NO 0.1A 125V |
265 |
|
Datasheet |
D2HW | Bulk | Active | SPST-NO | Off-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Lever, Leaf | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 92gf | 5.099gf | 0.606" (15.4mm) | - | 0.027" (0.7mm) | 0.110" (2.8mm) | -40°C ~ 85°C |
|
V7-6C37E9-036SWITCH SNAP ACT SPST-NC 15A 125V |
157 |
|
Datasheet |
V7 | Bulk | Active | SPST-NC | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 170gf | 28gf | 0.602" (15.3mm) | 0.172" (4.4mm) | 0.038" (0.97mm) | 0.090" (2.3mm) | -40°C ~ 85°C |
|
D2HW-BR201MSWITCH SNAP ACT SPDT 0.1A 125V |
1,285 |
|
Datasheet |
D2HW | Tray | Active | SPDT | On-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Support Posts | 76gf | 10gf | 0.250" (6.4mm) | - | 0.010" (0.25mm) | 0.055" (1.4mm) | -40°C ~ 85°C |
|
|
D2GW-SC02MSEALED SWITCH PCB PIN PLUNGER |
330 |
|
- |
D2GW | Tray | Active | SPST-NC | On-Mom | 10mA (DC) | - | 13.5 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 122gf | 10gf | 0.276" (7.0mm) | - | 0.010" (0.25mm) | 0.065" (1.7mm) | -40°C ~ 85°C |
|
V7-1B17D8-207SWITCH SNAP ACTION SPDT 11A 125V |
404 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 11A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 85gf | 9.000gf | 0.812" (20.6mm) | 0.114" (2.9mm) | 0.030" (0.76mm) | 0.060" (1.5mm) | -40°C ~ 85°C |
|
V7-2A17D8-207SWITCH SNAP ACTION SPDT 5A 125V |
229 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 43gf | 3.000gf | 0.812" (20.6mm) | 0.114" (2.9mm) | 0.025" (0.6mm) | 0.060" (1.5mm) | -40°C ~ 85°C |
|
ASQ10620SWITCH SNAP ACT SPST-NC 0.1A 30V |
165 |
|
Datasheet |
ASQ1 | Bulk | Active | SPST-NC | On-Mom | 100mA (DC) | - | 30 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 153gf | - | 0.330" (8.4mm) | - | - | 0.087" (2.2mm) | -40°C ~ 85°C |
|

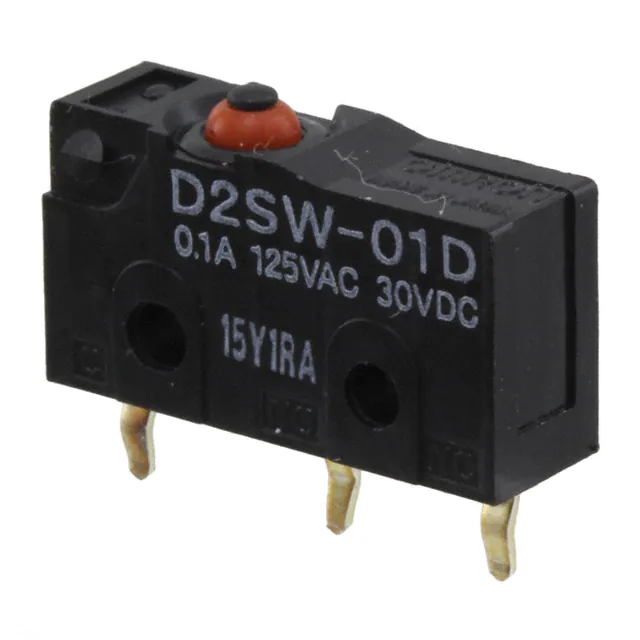

D2SW-01DSWITCH SNAP ACT SPDT 0.1A 125V |
538 |
|
Datasheet |
D2SW | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | - | 180gf | 30gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.020" (0.5mm) | -40°C ~ 85°C |
|
V7-3S17E9-022SWITCH SNAP ACT SPDT 0.1A 125V |
851 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 28gf | 1.000gf | 0.602" (15.3mm) | 0.120" (3.0mm) | 0.027" (0.7mm) | 0.065" (1.7mm) | -40°C ~ 85°C |
|

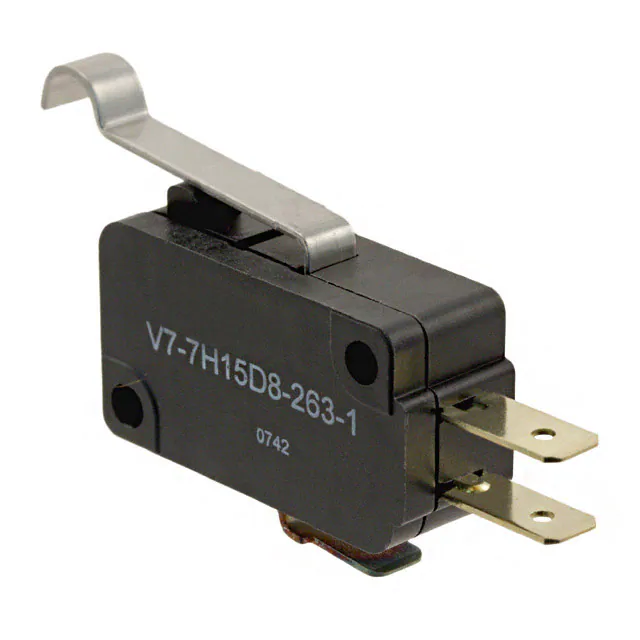

V7-7H15D8-263-1SWITCH SNAP ACTION SPDT 5A 125V |
166 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 113gf | 14gf | 0.730" (18.5mm) | 0.125" (3.2mm) | 0.050" (1.3mm) | 0.080" (2.03mm) | -40°C ~ 85°C |
|
VX-013-1C23SWITCH SNAP ACT SPDT 0.1A 125V |
191 |
|
Datasheet |
VX | Tray | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 20gf | - | 0.600" (15.2mm) | 0.354" (9.0mm) | 0.080" (2.0mm) | 0.125" (3.2mm) | -25°C ~ 80°C |
|
VX-012-1C23SWITCH SNAP ACT SPDT 0.1A 125V |
170 |
|
Datasheet |
VX | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 30gf | - | 0.600" (15.2mm) | 0.157" (4.0mm) | 0.031" (0.8mm) | 0.062" (1.6mm) | -25°C ~ 80°C |
|
V-151-3A6SWITCH SNAP ACT SPST-NO 15A 250V |
132 |
|
Datasheet |
V | Bulk | Active | SPST-NO | Off-Mom | 15A (AC), 600mA (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 400gf | 50gf | 0.600" (15.2mm) | 0.063" (1.6mm) | 0.025" (0.6mm) | 0.030" (0.76mm) | -25°C ~ 80°C |
