Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
11SM703-TSWITCH SNAP ACTION SPDT 4A 250V |
0 |
|
Datasheet |
SM | Bulk | Active | SPDT | On-Mom | 4A (AC), 5A (DC) | 250 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | 56gf | 14gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.002" (0.05mm) | 0.005" (0.13mm) | -55°C ~ 125°C |
|
|
V15W-WP200-W2SWITCH V15W BASIC SPNO |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
VM3SAQF3003L01SWITCH LIMIT SPST-NO 10A 125V |
0 |
|
Datasheet |
VM3S | Box | Active | SPST-NO | Off-Mom | 10A (AC), 6A (DC) | 125 V | 36 V | Lever, Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 210gf | 100gf | 0.795" (20.2mm) | 0.118" (3.0mm) | 0.050" (1.3mm) | 0.031" (0.8mm) | -40°C ~ 120°C |
|
ADPDC2J04AYSWITCH SNAP ACT DPST-NO 15A 125V |
0 |
|
Datasheet |
A | Tray | Active | DPST-NO | Off-Mom | 15A (AC) | 125 V | - | Overtravel Plunger | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 850gf | 170gf | - | 0.050" (1.27mm) | - | 0.187" (4.75mm) | -55°C ~ 85°C |
|
VM3SBQF3003L06SWITCH LIMIT SPST-NC 10A 125V |
0 |
|
Datasheet |
VM3S | Box | Active | SPST-NC | On-Mom | 10A (AC), 6A (DC) | 125 V | 36 V | Lever, Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 380gf | 160gf | 0.799" (20.3mm) | 0.067" (1.7mm) | 0.040" (1.0mm) | 0.012" (0.3mm) | -40°C ~ 120°C |
|
|
D2HW-BR241M BY OMRSWITCH SNAP ACTION SUBMINI BASIC |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

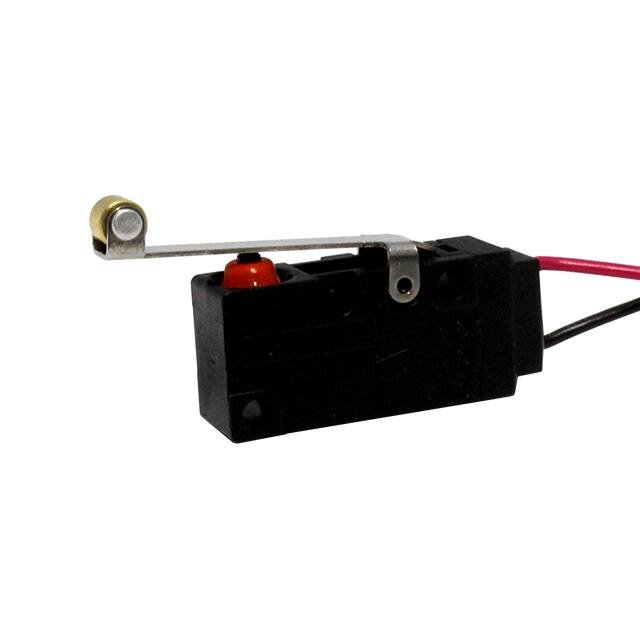

VM3SBQF3003L01SWITCH LIMIT SPST-NC 10A 125V |
0 |
|
Datasheet |
VM3S | Box | Active | SPST-NC | On-Mom | 10A (AC), 6A (DC) | 125 V | 36 V | Lever, Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 210gf | 100gf | 0.795" (20.2mm) | 0.118" (3.0mm) | 0.050" (1.3mm) | 0.031" (0.8mm) | -40°C ~ 120°C |
|
11SM1SWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
SM | Tray | Active | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 141gf | 28gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.004" (0.1mm) | 0.005" (0.13mm) | -55°C ~ 125°C |
|
|
BZ-R546-D6SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT | On-Mom | 15A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 269gf | 187gf | 0.625" (15.9mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.005" (0.13mm) | -55°C ~ 85°C |
|
|
WA-2R62-P5SWITCH LARGE BASIC |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
V15W-WC200A02-W2SWITCH BASIC |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
8629SWITCH PRESS STLMP |
0 |
|
Datasheet |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HK3141AAPAEXSWITCH DETECTOR SPDT 5A 250V |
0 |
|
Datasheet |
3140 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Angled Toggle (Detector) | Panel Mount, Snap-In | Quick Connect - 0.110" (2.8mm) | Splash Proof | - | - | - | - | - | - | - | - |
|
|
HK3141BAWAEXSWITCH DETECTOR SPDT 5A 250V |
0 |
|
Datasheet |
3140 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Angled Toggle (Detector) | Panel Mount, Snap-In | Quick Connect - 0.110" (2.8mm) | Splash Proof | - | - | - | - | - | - | - | - |
|
|
HK3141BABAEXSWITCH DETECTOR SPDT 5A 250V |
0 |
|
Datasheet |
3140 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Angled Toggle (Detector) | Panel Mount, Snap-In | Quick Connect - 0.110" (2.8mm) | Splash Proof | - | - | - | - | - | - | - | - |
|
|
HK3141CAWAEXSWITCH DETECTOR SPDT 5A 250V |
0 |
|
Datasheet |
3140 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Angled Toggle (Detector) | Panel Mount, Snap-In | Quick Connect - 0.110" (2.8mm) | Splash Proof | - | - | - | - | - | - | - | - |
|
|
HK3141BAPAEXSWITCH DETECTOR SPDT 5A 250V |
0 |
|
Datasheet |
3140 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Angled Toggle (Detector) | Panel Mount, Snap-In | Quick Connect - 0.110" (2.8mm) | Splash Proof | - | - | - | - | - | - | - | - |
|
|
HK3141CABAEXSWITCH DETECTOR SPDT 5A 250V |
0 |
|
Datasheet |
3140 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Angled Toggle (Detector) | Panel Mount, Snap-In | Quick Connect - 0.110" (2.8mm) | Splash Proof | - | - | - | - | - | - | - | - |
|
|
HK3141AAWAEXSWITCH DETECTOR SPDT 5A 250V |
0 |
|
Datasheet |
3140 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Angled Toggle (Detector) | Panel Mount, Snap-In | Quick Connect - 0.110" (2.8mm) | Splash Proof | - | - | - | - | - | - | - | - |
|
|
HK3141DAWAEXSWITCH DETECTOR SPDT 5A 250V |
0 |
|
Datasheet |
3140 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Angled Toggle (Detector) | Panel Mount, Snap-In | Quick Connect - 0.110" (2.8mm) | Splash Proof | - | - | - | - | - | - | - | - |
