Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VM3SAQF3003L00SWITCH LIMIT SPST-NO 10A 125V |
0 |
|
Datasheet |
VM3S | Box | Active | SPST-NO | Off-Mom | 10A (AC), 6A (DC) | 125 V | 36 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 320gf | 250gf | 0.581" (14.75mm) | 0.080" (2.0mm) | 0.031" (0.80mm) | 0.024" (0.6mm) | -40°C ~ 120°C |
|
D2SW-01L3-3MSWITCH SNP ACT SPST-NO 0.1A 125V |
0 |
|
Datasheet |
D2SW | Bulk | Active | SPST-NO | Off-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 60gf | 6.118gf | 0.420" (10.7mm) | - | 0.031" (0.8mm) | 0.040" (1.0mm) | -40°C ~ 85°C |
|
D2MV1L221C2SWITCH SNAP ACTION SPDT 1A 125V |
0 |
|
Datasheet |
D2MV | Bulk | Obsolete | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 25gf | 2.039gf | 0.815" (20.7mm) | 0.067" (1.7mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -25°C ~ 80°C |
|

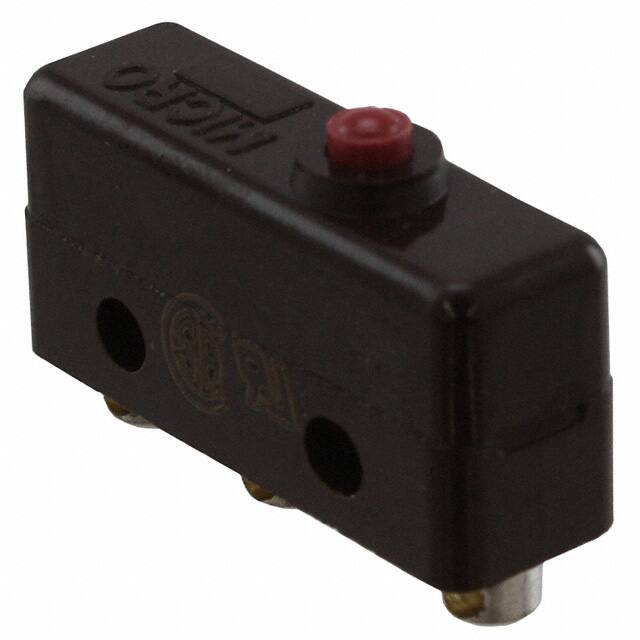

11SM701SWITCH SNAP ACTION SPDT 4A 250V |
0 |
|
Datasheet |
SM | Bulk | Active | SPDT | On-Mom | 4A (AC), 5A (DC) | 250 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 56gf | 14gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.002" (0.05mm) | 0.005" (0.13mm) | -55°C ~ 125°C |
|
VM3SAQF3003L04SWITCH LIMIT SPST-NO 10A 125V |
0 |
|
Datasheet |
VM3S | Box | Active | SPST-NO | Off-Mom | 10A (AC), 6A (DC) | 125 V | 36 V | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 300gf | 250gf | 0.591" (15.00mm) | 0.080" (2.0mm) | 0.040" (1.0mm) | 0.020" (0.5mm) | -40°C ~ 120°C |
|
|
BZ-2R291-A4SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 255 ~ 368gf | 113gf | 0.625" (15.9mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.005" (0.13mm) | -55°C ~ 85°C |
|
VM3SBQF3003L00SWITCH LIMIT SPST-NC 10A 125V |
0 |
|
Datasheet |
VM3S | Box | Active | SPST-NC | On-Mom | 10A (AC), 6A (DC) | 125 V | 36 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 320gf | 250gf | 0.581" (14.75mm) | 0.080" (2.0mm) | 0.031" (0.80mm) | 0.024" (0.6mm) | -40°C ~ 120°C |
|
ADPFF3P04ACSWITCH SNAP ACTION DPDT 25A 125V |
0 |
|
Datasheet |
A | Tray | Active | DPDT | On-Mom | 25A (AC), 2A (DC) | 125 V | 24 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 1134gf | 170gf | - | 0.050" (1.27mm) | - | 0.050" (1.27mm) | -55°C ~ 85°C |
|
VM3SAQF3003L02SWITCH LIMIT SPST-NO 10A 125V |
0 |
|
Datasheet |
VM3S | Box | Active | SPST-NO | Off-Mom | 10A (AC), 6A (DC) | 125 V | 36 V | Lever, Simulated Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 200gf | 180gf | 0.720" (18.3mm) | 0.118" (3.0mm) | 0.060" (1.5mm) | 0.024" (0.6mm) | -40°C ~ 120°C |
|
VM3SAQF3003L03SWITCH LIMIT SPST-NO 10A 125V |
0 |
|
Datasheet |
VM3S | Box | Active | SPST-NO | Off-Mom | 10A (AC), 6A (DC) | 125 V | 36 V | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 180gf | 80gf | 0.587" (14.90mm) | 0.138" (3.5mm) | 0.060" (1.5mm) | 0.039" (1.0mm) | -40°C ~ 120°C |
|
|
41SM27-TSWITCH SNAP ACTION SPDT 11A 250V |
0 |
|
Datasheet |
SM | Bulk | Obsolete | SPDT | On-Mom | 11A (AC), 5A (DC) | 250 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | 141gf | 28gf | 0.330" (8.4mm) | 0.030" (0.8mm) | 0.004" (0.1mm) | 0.005" (0.13mm) | -55°C ~ 125°C |
|
|
V15W11-WZ200A02-W3SWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
V15W | Bulk | Obsolete | SPDT | On-Mom | 10A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 120gf | 10gf | 0.602" (15.3mm) | 0.125" (3.2mm) | 0.047" (1.2mm) | 0.051" (1.3mm) | -40°C ~ 85°C |
|
|
ZW10E90FW4SWITCH SNP ACT SPDT-NC 0.1A 125V |
0 |
|
Datasheet |
ZW | Box | Active | SPST-NC | On-Mom | 100mA (AC) | 125 V | - | Lever, Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -40°C ~ 120°C |
|
VM3SBQF3003L04SWITCH LIMIT SPST-NC 10A 125V |
0 |
|
Datasheet |
VM3S | Box | Active | SPST-NC | On-Mom | 10A (AC), 6A (DC) | 125 V | 36 V | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 300gf | 250gf | 0.591" (15.00mm) | 0.080" (2.0mm) | 0.040" (1.0mm) | 0.020" (0.5mm) | -40°C ~ 120°C |
|
|
11SM8850-H58SWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
SM | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.058" (Round) | - | - | 141gf | 28gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.004" (0.1mm) | 0.005" (0.13mm) | -55°C ~ 125°C |
|
VM3SBQF3003L03SWITCH LIMIT SPST-NC 10A 125V |
0 |
|
Datasheet |
VM3S | Box | Active | SPST-NC | On-Mom | 10A (AC), 6A (DC) | 125 V | 36 V | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 180gf | 80gf | 0.587" (14.90mm) | 0.138" (3.5mm) | 0.060" (1.5mm) | 0.039" (1.0mm) | -40°C ~ 120°C |
|
VM3SBQF3003L02SWITCH LIMIT SPST-NC 10A 125V |
0 |
|
Datasheet |
VM3S | Box | Active | SPST-NC | On-Mom | 10A (AC), 6A (DC) | 125 V | 36 V | Lever, Simulated Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 200gf | 180gf | 0.720" (18.3mm) | 0.118" (3.0mm) | 0.060" (1.5mm) | 0.024" (0.6mm) | -40°C ~ 120°C |
|
D2SW-01L1-3MSSWITCH SNP ACT SPST-NO 0.1A 125V |
0 |
|
Datasheet |
D2SW | Bulk | Active | SPST-NO | Off-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 60gf | 6.118gf | 0.345" (8.8mm) | - | 0.031" (0.8mm) | 0.040" (1.0mm) | -40°C ~ 85°C |
|
D2SW-01L3-3MSSWITCH SNP ACT SPST-NO 0.1A 125V |
0 |
|
Datasheet |
D2SW | Bulk | Active | SPST-NO | Off-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 60gf | 6.118gf | 0.420" (10.7mm) | - | 0.031" (0.8mm) | 0.040" (1.0mm) | -40°C ~ 85°C |
|

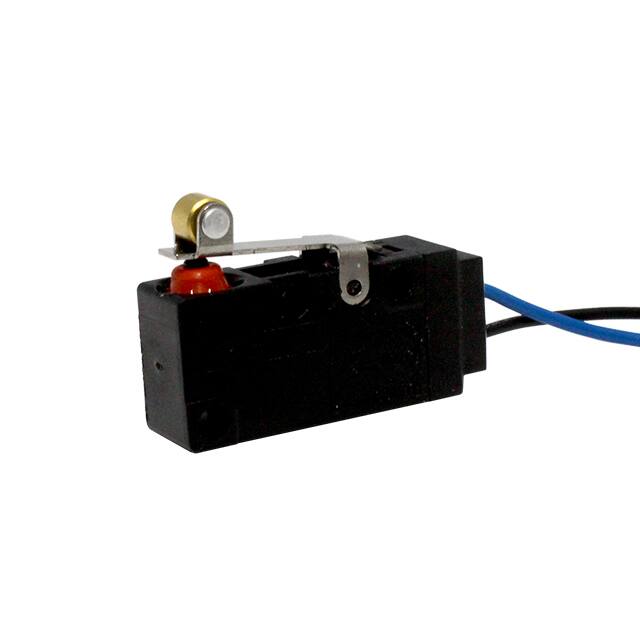

VM3SAQF3003L06SWITCH LIMIT SPST-NO 10A 125V |
0 |
|
Datasheet |
VM3S | Box | Active | SPST-NO | Off-Mom | 10A (AC), 6A (DC) | 125 V | 36 V | Lever, Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 380gf | 160gf | 0.799" (20.3mm) | 0.067" (1.7mm) | 0.040" (1.0mm) | 0.012" (0.3mm) | -40°C ~ 120°C |
Limit Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Limit Switches?
This category includes related Limit Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Limit Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Limit Switches and other electronic components.
