Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WLCL-NSWITCH SNAP ACTION SPDT 10A 125V |
1 |
|
Datasheet |
WL-N | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Side Rotary, Adjustable Rod | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 141gf | 27gf | - | 15° | 12° | 70° | -10°C ~ 80°C |
|
SHL-W2155-01SWITCH SNAP ACT SPDT 0.1A 125V |
1 |
|
Datasheet |
SHL | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 260gf | 50gf | 1.319" (33.5mm) | 0.512" (13.0mm) | 0.156" (4.0mm) | 0.217" (5.5mm) | -10°C ~ 80°C |
|
WLCA2-7-NSWITCH SNAP ACTION SPDT 10A 125V |
1 |
|
Datasheet |
WL-N | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1040gf | 92gf | - | 15° | 12° | 70° | -10°C ~ 80°C |
|

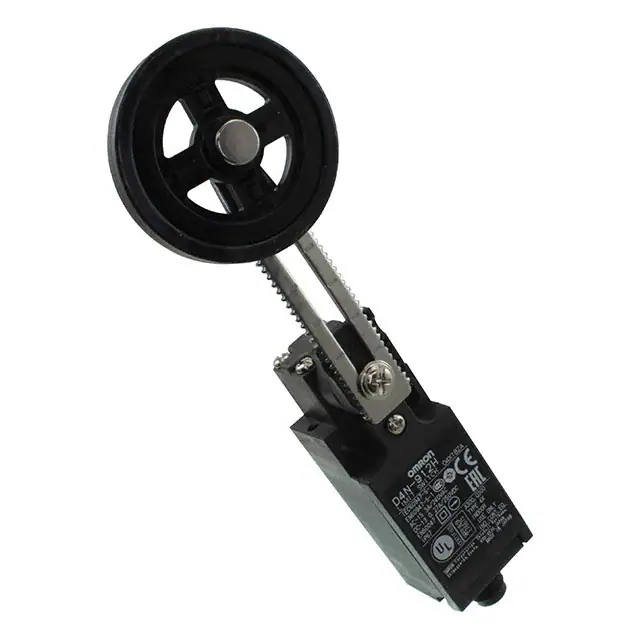

D4N-912HSWITCH SNAP ACTION DPST 3A 240V |
1 |
|
Datasheet |
D4N | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Adjustable Roller | Chassis Mount | Connector | IP67 - Dust Tight, Waterproof | Metal Lever, Rubber Roller | 459gf | 41gf | - | 18° | 14° | 40° | -30°C ~ 70°C |
|
83880102SWITCH SNAP ACTION DPST 6A 250V |
1 |
|
Datasheet |
83880 | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 8A (DC) | 250 V | 24 V | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | Cable Length 2m | 1020gf | - | - | - | - | - | -25°C ~ 70°C |
|

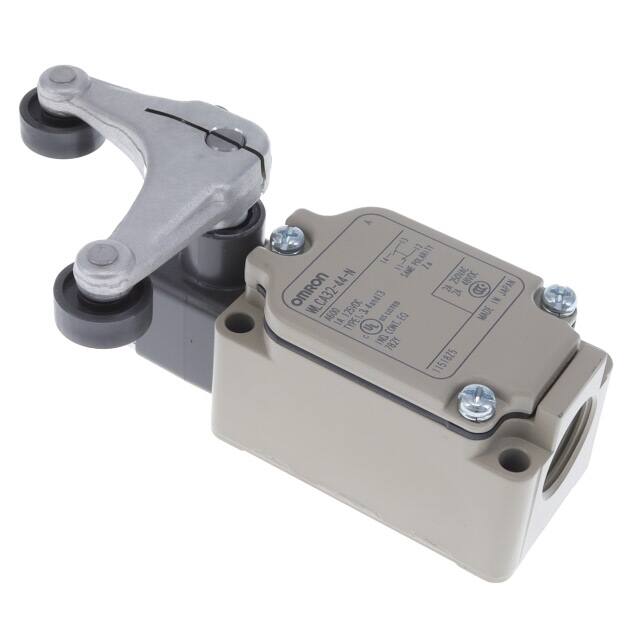

WLCA32-44-NSWITCH SNAP ACTION SPDT 10A 125V |
1 |
|
Datasheet |
WL-N | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Side Rotary, Fork Lever Lock (Yoke) | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1200gf | - | - | 55° | - | 35° | -10°C ~ 80°C |
|
D4N-4ALESWITCH SNAP ACTION DPST 3A 240V |
1 |
|
Datasheet |
D4N | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Fork Lever Lock (Yoke) | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Left Operation, Rubber Rollers | 653gf | - | 6.5° | - | - | - | -30°C ~ 70°C |
|
ZE-Q21-2GSWITCH SNAP ACTION SPDT 15A 125V |
1 |
|
Datasheet |
ZE | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Cross Roller Plunger | Chassis Mount | Screw Terminal | IP60 - Dust Tight | - | 250 ~ 350gf | 114gf | 1.957" (49.7mm) | 0.020" (0.5mm) | 0.002" (0.05mm) | 0.141" (3.6mm) | -10°C ~ 80°C |
|
ZV-NJ-2SSWITCH SNAP ACTION SPDT 15A 125V |
1 |
|
Datasheet |
ZV | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Spring, Coil | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | 150gf | - | - | 15° | - | - | -10°C ~ 80°C |
|
D4E-R1A21NSWITCH SNAP ACTION SPDT 1A 30V |
1 |
|
Datasheet |
D4ER-xN | Bulk | Active | SPDT | On-Mom | 1A (DC) | - | 30 V | Roller Plunger | Panel Mount | Cable Leads | IP67G - Dust Tight, Oil Resistant, Waterproof | Cable Length 2m | 1200gf | 500gf | 1.235" (31.4mm) | 0.060" (1.5mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | 5°C ~ 70°C |
|
WLCA2-2NLD-NSWITCH SNAP ACTION SPDT 10A 125V |
1 |
|
Datasheet |
WL-N | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Status Indicator | 1360gf | 120gf | - | 20° | 10° | 70° | -10°C ~ 80°C |
|
83881102SWITCH SNAP ACTION DPST 6A 250V |
0 |
|
Datasheet |
83880 | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 8A (DC) | 250 V | 24 V | Roller Plunger | Chassis Mount | Cable Leads | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | Cable Length 2m | 1020gf | - | - | - | - | - | -25°C ~ 70°C |
|
83881112SWITCH SNAP ACTION DPST 6A 250V |
0 |
|
Datasheet |
83880 | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 8A (DC) | 250 V | 24 V | Roller Plunger | Chassis Mount | Cable Leads | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | Cable Length 2m | 1020gf | - | - | - | - | - | -25°C ~ 70°C |
|

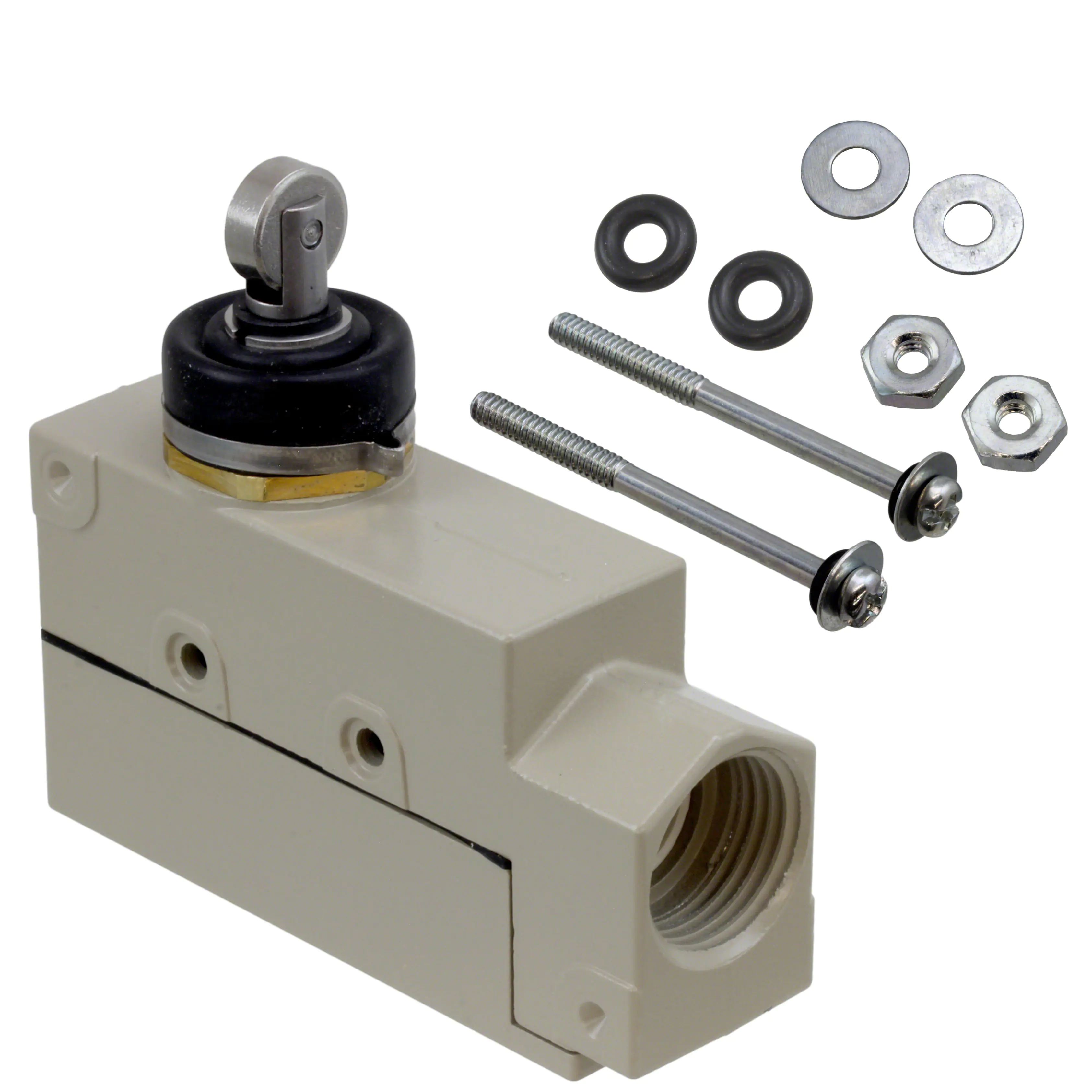

ZE-N21-2SSWITCH SNAP ACTION SPDT 15A 125V |
1 |
|
Datasheet |
ZE | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Cross Roller Plunger | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | 500gf | 100gf | 1.957" (49.7mm) | 0.040" (1.0mm) | 0.005" (0.13mm) | 0.138" (3.5mm) | -10°C ~ 80°C |
|

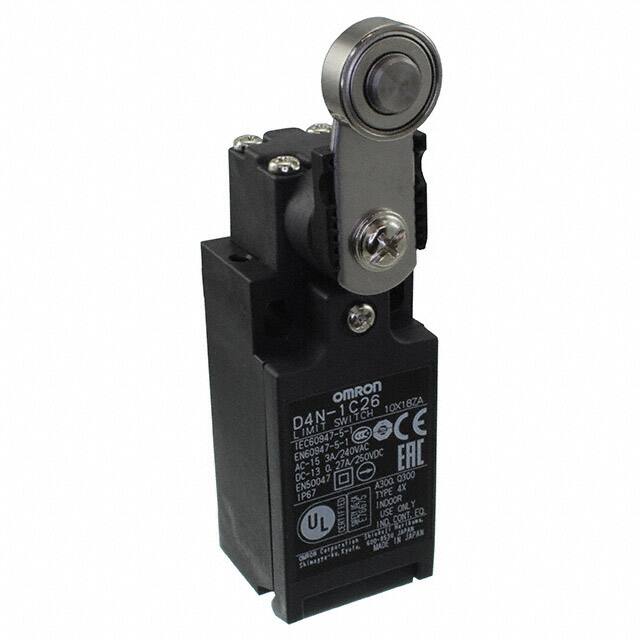

D4N-1C26SWITCH SNAP ACTION 3PST 3A 240V |
1 |
|
Datasheet |
D4N | Bulk | Active | 3PST-2NC/1NO | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Metal Lever, Bearing Roller | 510gf | 51gf | - | 18° | - | 40° | -30°C ~ 70°C |
|
D5B-1025SWITCH SNP ACT SPST-NC 0.03A 30V |
1 |
|
Datasheet |
D5B | Bulk | Active | SPST-NC | On-Mom | 30mA (DC) | - | 30 V | Cone | Panel Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 5m | 40gf | - | - | 0.080" (2.0mm) | - | - | -10°C ~ 70°C |
|
ZV2-N22-2SSWITCH SNAP ACTION SPDT 15A 125V |
1 |
|
Datasheet |
ZV2 | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Roller Plunger | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | 500gf | 100gf | 1.405" (35.7mm) | 0.040" (1.0mm) | 0.005" (0.13mm) | 0.138" (3.5mm) | -10°C ~ 80°C |
|

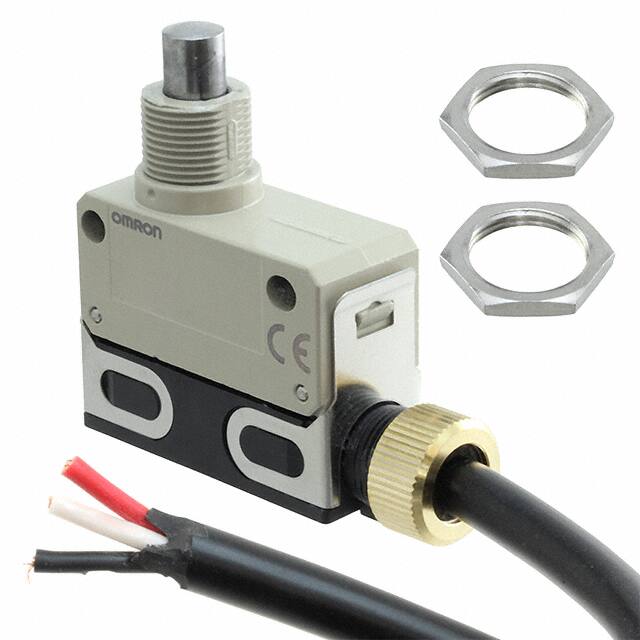

D4E-1C21NSWITCH SNAP ACTION SPDT 5A 125V |
1 |
|
Datasheet |
D4E-xN | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Panel Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | 1200gf | 500gf | 1.000" (25.4mm) | 0.060" (1.5mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | -10°C ~ 80°C |
|

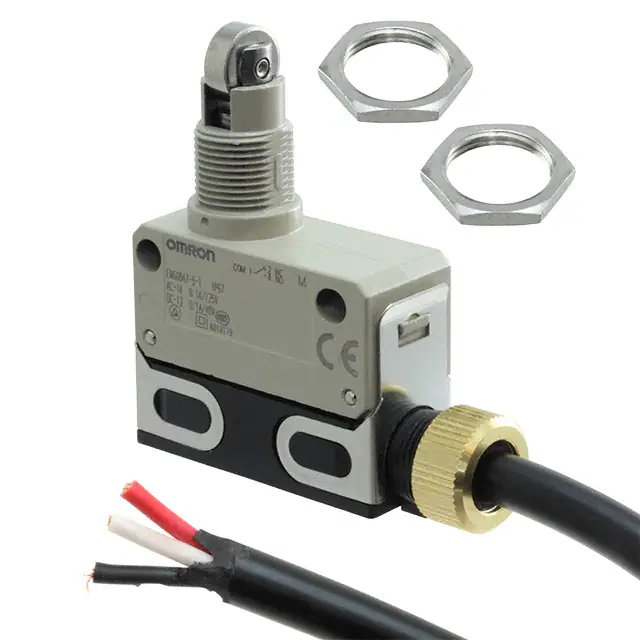

D4E-2B21NSWITCH SNAP ACT SPDT 0.1A 125V |
1 |
|
Datasheet |
D4E-xN | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Cross Roller Plunger | Panel Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | 1200gf | 500gf | 1.235" (31.4mm) | 0.060" (1.5mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | -10°C ~ 80°C |
|
83843013SWITCH SNAP ACTION SPDT 6A 250V |
0 |
|
Datasheet |
83843 | Bulk | Active | SPDT (DB/DM) | On-Mom | 6A (AC), 3A (DC) | 250 V | 24 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | 20gfm | - | 25° | 25° | 7° | 60° | -20°C ~ 70°C |
Limit Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Limit Switches?
This category includes related Limit Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Limit Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Limit Switches and other electronic components.
