Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D2SW-P2MSWITCH SNAP ACTION SPDT 2A 250V |
0 |
|
Datasheet |
D2SW-P | Bulk | Active | SPDT | On-Mom | 2A (AC/DC) | 250 V | 30 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 183gf | 20gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.006" (0.15mm) | 0.015" (0.4mm) | -20°C ~ 70°C |
|
VM3SBQF1803L00SWITCH LIMIT SPST-NC 10A 125V |
0 |
|
Datasheet |
VM3S | Box | Active | SPST-NC | On-Mom | 10A (AC), 6A (DC) | 125 V | 36 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 180gf | 100gf | 0.581" (14.75mm) | 0.063" (1.6mm) | 0.031" (0.8mm) | 0.031" (0.8mm) | -40°C ~ 120°C |
|
VM3SBQF1803L06SWITCH LIMIT SPST-NC 10A 125V |
0 |
|
Datasheet |
VM3S | Box | Active | SPST-NC | On-Mom | 10A (AC), 6A (DC) | 125 V | 36 V | Lever, Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 240gf | 100gf | 0.807" (20.50mm) | 0.060" (1.5mm) | 0.040" (1.0mm) | 0.020" (0.5mm) | -40°C ~ 120°C |
|
VM3SCGF1803L03SWITCH LIMIT SPDT 10A 125V |
0 |
|
Datasheet |
VM3S | Box | Active | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 36 V | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 120gf | 40gf | 0.602" (15.30mm) | 0.138" (3.5mm) | 0.060" (1.5mm) | 0.039" (1.0mm) | -40°C ~ 120°C |
|

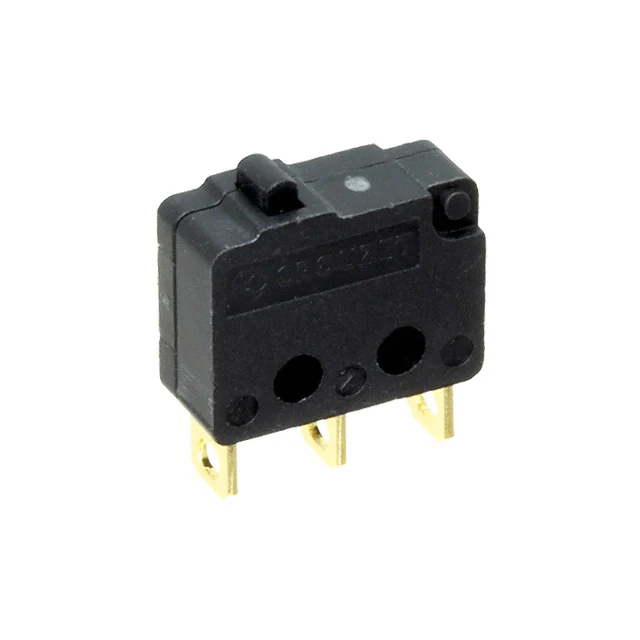

83194001SWITCH SNAP ACTION SPDT 5A 250V |
5 |
|
Datasheet |
V5D | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP40 | - | 143gf | 25gf | 0.319" (8.1mm) | - | 0.005" (0.13mm) | 0.010" (0.25mm) | -40°C ~ 85°C |
|
BZ-2RW84467-A2SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Screw Terminal | - | - | 21gf | 14gf | 0.750" (19.1mm) | 0.562" (14.3mm) | 0.080" (2.0mm) | 0.266" (6.75mm) | -55°C ~ 85°C |
|
MMGGF5L0TSWITCH SNAP ACTION SPDT 1A 125V |
0 |
|
Datasheet |
MM | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Straight | Through Hole | PC Pin | - | - | 115gf | 20gf | 0.330" (8.4mm) | 0.090" (2.3mm) | 0.026" (0.65mm) | 0.045" (1.1mm) | -55°C ~ 135°C |
|
83293009SWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
V3DS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 204gf | 20gf | 0.579" (14.7mm) | - | 0.020" (0.5mm) | 0.040" (1.0mm) | -40°C ~ 85°C |
|
12TL402SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
TL | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Push-Pull Plunger | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | - | - | - | - | - | - | -55°C ~ 150°C |
|
Z-15EW565SWITCH SNAP ACTION SPDT 15A 125V |
5 |
|
Datasheet |
Z | Bulk | Active | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | - | Chassis Mount | Solder Lug | IP40 | - | - | - | - | - | - | - | -25°C ~ 80°C |
|
23TL402SWITCH SNAP ACT SPDTX2 15A 125V |
0 |
|
Datasheet |
TL | Bulk | Active | SPDT x 2 | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Push-Pull Plunger | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | - | - | - | - | - | - | -55°C ~ 150°C |
|

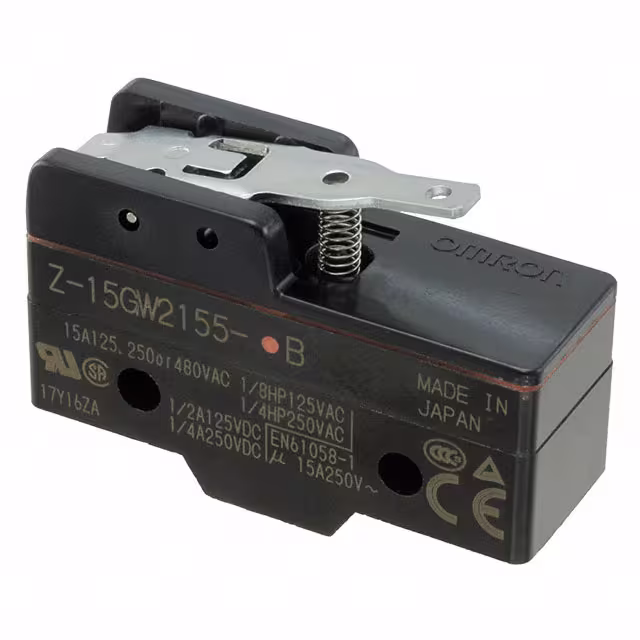

Z-15GW2155-BSWITCH SNAP ACTION SPDT 15A 125V |
4 |
|
Datasheet |
Z | Bulk | Active | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Screw Terminal | IP62 | - | 160gf | 28gf | 0.748" (19.0mm) | - | 0.040" (1.0mm) | 0.079" (2.0mm) | -15°C ~ 80°C |
|
4SX3-TSWITCH SNAP ACTION SPDT 7A 250V |
0 |
|
Datasheet |
SX | Bulk | Active | SPDT | On-Mom | 7A (AC/DC) | 250 V | 28 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | 141gf | 28gf | 0.320" (8.13mm) | 0.020" (0.5mm) | 0.003" (0.075mm) | 0.004" (0.1mm) | -55°C ~ 204°C |
|
D2VW-01L1B-1MSSWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
D2VW | Tray | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 60gf | 5.099gf | 0.600" (15.2mm) | 0.354" (9.0mm) | 0.080" (2.0mm) | 0.125" (3.2mm) | -40°C ~ 85°C |
|
D4N-2C31SWITCH SNAP ACTION 3PST 3A 240V |
2 |
|
Datasheet |
D4N | Bulk | Active | 3PST-2NC/1NO | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 663gf | 153gf | 0.715" (18.2mm) | 0.080" (2.0mm) | - | 0.158" (4.0mm) | -30°C ~ 70°C |
|
D4N-1262SWITCH SNAP ACT DPST-NC 3A 240V |
1 |
|
Datasheet |
D4N | Bulk | Active | DPST-NC | On-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Lever, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 510gf | 82gf | 1.457" (37.0mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.197" (5.0mm) | -30°C ~ 70°C |
|
Z-15GQ2155-BSWITCH SNAP ACTION SPDT 15A 125V |
2 |
|
Datasheet |
Z | Tray | Active | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Cross Roller Plunger | Panel Mount | Screw Terminal | IP62 | - | 540gf | 114gf | 1.313" (33.4mm) | 0.071" (1.8mm) | 0.002" (0.05mm) | 0.141" (3.6mm) | -15°C ~ 80°C |
|
D4N-2A62SWITCH SNAP ACTION DPST 3A 240V |
3 |
|
Datasheet |
D4N | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Lever, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 510gf | 82gf | 1.457" (37.0mm) | 0.157" (4.0mm) | - | 0.197" (5.0mm) | -30°C ~ 70°C |
|
D4N-2C32RSWITCH SNAP ACTION 3PST 10A 120V |
1 |
|
Datasheet |
D4N-R | Bulk | Active | 3PST-2NC/1NO | On-Off | 10A (AC), 2.5A (DC) | 120 V | 125 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Reset Function | 1101gf | - | 1.748" (44.4mm) | 0.080" (2.0mm) | - | - | -30°C ~ 70°C |
|
Z-01HS-BSWITCH SNAP ACT SPDT 0.1A 125V |
3 |
|
Datasheet |
Z | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP00 | - | 250gf | 80gf | 1.110" (28.2mm) | 0.020" (0.5mm) | 0.002" (0.05mm) | 0.062" (1.6mm) | -25°C ~ 80°C |
